Hot Selling Factory Price Wifi Chip Price ESP8266 12F ESP12F ESP8266 Wi Fi module WT8266 S5 ESP 12F

Product Overview

Description

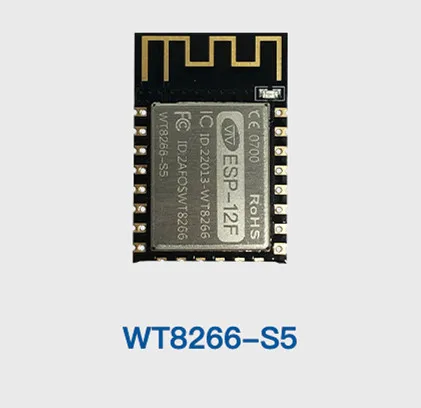

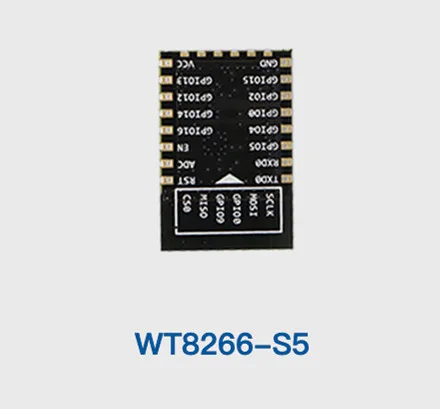

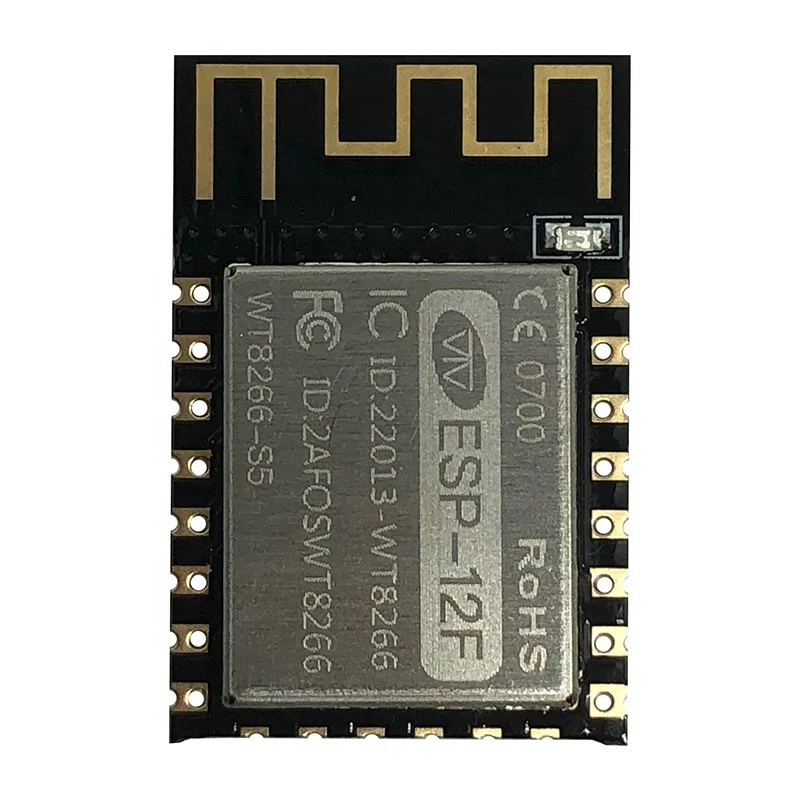

Hot Selling Factory PriceWifi Chip Price ESP8266 Wi-Fi module WT8266-S5

WT8266-S5 Wi-Fi module is a low consumption, high performance Wi-Fi network control module designed by Wireless-Tag. It can meet the IoT application requirements in smart power grids, building automation, security and protection, smart home, remote health care etc.

The module's core processor ESP8266 integrates an enhanced version of Tensilica's L106 Diamond series 32-bit processor with smaller package size and 16 bit compact mode, main frequency support 80 MHz and 160 MHz, support RTOS, integrated Wi-Fi MAC / BB / RF / PA / LNA, on-board PCB antenna.

The module supports standard IEEE802.11 b / g / n protocol, a complete TCP / IP protocol stack.it can be used to hostthe application or to offload Wi-Fi networking functions from another application processor.

Features

SMD-22 package for easy welding

PCB Antenna

Operating Voltage: 3.3V

Operating Temperature:-20-85°C

CPU Tensilica L106

• RAM50KB(Available)


• Flash16Mbit/32Mbit(32Mbit default)

System

• 802.11 b/g/n


• Integrated Tensilica L106 ultra-low power 32-bitmicro MCU, with 16-bit RSIC. The CPU clock speed is 80MHz. It can also reach a maximum value of 160MHz.


• WIFI 2.4 GHz,support W E P/W PA-PSK/ W PA2-PSK


• Ultra-Small 24mm*16mm*3mm(±0.2mm)


• Integrated 10 bit high precision ADC


• Integrated TCP/IP StackoIntegrated TR switch, balun,LNA, Power amplifier and matching network


• Deep sleep current<20uA, Power down leakage current < 5uA


• Standby power consumption<1.0mW (DTIM3)oUART baud rate up to 4MbpsoSupport AT remote upgrades and cloud OTA upgrade


• Support STA/AP/STA+AP operation modes oFCC/CE/RoHs
