OEM Customized 1L 2L 5L 10L 20L 50L 100L 200L Chemical Sealed Glass Jacketed Reactor Vessel
- Category: >>>
- Supplier: Labfirst Scientific Instruments (Shanghai) Co. Ltd.
Share on (62204722360):
Product Overview
Description

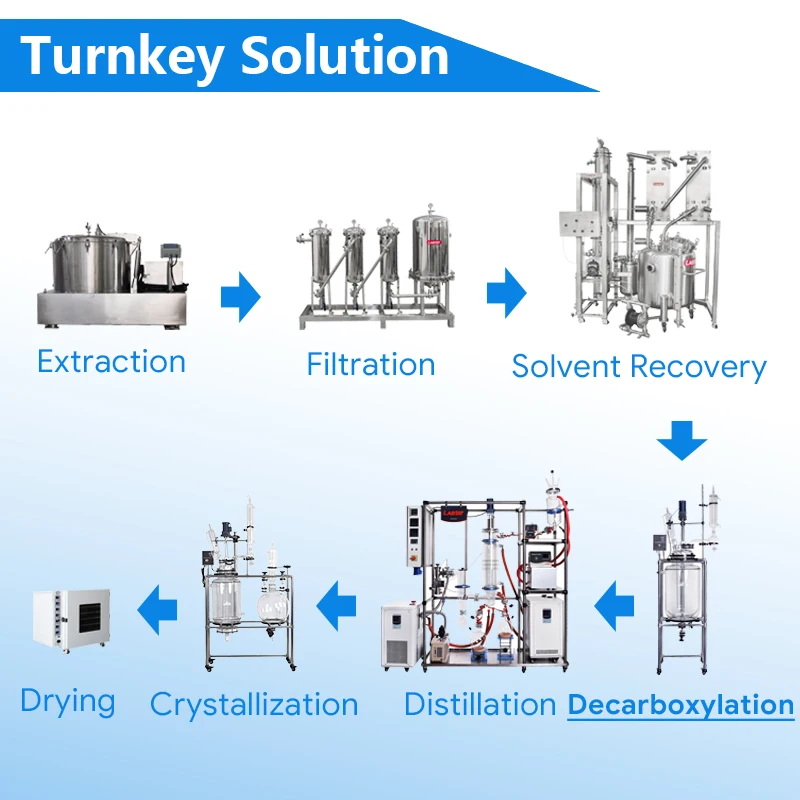

Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Office in China
Warehouse in USA
Warehouse in China
Products Description
Model | JGR-1L | JGR-2L | JGR-5L | JGR-10L | |||
Electrical Requirements | 110/220V, 60Hz | 110/220V, 50/60Hz | |||||
Standard Stirring Motor Power | 120W | ||||||
Reaction Vessel Capacity | 1L | 2L | 5L | 10L | |||
Cooling/Heating Jacket Capacity | 1L | 1.5L | 2L | 3L | |||
Glass Vessel Temperature Range | -120℃~250℃ | ||||||
Inner Vessel Pressure | Under 0.098Mpa | ||||||
Installation Dimension (W*D*H mm) | 440×360×1325 | 440×360×1325 | 520×500×1510 | 700×600×2030 | |||
Weight(kg) | 40 | 40 | 60 | 90 | |||
Model | JGR-20L | JGR-30L | JGR-50L | JGR-80L | |||
Electrical Requirements | 110/220V, 50/60Hz 1‐PH | 110/220V, 50/60Hz | |||||
Standard Stirring Motor Power | 120W | 200W | |||||
Reaction Vessel Capacity | 20L | 30L | 50L | 80L | |||
Cooling/Heating Jacket Capacity | 6L | 10L | 16L | 24L | |||
Glass Vessel Temperature Range | -120℃~250℃ | ||||||
Inner Vessel Pressure | Under 0.098Mpa | ||||||
Installation Dimension (W*D*H mm) | 720×650×2110 | 750×650×2450 | 750×650×2450 | 850×700×2550 | |||
Weight(kg) | 110 | 115 | 120 | 140 | |||
Model | JGR-100L | JGR-150L | JGR-200L | ||
Electrical Requirements | 110/220V, 50/60Hz 1‐PH | 220V, 50/60Hz 1‐PH | |||
Standard Stirring Motor Power | 120W | 750W | |||
Reaction Vessel Capacity | 100L | 150L | 200L | ||
Cooling/Heating Jacket Capacity | 30L | 35L | 40L | ||
Glass Vessel Temperature Range | -120℃~250℃ | ||||
Inner Vessel Pressure | Under 0.098Mpa | ||||
Installation Dimension (W*D*H mm) | 850×700×2550 | 1000×1300×3000 | 1000×1300×3200 | ||
Weight(kg) | 160 | 210 | 270 | ||

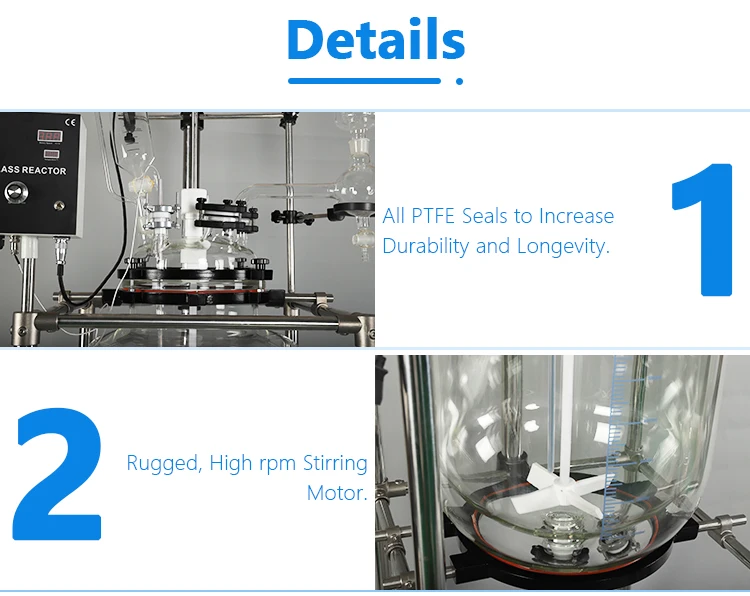

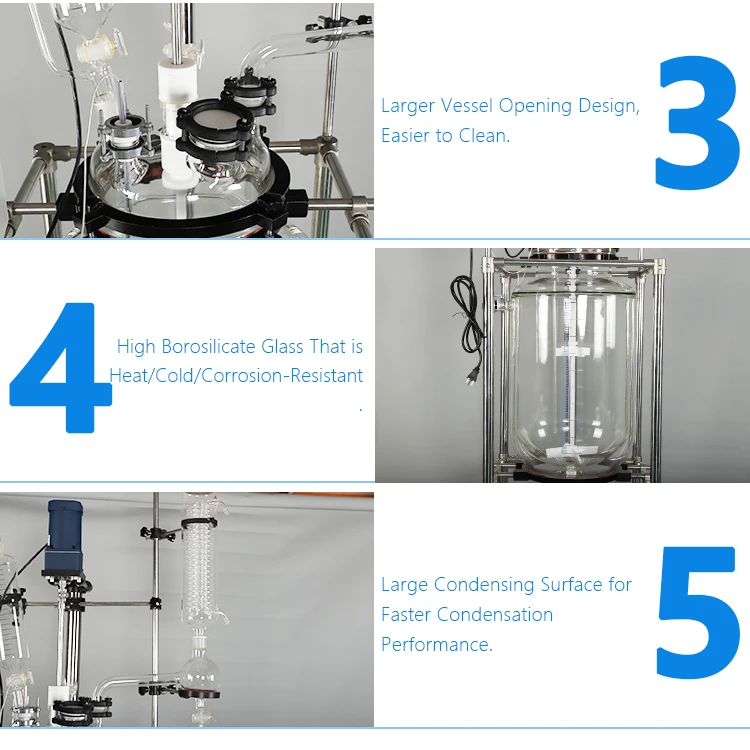

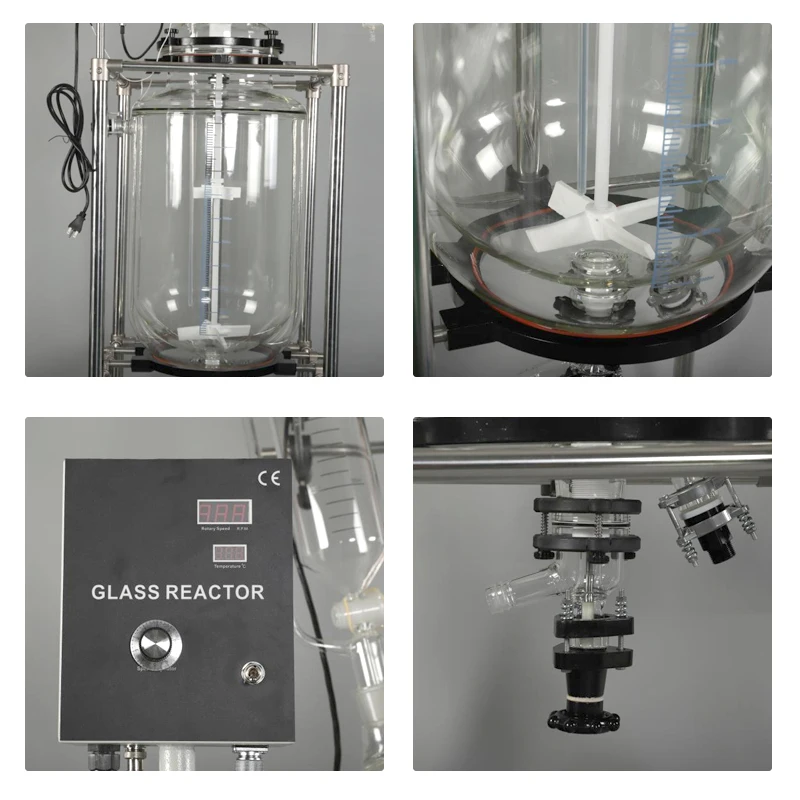

Details
Customer Review
Recommend Products
About Us
FAQ
1.How many ports on the lid?
There are 6 standard ports on the lid of 10L to 200L reactors, including thermometer, vacuum suction, solid inlet, constant pressure funnel, reflux and stirring port. For 1L to 5L reactors, only 5ports on the lid without solid inlet port.
2.Can you provide other type impellers/blades?
Yes, different kinds of blades for your choices, such as pitch blade, anchor blade, sprial propeller blade, ribbon blade, pitch-blade, angled pitch blade, rushton blade, etc.
3.Can I make some changes on this reactor?
No problem, we provide customization service.
4.What’s size of the adapters of the vessel?
They are standard barb or male thread adapters. Please refer to our detailed data specification.
5.Can this reactor make isolate?
Yes, you can use it for isolation by high experienced operators. If you are not familiar with the operation technology, our special designed isolation/crystallization reactor will be your best choice.
There are 6 standard ports on the lid of 10L to 200L reactors, including thermometer, vacuum suction, solid inlet, constant pressure funnel, reflux and stirring port. For 1L to 5L reactors, only 5ports on the lid without solid inlet port.
2.Can you provide other type impellers/blades?
Yes, different kinds of blades for your choices, such as pitch blade, anchor blade, sprial propeller blade, ribbon blade, pitch-blade, angled pitch blade, rushton blade, etc.
3.Can I make some changes on this reactor?
No problem, we provide customization service.
4.What’s size of the adapters of the vessel?
They are standard barb or male thread adapters. Please refer to our detailed data specification.
5.Can this reactor make isolate?
Yes, you can use it for isolation by high experienced operators. If you are not familiar with the operation technology, our special designed isolation/crystallization reactor will be your best choice.
