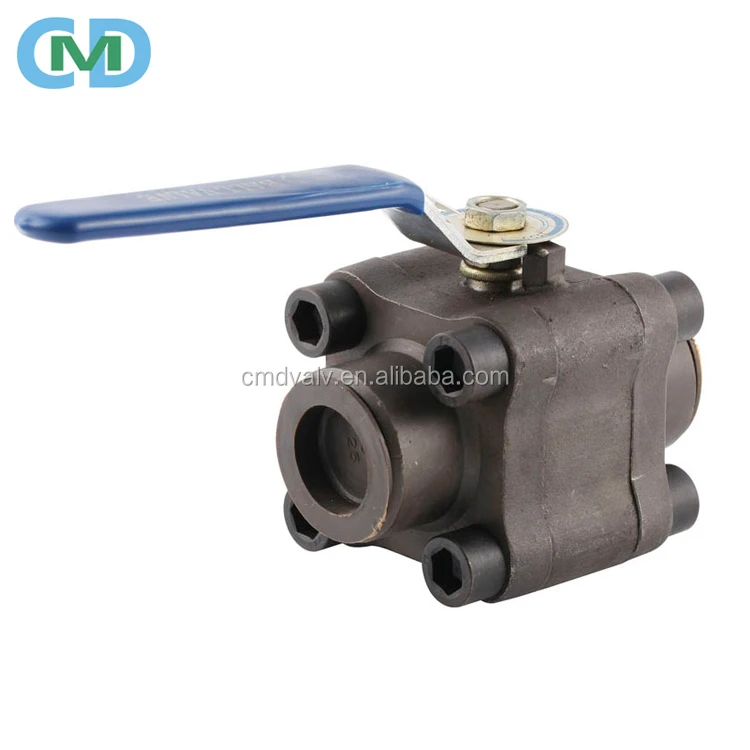

100mm PE SW 3PCS 1500LB 800LB Butt Weld SCH 40 80 Forged Steel Ball Valve
100mm PE SW 3PCS 1500LB 800LB Butt Weld SCH 40 80 Forged Steel Ball Valve

100mm PE SW 3PCS 1500LB 800LB Butt Weld SCH 40 80 Forged Steel Ball Valve

Share on (62205041563):


Price:

Quantity:


Product Overview

Description

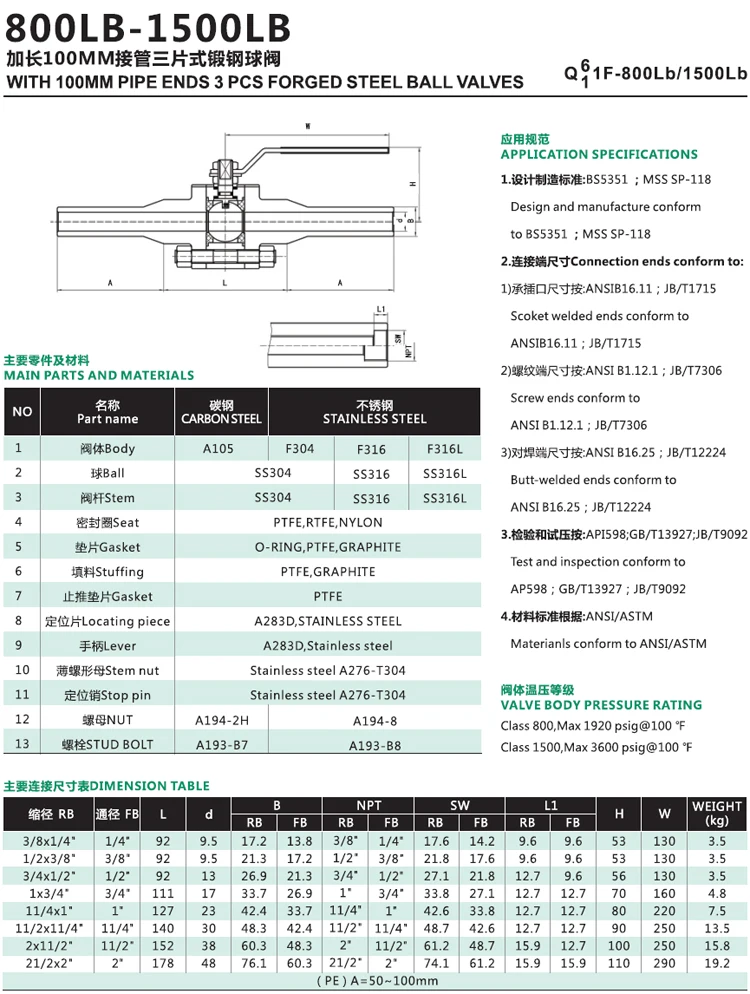

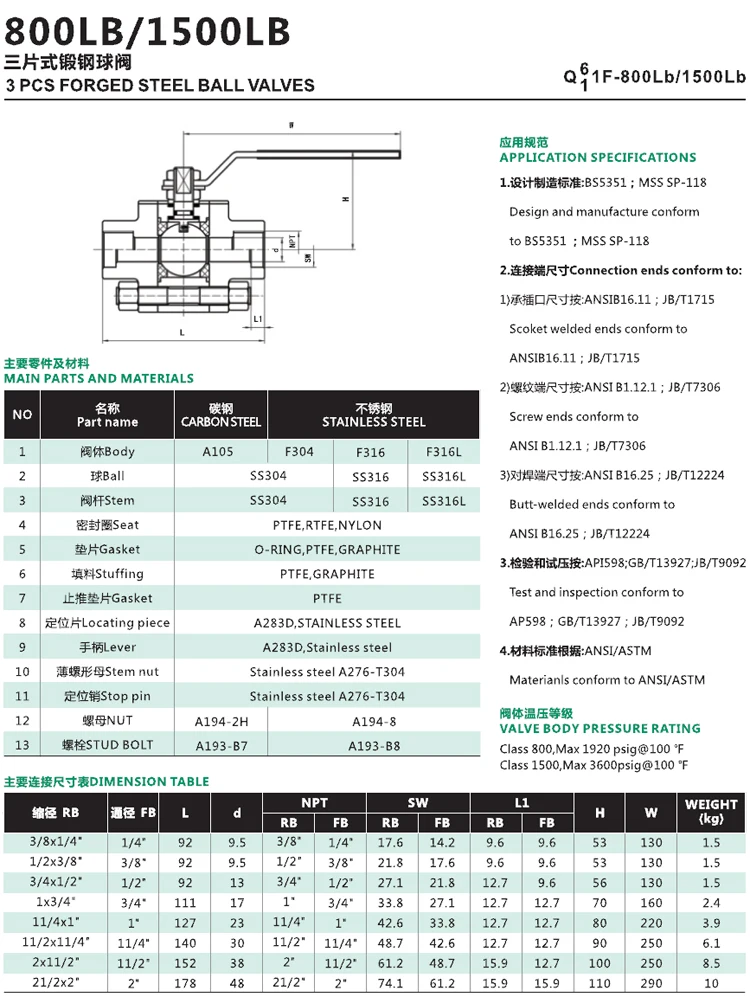

SPECIFICATIONS FOR 3PCS FORGED STEEL BALL VALVES










Pressure rating and size:



ANSI Class150 to Class 2500


DN8 to DN50


1/4"~2"



Material:



Body : A105,F304(L),F316(L)


Bonnet : A105,F304(L),F316(L)


Ball : A105, SS304, SS316


Stem : 304,304(L),316(L),F51


Seat : Metal,Viton,PTFE


Special material on request.


Operated type


Lever, Pneumatic, Electric, etc.


Structure:


Floating bore, 3 pieces


Flange connection:


EN1092 & ANSI B16.5



Type



Flange RF, SW



Maximum working temperatures:




PTFE:150°C, Metal seat for high temperature
