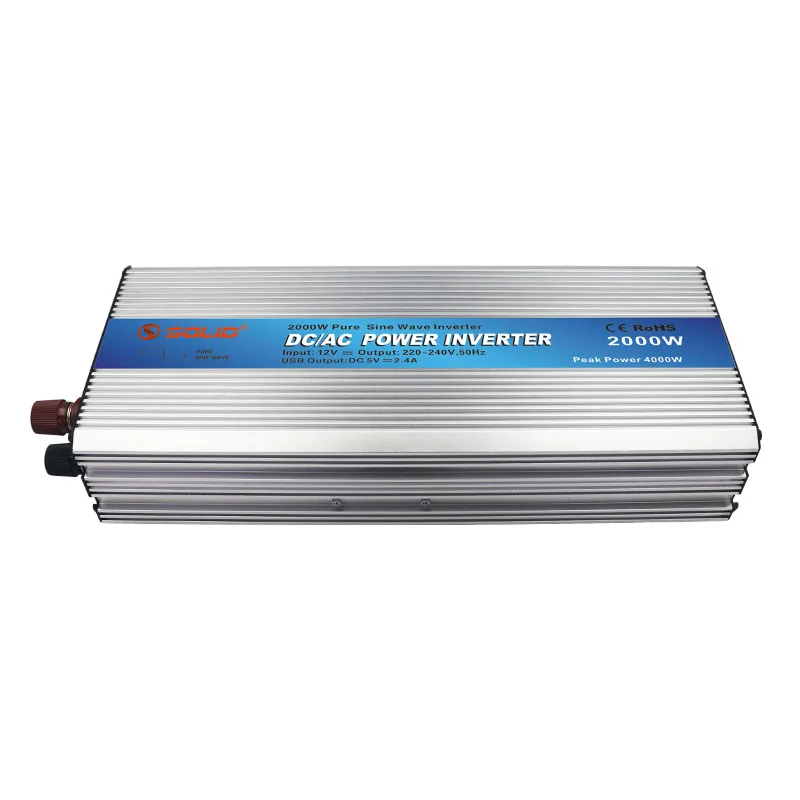

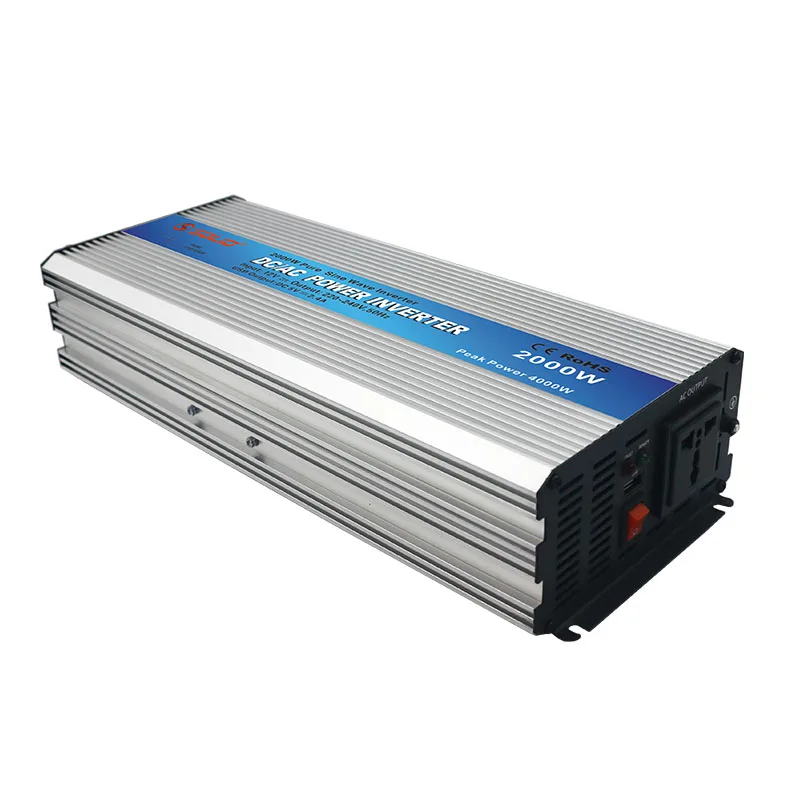

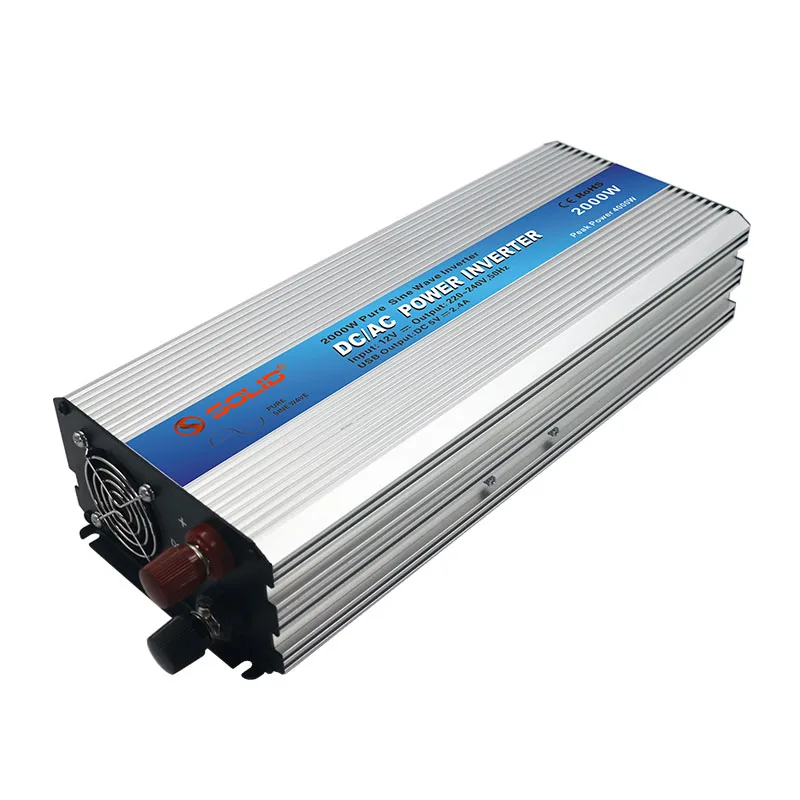

2000W/3000W Pure Sine Wave Power Inverter 2KW Converter DC 12V 24V To AC 110V 120V 220V Inversor 2000 Watts Power Inverter
- Category: >>>
- Supplier: Zhejiang Solid Electric Co. Ltd.
Share on (62205209106):
Product Overview
Description
1. With Soft Start Function, It's Better for Inductive Loads.
2. Continuously Full Loaded Working.
3. Advanced Technology to Ensure Top Quality.
4. Efficiency: Above 90%.
5. USB output 5V, 2.1A
6. Compact and Stylish Design
7. Package: Gift Cartons
8. Warranty: 18 Months
Product Features:
·Anodized aluminum case provides durability and max heat dissipation.
·High quality DC cigarette lighter plug and heavy duty cable make sure the safety.
·Automatic restart function, a protection occurred, when the data come back normal, it will restart automatically or by man.

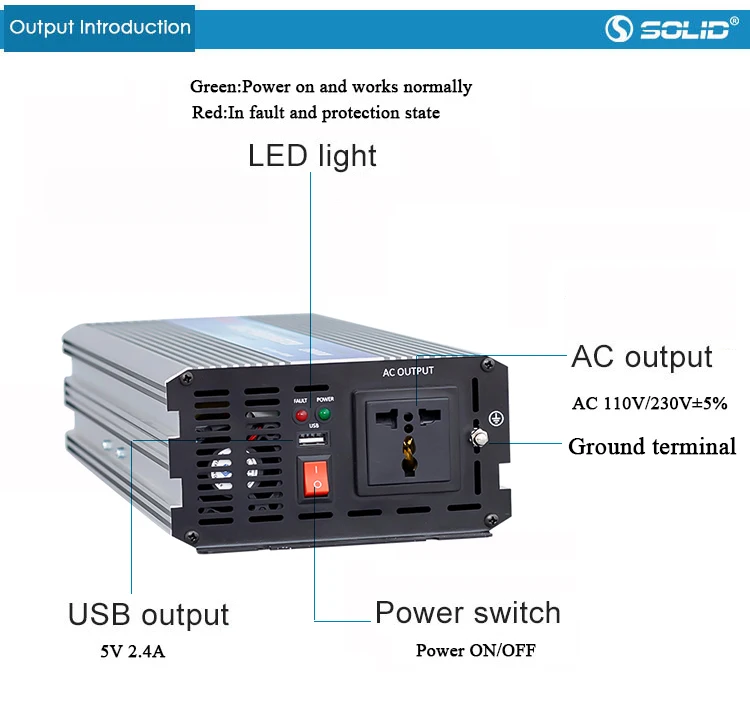

·There are two LED indicators show the working and failure states.
·ON/OFF switch to start or turn off the inverter by man.
·The inverters are very compact, light and easily for installing and operating.
·Loads can be powered directly from the AC outlets.
·The inverters are equipped with numerous protection features to guarantee safety and trouble-free.

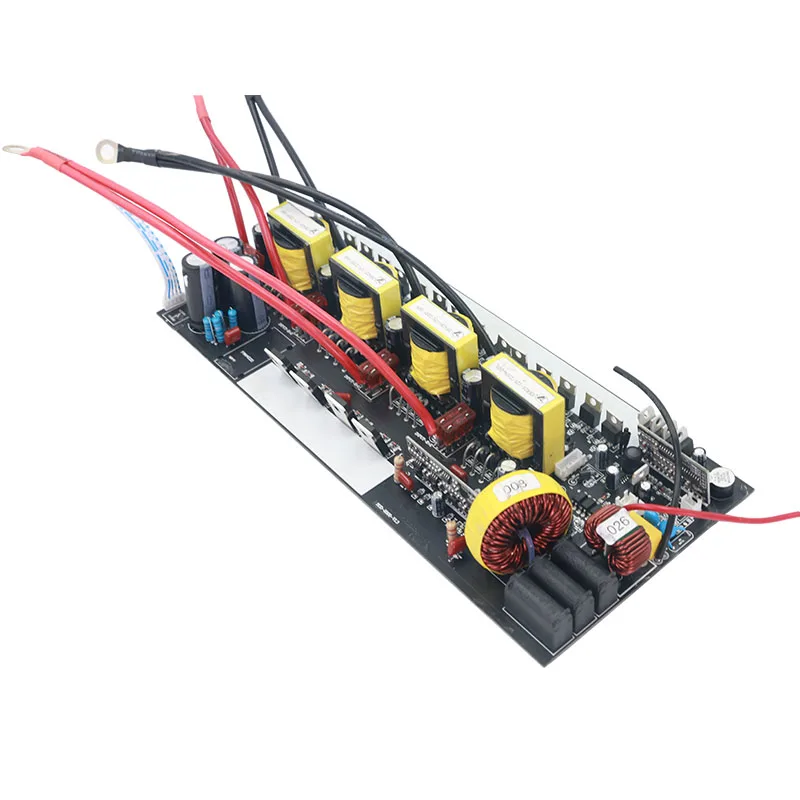

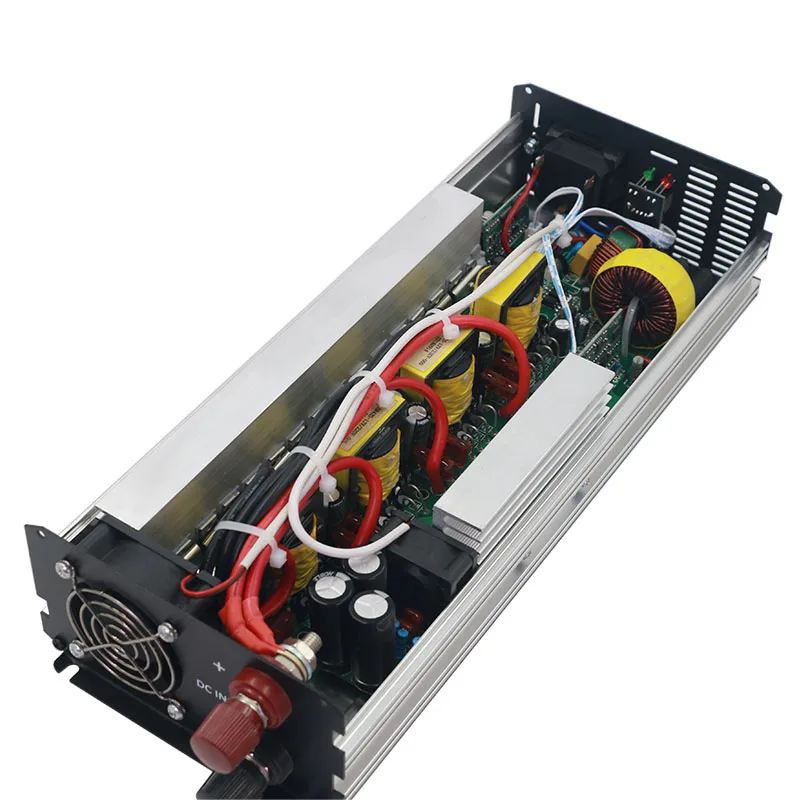

·Advanced PCB design and workmanship.
Model | SOD-2000-121 | SOD-2000-241 | SOD-2000-481 | SOD-2000-122 | SOD-2000-242 | SOD-2000-482 | |||||||
Output | AC voltage | 100V/110V/120V | 220V/230V/240V | ||||||||||
Rated power | 2000W | ||||||||||||
Surge power | 4000W | ||||||||||||
Waveform | Pure Sine Wave | ||||||||||||
Frequency | 50/60Hz±3Hz | ||||||||||||
AC regulation | 5% | ||||||||||||
AC outlet | A,B,C,D,E,F,G,H,I etc. | ||||||||||||
LED indicator | Green for power on;Red for fault or protection status | ||||||||||||
USB | 5V 2.4A | ||||||||||||
Input | DC voltage | 12V | 24V | 48V | 12V | 24V | 48V | ||||||
Voltage range | 10.5-15.0V | 21.0-30.0V | 42.0-60.0V | 10.5-15.0V | 21.0-30.0V | 42.0-60.0V | |||||||
Efficiency | >87.0% | >90.0% | >90.0% | >87.0% | >90.0% | >90.0% | |||||||
No load current | ＜1.0A | ||||||||||||
Bat.low voltage alarm | 11±0.5V | 22±1V | 44±2V | 11±0.5V | 22±1V | 44±2V | |||||||
Bat.low voltage shut down | 10.5±0.5V | 21.0±1V | 42.0±2V | 10.5±0.5V | 21.0±1V | 42.0±2V | |||||||
Recovery voltage after LVS | 11.8-12.8V | 23.6-25.6V | 47.2-51.2V | 11.8-12.8V | 23.6-25.6V | 47.2-51.2V | |||||||
Over voltage | 14.8±0.5V | 29.6±1V | 59.2±2V | 14.8±0.5V | 29.6±1V | 59.2±2V | |||||||
Over load | Shut down | ||||||||||||
Over temperature | Shut off output voltage,recover automatically after temperature goes down | ||||||||||||
Short circuit | Shut-off output voltage, restart to recover | ||||||||||||
Battery reverse polarity | Fuse burnt | ||||||||||||
Soft start | Yes,5-10s | ||||||||||||
Grounding | Yes | ||||||||||||

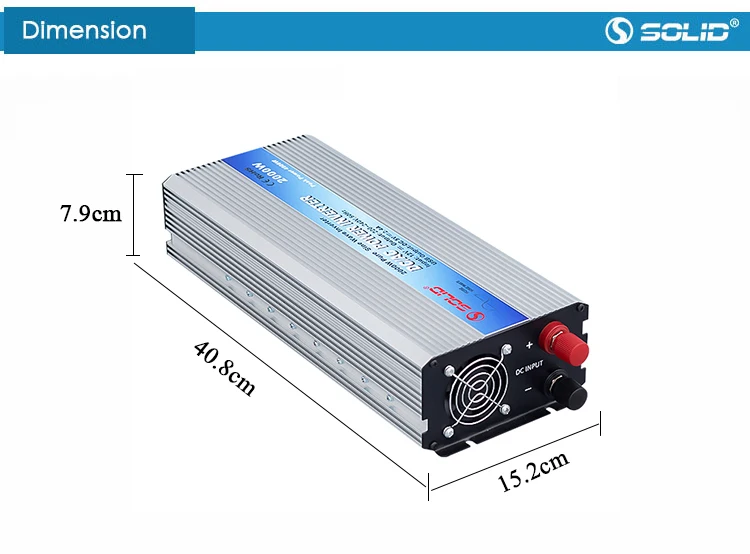

Dimension | 43.2*22.5*10cm | ||||||||||||
Net weight | 6.3kg | ||||||||||||
Packing | 4pcs/35kg/56.5*31.5*24.5cm/CTN | ||||||||||||

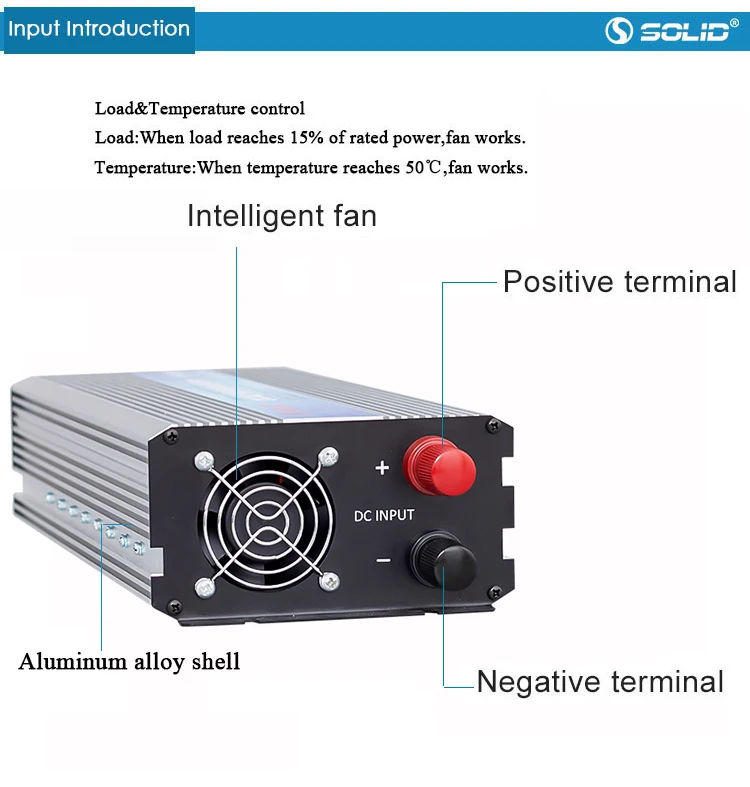

Cooling fan | Activated by load and temperature | ||||||||||||
Certification | CE-EMC/LVD, RoHS, FCC | ||||||||||||
Warranty | 2 years | ||||||||||||
Low voltage alarm:When battery voltage reaches 11V±0.5V/22V±1V/44V±2V,the buzzer beeps intermittently and the LED red light on.
Low voltage shut down:When battery voltage reaches 10.5V±0.5V/21V±1V/42V±2V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over voltage shut down:When battery voltage reaches 14.8V±0.5V/29.6V±1V/58.4V±2V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over load shut down:When the loads connected is higher than the rated power of the inverter, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over temperature shut down:When shell’s temperature reaches 65ºC ,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Short circuit shut down:When short circuit happens, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Reverse polarity:When the positive and negative cable between the battery and the inverter connected in reverse,the fuse burnt out and the inverter will not work.
Low voltage shut down:When battery voltage reaches 10.5V±0.5V/21V±1V/42V±2V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over voltage shut down:When battery voltage reaches 14.8V±0.5V/29.6V±1V/58.4V±2V,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over load shut down:When the loads connected is higher than the rated power of the inverter, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Over temperature shut down:When shell’s temperature reaches 65ºC ,the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Short circuit shut down:When short circuit happens, the buzzer beeps rapidly and the LED red light on,AC output be shut down.
Reverse polarity:When the positive and negative cable between the battery and the inverter connected in reverse,the fuse burnt out and the inverter will not work.
FAQ:
Q1:As a manufacturer,what kind of products do you produce?
A1:We mainly produce DC To AC Power Inverter,Solar Hybrid Inverter,Solar Charge Controller,Single Phase&3 Phase Voltage Regulator(Voltage Stabilizer),AC To DC Battery Charger,Inverter With Charger(stand-by UPS) etc.
Q2:How many years of warranty do you provide for your product?
A2:Usually we provide 2 years of warranty for all our products,during this period,when there is something wrong with the
product,we replace or fix the product for free based on actual situation ,and we provide lifetime maintenance guidance.
Q3:Talking about power inverter,about the modified sine wave and pure sine wave,the resistive load and inductive load,what’s the difference and relation between them?
A3: Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
As to inductive load,it refers to the application of electromagnetic induction's principle, produced by high-power electrical
products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
Q4:What do you think your advantage is?
A4:Same quality level,we offer a better price;Same price level,we provide more reliable quality.Try a sample to test,then you will know we are not just saying it.
Q5:What about your OEM&ODM customization service?
A5:We can put your logo on the product based on a MOQ;You can give us your idea about your own product’s designing-including products’ appearance,function and packaging,our engineer and designing team will do for you.
A1:We mainly produce DC To AC Power Inverter,Solar Hybrid Inverter,Solar Charge Controller,Single Phase&3 Phase Voltage Regulator(Voltage Stabilizer),AC To DC Battery Charger,Inverter With Charger(stand-by UPS) etc.
Q2:How many years of warranty do you provide for your product?
A2:Usually we provide 2 years of warranty for all our products,during this period,when there is something wrong with the
product,we replace or fix the product for free based on actual situation ,and we provide lifetime maintenance guidance.
Q3:Talking about power inverter,about the modified sine wave and pure sine wave,the resistive load and inductive load,what’s the difference and relation between them?
A3: Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
As to inductive load,it refers to the application of electromagnetic induction's principle, produced by high-power electrical
products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
Q4:What do you think your advantage is?
A4:Same quality level,we offer a better price;Same price level,we provide more reliable quality.Try a sample to test,then you will know we are not just saying it.
Q5:What about your OEM&ODM customization service?
A5:We can put your logo on the product based on a MOQ;You can give us your idea about your own product’s designing-including products’ appearance,function and packaging,our engineer and designing team will do for you.
