Mortise Tubular stainless steel emergency release ON request to exit push button key switch for access control system door lock
- Category: >>>
- Supplier: Shenzhen Camel Security Co. Ltd.
Share on (62205372435):
Product Overview
Description
Mortise Tubular stainless steel emergency release ON request to exit push button key switch for access control system door lock
Product Introduction
Different sizes (86*86mm, 86*50mm,115*70mm ,115*40mm plates), lanauges and symbol options for the key Switch Exit Button:
Exit Button leading manufaturer Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Keyswitch is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.
Advantages show
Factory price key switch Exit Button For Access Control CE, ROHS Key Advantages
1, strong and durable 304 stainless steel button and panel, laser printing for years last
2, 86*86(50)mm square size is good for European countries and other countries at this size; 115*70(40)mm are hot for American countries.
3, OEM your sign is welcomed.
4, color cables included, it save your time and energy when installation
5, screw type terminal installation for easy use
6, M86 Backbox is optional for surface mount.
7, carry CE RoHS Certification, CE at 2014/30/EU and RoHS at 2011/65/EU
8, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.

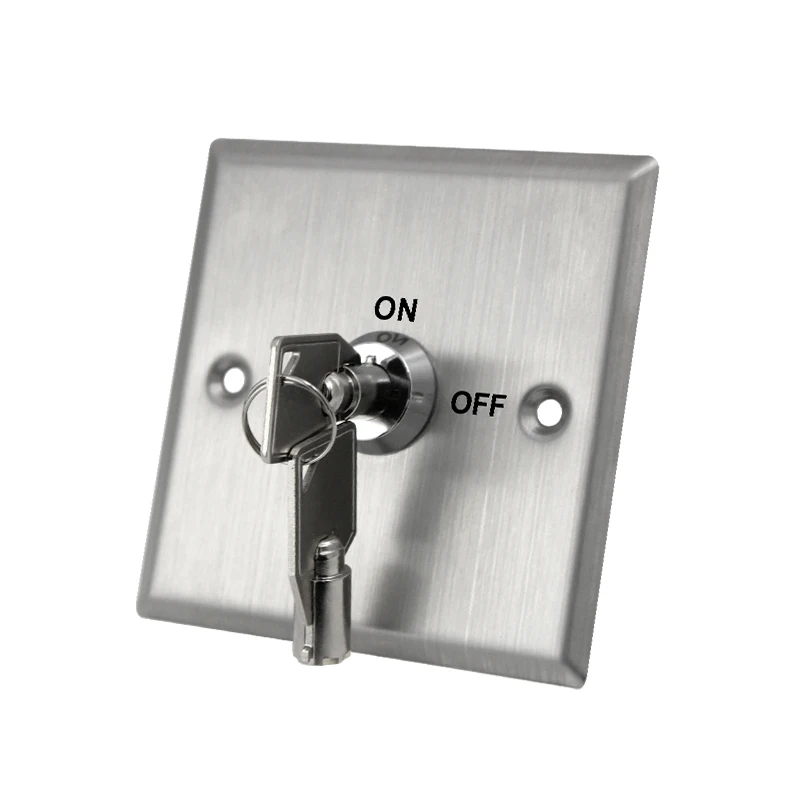

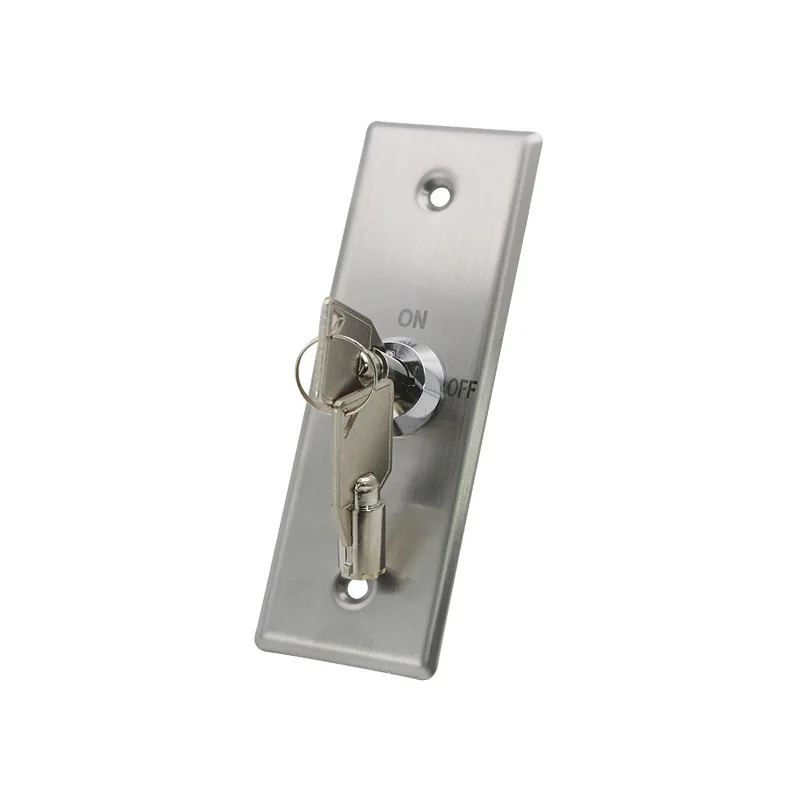

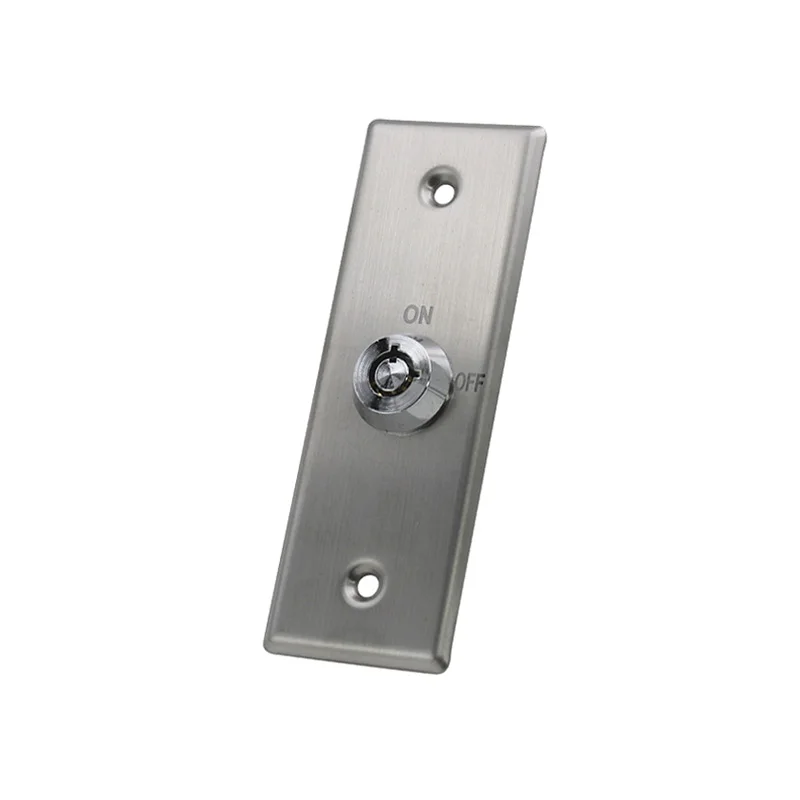

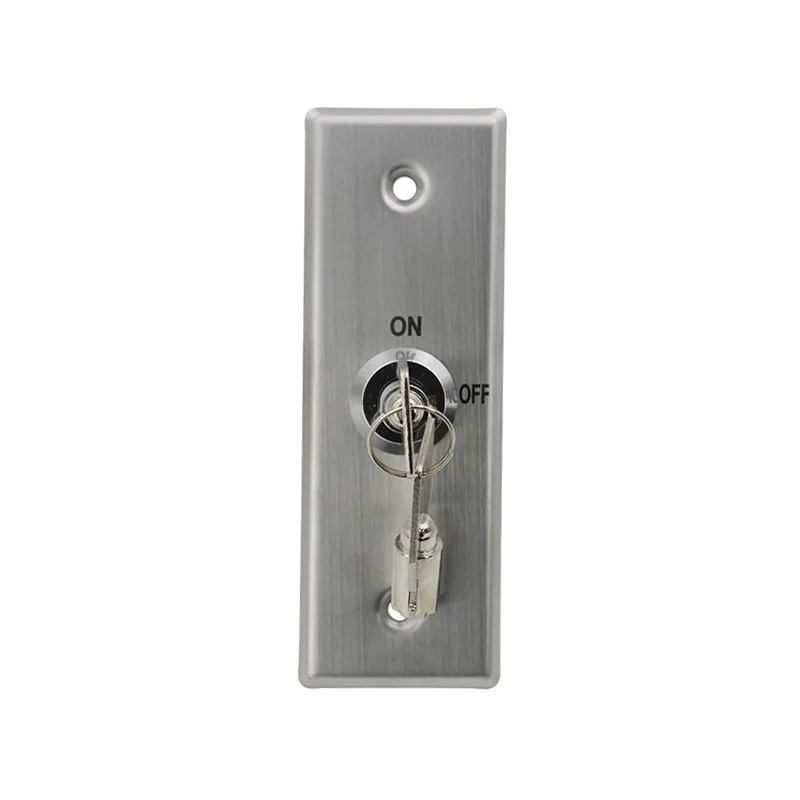

Wholesale Factory price key switch Exit Button For Access Control CE, ROHS pictures as below:

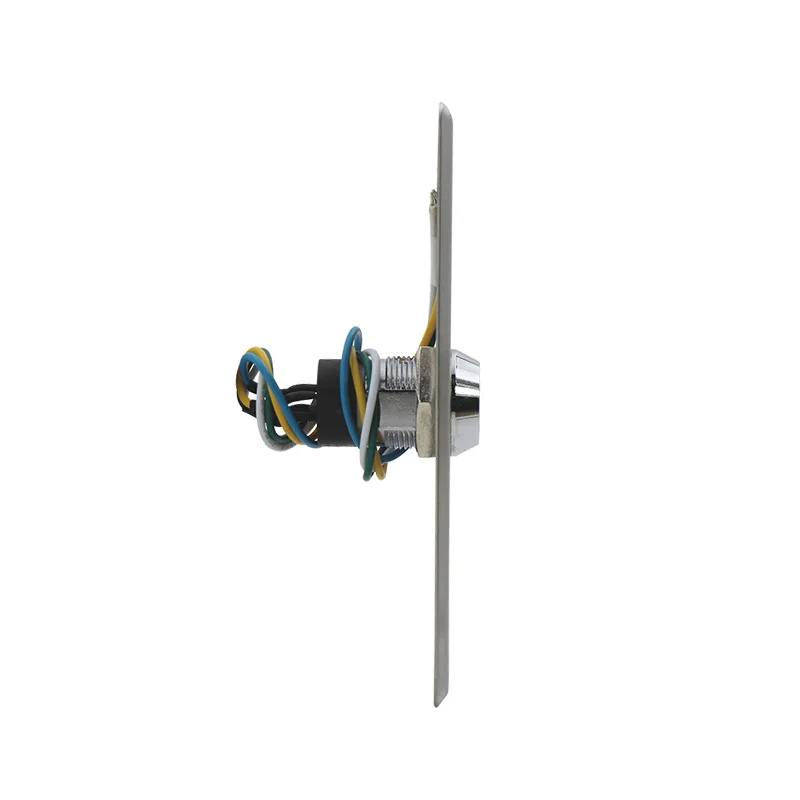

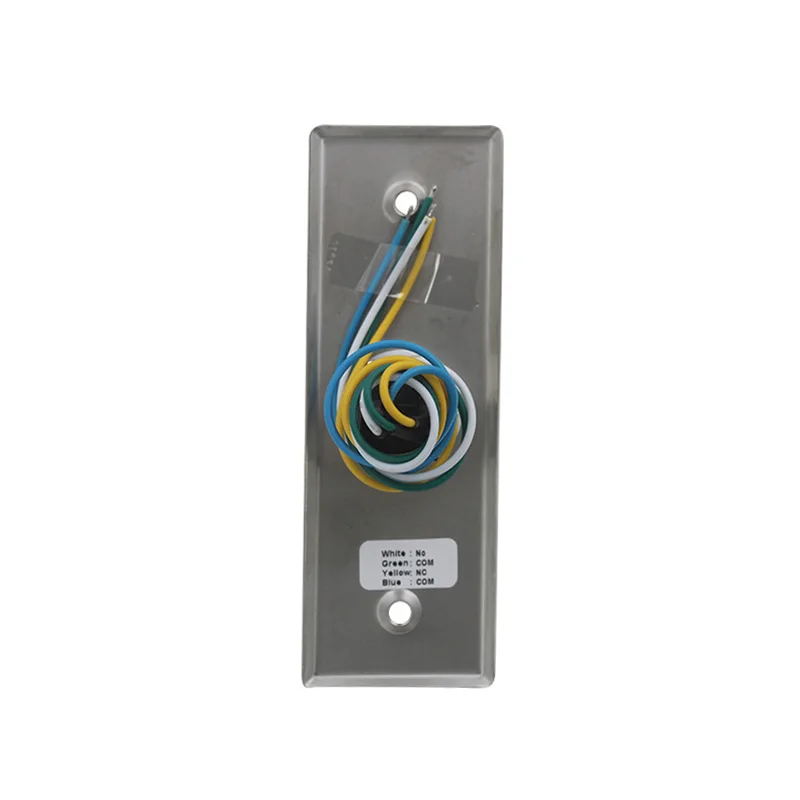

Independent wiring for more widely and convenient usage:
Technical Parameter
Datasheet for Factory wholesale two position access control electrical key switch exit button with Access Control CE, ROHS
| Size | 115W*40L*25H (mm) |
| Material | 304 Stainless Steel Faceplate. Default with 2 keys |
| Current | 3A @36V DC Max. |
| Mechanical Life | 500,000 times tested |
| Output Contacts | N.O/N.C/COM |
| Working Temperature | 10 - 55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 100pcs/14kg/50*45*28cm/ctn |

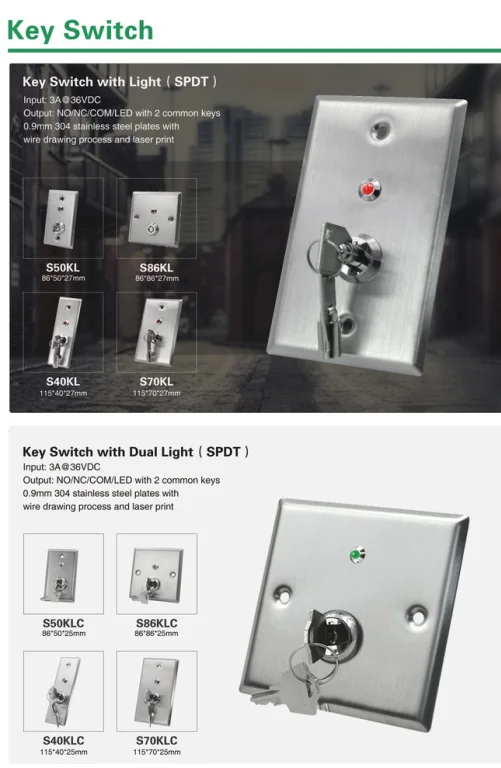

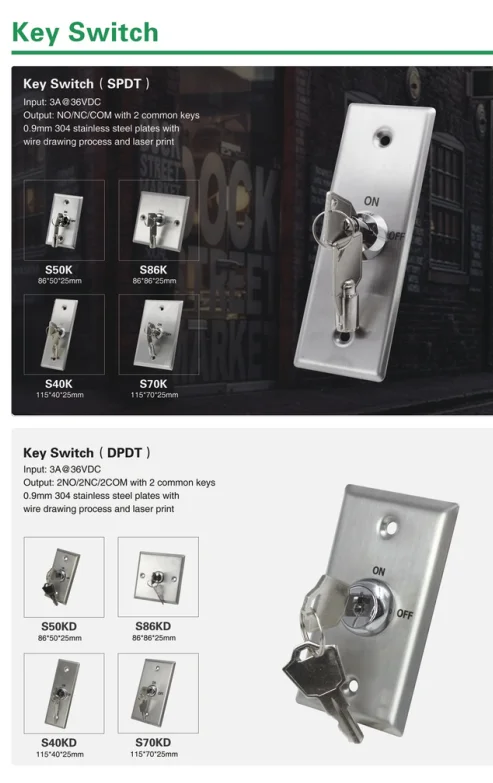

More optional models available to satfisfy your different need. 2NO/2NC/2COM models are also available.

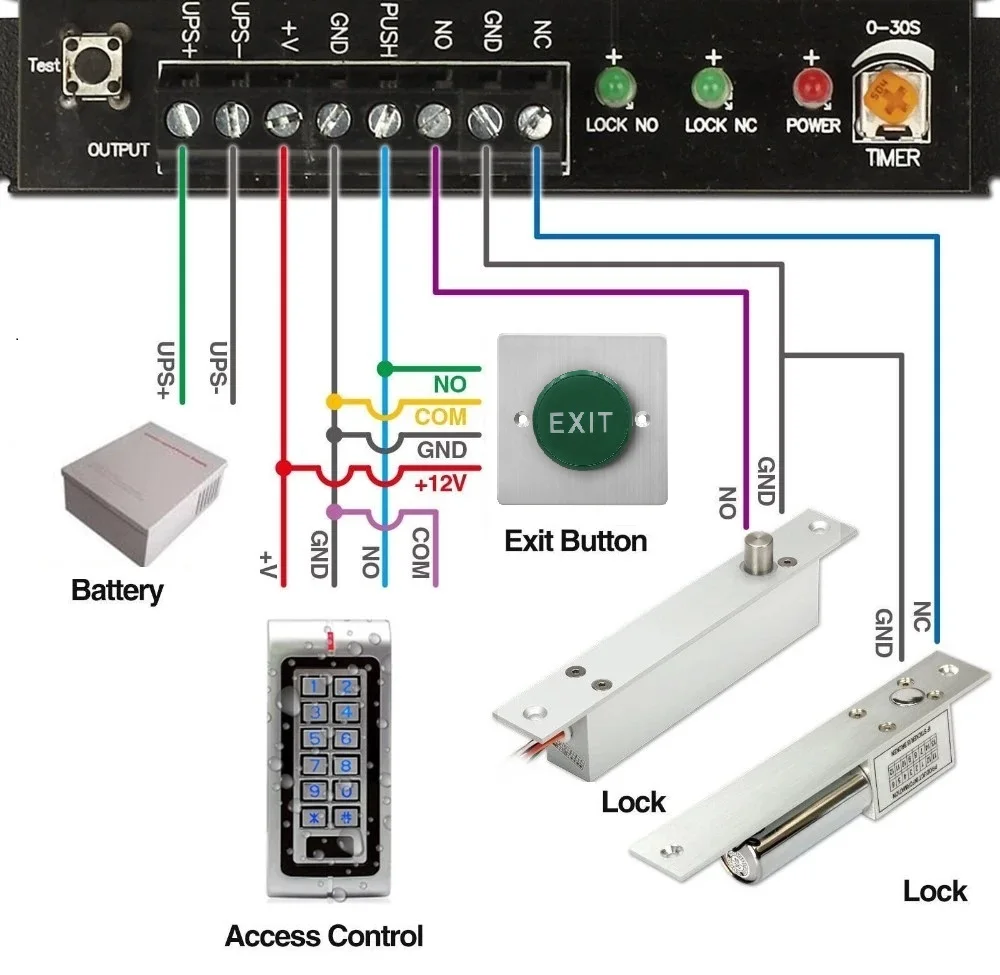

Factory wholesale two position access control electrical key switch exit button For Access Control CE, ROHS Application for reference.
Related Products
Company Information
FAQ
Q: Could i get a free sample for testing?
A :Yes,we could offer a free sample to you for testing,please contract our sale team.
Q:Do you offer a customized service?
A:Yes,please contract our sale team to talk about the detail.
Q:Are you a factory or a trading company?
A: we are factory,and we have 2 factories,one is located in ZhongShan city,one is located in shenzhen city,GuanDong province.
Q:Where is your main marker?
A: We have experienced in exporting for more than 10 years and our market extends to Europe, America, Asia, Australia and Africa.
Q:Do you accept OEM and can I apply my brand to your product?
A:Yes, we do OEM and we can produce goods with your brand.
Q:How Many years for warranty?
A:3 years for exit button,1 year for door locks.
Q:How to make the payment?
A:Normally By T/T.
