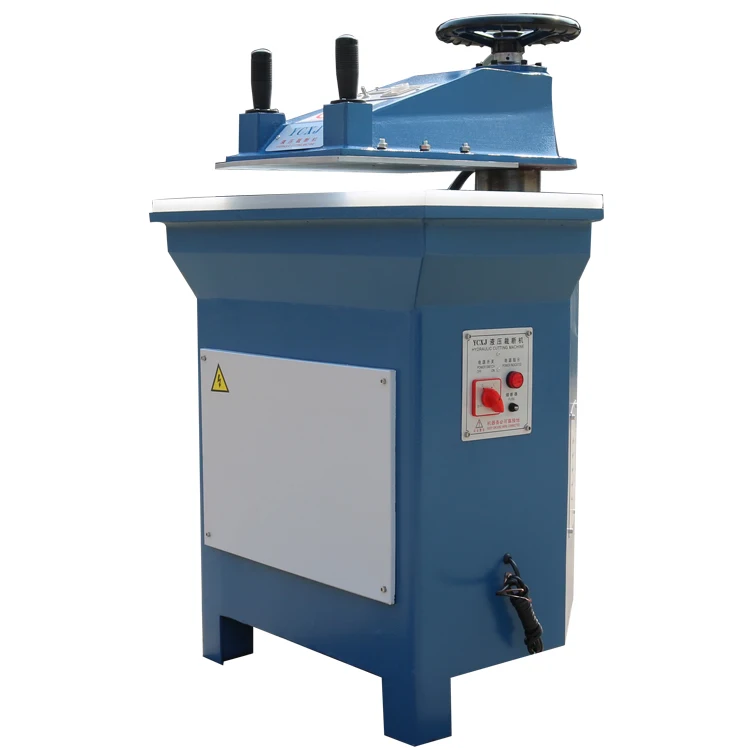

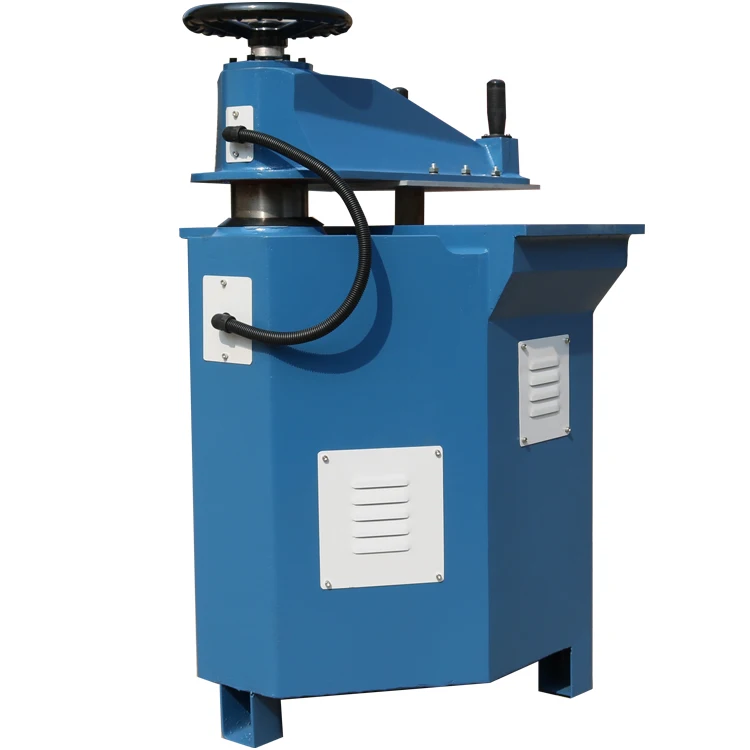

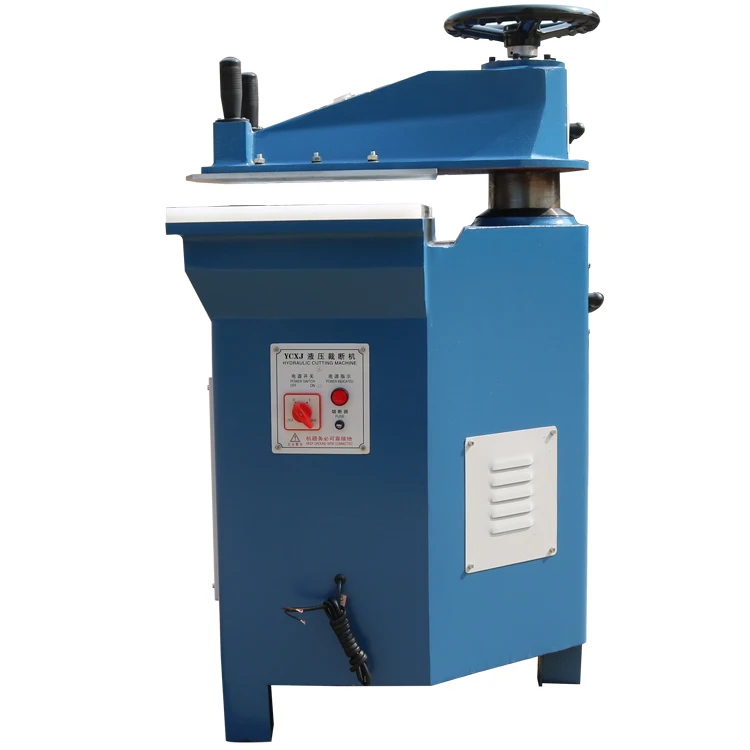

Hydraulic Manual Beam Press Leather Shoe Sole Die Cutting Machine

Product Overview

Description











Model No.	CX-100KN	CX-120KN	CX-160KN	CX-200KN
Cutting force	10Ton	12Ton	16Ton	20Ton
Working table size	400*800mm	400*800mm	410*900mm	500*1000mm
Swing arm size	350*450mm	350*450mm	350*500mm	350*550mm
Motor power	0.75kw	0.75kw	1.1kw	1.5kw
Voltage	380V 3Phase 50Hz	380V 3Phase 50Hz	380V 3Phase 50Hz	380V 3Phase 50Hz
Stroke adjustment range (MM)	5-65mm	5-65mm	5-75mm	5-75mm
Hydraulic oil capacity	32L	32L	38L	50L
Machine size	800*780*1250mm	800*880*1250mm	900*850*1350mm	960*950*1600mm
Package size	810*840*1450mm	810*940*1450mm	960*900*1550mm	1000*980*1430mm
Machine weight	320kg	340kg	470kg	700kg
Package weight	360kg	380kg	520kg	750kg
