Diode laser 500w 808nm Macro channel / handle replacement germany line array laser battery

Product Overview

Description

808 laser hair removal equipment 10bars macro 808nm diode laser stack / 500w diode 810nm laser module fix



click me











Specifications:

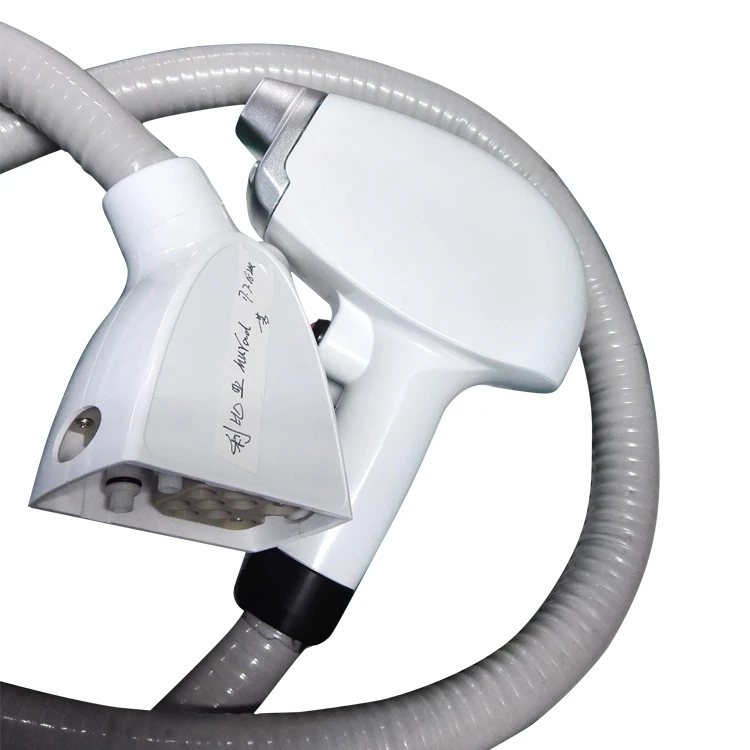

Model NO.	808nm Diode laser hair removal handpiece model K
Application	808 laser hair removal handpiece Repair And Replacement
Function	Hair removal, Skin rejuvenation
Central wavelength at 25℃	808±5nm

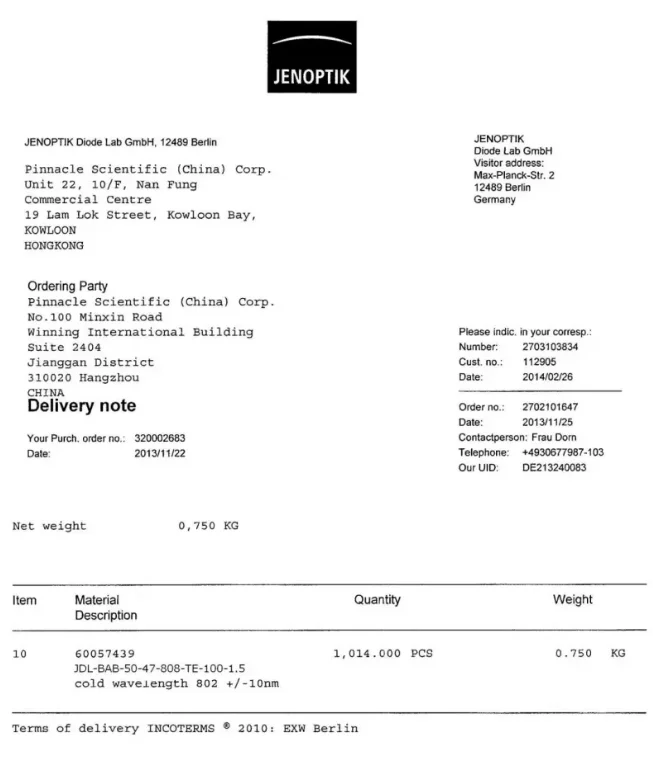

Laser bar	Germany Jenoptik bar

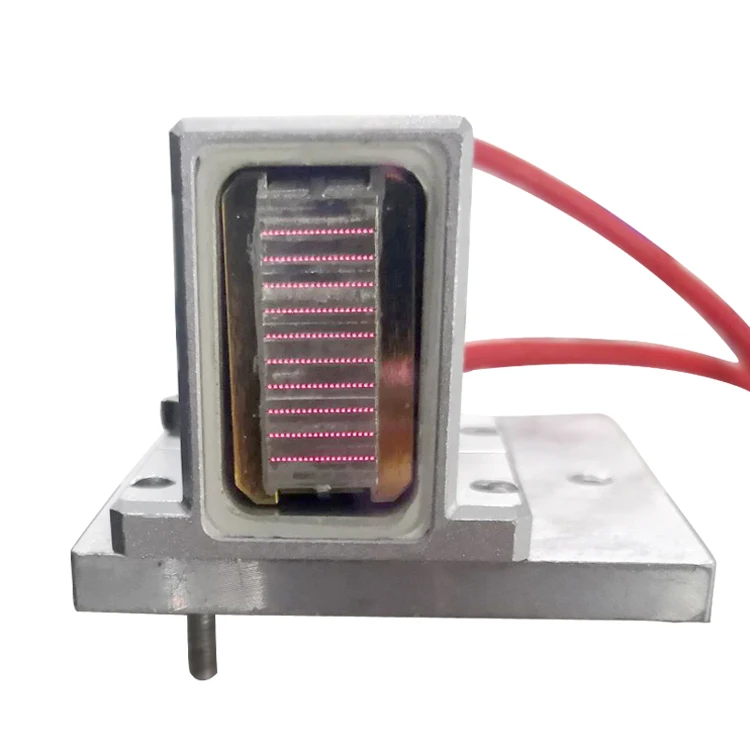

Laser stack type	Macro channel cooled vertical diode laser stack
Operation mode	CW
Laser power	500 W
Per bar power	50 W
Bars number	10 pieces
Maximum operating voltage	<20V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Typical pitch per bar	2 mm
Expected lifetime	>10000 hours
Cooling system	Micro channel cooler + Water + TEC
Water cooling condition	1.Flow rate: 0.3L/min ±10% / bar
	2.water temperature: 15~25℃
	3.Water quality: Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
	4.Cooling: Don't use any material that combined with copper, that would form galvanic elements





Description:

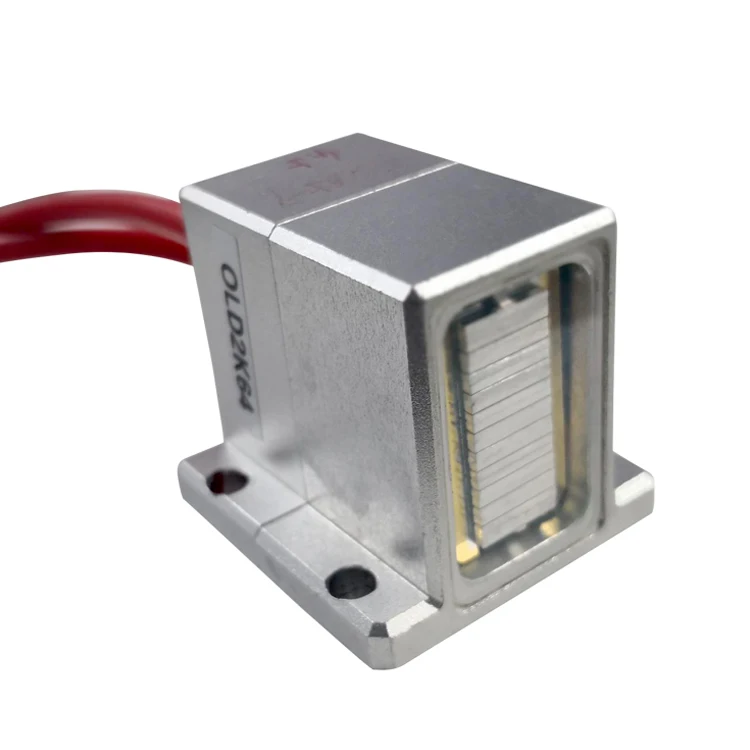

This diode stack is VS-MI-100-8-NL3 Brand CE 10 bars diode stack.It is used for handle piece repairing and replacement.ivylaser focused on diode laser bar assembling for more than 10 years and we have seen various diode laser stacks.



(1)Features
>Diode laser bar from Jenoptik
>Micro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for brand Night8 diode laser machine

(2)Advantages
1.Oriental-laser with more than 10 years diode laser bar mounting experience
2.Unique gold coating technology with high reliability and stability
3.Customized mechanical part size, dimensions,optional output power and wavelength

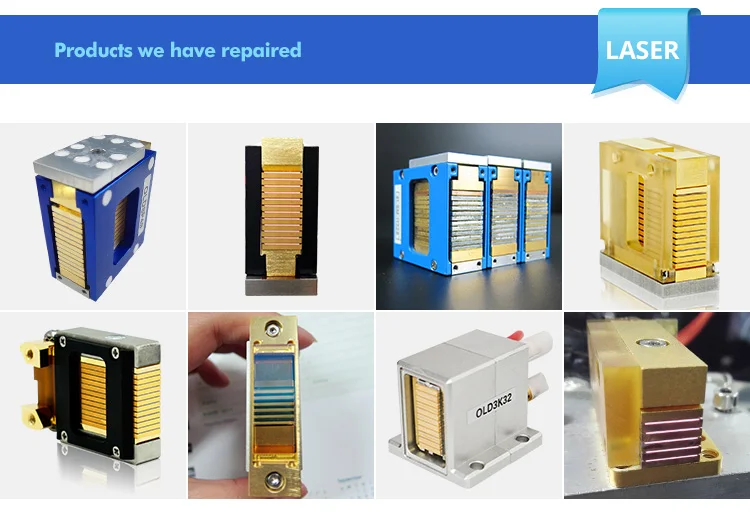

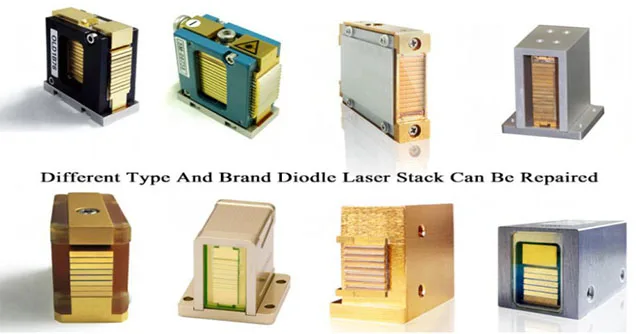

4.Refurbishment and repair service for any other diode laser brand ,Dilas etc.

(3)Application
Specially design for repairing brand Night8 handle or replacement of the same series handle.





please click below  for more details ↓
