Free Ship 12/8 Channel DJ Sound Mixing Console Mixer BT USB Microphone Digital Console Karaoke Audio Mixer Phantom Power
- Category: >>>
- Supplier: Shijiazhuang Qjzl Network Technology Co. Ltd.
Share on (62205468006):
Product Overview
Description

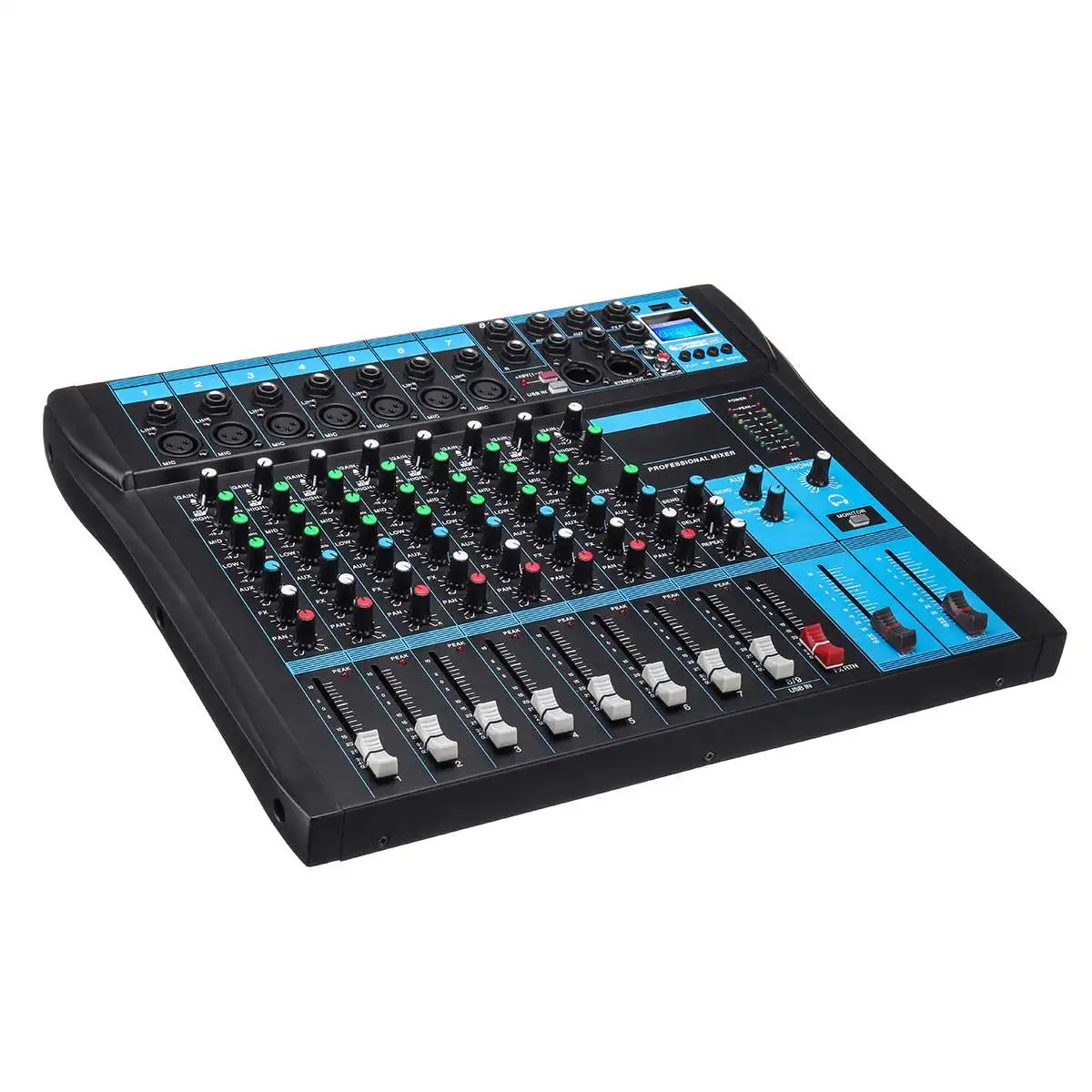

Karaoke Audio Mixer with USB Professional 12 /8 Channel BT Studio DJ Mixing Console Amplifier Digital KTV Sound Mixer 48V
Specifications:
1. Color: Black / Plug: US / Type: 8 Channel Red / 8 Channel Blue / 12 Channel Red
2. Material: Metal
3. Max. Input Level:
MIC 24dBu
Line 24dBu
Other Line 20dBu
4. Max. Output Level:
XLR 24dBu
TRS 24dBu
5. Main Meters: 10 Segment -24dB to CLIP
6. Channel Meters: 1 LED Signal Indication
7. Frequency Response: 20Hz to 30KHz 0.5dB
8. CMRR(MIC 1KHz): >75d
9. THD+N: <0.01%(Channel to mix out)
10. Crosstalk at 1kHz:
Fader shutoff > 85dB
Mute shutoff >85dB
Inter channel >82dB
11. Noise, rms 22Hz to 22kHz:
EIN -122dBu
Residual output noise < -90dBu
L/R main mix noise < -82dBu
Aux mix noise<-82dBu
12. MONO EQ:
LF, shelving, +/-15dB, 12KHz
HM, peak/dip, +/-15dB, 2. 5KHz
LF, shelving, +/-15dB, 80HZ
13. Mono Channel
XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14 dBu
TRS balanced, tip hot, 10K ohm, Sensitivity -20 to+14 dBu
XLR, phantom+48V
14. 2-track Return: RCA, unbalanced, 4K ohm, -2 dBu
15. 2-track Send: RCA, unbalanced, <75 ohm, -2 dBu
16. L/R Output: XLR balanced, pin 2 hot, <75 ohm, +4 dBu, Max+22 dBu
17. FX/AUX Output: TRS unbalanced, tip hot, <75 ohm, -2 dBu, Max +18 dBu
18. Headphones: TRS, tip L, ring R, 30 to 600 ohm
19. Max. Power Input Power: 40 Watts

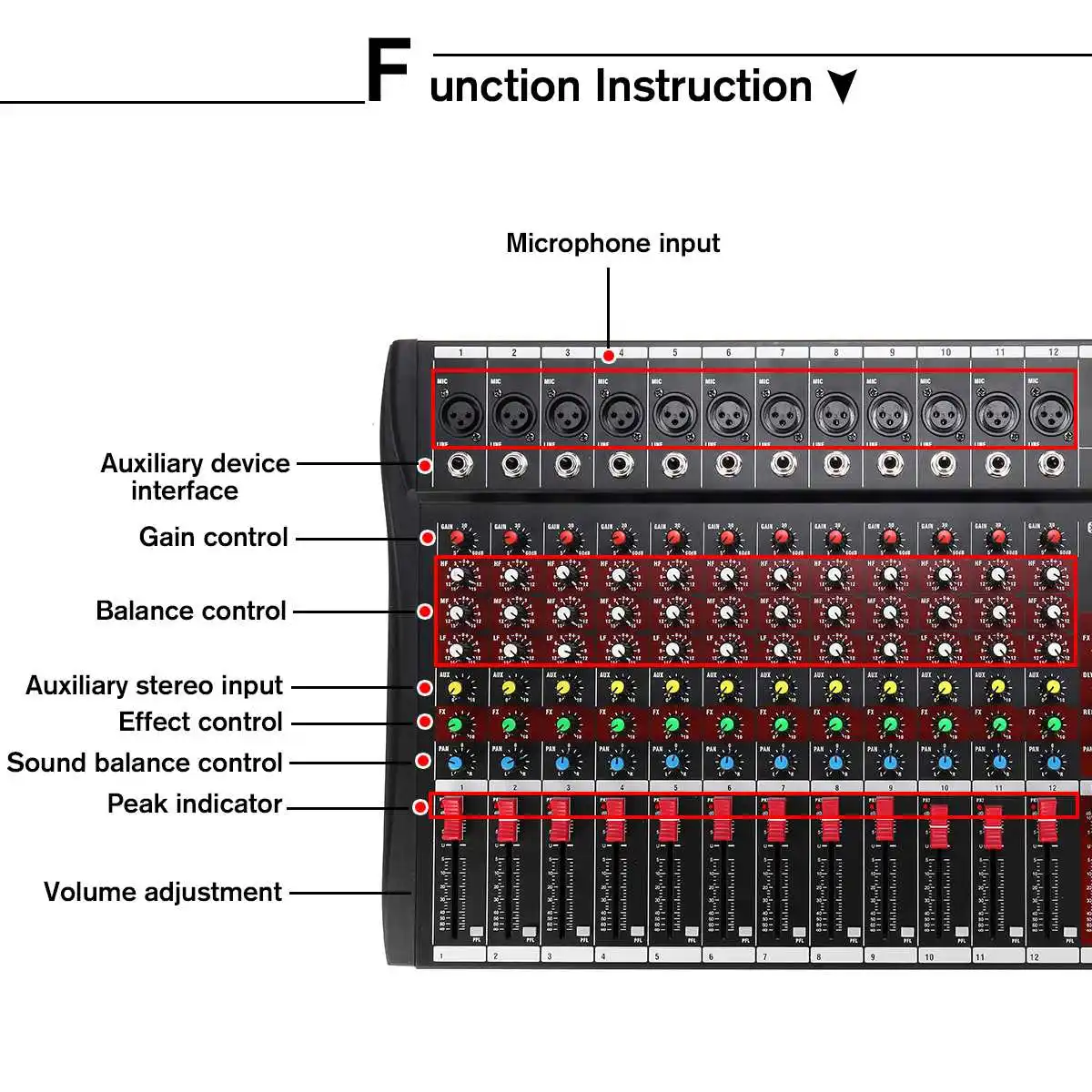

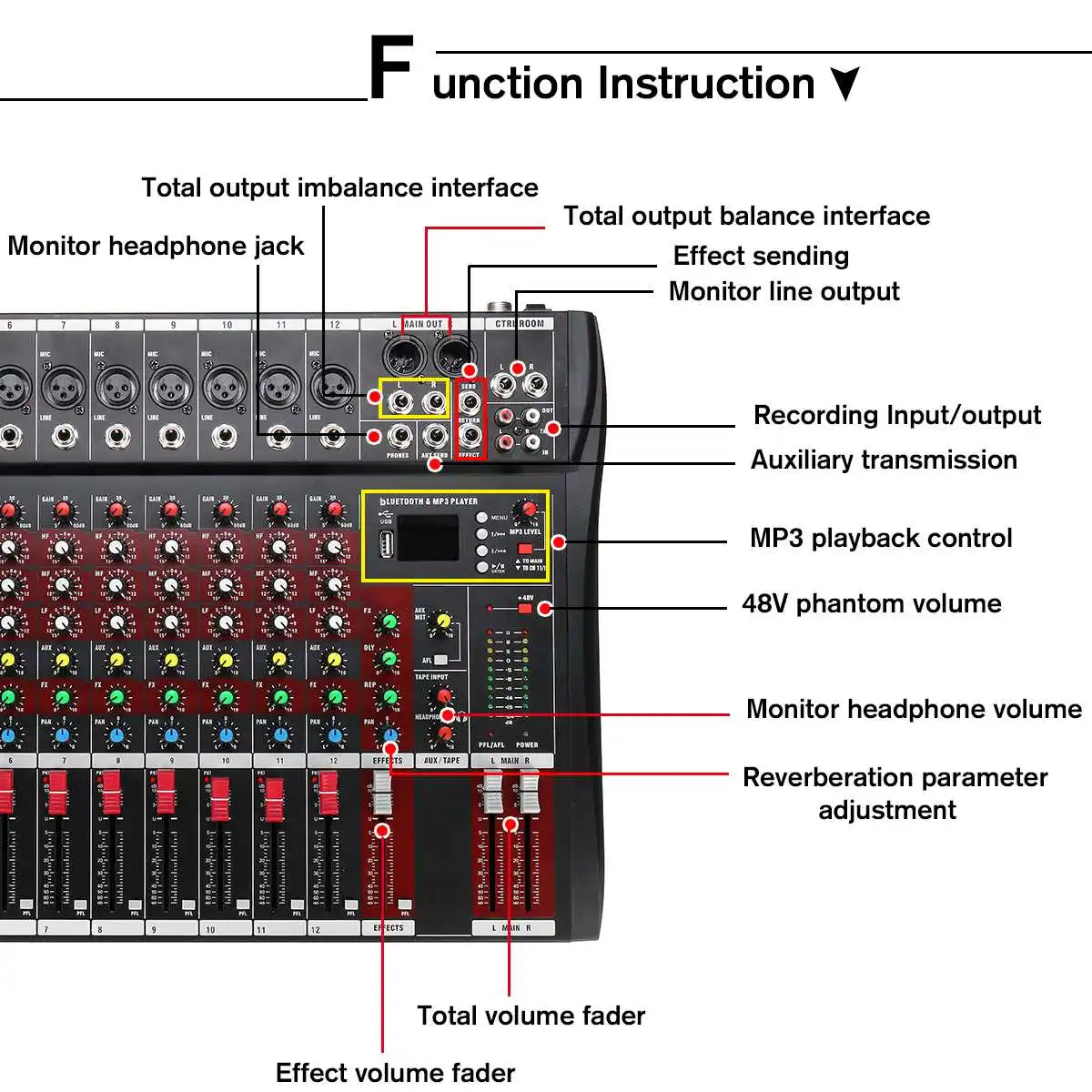

Introducing Brief Functionse:
- 6. 8 10 12 channel frame.
- LR main mix.
- 2AUX sends.
- Recording.
- Responsive 3 band EQ.
- Individual phantom power.
- Channel and main meters.
- 60mm dust protected faders.
- 2-track monitoring and repeat to LR.
- Headphones and local monitor outputs.

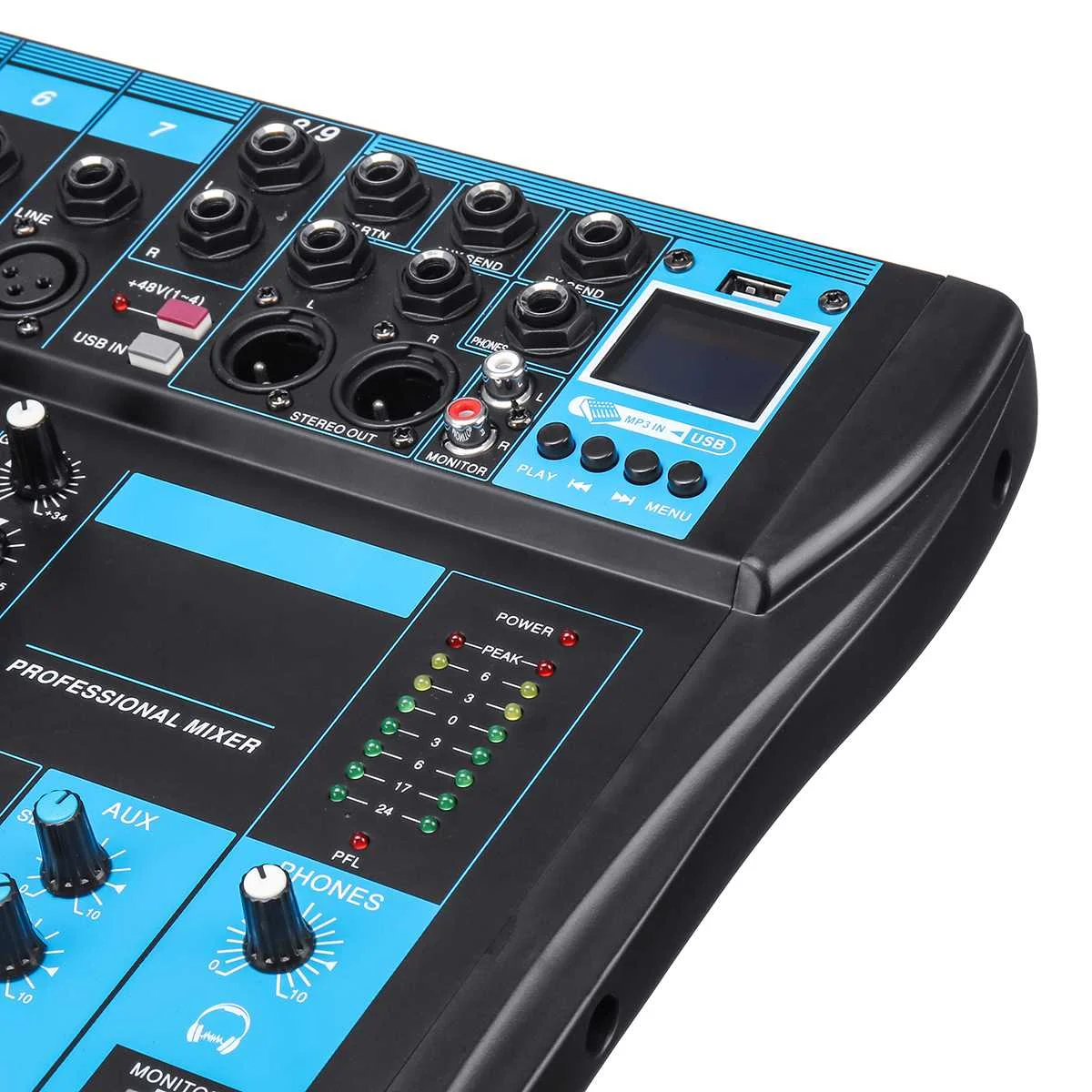

- Dedicated stereo, peak-retaining monitor meters.
- Electronically balanced XLR outputs with +26dBu drive capability.
- Preamp +34dBu maximum input capability for mic or line
- Ultra low noise mix head amp design.

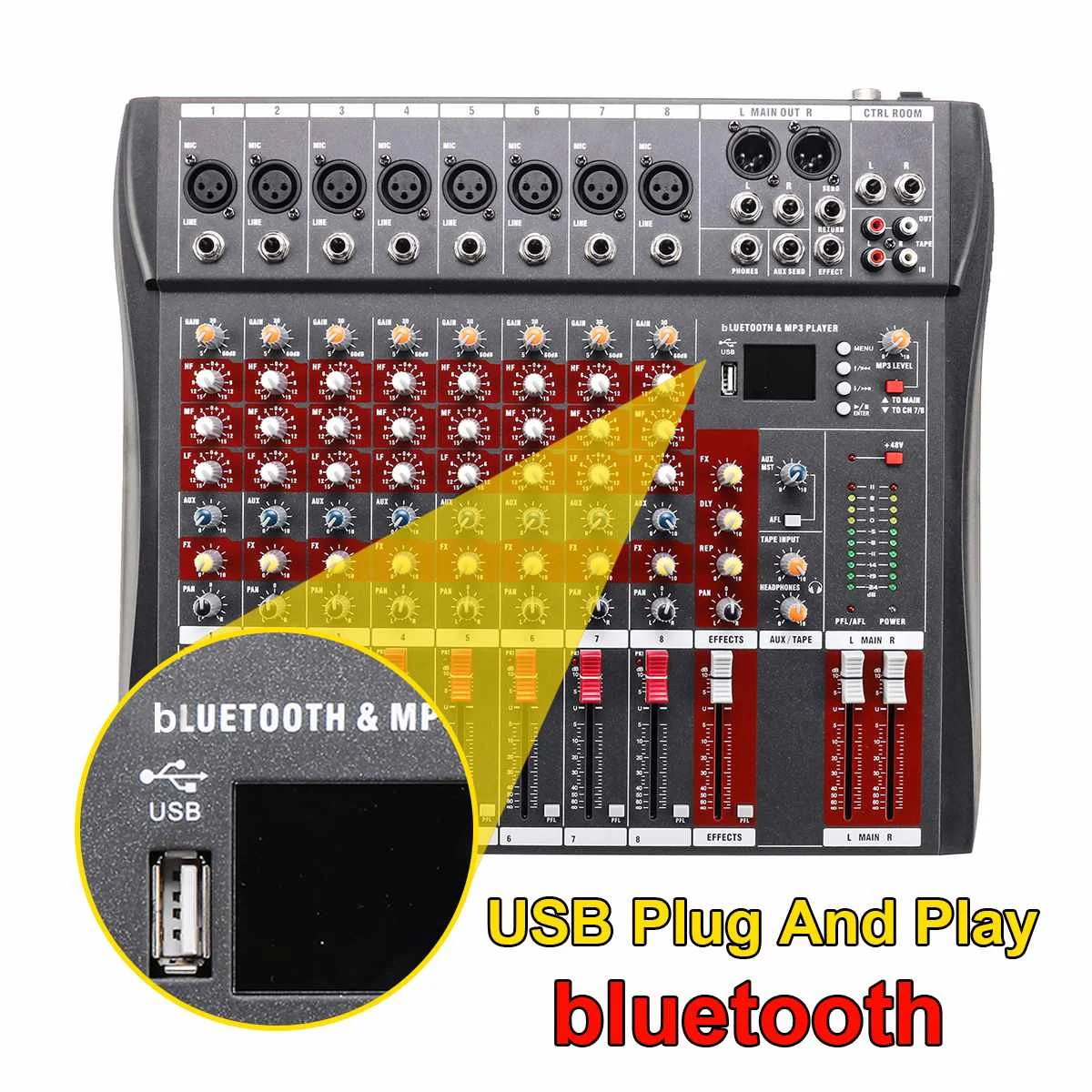

- bluetooth & Mp3 player/recorder with concise human-machine interactive interface.
- Digital effect processor.
- Metal jacks, gold-plated XLRS, sealed pots and switches

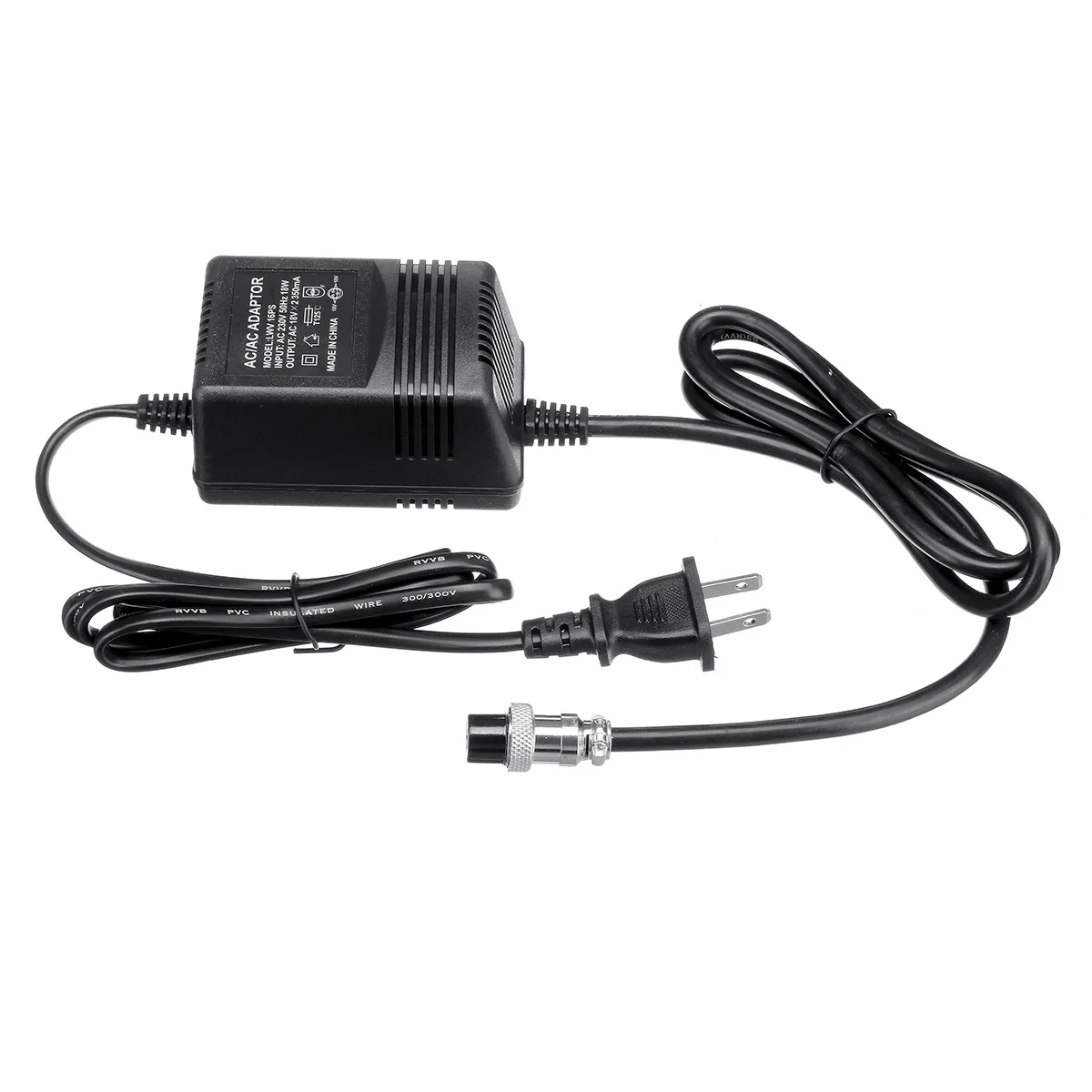

- External power adapter power supply.
Package Included: 1 x Mixing Console 1 x Power Adapter (US Plug, we will sent with an adapter according to your country) 1 x User Manual Note: 1. Please allow 1-5mm error due to manual measurement and make sure you do not mind before ordering. 2. Due to the screen difference, the color may be a little different from what you expect, please allow it, thank yo          |
