sandwich panel automatic side sliding sectional garage door

Product Overview

Description

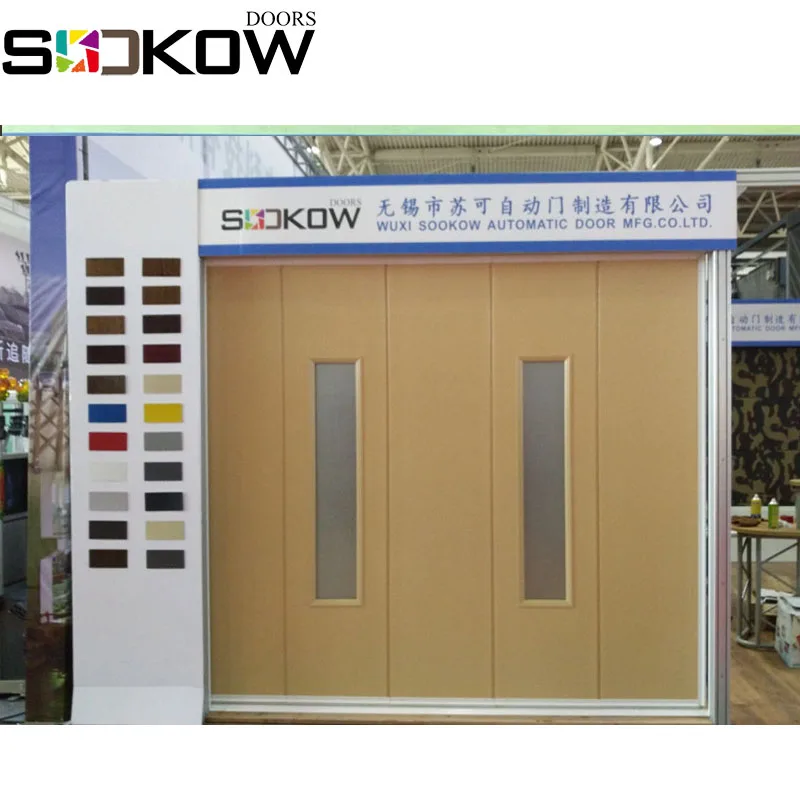

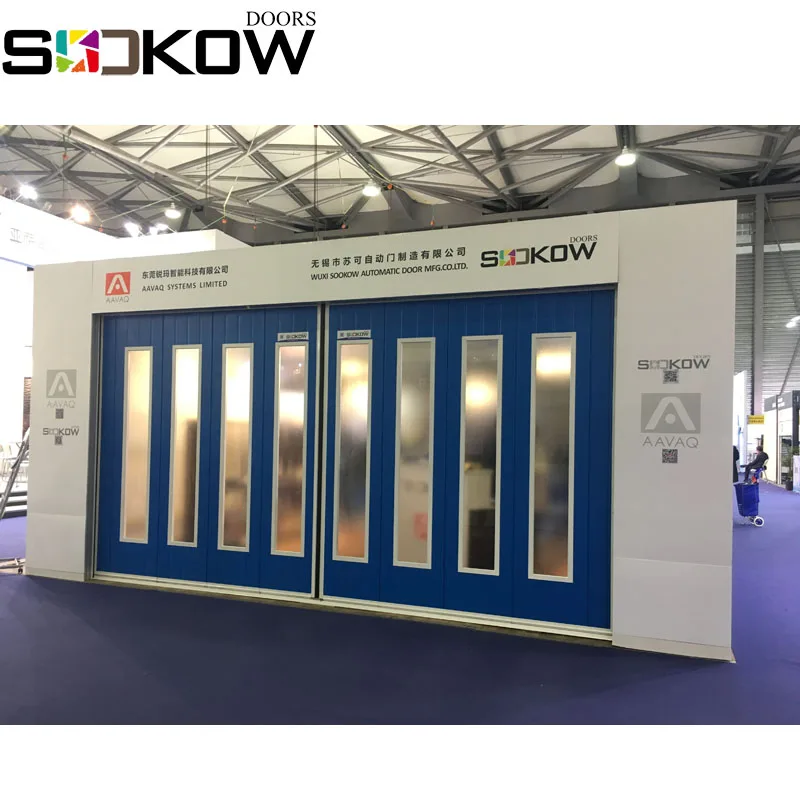

sandwich panel automatic side sliding sectional garage door



Qualified automatic aluminum garage door reach to official standard of European Union, Complete set of aluminum garage door has tested.

Working life: 20,000times.

All panels are produced by the continued production line which keep the stable quality.

Each section panel's joint is adopt "pinch-resistant" safety Design in order to avoid any finger injury when door open and close.

safety sepcifical function: When door panel bottom edge reach to the barrier during opening/closing, the door opener will let the panels "Rebound" automatically, it can increase safety issues.

1. Panel Types:

  A. 40mm finger protection panel(pinch-resistant)

  B. 40mm normal panel (non pinch-resistant)

  C. 50mm heavy duty panel

2. Double thickers layer of steel plate with Polyurethane Foam Inside--- Heat            Insulation.

3. Panel thickness: 40mm, 50mm with the 0.33mm,0.40mm and 0.45mm                   glavanize steel sheet

4. panel heat consumption factor:K=1.0W/m²k  Heat  consumption factor of the     installed door:K=1.6W/m²k

5. Any size can be customized according to customer's requirements.

6. Sectional maximum length: 11800mm

7. Each panel height: 440-550mm, adjustable

8. Surface finish: Wood grain or stucco embossment surface increases intensity    and gives better appearance

9. Panel design: stripes, blocks, one stripe, flat, wavy and smooth.

10. Full range of colors are available:

color in stock	number	special color(wood)	number
White	RAL 9016	Golden oak	SK101
Brown	RAL 8014	Dark oak	SK102
Black	RAL 9004	Black walnut	SK103
Silver	RAL 9006	Maple	SK107
Dark grey	RAL 7016	Mahongany	SK105
Sand stone	RAL 7004	Steel import from Italy
Beige	RAL 1015	Golden oak	DL89E
Apricot	RAL 1019	Dark oak	DL51E
Grey friars	RAL 7015	Moor oak	DL7E
		Mahongany	DL12E

FAQ:

A, Are you manufacturer?

Yes,We are one of the professional manufacturer of sectional door,we have professional team of workers ,service and inspection system.

B, How to order a sample?

we have small sample in stock, it is free of charge,you just need to handle with the freight.

C, What are your main products?

The main products are sectional door,we can offer different material panel with sectional,such as aluminum garage door,industrial door,solid wood door,aluminum door,glass door.

D, What is MOQ?

one set for trial order also Can be accepted.

E. Where is your factory?

We are located in Wuxi,it is very close to Shanghai,only takes 40minutes by high speed train.The address is No.79-15 Chunyang industrial zone,new district,Wuxi,China
