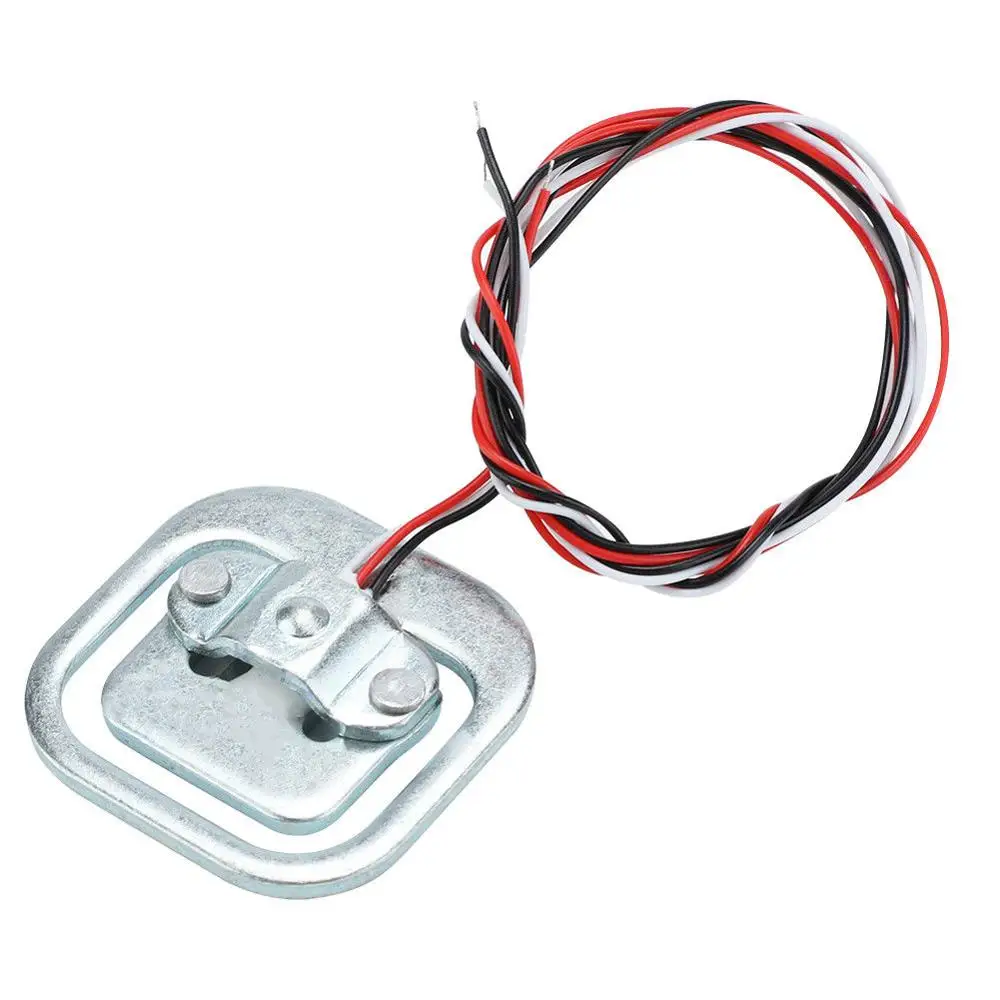

50kg Body Scale Sensor Strain Of Half-bridge Human Scale Load Cell Weighing Sensor
Description Material: Alloy Steel Range: 50KG Rated output: 1.0 ¡Â0.1mV / V Nonlinear: 0.08% F.S Hysteresis: 0.1% F.S Repeatability: 0.05% F.S Creep (5 minutes): 0.05% F.S Temperature Effect on Output: 0.02% F.S / ¡ã C Temperature Effect on Zero: 0.02% F.S / ¡ã C Zero Balance: ¡Â0.1000 mV / V Input impedance: 1000 ¡Â20% Ohm Output impedance: 1000 ¡Â20% Ohm Insulation resistance: 2000 MOhm Safety Overload: 120% F.S Ultimate Overload: 150% F.S Operating temperature range: -20 ~ 65 ¡ã C Recommended Operating Voltage: 5 VDC Maximum operating voltage: 8VDC Protection: IP65 Wiring: red, black, white Size:28 x 28mm/1.1 x 1.1""(L x W) Weight:49g
Feature: Widely used in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices. This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. Alloy Steel wired weighing load cell,high accuracy,simple structure,simple installation. You can use multiple load sensors simultaneously to increase the capacity range,Parallel use to add additional capacity.
Company Information
RTX TECHNOLOGY CO.,LIMITED was built in 2012, who is a professional distributor of electronic components .Our main business is military and industrial integrated circuit (IC) .For the best service and your most conveniently purchase ,we also offer bill of material list (BOM list ) quote and supply ,include resistors,modules capacitors , transistors, LEDs, connectors ,etc .Our business philosophy is “ Best products ,Best reputation, Best efficiency ,Best service and Reasonable price” since the company established . we gain lots of support and trust for our professionalism and dedication . To be your reliable and convenient purchasing partner is our goal . to be the world-class electronic components distribution partner is our purpose .
Packaging & Shipping
Our Services
1. Our advantage
- A gobal independent distributors of electronic components
- Welcome OEM, CEM
- A variety of channels to satisfy various demands
Most of them are in stock with aggressive price
2. Quality:
- Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.
- Others: We can supply bulk, refurbish, obsolete,refund & replacement if you want .
3. For the faulty:
- Firstly, products are produced in strict quality control system by manaufacturer .
- Secondly, during the guarantee period, we will send new one with new order for small quantity.
- For defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.
4. Welcome to RTX TECHNOLOGY CO.,LMITED
Address:SEG PLAZA 3010 .FUTIAN DISRICT ,SHENZHEN If any components need, please feel free to contact us. Thank you ! Welcome to visit our office ! :)
FAQ
1. What is the terms of payment?
Alipay, western union, bank transfer,money gram etc.
2. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
3.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
4.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
5.what is the warranty?
1-2 years warranty according to different products.
