Lollipop stick making machine

Product Overview

Description



1. Introduction

The machine is used to produce the PP lollipop stick. It’s an automatic and high speed model.



2. Characteristics

Colours:One colour.
Notch cutter:One side one notch,one side two notches,each side one notch ,no notch.
All the direct contact parts are made of stainless steel.
The cutting unit adopted the big plate cutter and with automatic gathering system.
The inverter brand is DELTA
Raw material: polypropylene (PP)
Specification:

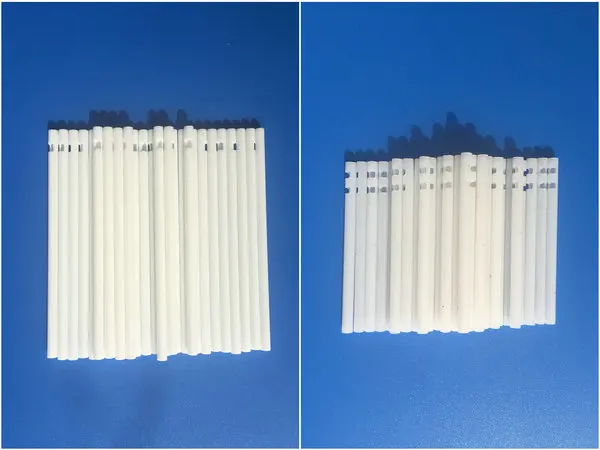

1) Diameter range for the stick: 2.5mm - 4.0mm
2) Length range for the stick: 75mm-115mm



Technic Data :

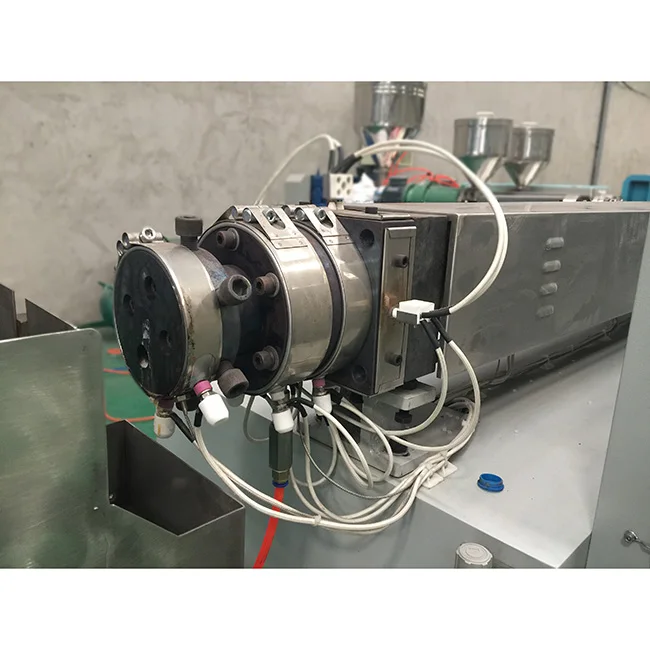

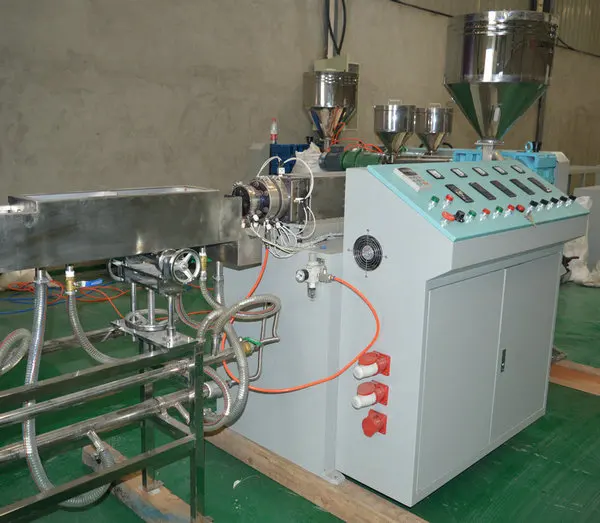

Extruder
Main screw diameter	50mm
L:D:	28:1
Power of main motor	11kw with DELATA Inverter
Heating section	5
Capacity	1000-1200psc/min
Water cooling bath
Length	6000mm
Material	Stainless steel tank and frame

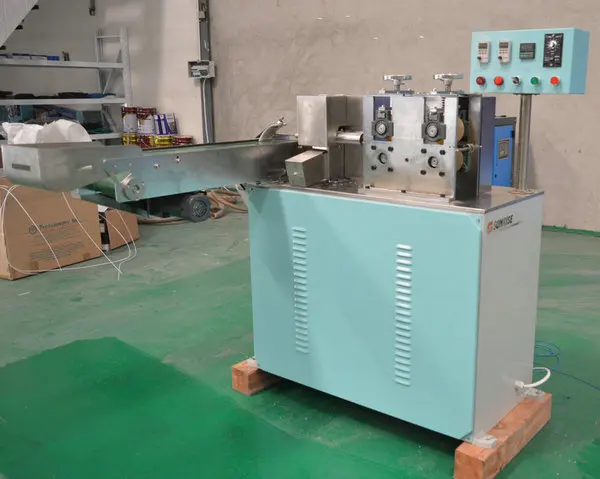

Hauling machine and cutting unit
Power of motor	0.75kw with DELTA Inverter
Cuttng with the special blades for lollipop stick
Material of working table	Stainless steel
Air compressor
Fusheng(famous brand in China)
