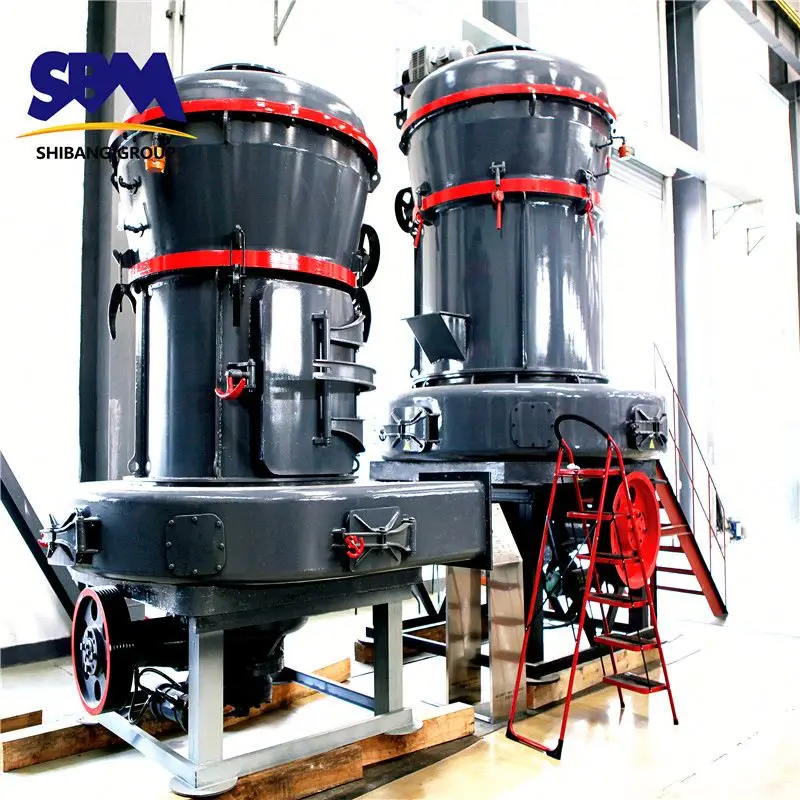

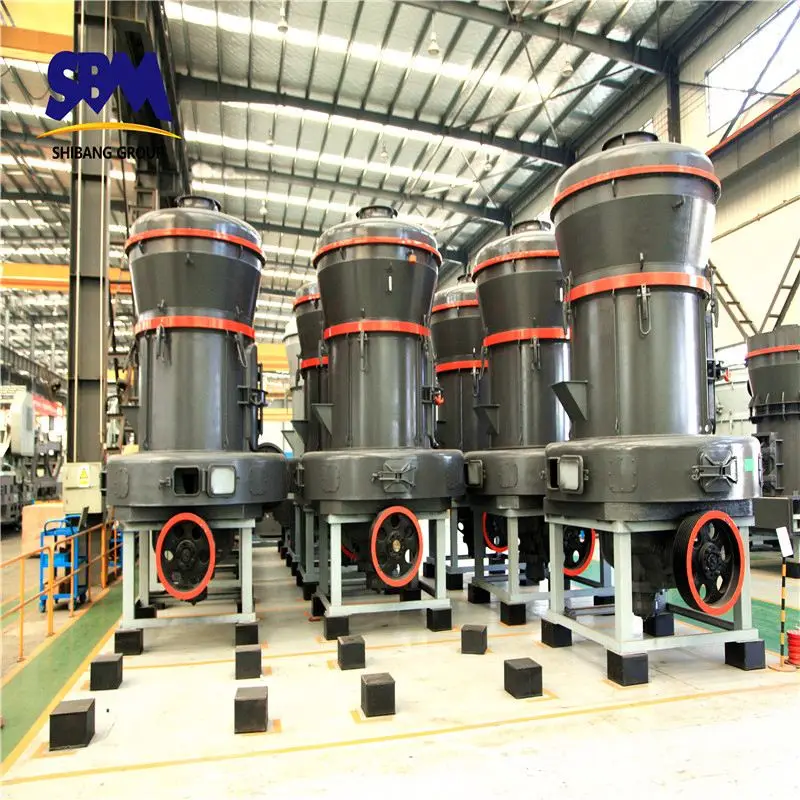

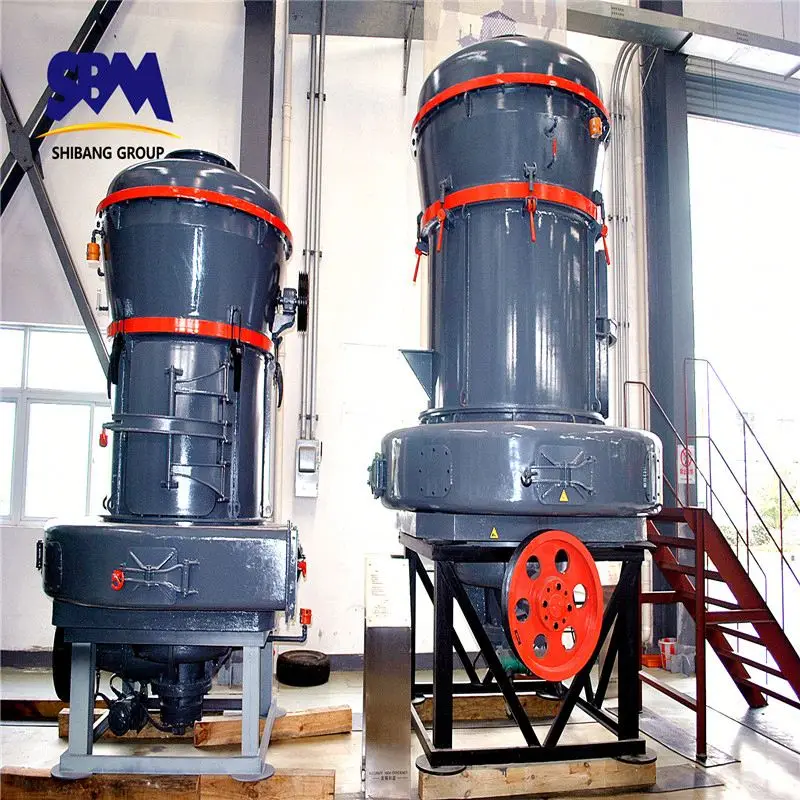

mtw110 vertical roll mill

Product Overview

Description



mtw110 vertical roll mill brief introduction:



mtw110 vertical roll mill is the latest powder mill innovatively designed through deep research by experts on the basis of long-term powder mill research and development experience. Its development absorbs the latest European powder grinding technology and concept, and combines the suggestions of 9158 customers of powder mill. This mill perfectly satisfies the production demands of the customers on 200-33μm (80-425Mesh) fine powder.

Features :

•
• Cambered shovel blade with changeable blade, more efficient and more maintenance cost saving
•
• Relative to the traditional integral shovel blade, we adopt split type shovel blade: when the cutting part wears, only the blade needs to be replaced, which avoids material waste due to the replacement of integral shovel blade, and greatly helps the customer save the replacement cost of quick-wear parts. In addition, the curve design we adopted can guide the material to the vertical face, the upper, middle and lower parts of grinding roller and grinding ring can all grind and wear uniformly; it also increases the effective working area and enhances the production efficiency.
•

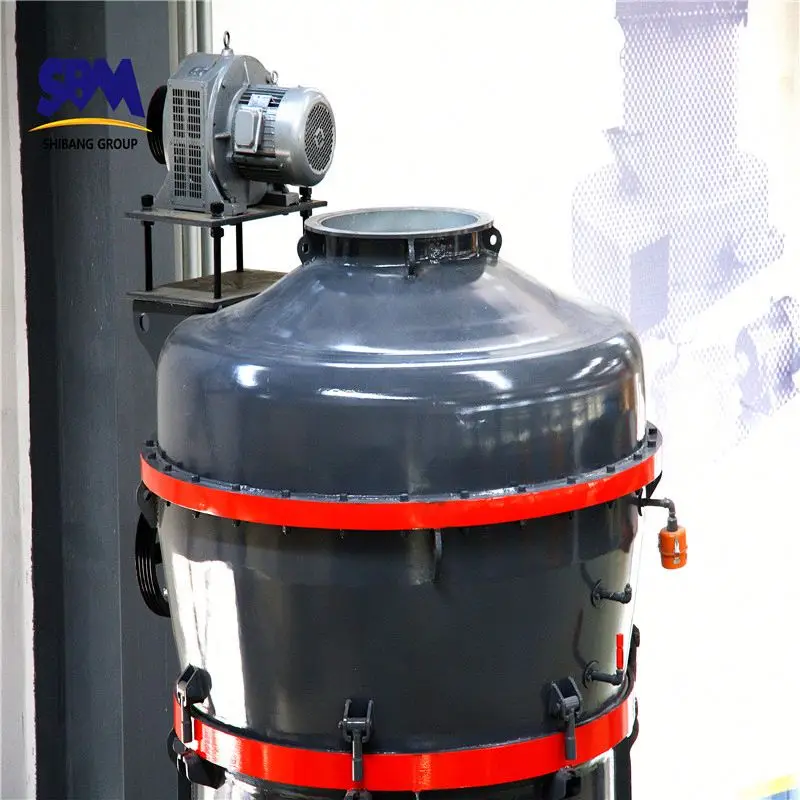

• High-efficiency cage type powder separator can effectively eliminate “coarse powder spilling”
•
• MTW European trapezoid powder mill adopts high-efficiency cage type powder separator, which is of relatively stable velocity field, high powder separating precision, high powder separating efficiency and accurate cutting diameter; in addition, pneumatic sealing is adopted between the housing and cage rotor, which can effectively eliminate the “coarse powder spilling” phenomenon.
•
• Thin oil lubrication system makes the transmission and operation more stable
•
• The traditional mill lubricating form is grease lubrication, which will cause large lubrication resistance, high temperature rise and shorter bearing life; MTW European trapezoid powder mill adopts internal oil pump, which can realize the lubrication of main shaft bearing and bevel pinion shaft bearing without adding separate oil pump or lubrication station.
•

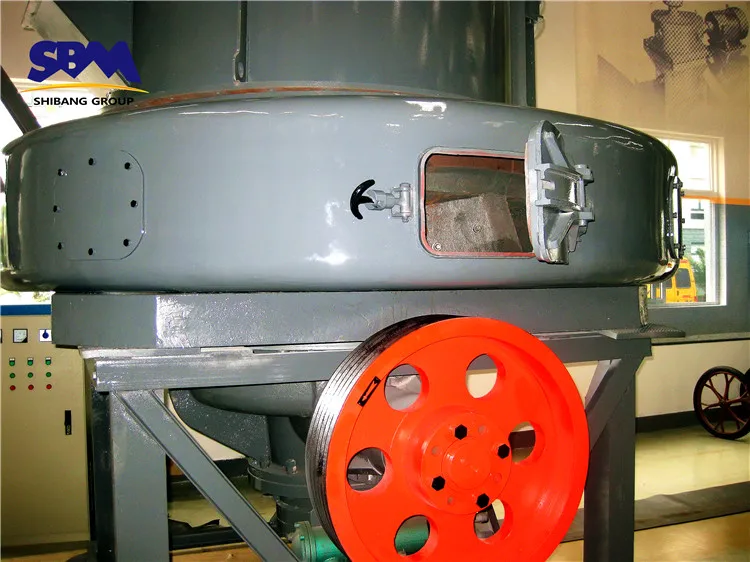

• Resistance-free air intake volute design realizes smoother tangential airflow and better material liquidity
•
• In the observation door of air intake volute of traditional mill, the internal surface of inside door sheet bulges outwards, and is not aligned to the internal surface of air intake volute, which is liable to generate eddy effect and increase the system energy consumption. For MTW European trapezoid powder mill, the internal surfaces of inside door sheet and air intake volute are on the same curved surface, which can effectively avoid eddy effect, decrease the air volume loss, and improve the material liquidity.



Application:
mtw110 vertical roll mill  is ideal machine for grinding barite, limestone, mica, talcum, quartz, calcite, granite, porcelain clay, basalt, gypsum, gold, iron ore, bauxite, copper, cement, coal etc. So it has wide application in powder making industry of construction, mining and paper-making and so on.

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you.

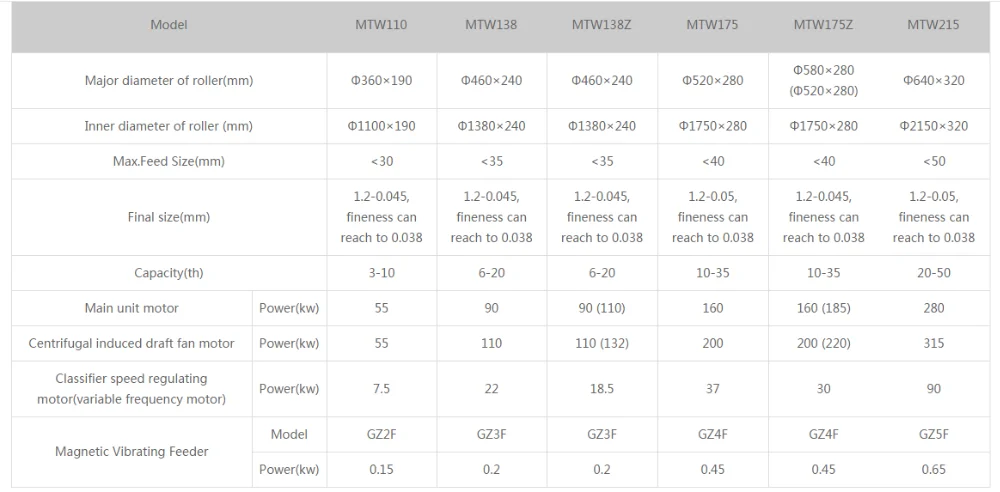

Technical Data:







 Annual output of 300000 tons of limestone for coal-fired power plant desulfurizer production line in Mongolia



The customer purchases 3 sets of MTW215 euro-type complete equipment for limestone production. The finished mineral powder is applied for sulfurization of surrounding power plants. It now has become the largest desulfurization supplier because of its good application effects.





Daily operation: 24 hours; Feeding-in material: limestone; Grinding particle size:<=35mm; Finished product: 250-325 mesh.
