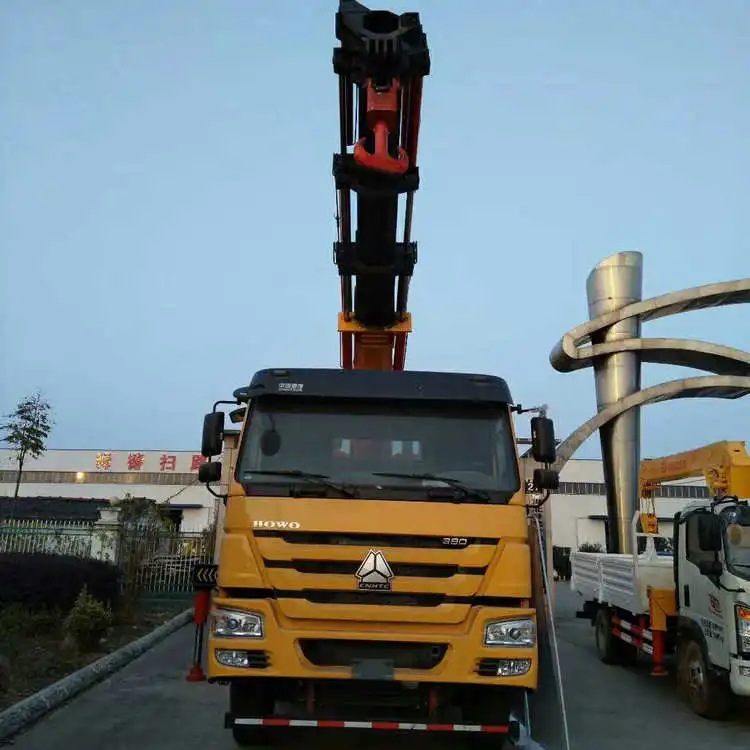

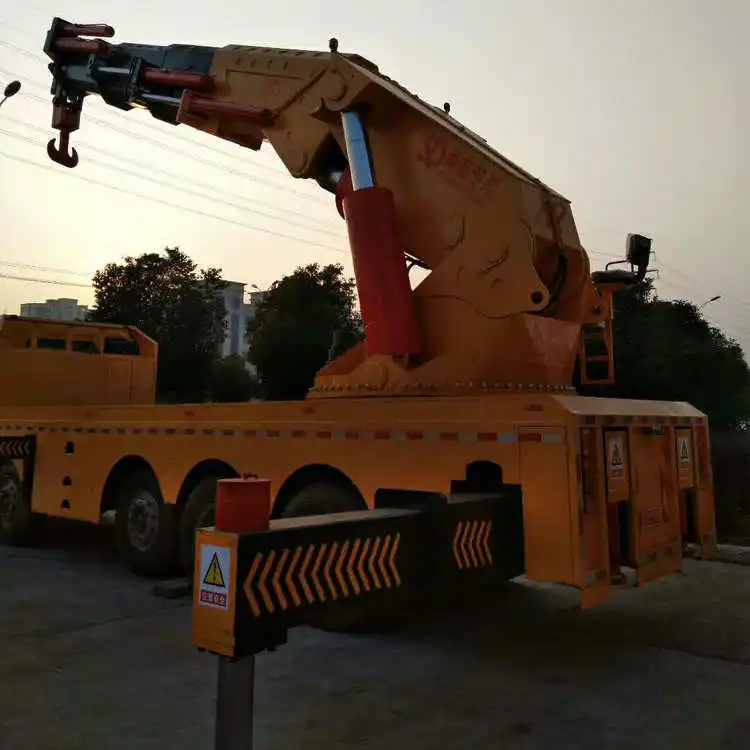

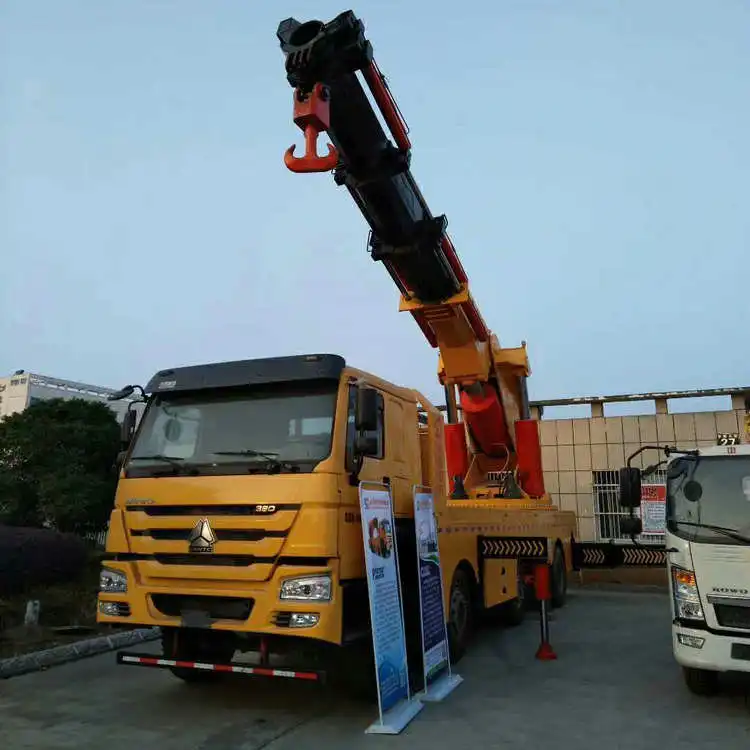

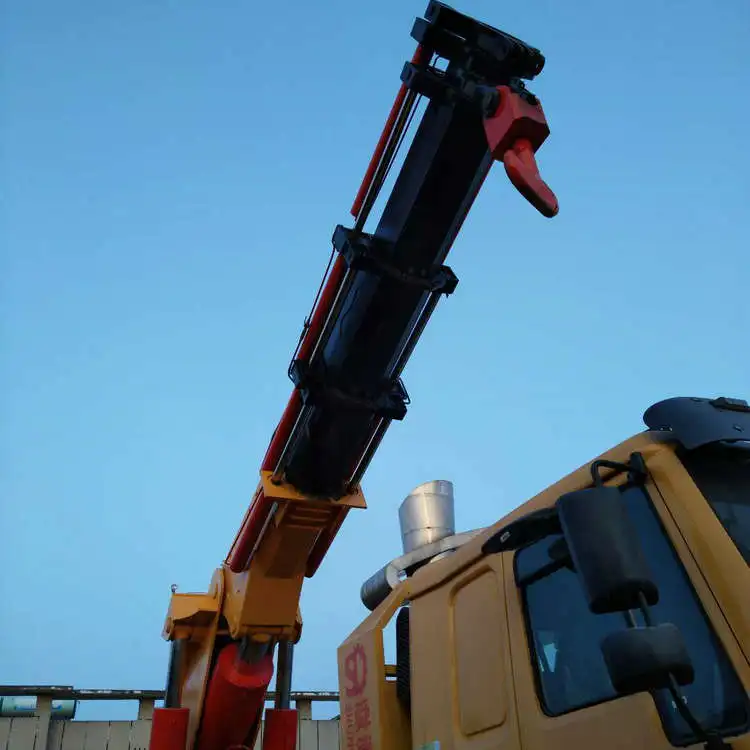

200 ton heavy duty truck HOWO truck mounted crane

Product Overview

Description

Crane technical parameters:
Crane brand	Xugong, Sany, stone coal, etc.
Car size	6100*550*2300
Car panel thickness	3mm (carbon steel)
Floor thickness	4mm (carbon steel)
Car body material	Q235 (carbon steel)
Rotary mode	360 full hydraulic swing
Hydraulic cylinder	joint venture / import
Hoisting system	imported from Italy
Operating device	manual device / remote control device
Crane tonnage	180 tons / 200 tons
Crane type	front / rear
Crane section arm	3-section arm / 4-section arm
Crane material	HG785
Crane section structure	U type / 6 side type
Crane weight	40 tons / 45 tons
Working radius	54m/56m
Lifting height	19m
Crane dimensions	3950*3000*980





Vehicle service:
120 tons of truck cranes	domestic and international famous brands, Xugong, Shimei, Furukawa, Sany, etc. Strong carrying capacity and low failure rate. Long service life
120 tons of truck crane hydraulic system	all adopt internationally renowned hydraulic system, Italy, Germany imported system, crane operation is more stable, telescopic speed is faster and stable, long service life
After-sales service	crane three-in-one warranty; three-pack service for one year or 30,000 kilometers
Optional configuration	legs - fixed legs, double cavity legs, high altitude seats, remote control, compartment material and thickness, with ladders, etc.



Vehicle technical parameters
Vehicle Name:	CLW5501JQZZ5 truck crane	Announcement batch:	294
Product trademark:	Cheng Liwei	product code
Vehicle model:	CLW5501JQZZ5	Directory serial number:	(17)74
Exempt from inspection:		Release date:	20170401
Total mass	50000(Kg)	Volume:
Rated contained mass	(Kg)	Curb quality	49870(Kg)
Dimensions	11500×2500×3980(mm)	Cargo size	××(mm)
Rated passenger		Quasi-trailer total quality	(kg)
Cab:		Front passengers:	2
Anti-lock system:	yes	Load mass utilization factor
Fuel type:	Diesel	Emission Standards:	GB17691-2005 country V, GB3847-2005
Approach / departure angle:	14/12(°)	Front overhang / rear overhang:	1500/2250(mm)
Number of axes:	5	Wheelbase:	1950+3075+1375+1350,1950+4575+1375+1350(mm)
Number of tires:	14	Tire specifications:	12.00R20
Front track (mm):	2022/2022/2022	Rear track (mm):	1830/1830
Axle load:	8000/8000/8000/13000/13000	Maximum speed:	80(km/h)
other:	The vehicle is equipped with a lifting device such as a boom, a turntable, and a leg. The lifting work is completed by the telescopic expansion of the boom; the vehicle can be driven without the jib, counterweight, hook, foot plate, spare tire frame, etc. CLW6000, optional crane shape change; Protective material: Q235A carbon steel, connection method: the left and right side protection and the bottom of the flat plate are welded, the rear protection interferes with the skirt mechanism, so the rear protection can be exempted, and the height of the rear part is 480mm The total mass is 50000kg, so the rollover stability angle is exempted; the ABS system model is 4460046300, and the manufacturer is WABCO Automotive Control Systems (China) Co., Ltd., which uses tires 12.00R20, level 20PR.

Chassis ZZ5507N31B7E1 technical parameters
Chassis model	ZZ5507N31B7E1	Chassis companies:	China National Heavy Machinery Group Jinan Truck Co., Ltd.
Number of tires	14	Number of springs:	11/11/-/12
Tire specifications:	12.00R20	Steering Type:	steering wheel
Front track:	2022/2022/2022	Rear track:	1830/1830
Chassis emission standards:	GB17691-2005 country V, GB3847-2005
Fuel type:	Diesel	batch:	308
engine model	Engine manufacturer	Displacement (ml)	Power (kw)
D10.38-50	China Heavy Duty Group Co., Ltd.	9726	276
Identify the company:	Changzhou Huarisheng Reflective Material Co., Ltd.	Vin vehicle identification code:	LZZ1B6SB××××××××× LZZ1B6SF×××××××××
