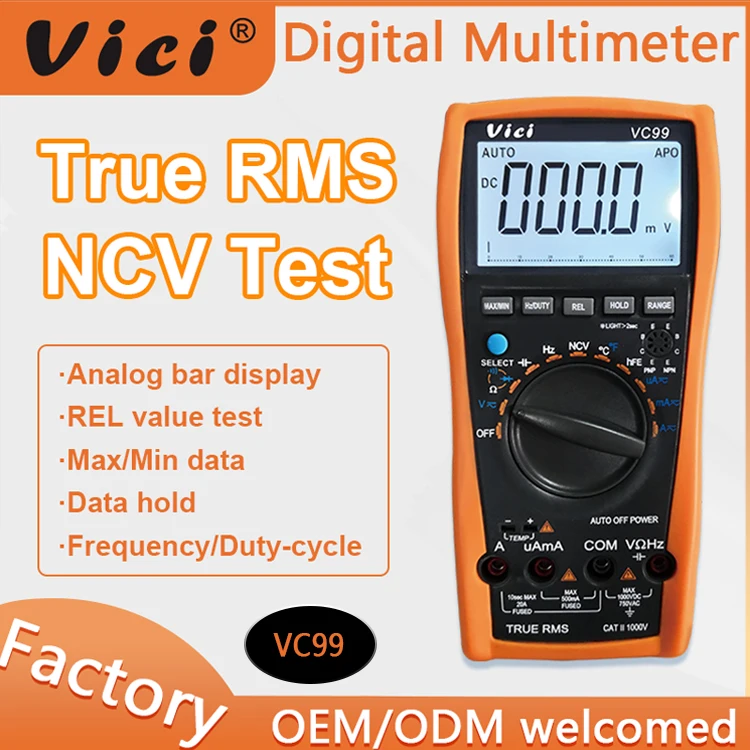

VC99 AC DC Voltage Tester Digital Multimeter Analog Multimeter

Share on (62206442996):


Price:$17.58 - $25.56

Quantity:


Product Overview

Description


VC99 AC DC Voltage Tester Digital Multimeter Analog Multimeter






Product Description





Features:


1. Large LCD display makes reading clear.


2. Can keep working when there is operation,and auto power off.


3. Full functiong protection,anti high voltage circuit design.


4. Relative value and frequency/duty cycle measuring.data hold.

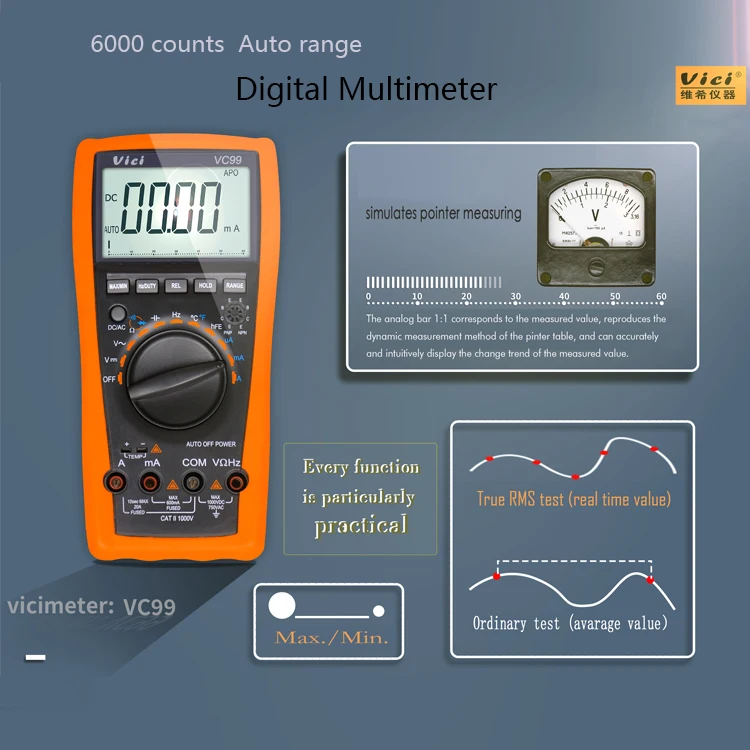

5. Analog bar display.


6. NCV, TRUE RMS, BACKLIGHT function

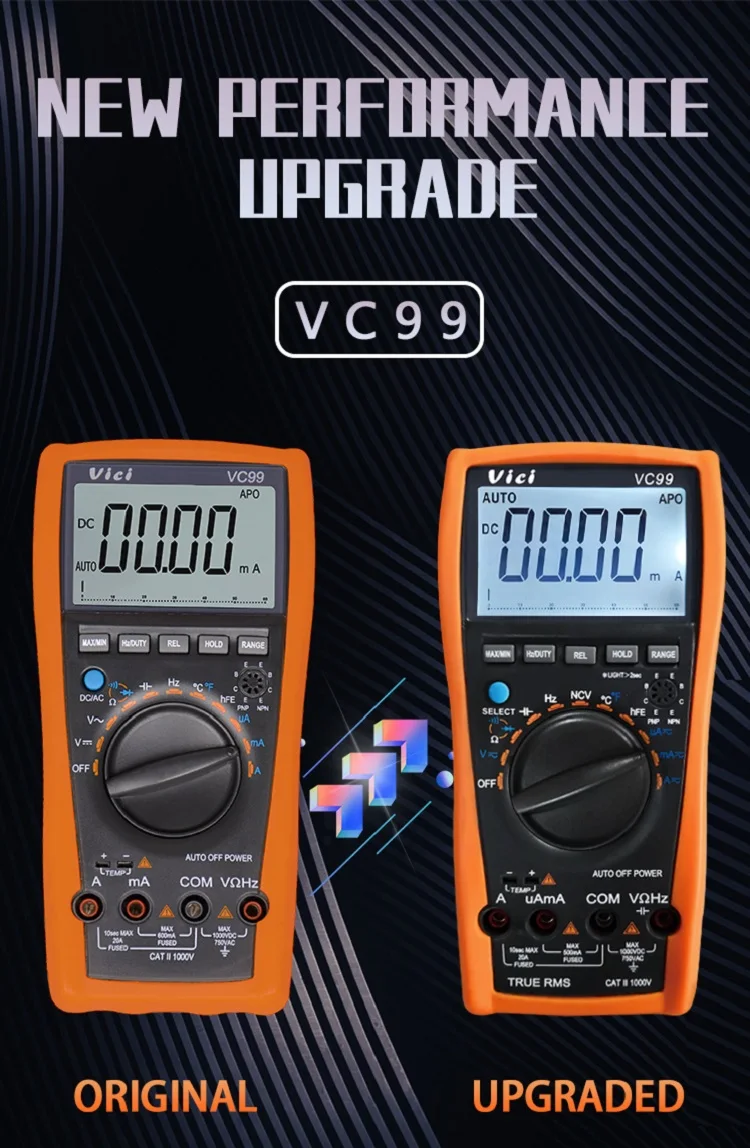

 VC99 MULTIMETER NEW 1





VC99 DMM new  spec.





























































Basic function



Range



Basic accuracy



DCV



600mV/6V/60V/600V/1000V



±(0.5%+3)



ACV



6V/60/600/750V



±(0.8%+5)



DCA



600uA/6000uA/60mA/600mA/6A/20A



±(1.0%+3)



ACA



600uA/6000uA/60mA/600mA/6A/20A



±(1.2%+5)



Resistance



600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ



±(0.8%+5)



Capacitance



60nF/ 600nF/6uF/60uF/600uF/6mF/60mF



±(3.5%+10)



Frequency



10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz



±(0.5%+4)



Centigrade temperature



-40~1000



±(0.8%+4)



-40~1832



±(0.8%+5)

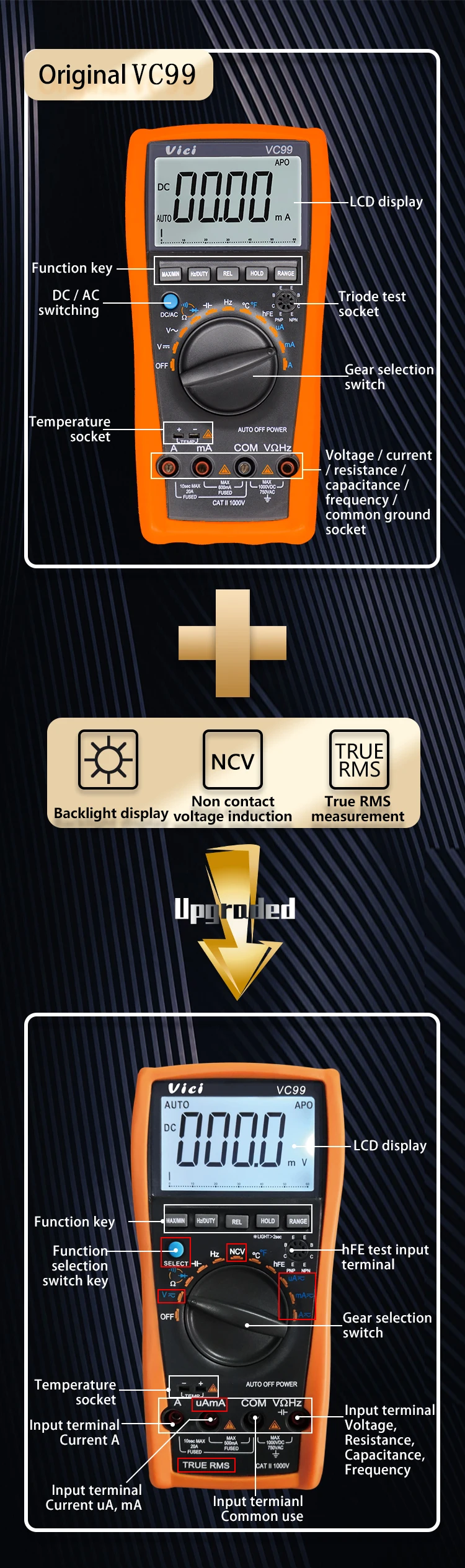

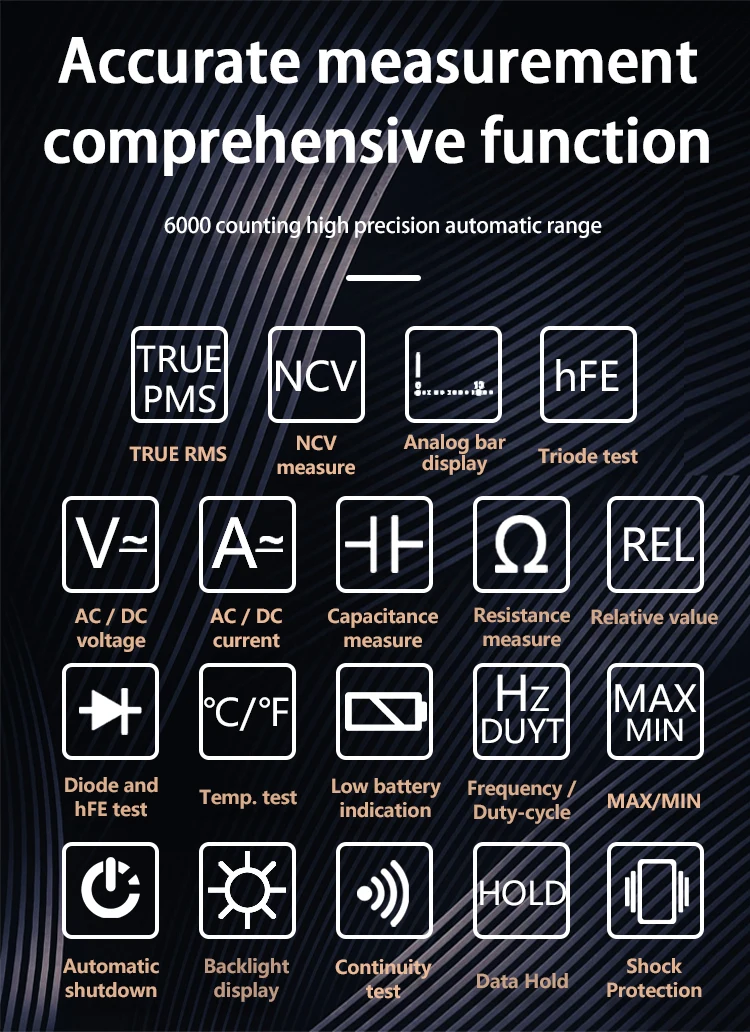

Special function

VC99



NCV

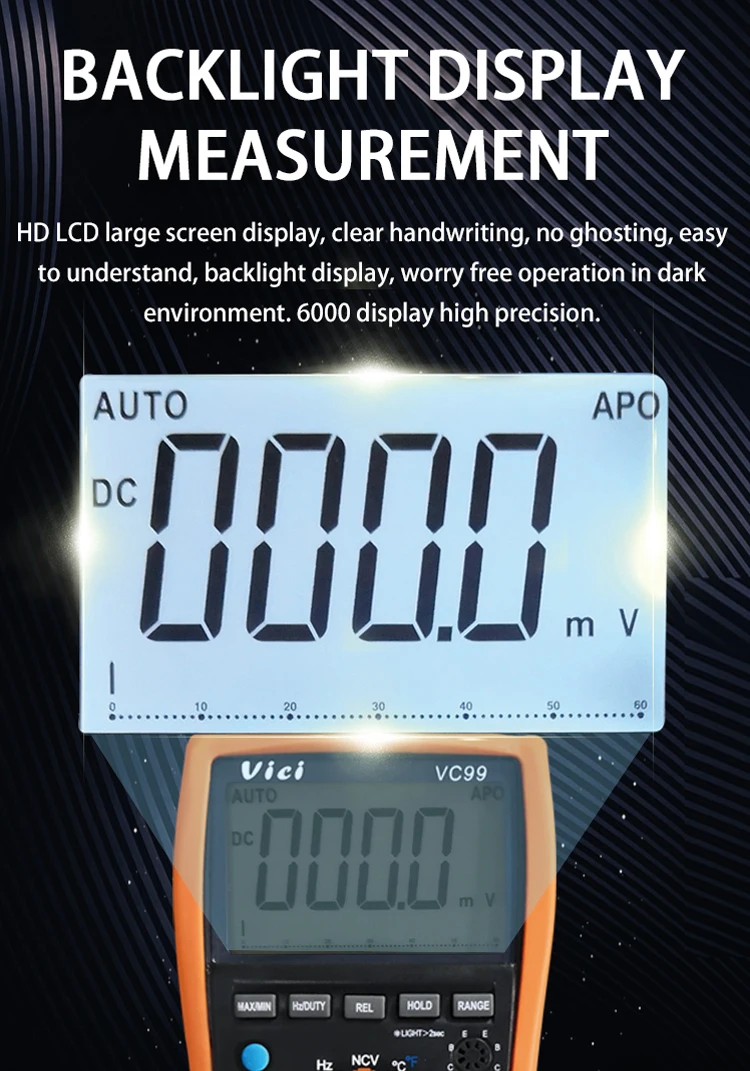

Backlight display





TRUE RMS





Diode test





hFE test

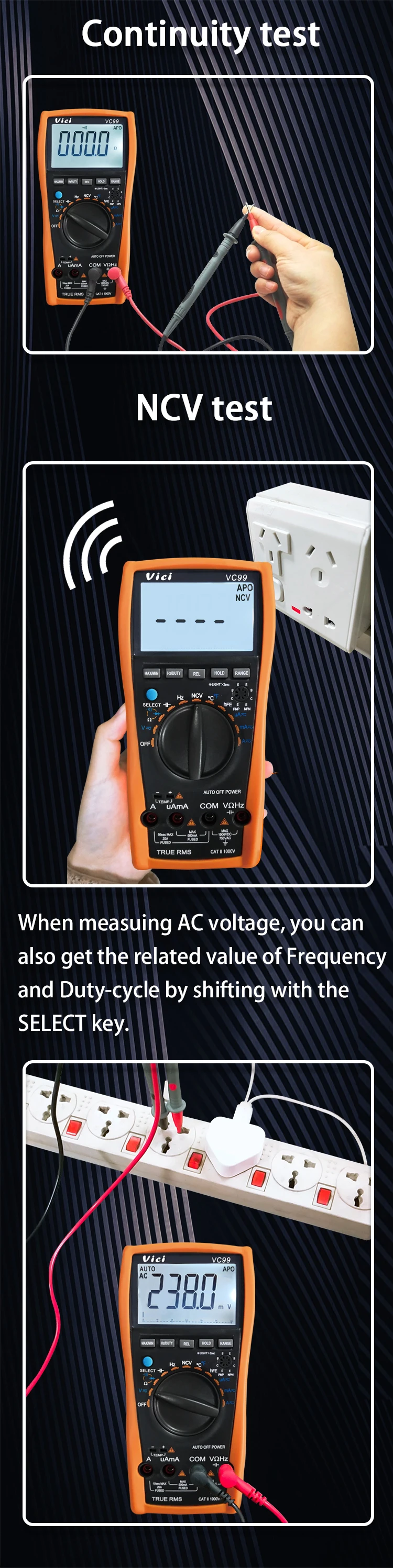

Continuity test



Approx. less than 30Ω±10Ω



Low battery indication



Approx less than 2.4V



Duty cycle measuring





Data hold



MAX./MIN., HOLD



Auto power off



Approx.15minutes



Analog bar





Function protection





Input impendence



10MΩ



Sampling rate



3times/s



AC frequency response



40-400Hz

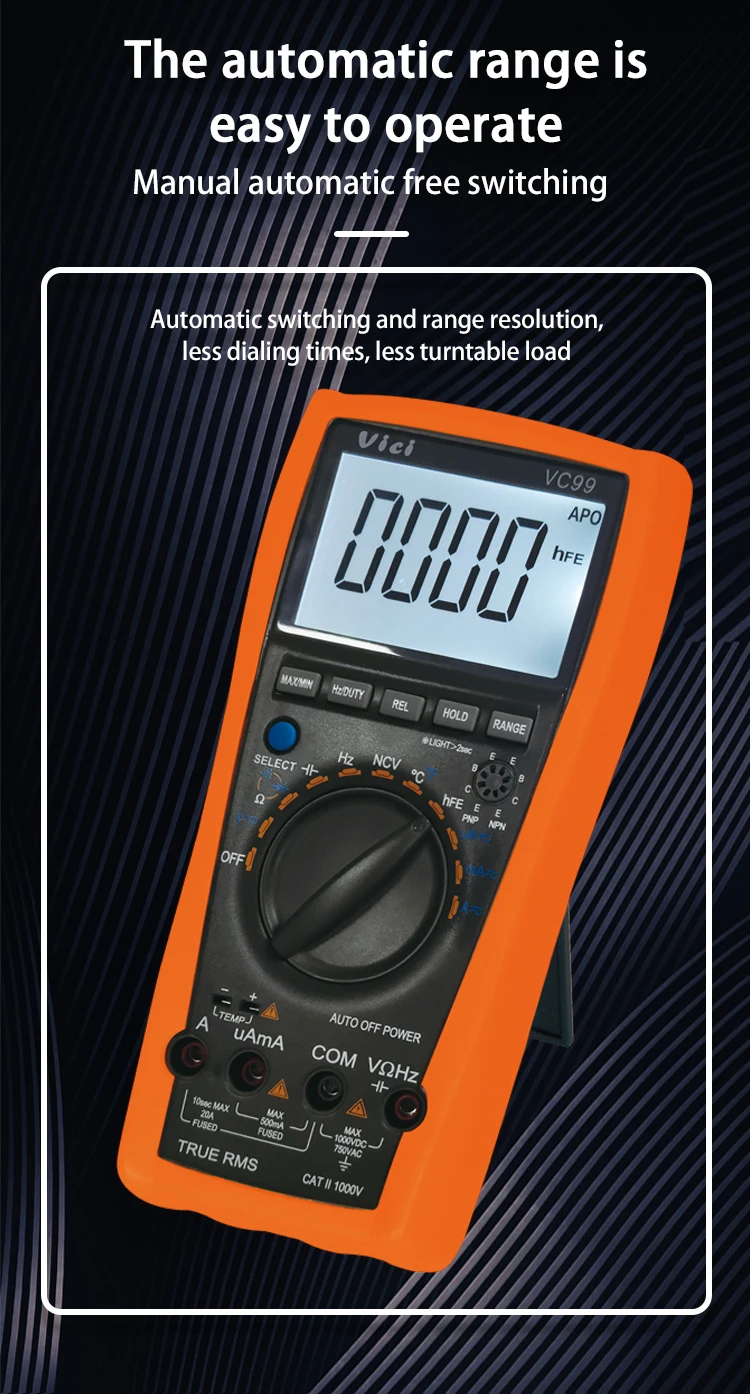

Operation way



Manual or auto range



Max. display



6000



LCD size



65x41mm

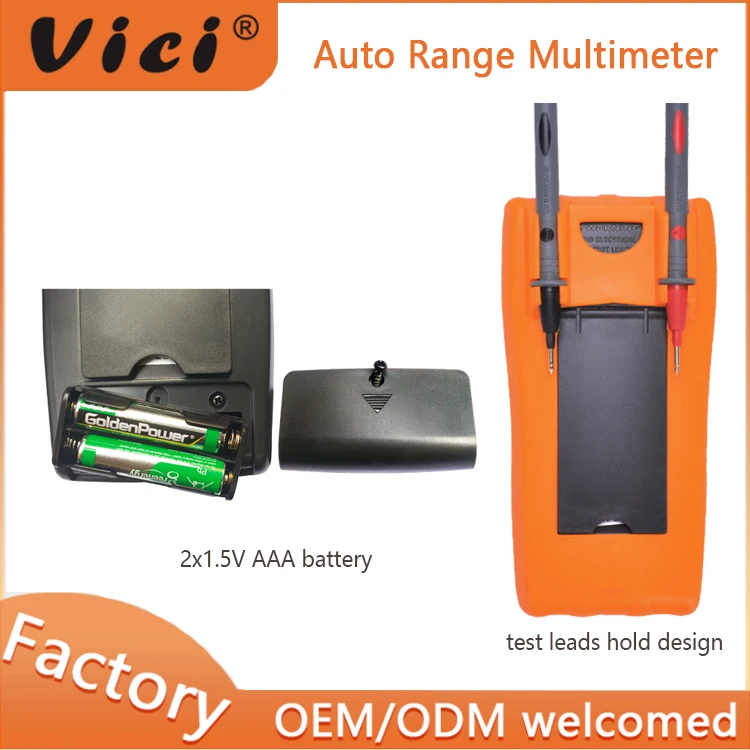

Battery



3V (1.5V AAA×2)



Power consumption



Quiescent current approx. 2mA






VC99 MULTIMETER NEW 2.jpgVC99 MULTIMETER NEW 3.jpgVC99 MULTIMETER NEW 4.jpgVC99 MULTIMETER NEW 5.jpgVC99 MULTIMETER NEW 6.jpgVC99 MULTIMETER NEW 7.jpgVC99 MULTIMETER NEW 8.jpgVC99 MULTIMETER NEW 9.jpg









































Color



Orange and Grey



Weight



290g(including battery)

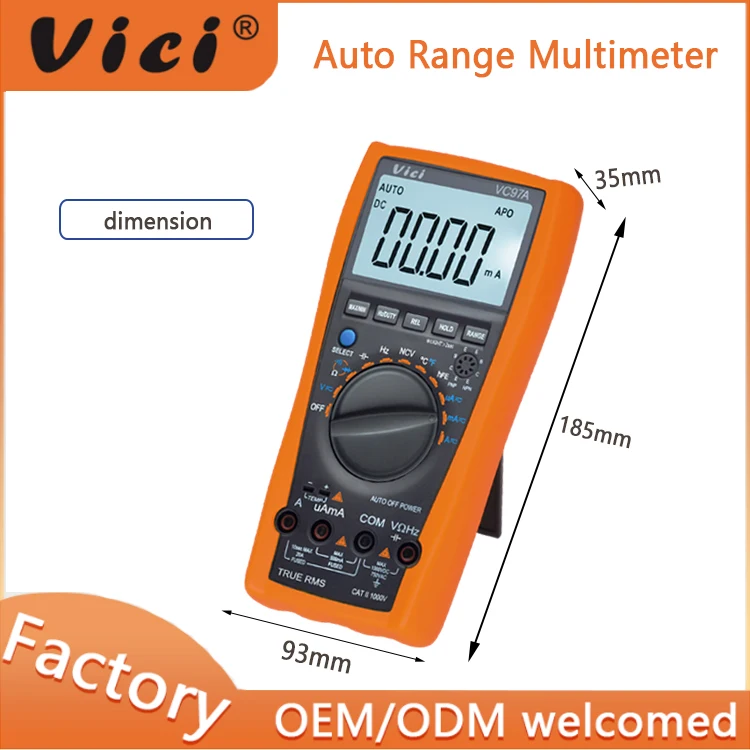

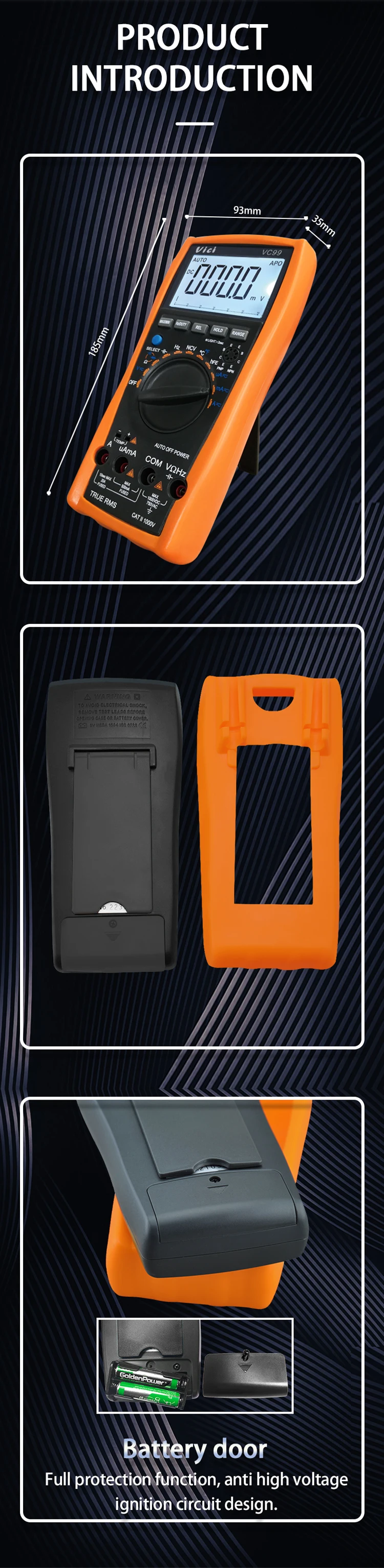

Meter size



185×93×35mm

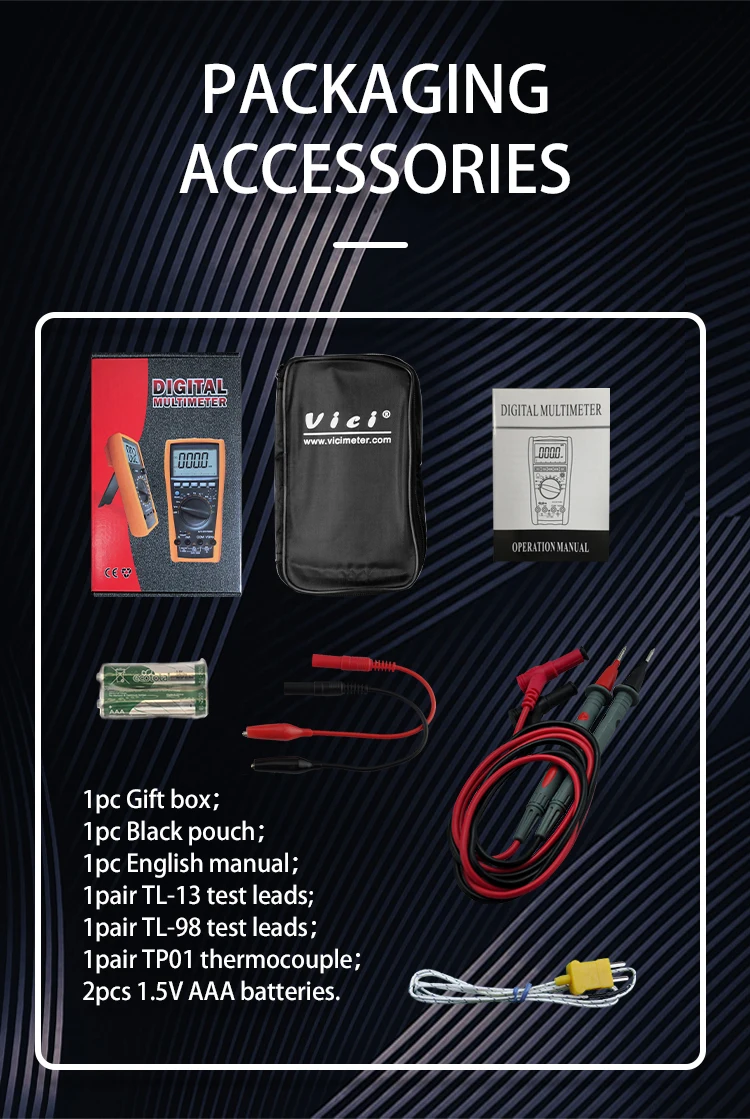

Standard accessory



Test leads, battery, manual, TP01 temperature probe



Packing



Gift box



Standard packing per carton



30pcs



Carton size



45.5×32.5×43.5cm



Standard G.W per carton



17kg






VC99 MULTIMETER NEW 10
