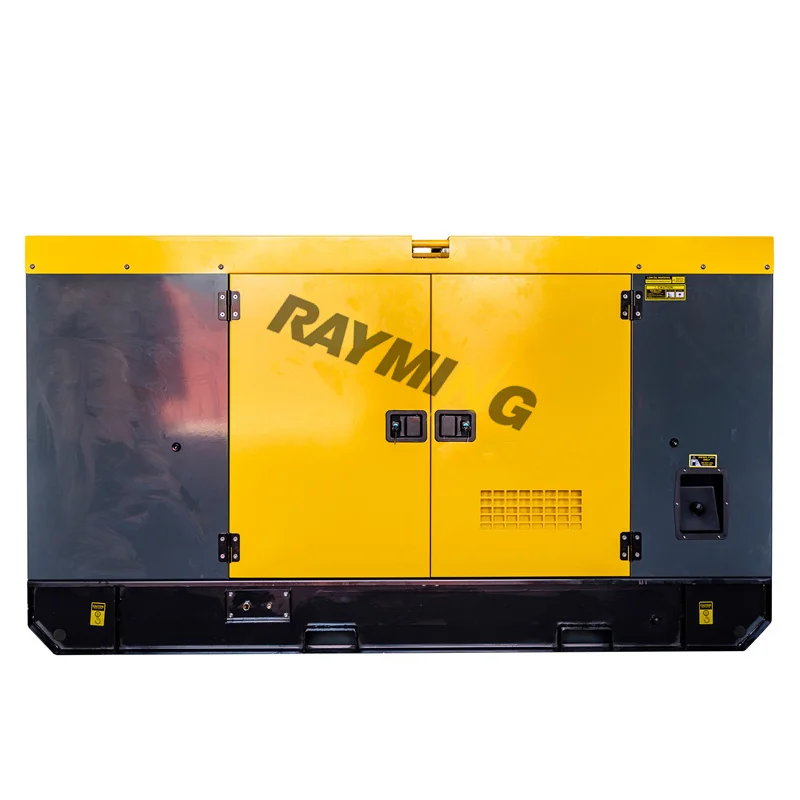

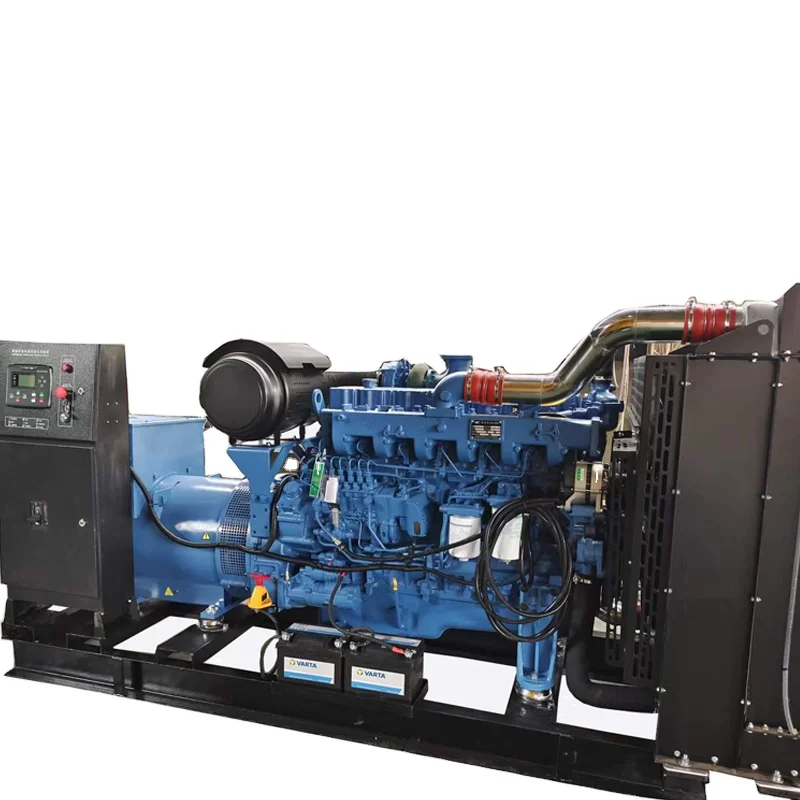

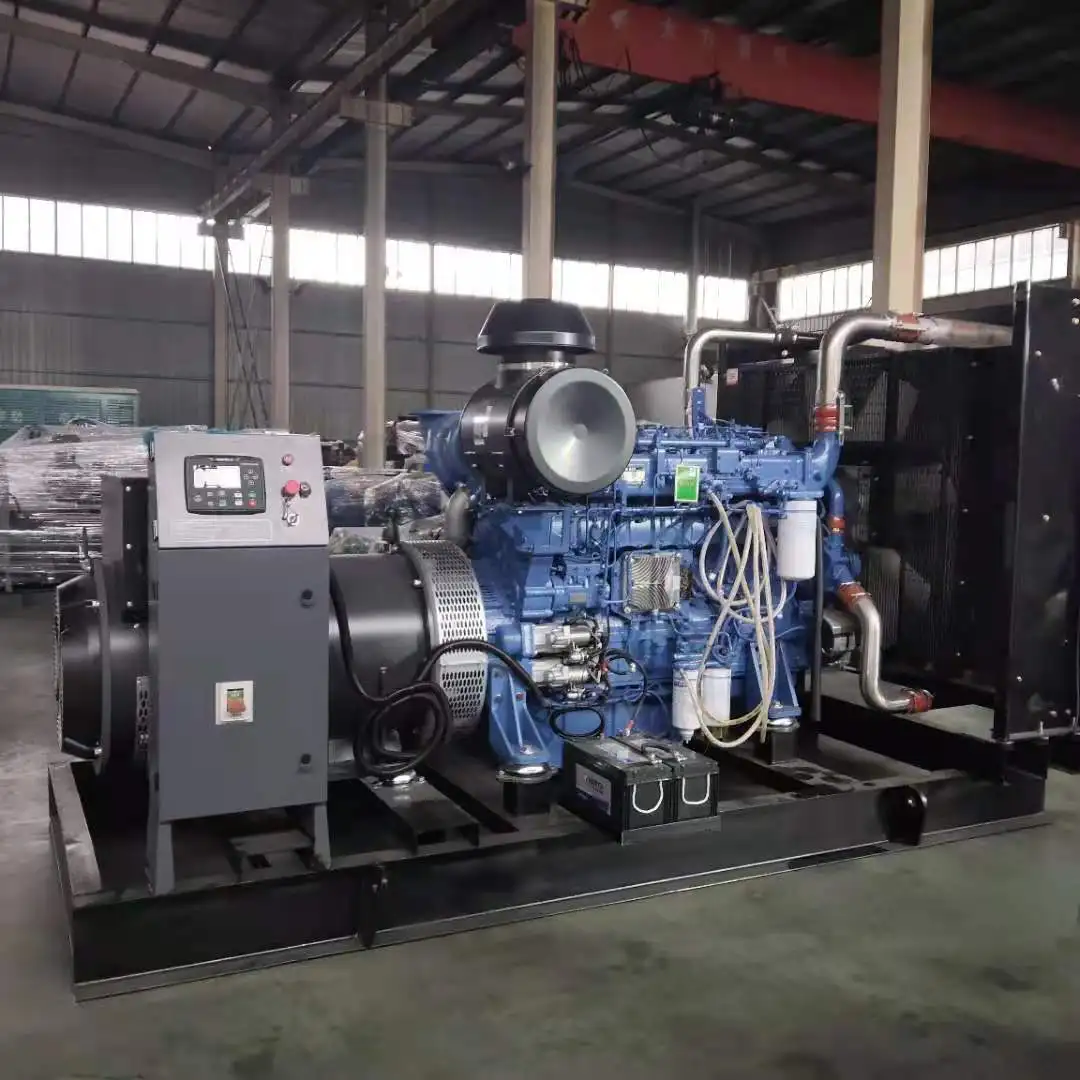

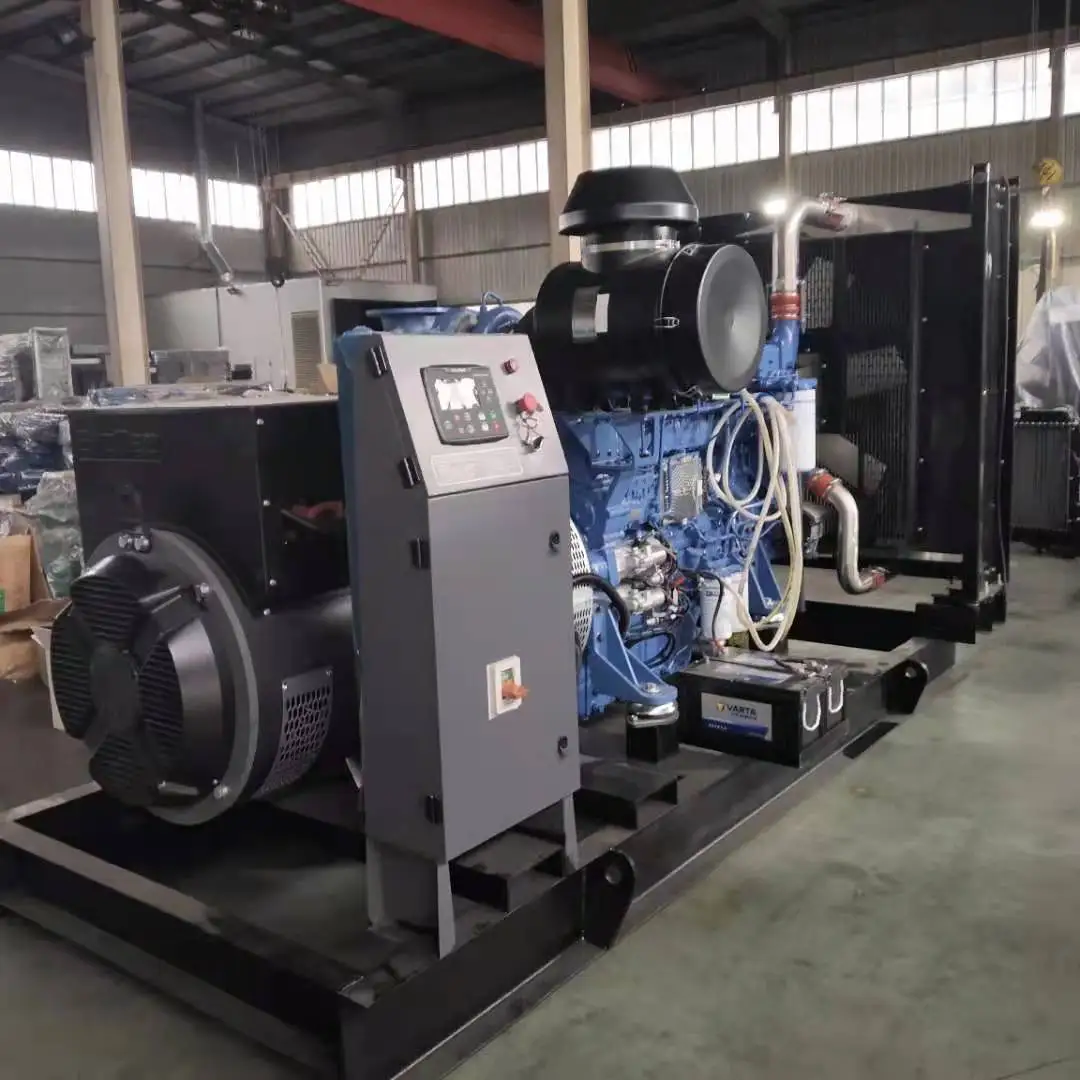

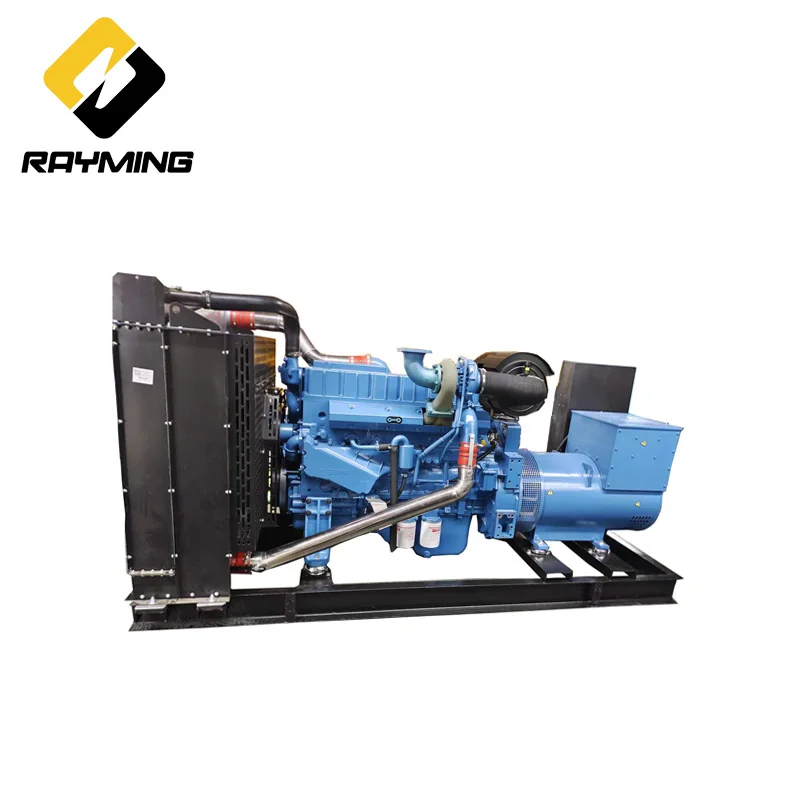

400KW 500KVA Diesel Generator Silent Type with Yuchai engine

Product Overview

Description

400KW  500KVA Diesel Generator Silent Type with Yuchai engine

400KW DIESEL GENERATOR
Generator model: LMGF-400		Steady state voltage regulation(%): ≤±0.5
Output powder:400kw/500kva		Voltage fluctuation rate(%):≤0.5
Powder factor: COSΦ=0.8 in three phase		Transient voltage regulation(%):-15~+20
Output voltage: 110/220v/230v/400v/415v		Voltage steady state time(s):≤0.5
Output current:720Amp		Steady state frequency adjustment rate(%):0~5 adjustable
Rated frequency:60Hz/50Hz		Frequency fluctuation rate(%):≤0.5
Rated speed: 1800rpm/1500rpm		Transient frequency modulation rate(%):≤±10
Fuel brand: ( standard) 0# light diesel oil( room temperature)		Frequency recovery time(s): :≤5
Fuel consumption:195g/kw.h
Gross size		3400*1500*1950mm
Gross weight		3900kg
Diesel Engine Technical Parameters
Brand/origin: With Yuchai Engine		Cooling mode: closed cooling water circulation
Engine type:YC6T600L-D22		Oil supply: direct injection
Rated power:		Speed adjustment: Electronic
Standby power:441KW
Qty of cylinders/cylinder structure: 6 cylinder on line		Air inlet: turbo Charged
Bore by stroke:145*165mm		Overload capacity: 110%
Engine oil capacity:52 L		Discharge :16.35 L
Compression ratio: 16.8:1		Rated speed:1800rpm/1500rpm
Startup mode: DC 24V electric start
Brushless synchronous Alternator
Brand:  RAYMING		Insulation class: H
Model:RMY400GF		Connection mode: three phase four wire, Y type
Rated powder:400kw/500kva		Adjust way: AVR( automatic voltage regulator)
Output frequency: 60Hz/50Hz		Output factor: COS Φ=0.8
Rated speed:		1800rpm/1500rpm
Battery		2*105A
Control panel
Model	Smartgen/Deepsea/ComAp



Q1: How is your Package & Payment & Delivery Date & Warranty?

A.1) Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)

A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C

at sight.

A.3) Delivery: 7-25 days after we get the down payment.

A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply)

from

 installed date.During the guarantee period. such as Cummins or Perkins generators. they are international

brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for

repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will

solve it a.s.a.p.

Q2: Any advantages about  your company?

Answers: LM Brand Diesel Generators with following advantages:

----MOQ is 1 set and we could finis more than 100sets/month

---- Middle-high Positioning;

---- 7-25days Lead-time;

---- Got the ISO and CE certificate; OEM Certifications

---- High quality with the best price can help you get more benefit and beat your competitors;

---- Powered  by Cummins, Perkins, Detuz etc. famous engine brands optional;

---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.

 Q3: Any advantage of Digital Control Panel?

1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over

battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
