Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918
Shear connector (SD) shear bolt connector Shear stud ISO13918

Shear connector (SD) shear bolt connector Shear stud ISO13918

Share on (62206577543):


Price:RUB 26.54

Quantity:


Product Overview

Description

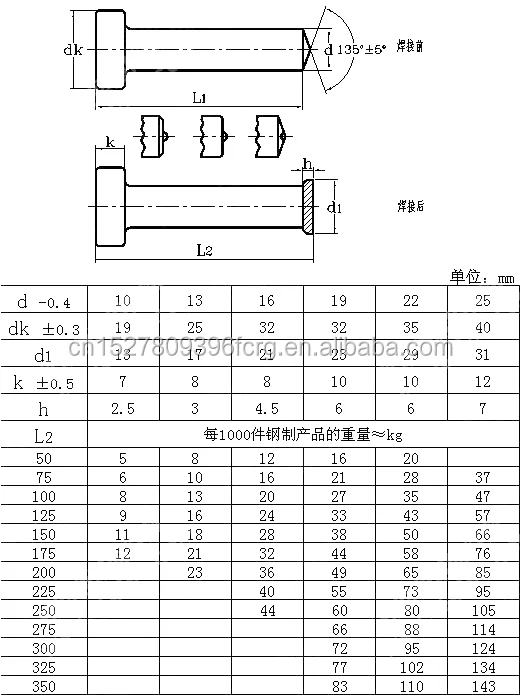

 SD ISO 13918-1998.png

Main Features:
1. Shear Connector Studs anchor bolt are designed to tie the concrete to the steel beams and to resist shear loading between the concrete slab and steel beam in composite construction.
2. Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

Chemical Component of Raw Material (%)
Material
C
Si
Mn
P
S
Al
SWRCH15A
0.13-0.18
≤0.10
0.30-0.60
≤0.035
≤0.035
≥0.020
SWRCH18A
0.15-0.20
≤0.10
0.60-0.90
≤0.030
≤0.035
≥0.020
Q345D
≤0.18
≤0.50
≤1.70
≤0.030
≤0.025
≥0.015
Shear Stud Connector Type SD (ISO13918:2008) Dimensions (mm)
d1-0.4
10
13
16
19
22
25
d5±0.3
19
25
32
32
35
41
d3±0.3
13
17
21
23
29
31
h3±0.5
7
8
8
10
10
12
h4
2.5
3
4.5
6
6
7
l1±1.5
40~105
40~160
40~200
40~250
60~250
60~250
Burn off
3
3
4
5
5
6
Ferrule
UF10
UF13
UF16
UF19
UF22
UF25
