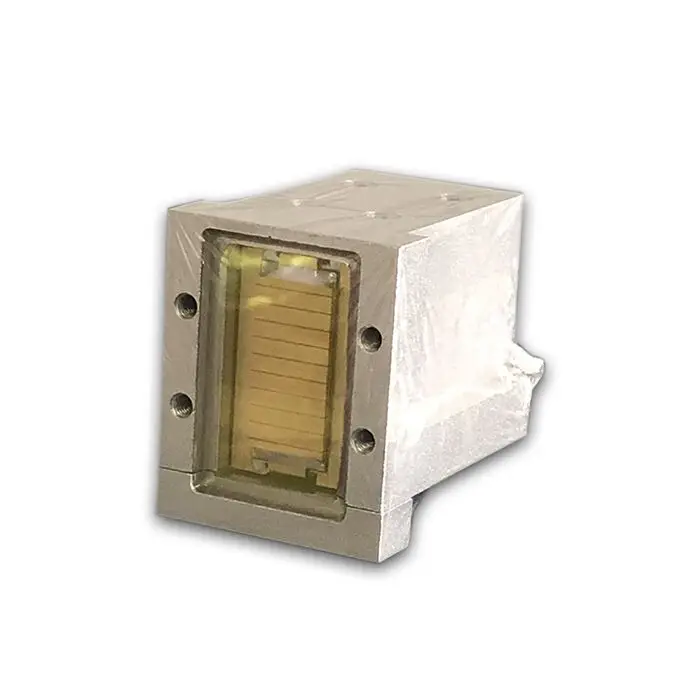

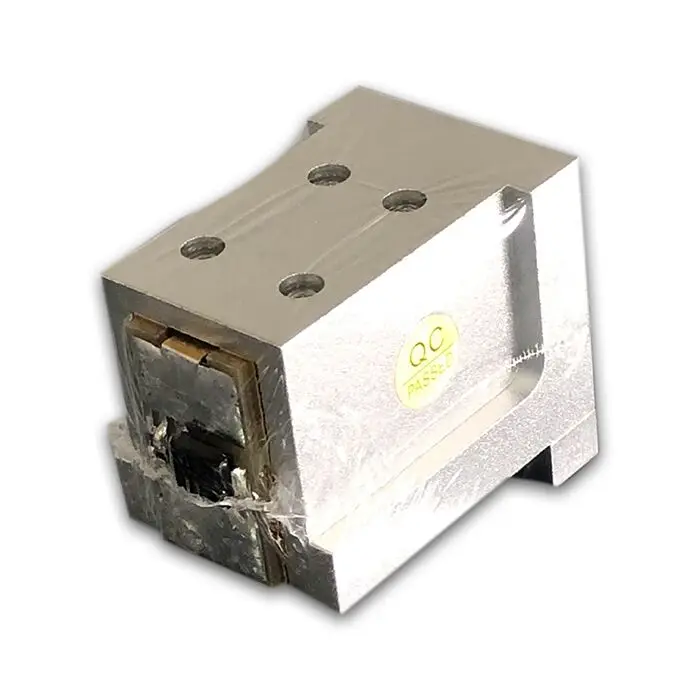

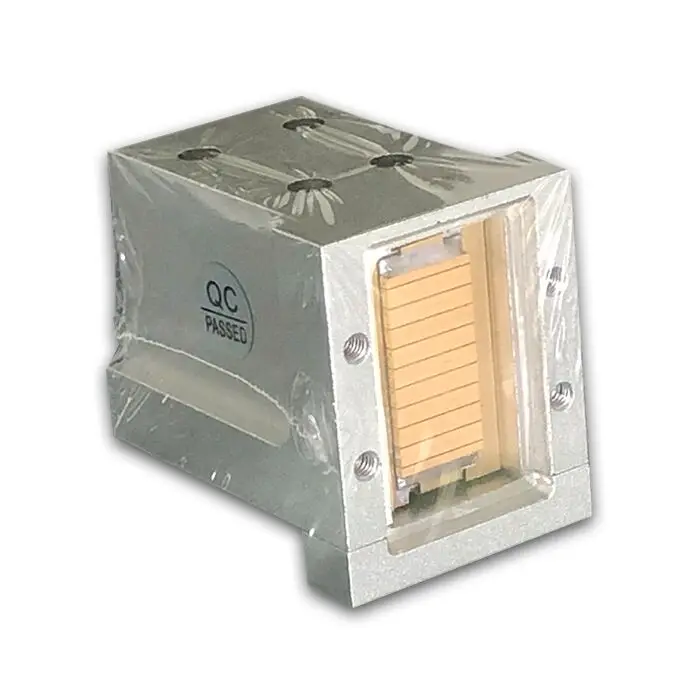

808nm 600W 10Bar Laser Diode Vertical Stack for Apolo Handle Replacement

Item No.: WC808VS600

Item Name: 600W 808nm Water Cooled Vertical Stack Diode Laser

Optical:

Center Wavelength λ 808nm

Wavelength Tolerance ±10nm

Working Mode QCW

Output Power Per Bar 60W

Number of Bars 10

Bar to Bar Spacing 2mm

Fast Axis Divergence(FWHM) 38Deg

Slow Axis Divergence (FWHM) 12Deg

Polarization Mode TE

Slope Efficiency ≥1.0W/A

Pulse Width ≤400ms

Duty Cycle ≤40%

Electrical:

Operating Current Iop 60A

Threshold Current Ith 12A

Operating Voltage Vop 19V

Power Conversion Efficiency 45%


Thermal:

Operating Temperature (No Condensation) 15~30℃ (No Condensation)

Storage Temperature (No Condensation) 0-55℃(No Condensation)


Warranty:18Months

Other Choices:

Triple Wavelength 755nm 808nm 1064nm is available for your choice
Pls contact us as below for more details.

Packing

One set in a case(According to your request)

Delivery

Normally 1-2 Weeks

FedEx,DHL Express,UPS,TNT

Payment Term

T/T and Western Union, For your Choice

Return Policy

Buyer Pay the Shipping Cost.

Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.

Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.

BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.

Core Competency

◆ Diode Packaging ◆ Beam Shaping

◆ Reliability Testing ◆ Efficient Cooling
