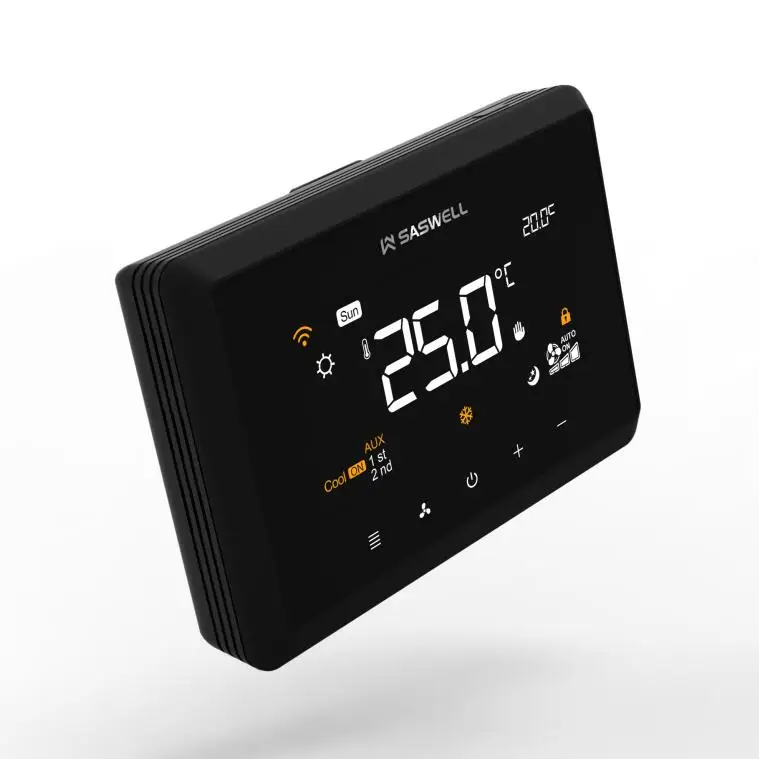

saswell DX unit programmable modbus thermostat for fan coil

ssaswell DX unit programmable modbus thermostat

T29 digital FCU and DX thermostat

T29 digital thermostat used to conrtol 2/4 pipe thermostat and 1 stage ,2 stage

Compressor

Features:

² Super big LCD display , more clear and pretty

² Touch button , luxurious control feeling

² Control fan coil system , 1 stage – 2 stage compressor DX system .

² 24VAC & 230VAC can be used in one unit

² Plugable pannel & Wall mount , easy installation

² Termianl protection , more safety .

² Modbus RS 485 communication protocol .

² Never lost user setting in the event of power-off, no battery is required

² Compressor short cycling protection available

² Inner sensor and remote sensor can automatic exchange as your requires

² 7 days programmable , it is help you saving cost .

Specification :

Voltage ..............................................................100-240VAC 50/60Hz

24(18-30)VAC 50/60Hz

Fan Relay Amps inductive………………………8(5)A

Heat/Cool(Y1,W1)Relay Amps inductive…3(2)A

Heat/Cool(Y2,W2)Relay Amps inductive…1(0.5)A

Set point Temperature Range…………………5℃ to 40℃

Dimensions……………………………………115mm×90mm×28mm

Color……………………………………………White

IP class  ……………………………………… IP21

SHENZHEN SASWELL TECHNOLOGY INC.

SASWELL CONTROLS (HONG KONG) LIMITED

We are experienced professional controller manufacturer for 20 years.

Our advantage:

1.Design,Development manufacture,all together.

2.100 production procedure,we take care of each step.

3.We have passed the  VDE,SEMKO,CSTB,EU,BAC,ETL,UL certificate and factory audit.

4.Depend on 20 years R&D experience ,more than 30 senior experts and researching staff research,from structure mold design to software design,we are experienced and well organized.

5.Every SASWELL product pass 100% check and test.Each product pass prototype test, trial production test, trial marketing test.We guarantee that every batch order will maintain quality consistency.
