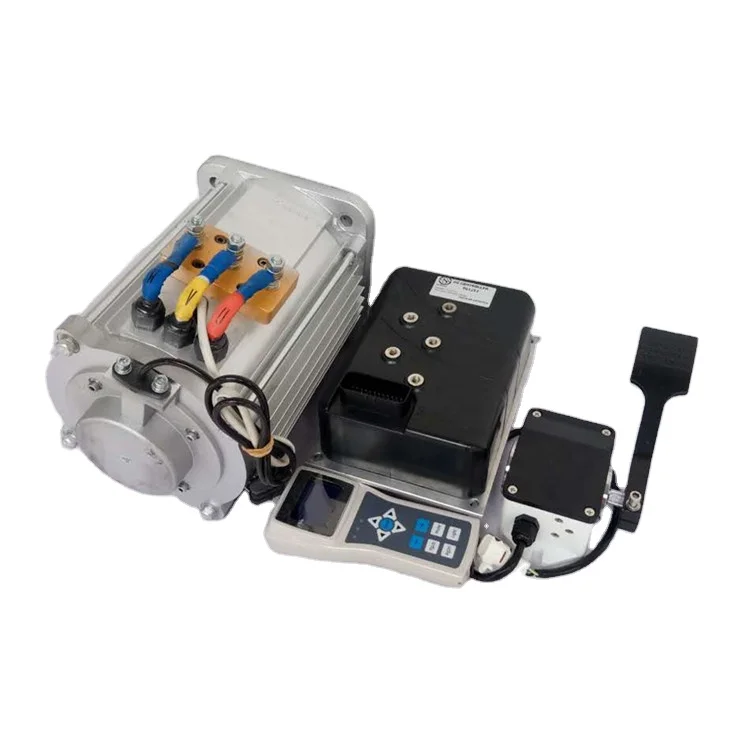

Shinegle 20hp 15kw 108v 96v Motor controller conversion kit Kit de conversion de controlador de motor
- Category: >>>
- Supplier: Guangdong,Shinegle,New,Energy,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
About US
We are a provider of electric vehicle components, including motor, controller (with programmer and accelerator), charger and battery pack.
Our driving system is suitable for various types of electric vehicle, like low speed electric vehicle (golf cart, tricycle), delivery car and modified car, in which, 7.5/10/15kw is especially for modified car. Moreover, the controller and motor can be applied to electric boat.
Our driving system is suitable for various types of electric vehicle, like low speed electric vehicle (golf cart, tricycle), delivery car and modified car, in which, 7.5/10/15kw is especially for modified car. Moreover, the controller and motor can be applied to electric boat.
SHINEGLE motor,controller,gearbox,battery,charger,etc.are widely used in electric conversion vehicles
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Motor | Rated Power:7.5/10/15kw | Duty:S1 | Max. Speed:7500rpm | |||
Rated Voltage:72/96/108v | Net Weight:35~50kg | Speed Sensor:64 Pulse | ||||
Rated Speed:3000~4500rpm | ||||||
Controller | Rated Voltage:72/96/108v | Rated Output Current:100/120a | Max. Output Current:500a | |||
Efficiency:98% | Protection Grade:IP65 | Packing:wooden box | ||||
Net Weight:5~10kg | Ambient Temperature:-40 ~ 50℃ | HS:8714990000 | ||||
Gearbox | Speed Capacity:9000rpm | Ratio:6:1/8:1/10:1/12:1 | Packing:wooden box | |||
Torque Capacity:180N.m | Center Distance:50~106mm | HS:7326909000 | ||||
Noise:≤65dB | Est. Net Weight:15~30kg | |||||
Main Features
1) High torque and fast speed
2) Hands-on instruction, installation and use
3) Provide customers the fastest system solutions
4) Work with clients to calculate and test
5) Long time system testing, product maturity
Certifications
Detailed Images
Name: Motor
Brand: SHINEGLE
Original: China
Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

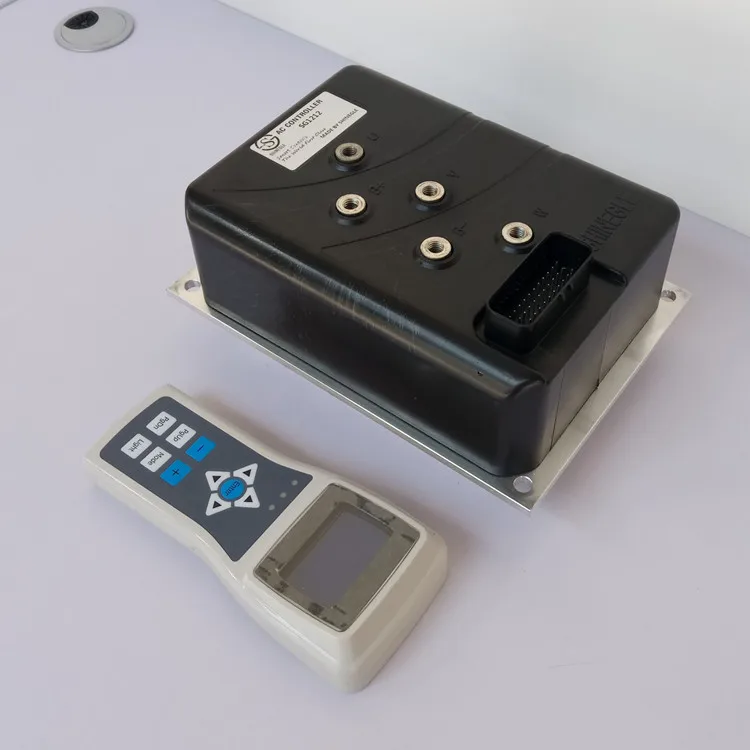

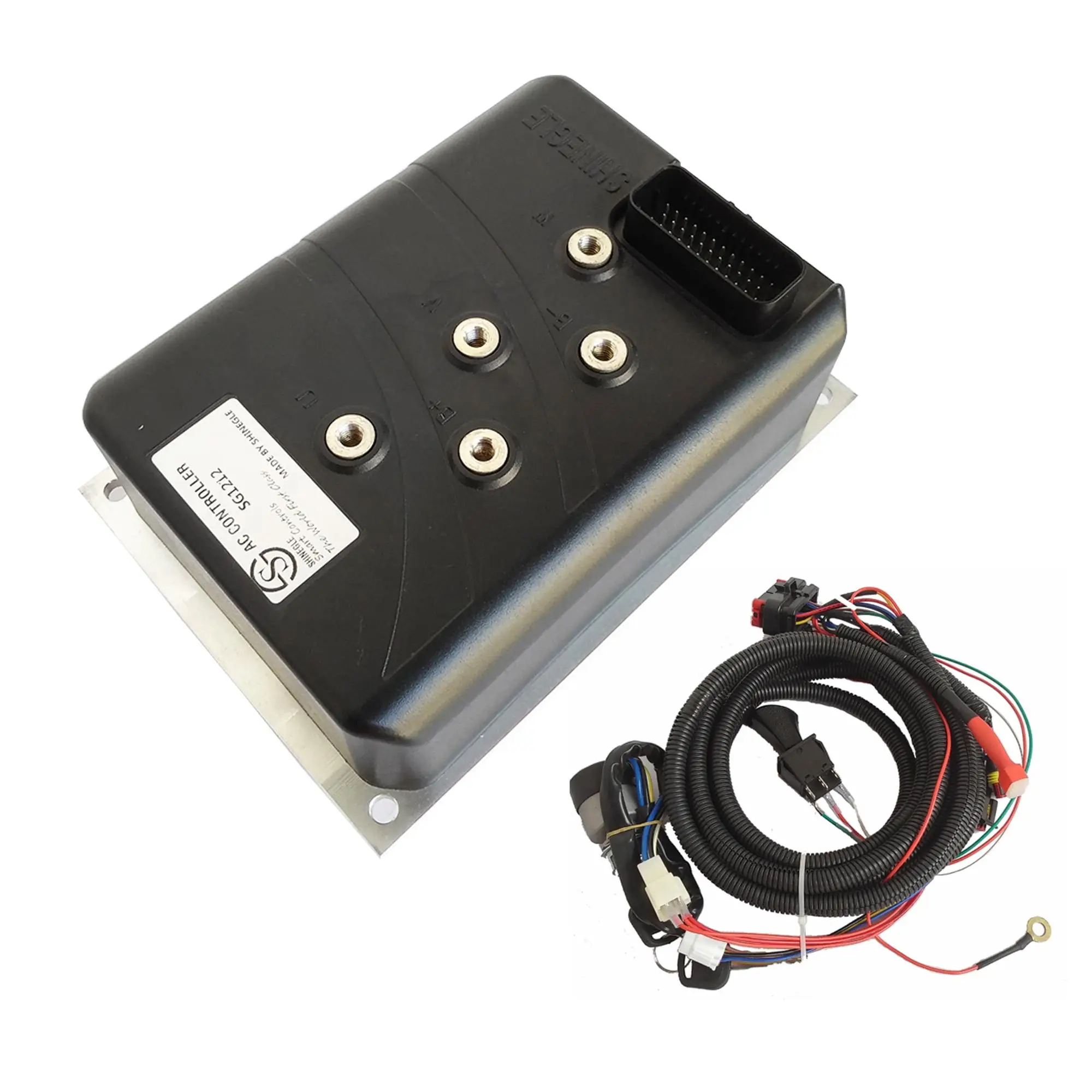

Name: Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.
Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.
Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000km protection for our customers.
Our Service
Pre-Sales Service
* Customer sends inquiry
* Tailor the right system
* Sample testing support
After-Sales Service
* Timely technical communication
* Result feedback and improvement
Packing & Delivery
Packing | ||
Size | 1280 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packing Details | Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 100kg | |
Packing Details | Normal packing is wooden box(Size: L*W*H). Sometimes we choose cartons when by air | |
Related Products
Electric Vehicle Conversion Kit
AC Motor Controller
DC Motor Controller
To meet customers’ needs is our aim. Feel free to contact us if you have any problem for we have confidence in providing an ideal solution for you with 15-year experience in developing motor and motor control system.
