Product Overview

Description

Product Description

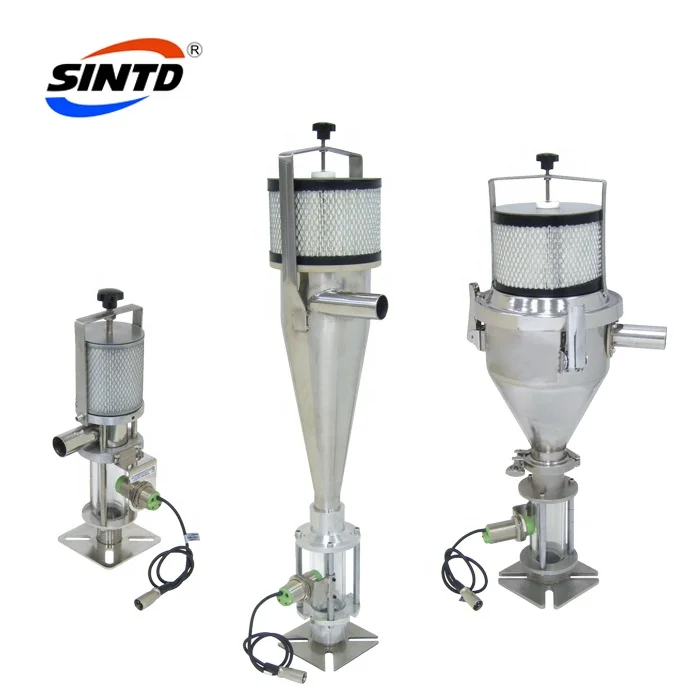

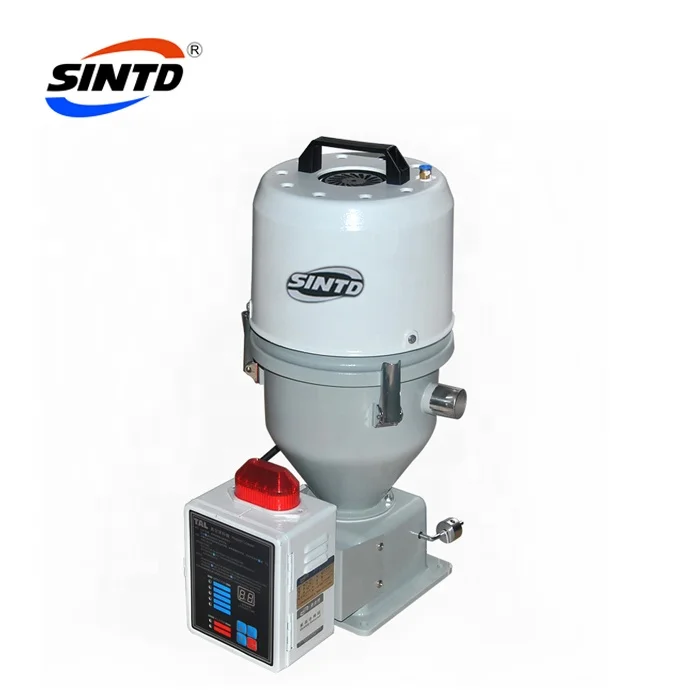

Self-contained Auto Hopper Loader


The TAL-300 series use a high-speed motor in this lightweight and compact unit,with superior suction power and easy installaton, it is particularly suitable for conveying new materials. The TAL-400 series use a high pressure inductive motor with low noise level. It also has an automatic reversal dust cleaning device with long using life.

Main Features

1) Simple structure, easy in installation, operation and maintenance.

2) Stainless steel hopper.

3) Motor protective device.

4) Electric equipments: Siemens or Schineider.

5) Equip with auto reversal cleaning device and cloth filtering.

6) Buzzer is an optional spare part for material shortage alarm.

7) TAL-300E equips with oppsite-type photoelectric sensor and suitable to install on the material inlet of the molding machine.

Specifications as below:

Model
TAL-300C
TAL-300G
TAL-300E
TAL-400C
Motor Type
Carbon Brush
Carbon Brush
Carbon Brush
Induction Type
Motor Power (W)
1150
1150
1150
750
Conveying Capacity(kg/hr)
180
180
180
250
Hopper Capacity(L)
6
6
6
6
Conveying Pipe Dia. (mm)
φ38
φ38
φ38
φ38
Input Voltage
                                        1 phase, 220V, 50Hz
3 phase, 400V, 50Hz
Material Level Control
Micro-switch
Micro-switch
Opposite-type photoelectric sensor
Proximity Switch
Cloth Filter
√
NO
√
√
Auto-cleaning
√
NO
√
√
Certifications
Our Company
Our Exhibition

Company Culture

Packing & Delivery
Packaging
Size
650 (H) * 400 (W) * 450 (D)
Weight
17KG



Packaging Details
The normal package for TAL300 and TAL-400 series is carton(Size: H*W*D).
Any other packages according to customers special request.
