high frequency welding machine with slide table Single blister with paper card packing machine

Product Overview

Description

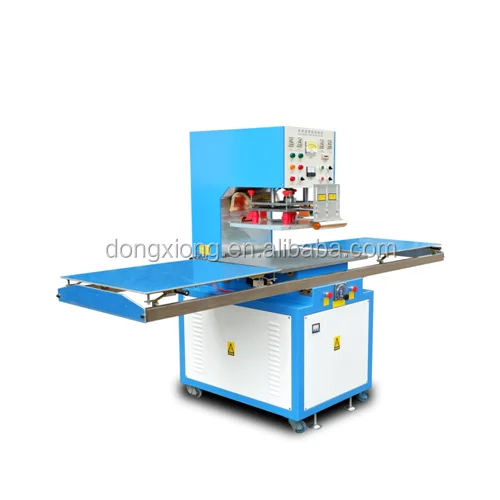

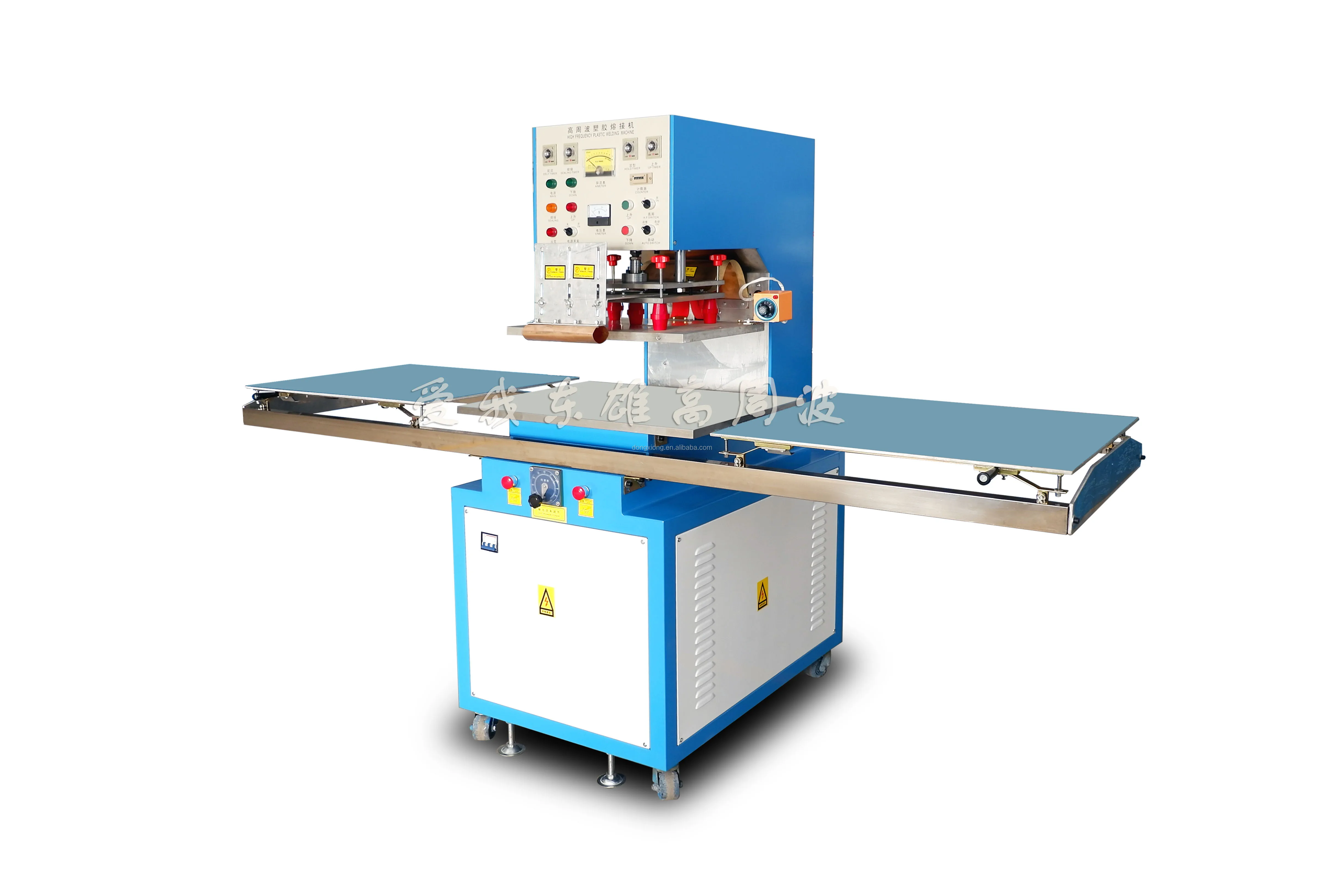

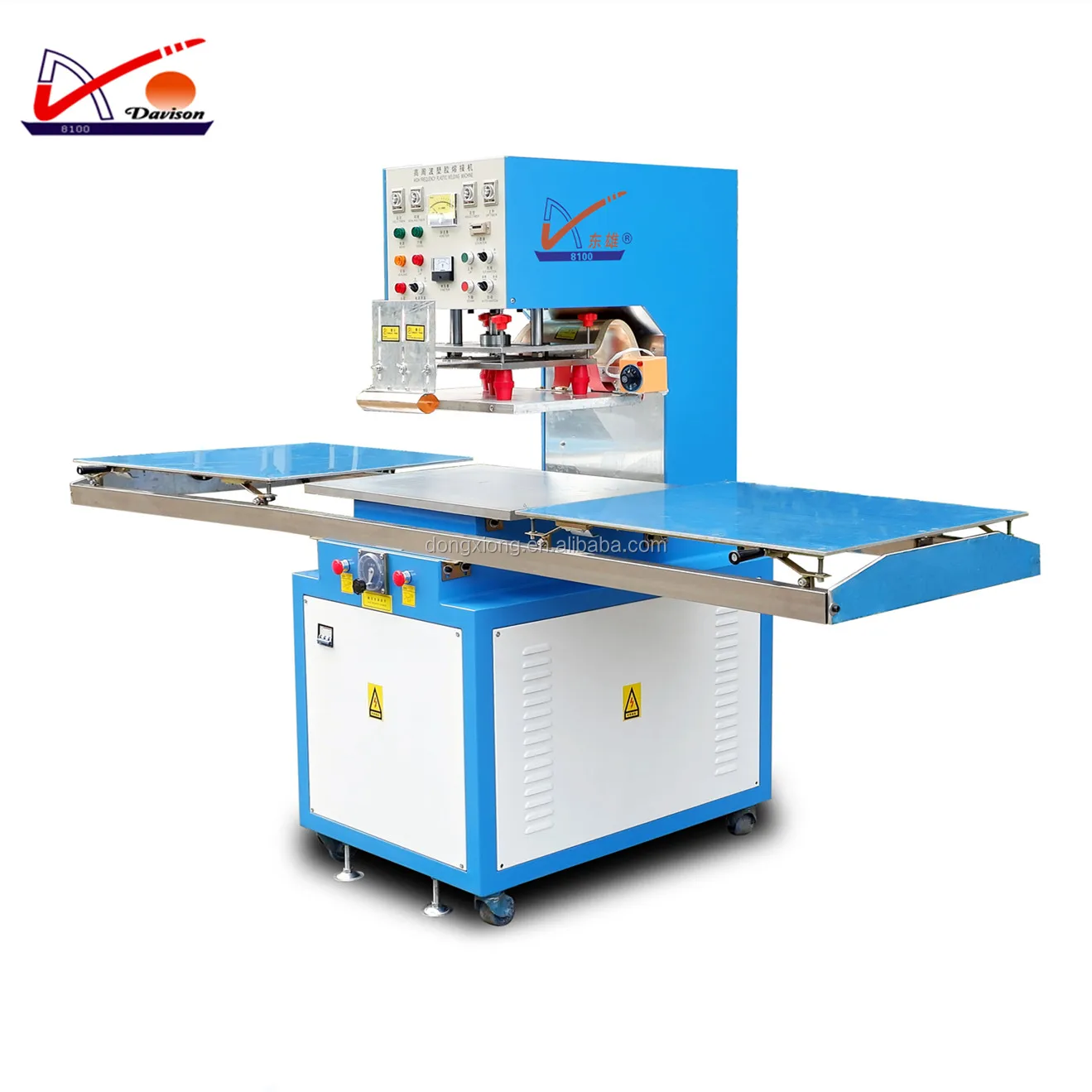

5KW High Frequency Blister Sealing Welding Machine

FEATURE:

1. Automatic high frequency welding machine
2. Pneumatic Cylinder
3. Automatic slide table
4. 2-station operation

5. special for pvc plastic welding
Adv.: convenient, efficient, safe, steady.



SPECIFICATION:



Model	DXHT5-1-5KW		DXHT5-1-8KW		DXHT5-1-8KWA		DXHT5-1-10KW
Output power	5KW		8KW		8KW		10KW
Voltage	380v		380v		380v		380v
Frequency	27.12MHZ		27.12MHZ		27.12MHZ		27.12MHZ
Electron tube	7T85		7T69		7T69		E3069
Welding capacity	350 x 200mm		600 x 400mm		600 x 400mm		650 x 450mm
Distance between   two electrodes	150mm		150mm		150mm		150mm
Stroke	200mm		200mm		200mm		200mm
upper electrode	350x200mm		600X400mm		600X400mm		650 x 450mm
lower electrode	600X400mm		800X570mm		650X450mm		700X500mm
G.W.	400.00 kgs		470.00 kgs		520.00 kgs		700.00 kgs
Packing Size	1180x800x1920mm		1260x1180x1920mm		1420x1260x1920mm		1100x1200x2000mm



 APPLICATIONS:

It is widely used in welding, stamping for PVC blister(blister with blister, blister with paper card), trademark, stationery, inflation toy, plastic cover, cooling cushion, and kinds of paking bag. Once installed some device, it can also gold stamp.

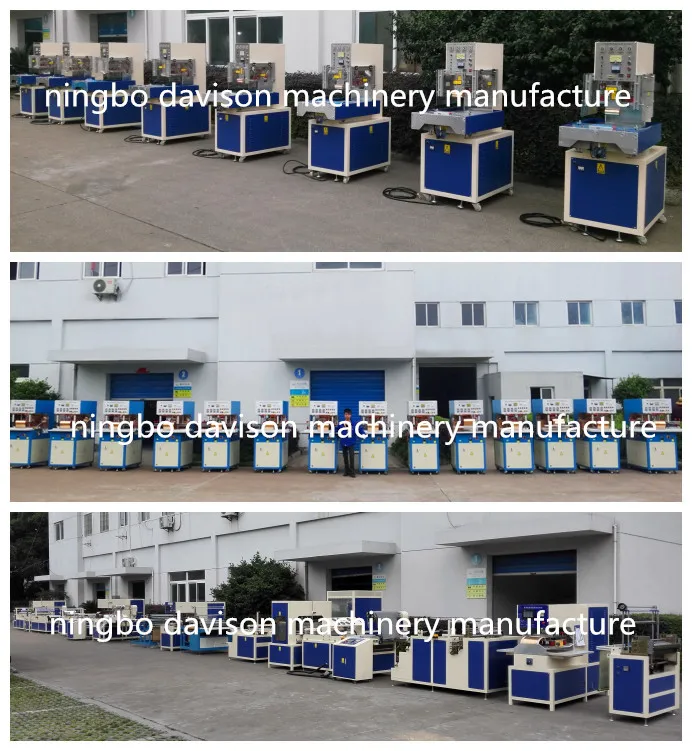

WHOLESALE:





PACKING AND LOADING





COMPANY INTRODUCTION:



Ningbo DAVISON Machinery Manufacture Co., Ltd. integrates research, production and sales such as below machines and parts:



1, high frequency plastic welding machines (high frequency machine),



2, ultrasonic plastic welders,



3, cutting machines,



4, packaging machines,



5, skin packaging films, stretch films, protective film, etc.



Various non-standard machinery equipment and imitation of imported equipment are available to the specific requirements of customers. Moreover the design and producing of moulds as well as sampling service can also be offered by us.







Since foundation in 1999, our company has constantly carried forward rigid quality control, guided by customers demand, aimed for customers' satisfaction, persisting on "quality first, customers utmost", and striving to offer optimal products and efficient after-sales service for customers domestic and oversea!
