Network server appliance pfsense firewall PC 6*LAN Gigabit Ethernet Celeron 3855U
- Category: Desktops >>>
- Supplier: Shenzhen,Yiyun,Electronic,Limited,Company
Share on:
Product Overview
Description
Network server appliance pfsense firewall PC 6*LAN Gigabit Ethernet Celeron 3855U
Product features

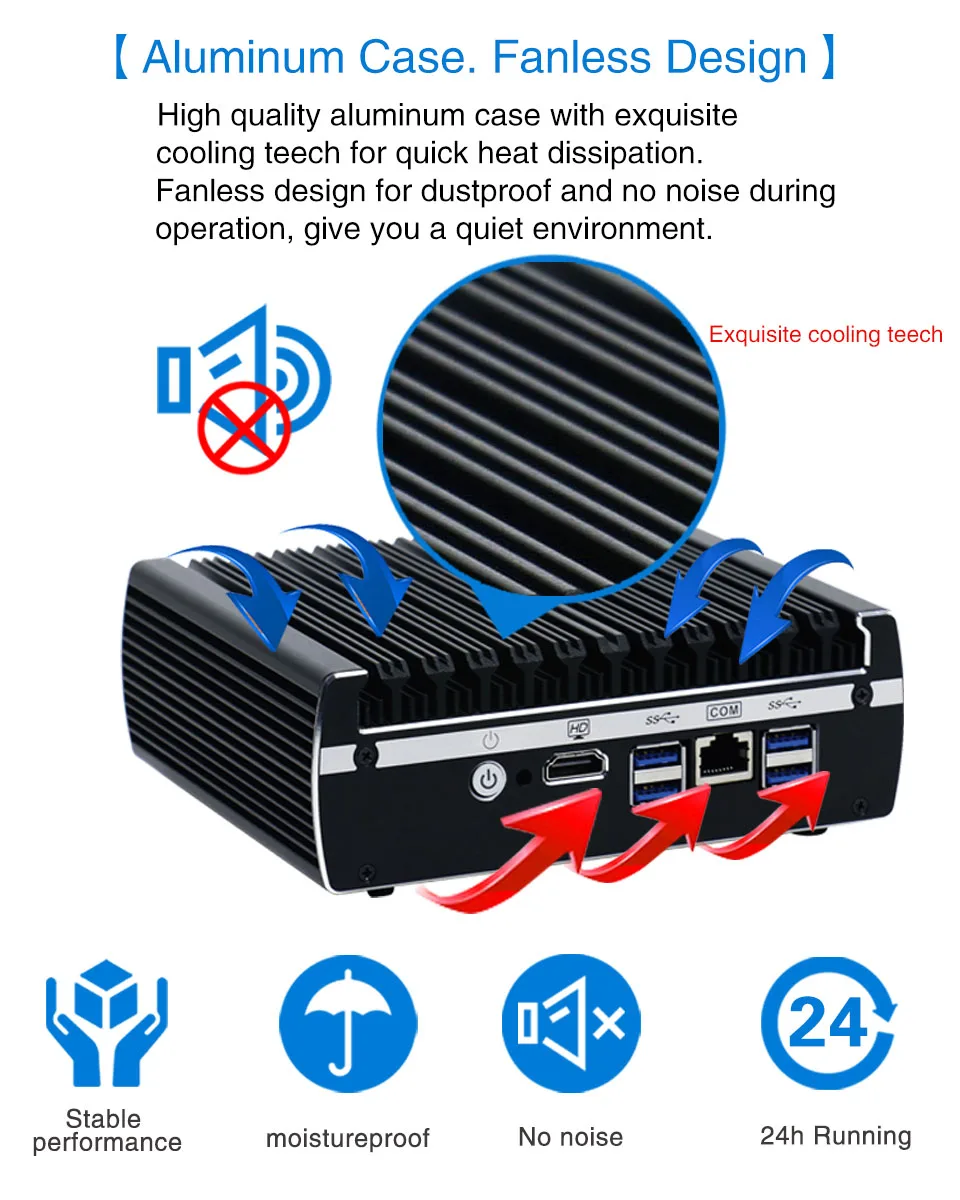

1. Fanless durable mini pc could work 7*24Hours. high-end Industrial PC,Dustfree
2. Latest hot CPU with high-performance and good compatibity
3. DDR4+M-SATA+2.5inch HDD Fast and big capacity.
4. Rich port+6LAN+1COM+1HD+1DP
5. A wide range of applications: VPN Router/Firewall Computer/Network switch etc...
Product parameter
| Model | JC6L Fanless Mini PC |
| CPU | 1.Kaby Lake 14nm CPU Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W HD Graphics 610 2.4GHz 3MB cache TDP 15W HD Graphics 620. 2.5Ghz 3MB cache TDP 15W Intel HD Graphics 620. |
| Chipset | Intel express chipset |
| Material of case | High quality pure aluminum mini pc case |
| Memory | support 2*DDR4 1866/2133MHz, support max 32G |
| Storage | 1*SATA3.0, 1*MSATA(32G/64G/128G/500G/1TB optional) |
| Network | 6*Intel 82583V 10M/100M/1000M Lan |
| Graphic Card | Integrated HD Graphic Card fanless mini pc |
| I/O | 4*USB3.0 |
| 1*RJ45 COM(support console) | |

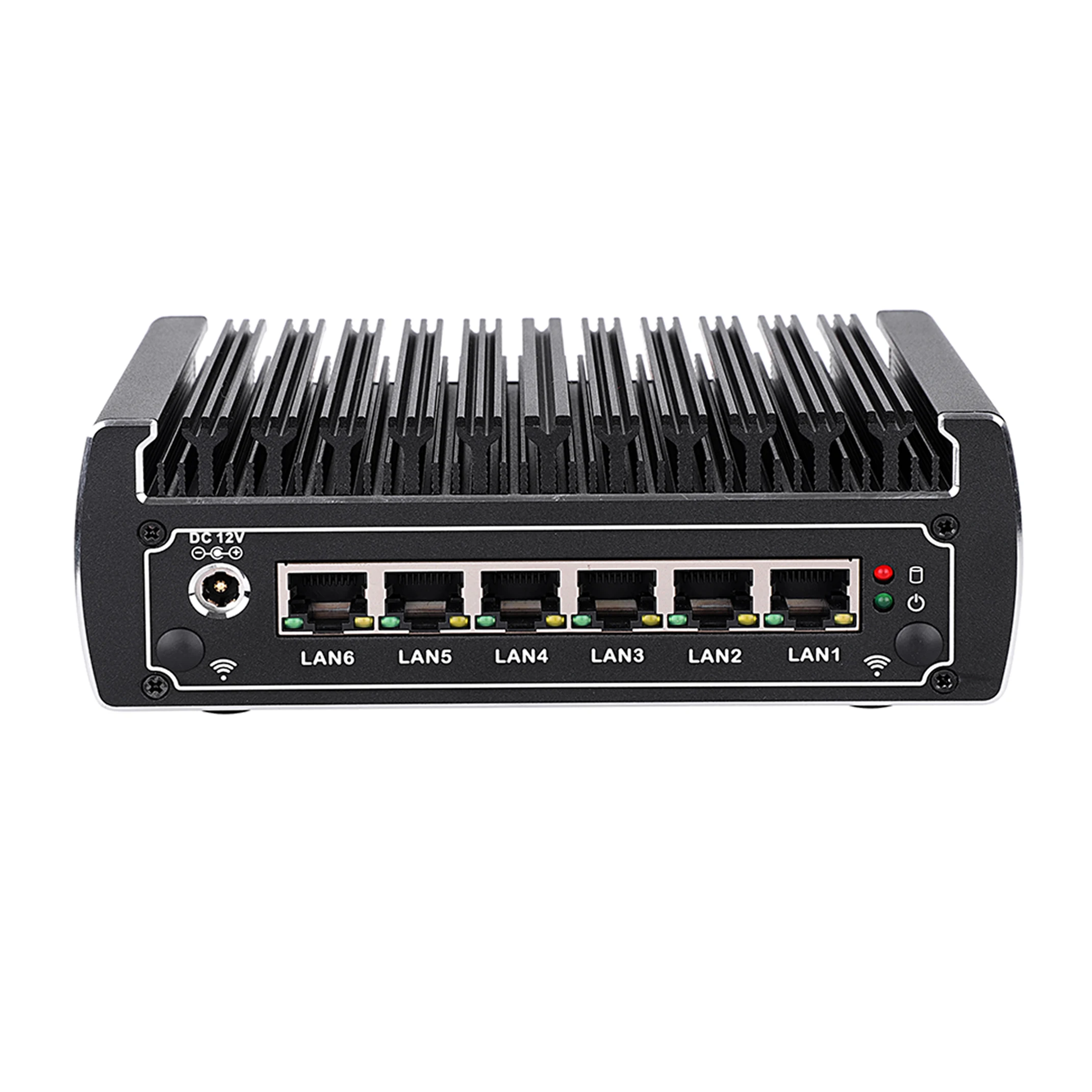

| 6*RJ45 Lan | |
| 1*HD(No sound output) | |
| 1*DC-IN 12V | |
| 1*HDD LED | |
| 1*Power LED | |
| 1*Power Switch | |
| 2*Wifi hole | |

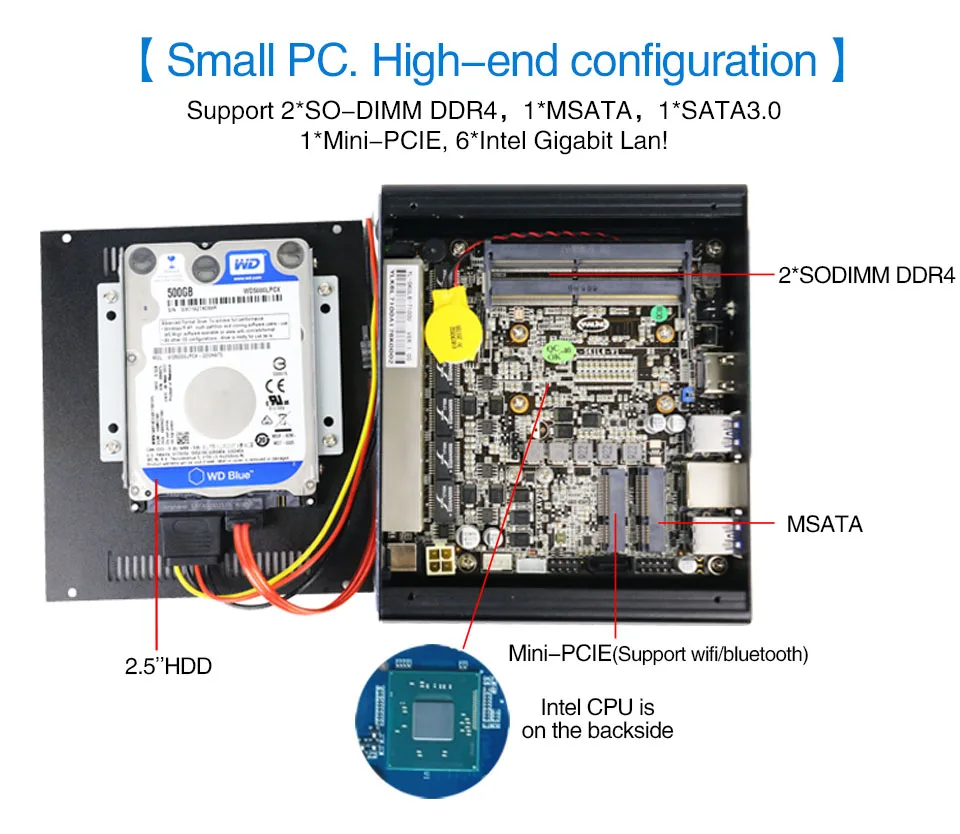

| Built-in I/O | 1*Mini-PCIE Connector |
| 1*Mini-SATA 3Gb/s connector | |
| 1*SATA port | |
| 1*MSATA port | |
| BIOS | AMI 64Mbit Flash ROM |
| Expansion slot | 1*Mini-PCIE(support wifi/bluetooth) |
| Mainboard | 120*120mm Nano ITX mainboard |
| Support OS | Windows 7, Windows 8, Windows 10, linux, pfsense |
| Power Supply | DC-IN 12V power supply and AC power adapter |
| Operation Temp | -10~60°C |
| Work Humidity | 0%~90% non-condensing |
| Dimension | 155*126.5*52.5mm |
| Package Content | 1*Mini PC + 1*Power Adapter + Power Cord + Driver CD+Vesa bracket |
| Application Area | Applied in Firewall, Network Server, Network Security, VPN Router etc |

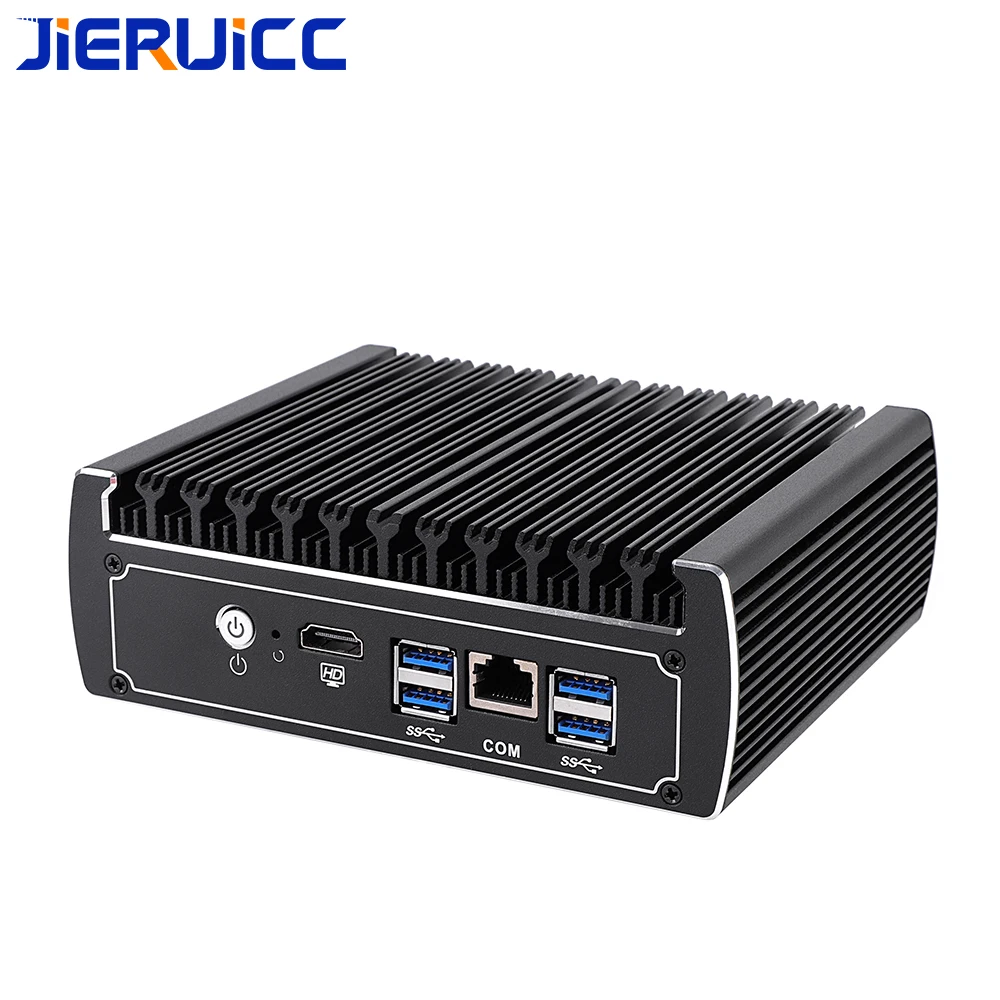

Product images
Hot sale
Contact us
Certification
Packaging & Shipping
Q1: What's your MOQ?
A1: MOQ 1 Set.
Q2: Can I get a sample for testing?
A2: Yes, of course, After paid cost for sample and shipping,we will delivery it according to your request.
Q3: What's your package for mini computer?
A3: All individual package for samples,5 or 10 pieces mini computer packed in one carton.
Q4: Do you accept to do dropshipping?
A4: Yes, please offer us your customer's recipient information when placing an order.
Q5: What's the delivery time?
A5: 2-3 working days for sample and 5-6 working days for bulk order!
Q6: Did you ever export to other countries?
A6: Yes, All over the world.Such as USA,UK,German,France,Australia,Canada,Southeast Asia,Africa,the Middle East,Russia etc...
Q7: What kind of transportation can you provide?
A7: DHL,UPS, Fedex,TNT,EMS,Air & Sea transportation accroding to your request. You can also use your own shipping agent.
