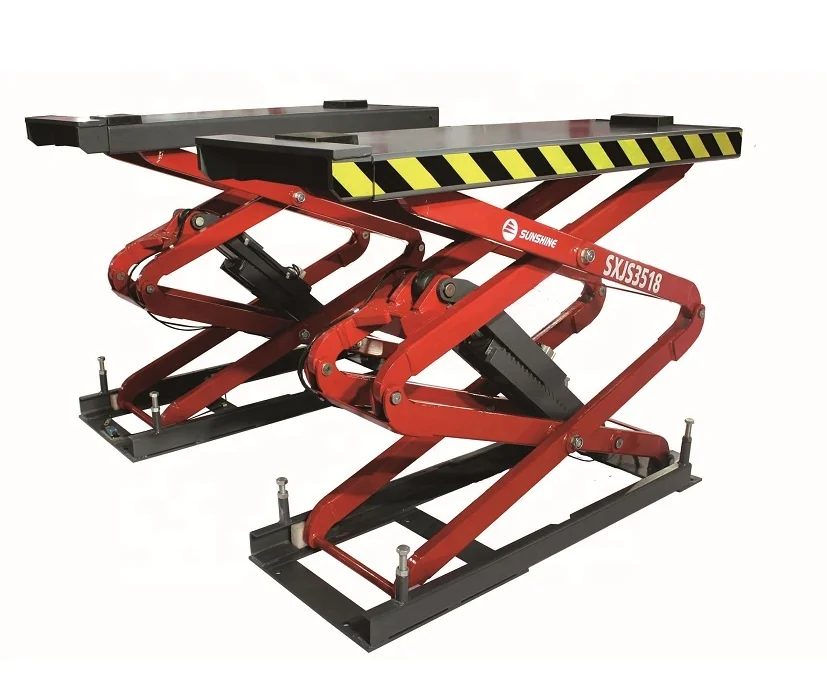

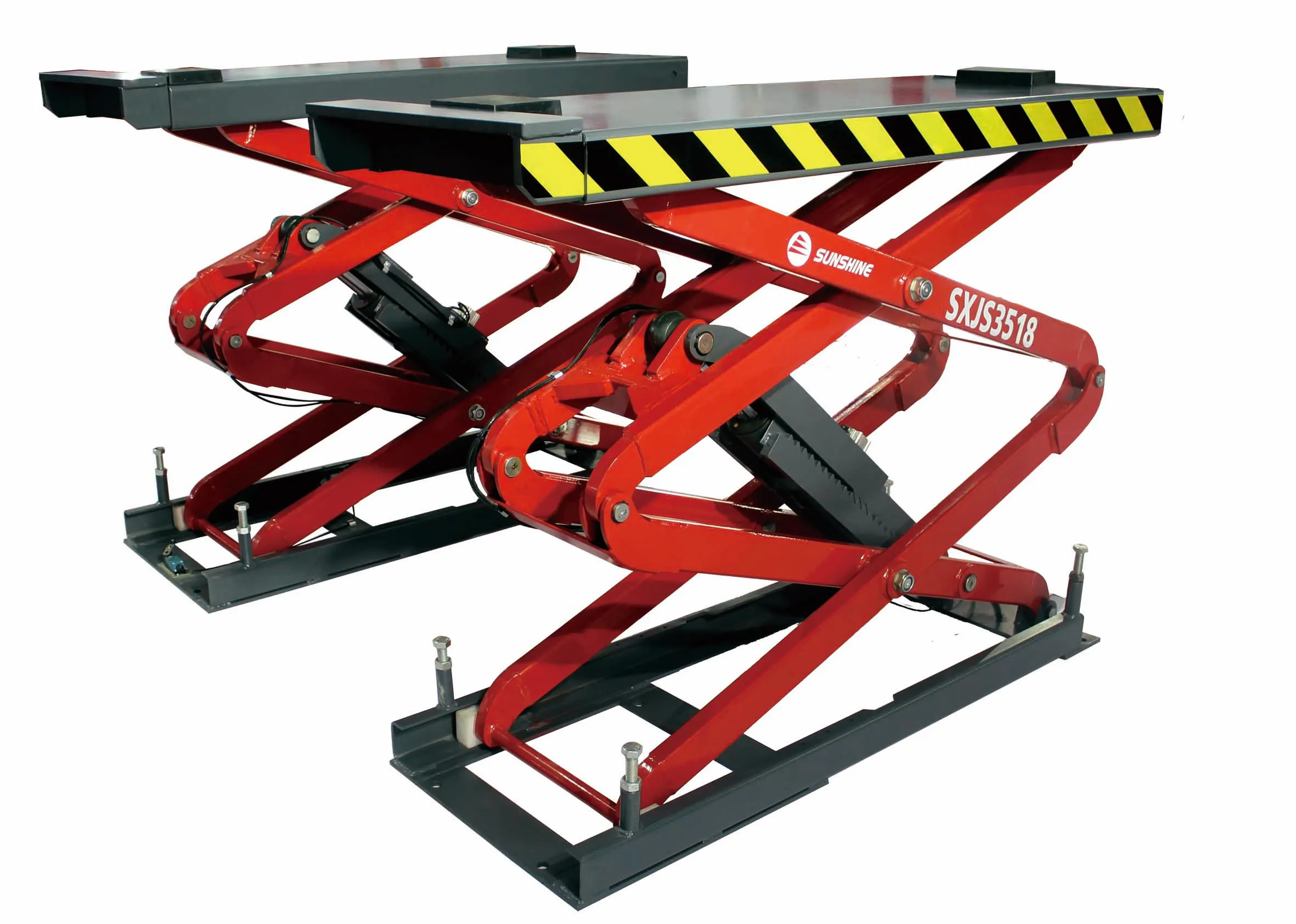

full rise in ground installation SXJS3518 sunshine car repair auto lift double scissor lift with CE and ISO certificate

Product Overview

Description

Product feature:



1.Rigidity,no deformation,good synchronization performance,high precision synchronization.

.

2.In-ground installation,the overall height is 340mm,save space,beautiful and easy.



3.Imported hydraulic seals,the whole system is reliable,hydraulic and mechanical safety device,safe and reliable.



4.Platform is adjustable,standard configuration is single side extended (Maximum length is 1760mm),Model SXJS3018D is double sides extended,maximum length is 1980mm



5.Lifting height up to 1800mm,suitable for more higher persons operation.



6.When the lift falls down,buzzer will alarm to ensure the safety of personal.



7.Limited switch can keep equipment long-term security and stability,prolong the service lift



The overall design is very suitable for dismounting tire,chassis repair,oil change and fast repair maintenance,preflight.



Lifting capacity	lifting height	system pressure	Air pressure	Motor power	voltage	N.W.	Platform length
3500kg	1800mm	25Mpa	0.4-0.8Mpa	3KW	380-220v	0.77T	1560-1760mm
