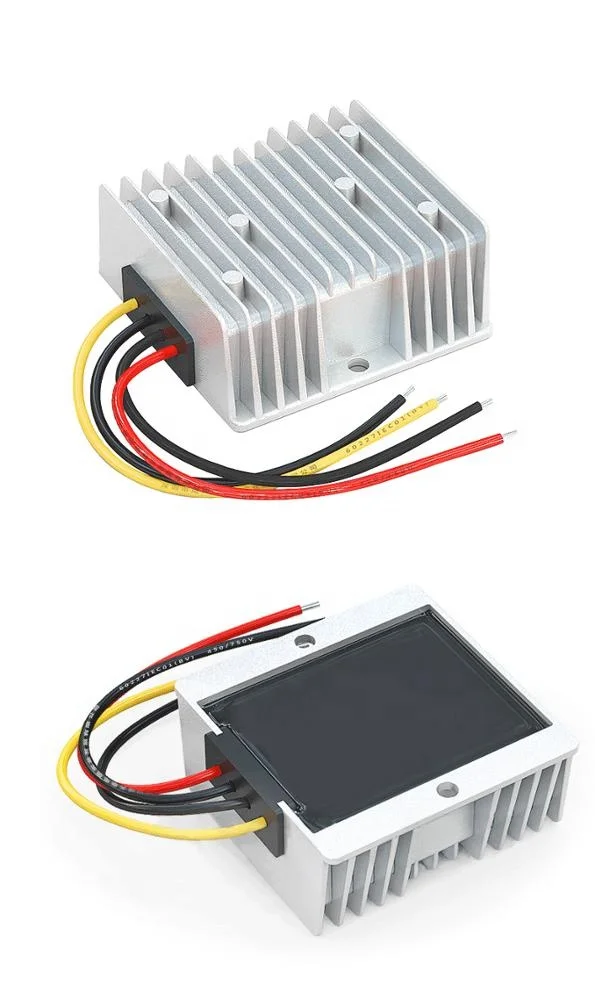

IP 68 waterproof Factory price 240W DC DC CONVERTER BOOST 12V to36V 6A WS 12T3606

Product Overview

Description

Features:

1. 100% full power & stablecurrent output

    2. 100% Imported components

    3. Wide input voltagefrom 18-36Vdc

    4. 100% waterproof & anti-shock protection, Ultra compactsize, light weight

    5. Industry grade DC24V to DC12V step-downconverter, efficiency up to 94%

    6. Waterproof level: IP68

    7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

    8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery

    9. 1 year warranty,lifetime up to 100,000 hours.

 Specifications:

Model	WS-12T3606
Input rated voltage	12V DC
Input voltage range	10-30V DC
Efficiency	95%
Output voltage	36V DC
Output current	6 Amps
Output rated power	216 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 230mV
No-load current	< 70mA
Working Temperature	-30°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-current, Over-temperature, Over-voltage
Machine size	100*80*39mm
Package size	126*91*46mm
N. Weight	290g
W. Weight	300g
Cooling way	Free air convection
Other	White box packing

COMPANY INFORMATION





FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
