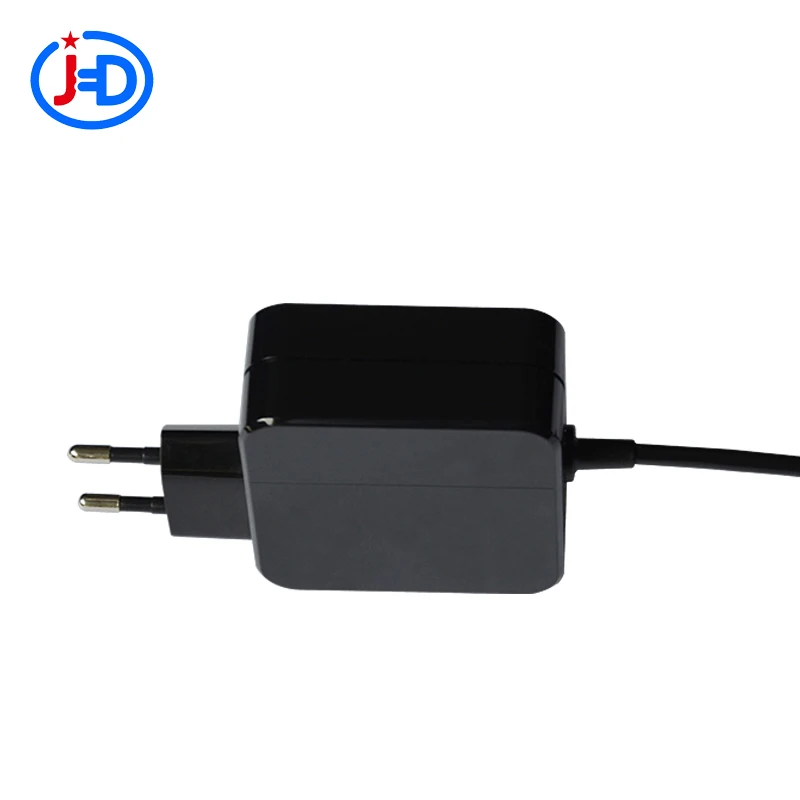

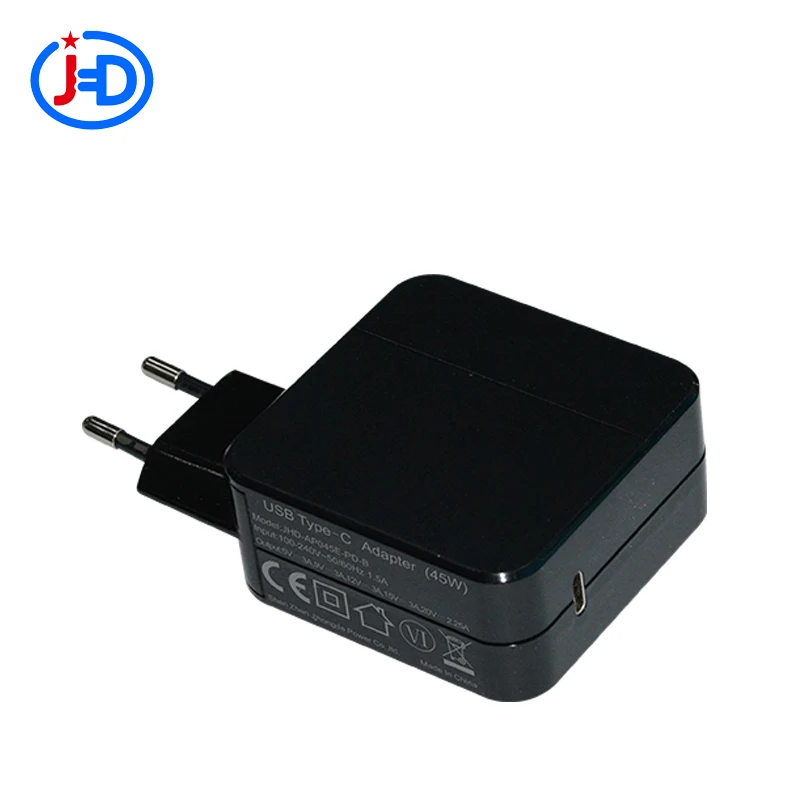

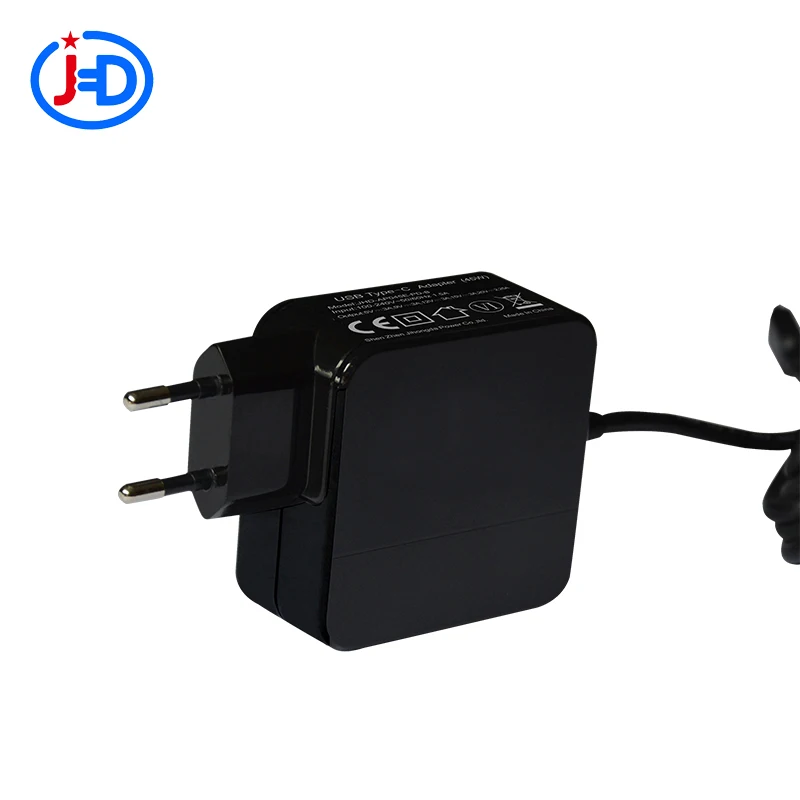

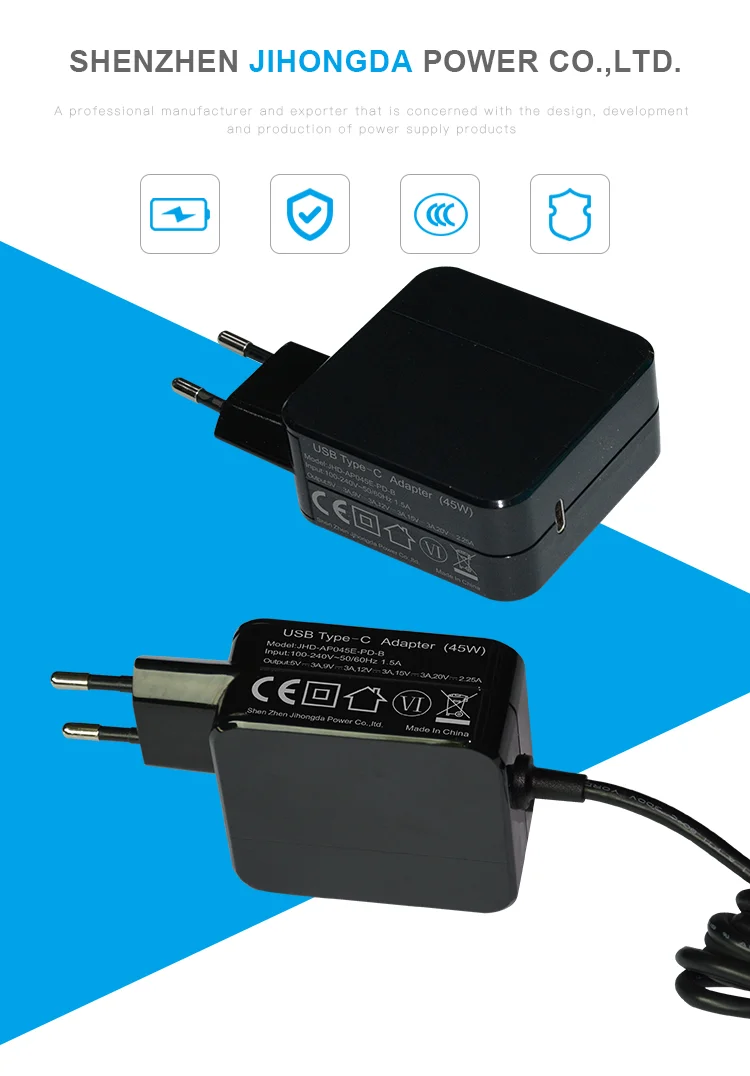

China manufacturer 19v 2.37a 45w ac travel adapter power usb pd charger
- Category: >>>
- Supplier: Shenzhen Yutong Electronics Co. Ltd.
Share on (62206963641):
Product Overview
Description

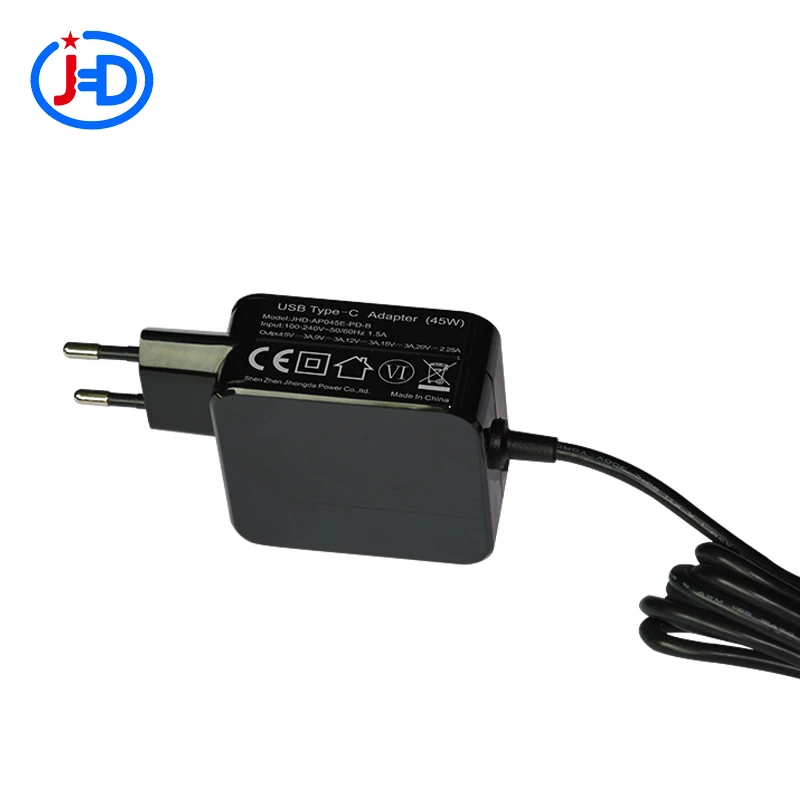

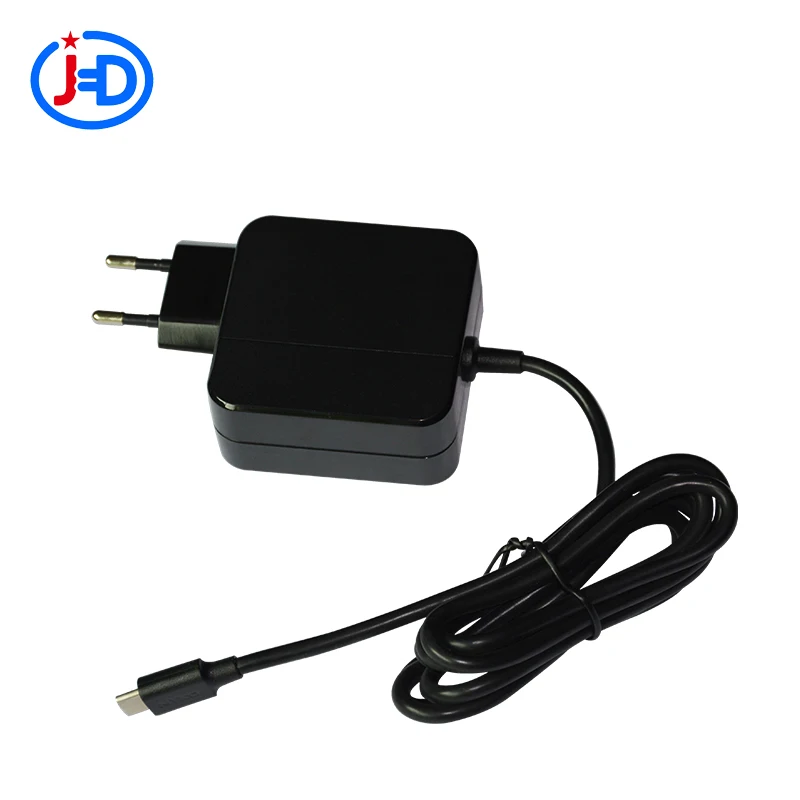

China manufacturer 19v 2.37a 45w ac travel adapter power usb pd charger
Product Description

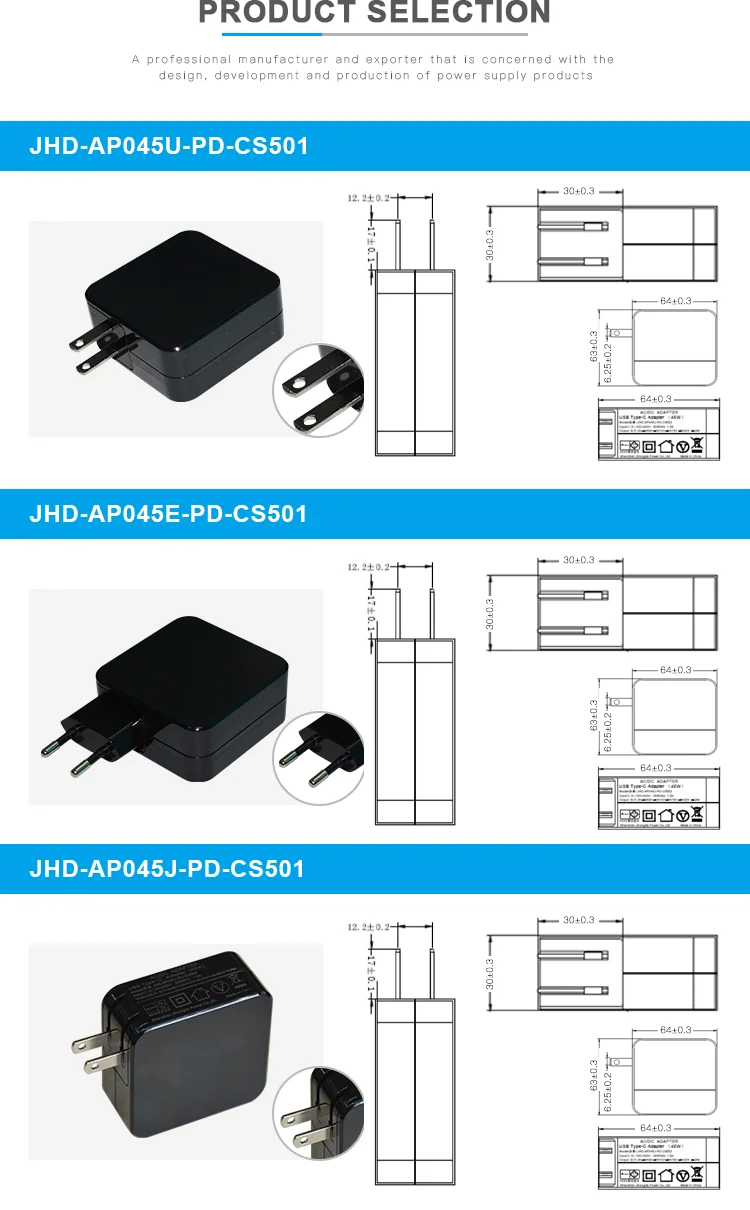

Product Selection
Output Characteristics | Output Voltage (DC) | 5V/9V | 5V/9V/12V | 5V/9V/12V/15V | 5V/9V/12V/15V/19V | 20V | |
| Output current(A) | 2.25A | 3A/3A/3A | 3A/3A/3A/3A | 3A/3A/3A/3A | 3A/3A/3A/3A/2.25A | ||
| Output power(W) | 6W | 6W | 6W | 6W | 6W | ||
| ripple and noise(MVP-P) | 2% | 2% | 2% | 2% | 2% | ||
| Output voltage precision | ±5% | ±5% | ±5% | ±5% | ±5% | ||
| Line regulation | ±2% | ±2% | ±2% | ±2% | ±2% | ||
| Load regulation | ±3% | ±3% | ±3% | ±3% | ±3% | ||
| rise up time | ≤500ms | ≤500ms | ≤500ms | ≤500ms | ≤500ms | ||
| Typ[hold up time] | 10mS min | 10mS min | 10mS min | 10mS min | 10mS min | ||
Input Characteristics | No Load Power | ≤0.075W@230Vac | |||||
| efficiency() | ≥86.62% | ≥86.62% | ≥86.62% | ≥86.62% | ≥87.73% | ||
| Input voltage range | 100-240VAC(85-265VAC);85-300V[customize] | ||||||
| Input frequency | 47~63HZ | ||||||
| Inputcurrent | 0.25A Max | ||||||
| Inrush current | full load≤30@230VAC | ||||||
| Leakage current | 100-240VAC,Lealage current≤0.10mA | ||||||
| surge | ±1KV D.M;±2KV C.M 4000~4200v[customize] | ||||||
protection | OCP | OCP point130%-150% of rated output current,output shall hiccup when the over current applled,and shall be self-recovery when the fault is removed] | |||||
| OTP | When the power supply after using the environment more than limit temperature,power supply will automatically entet protection state,when the temperature retumed to normal,the power supply to retum tu work. | ||||||
| SCP | Hiccup whem output shorted,and the power supply shall be selp-recover when fault is removed | ||||||
Environment | Storage temperature&Humidlty | storage temperature-20℃~85℃,storage humidity 5%~95% | |||||
| Operate temperature&Humidlty | operate temperature-20℃~+40℃,(-40℃~+75℃)Customoperate temperature-20℃~+40℃,(-40℃~+75℃)Custom | ||||||
| Vibrate test | 10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth:3.5mm)for 1Hour for each of the perpendicular axes X,Y,Z | ||||||
Safety and EMC | Dielectric Strength(Hi-pot) | Primary to Secondary 3.5KV/5mA 60S No Breakdown No Arc | |||||
| Insulation Resistance | 100MΩ min.@ primary to secondary add a 500Vdc test voltage | ||||||
| InputCharacteristics | IEC | ||||||
| Others | MTBF(H) | Normal30000H Customize 50000H | |||||
| color | black and white | ||||||

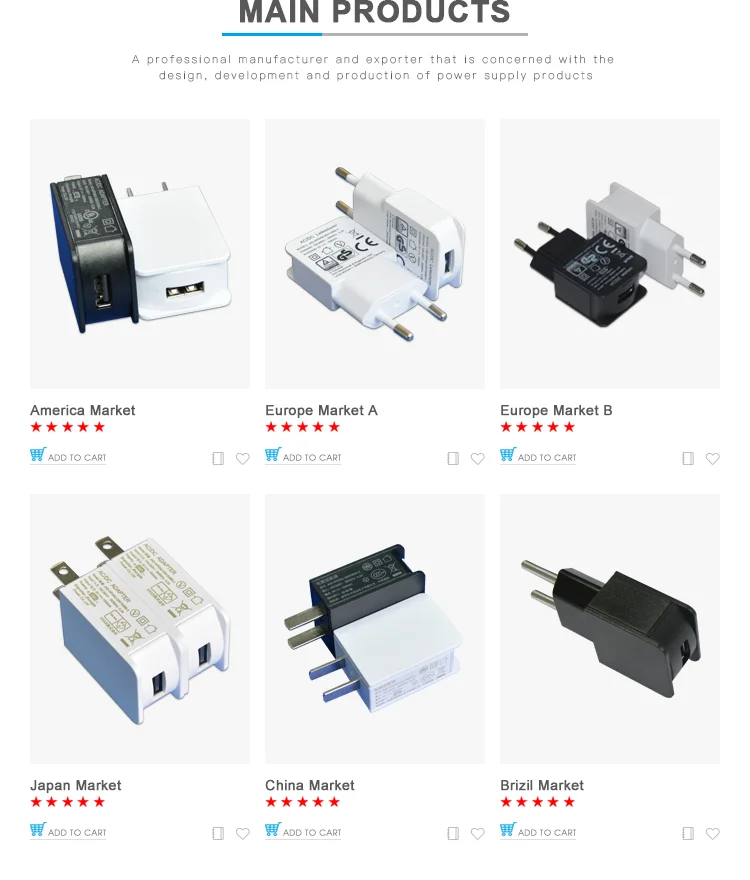

Main Products
Company Information
Our Certificate
Our Services
Packaging & Shipping
FAQ
1.Are you manufacturer?
A:Yes,we are a power supply manufacturer with 11 years experience.
2.Can I get a samples for testing?
A:Yes,we can send FREE(no exceed 3pcs) samples for testing.
3.What's your MOQ?
A:1000PCS.Large quantity order can get a competitive price.
4.Do you have certificates?
A:Yes,we have CB,GS,PSE,UL&cUL,FCC,CE,CCC,SAA,C-TICK,RCM,S-Mark,ROHS,ERP.
5.Do you have burn-in test?
A:Yes.To ensure the quality,all of our product will have burn-in test 3-4 hours.
6:Is OEM/ODM available?
A:Yes.Customized logo on the power adapter,Customized power adapter housing will be welcome.Any your idea on the power adapter we can help you to design and put it into production.
7.What's the payment term?
A:T/T is always welcome,we also can accept L/C,it's negotiable.
