Small gypsum board production line 2000sheet per day
Shandong Tengfei Mechanical and Electrical Technology Co., Ltd
located at the foot of the famous Mountain Tai, our company near
the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed,
104 State Road. We are a integrated science and technology
joint-stock enterprises, and we can design,manufacture
, install,commission gypsum board and gypsum powder and
gypsum block machine ourselves. At present, our company
have the ability to design and manufacture gypsum board
production line with annual capacity from 2 Million M2 to
50 Million M2, gypsum block production line with annual
capacity from 100,000 M2 to 1.5 Million M2, gypsum
powder production line and phosphogypsum powder
production line and FGD gypsum powder production
line and fluorine gypsum powder production line
with annual capacity from 30,000 tons to 500,000
tons, and we also can produce PVC laminated
gypsum board equipment and gypsum
board light frame equipment.
We can guarantee the quality and 100% successful commission.

Annual capacity(m2) | Day capacity(sheet) 1200*2400*9mm |
Drier layer |
Heating system | Control system | Fuel |
2 Million | 2000 | 4 |
Heat ex-changer (vertical Air-blow) | PLC |
Coal, gas, oil .etc |
3-4Million | 3000-4000 | 6 | PLC | ||
5-8Million | 5000-8000 | 8 |
DCS computer control | ||
10-15Million | 10000-15000 | 10 | |||
20-50Million |
20000-50000 | 12 | Heat ex-changer(Horizontal Air-blow) |
automatic equipment of gypsum board
1: Production machinery part and Raw material distribution: hoist, storage, measuring scale, Dynamic foaming station, powder conveyor (inverter), pulp conveyer (inverter), pulp stirring pot, vertical mixer. The function of this part is to lift the powder to the vertical mixer through hoist, conveyor and measuring equipment, and then proportionally mix and stir with the powder pulpand frothing preparation coming from pulp pump and measuring equipment, and thus gypsum thick liquid of a certain thickness is produced.
2: Heat transmission stove system of paper faced gypsum board production
Main equipments: stove body, heavy oil burner, circulating pump, high and low oil storage, oil pipe, low and high pressure oil pipe and electric controlling part. The function of this system is to supply heat for drying system. he burning material can be decided according to the local energy resources situation, such as coal, diesel and natural gas.
3:automatic machine of gypsum board Production line automatic controlling system.
It includes two parts:

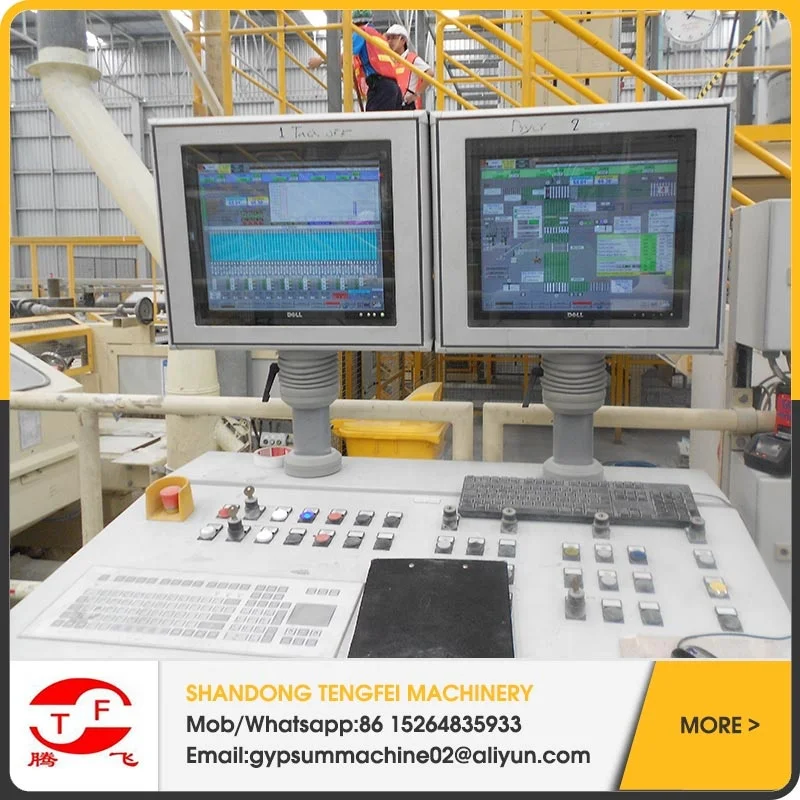

PLC and computer monitor system & Computer controlling part
