iot BLE Moko gateway read beacon nRF52832 bluetooth wifi gateway
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (62206989613):
Product Overview
Description
Description
iot BLE Moko gateway read beacon nRF52832 bluetooth-wifi gateway

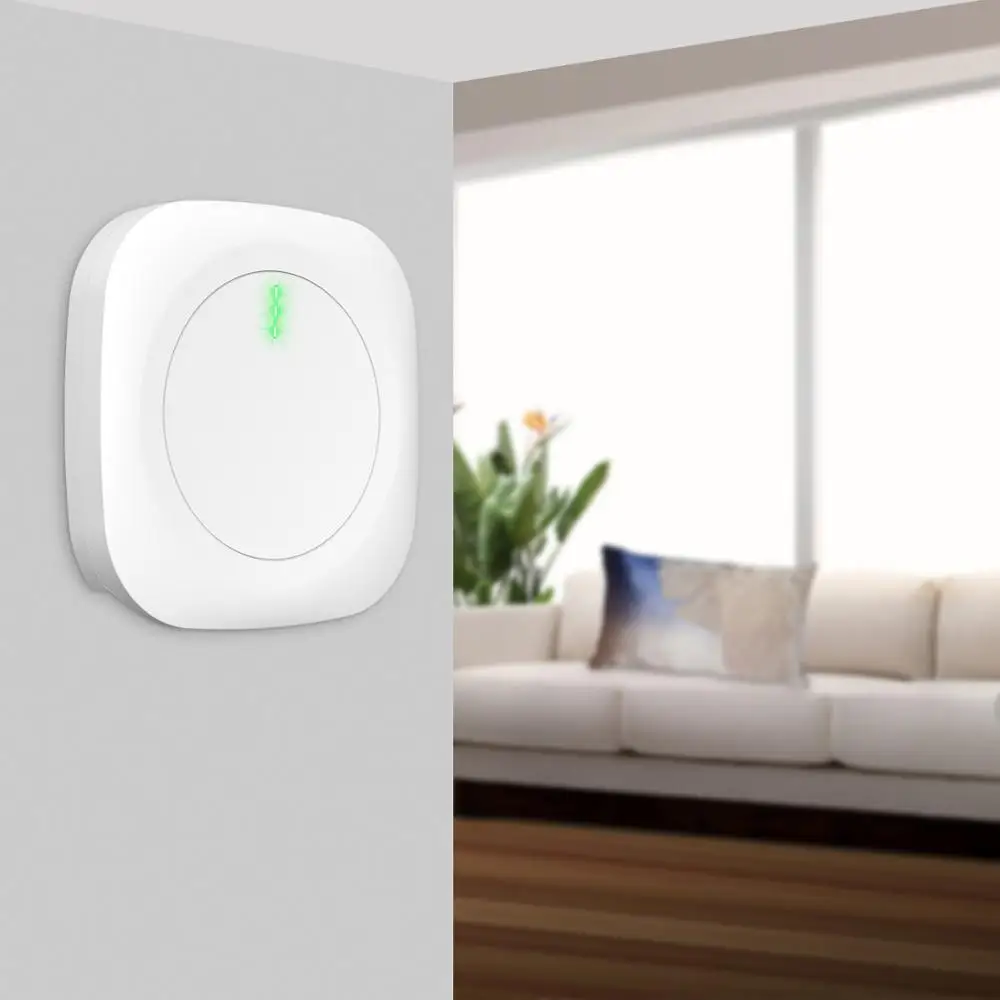

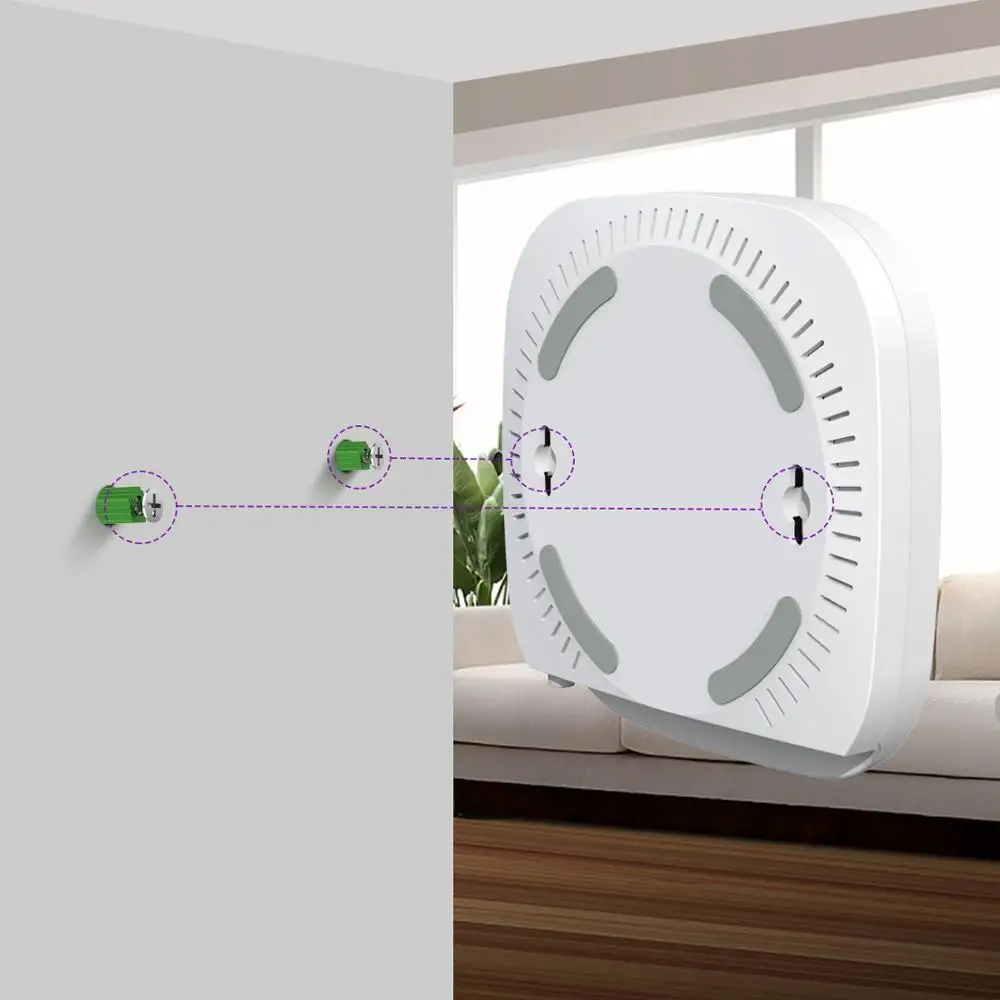

MKGW1 Gateway, is a Bluetooth-WIFI gateway independently developed by MOKO. It has a compact shape with 3 multi-color indicator lights. It can be fixed by sticking or screwing. It is convenient for users to get the information of the Beacon and upload the information to the server.
①PoE、DC and USB power supply.
②The WIFI data rate of MKGW1 can be 150Mbps.
③Support MQTT（TCP/SSL）and HTTP/HTTPS protocols.
④User can modify the gateway parameters on the web UI.
⑤Support Ethernet and WIFI internet access.
②The WIFI data rate of MKGW1 can be 150Mbps.
③Support MQTT（TCP/SSL）and HTTP/HTTPS protocols.
④User can modify the gateway parameters on the web UI.
⑤Support Ethernet and WIFI internet access.
Parameters for MKGW1 Gateway | ||||||
Dimension | 120mm x 120mm x 22.5mm | |||||
Net Weight | 138.2g | |||||
Interface | PoE Port DC Power Port Micro USB Port RJ45 Network Port USB Upgrade Port | |||||
Wireless Standard | IEEE 802.11b/g/n | |||||
WIFI Data Rate | 150Mbps | 150Mbps | ||||
WLAN Transmit power | 18dBm | |||||
WIFI coverage | 300m | |||||
Bluetooth Standard | BLE 5.0 | |||||
Chip model | nRF52832 | |||||
Bluetooth Scanning Range | 120m | |||||
Maximum Scanning Capability | 300/s | |||||
Server Protocol | MQTT(TCP/SSL) HTTP/HTTPS | |||||
Operating Temperature | 0 ~ 55ºC | |||||
MKGW1 Gateway mechanical draws
All dimensions is mm
Hot Sales
Company Profile
Certifications
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon, you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: Sure. The following technical data and documents will be provided.
①SDK ②API ③Configuration APP ④Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
Q2: Do you provide the technical support to the developers?
A2: Sure. The following technical data and documents will be provided.
①SDK ②API ③Configuration APP ④Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
