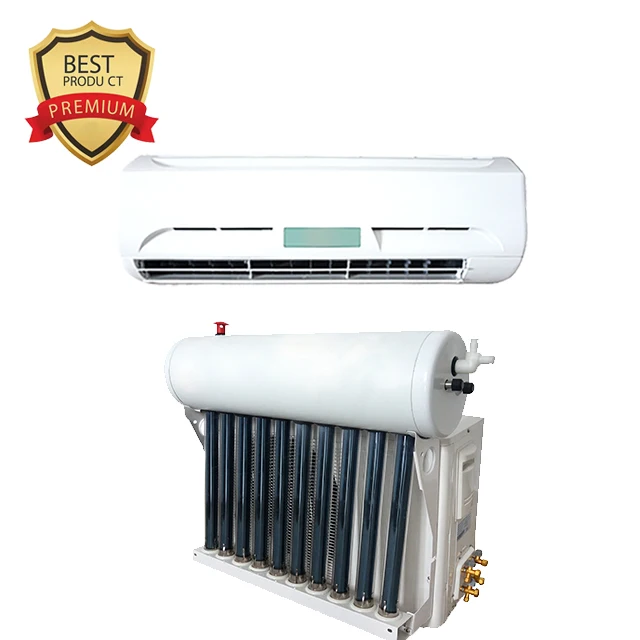

off Grid wall mounted inverter solar air conditioner
US $2200-$4500
solar hybrid split air conditioner
- Category: Air Conditioners >>>
- Supplier: Jiangsu,Elemac,Energy,Co.,Ltd.
Share on:
Product Overview
Description
| Power Supply:220-240VAC, 1PH, 50/60Hz | ||||||
| Performance | ||||||
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 24000 |
| W | 2600 | 3500 | 5200 | 7200 | ||
| Heating | Btu/h | 10000 | 13000 | 20000 | 27000 | |
| W | 2900 | 3800 | 6000 | 7900 | ||
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤44 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤54 | ≤58 | |
| Air Circulation | m³/h | 500 | 550 | 800 | 1150 | |
| Suitable Area | m² | 11~17 | 15~23 | 26~36 | 30~48 | |
| EER | W/W | 3.84 | 3.89 | 3.83 | 3.82 | |
| Btu/h/w | 12.42 | 13.27 | 13.07 | 13.03 | ||
| Power Consumption | ||||||
| Power Input | Cooling | W | 650~770 | 800~1025 | 1100~1300 | 1700~1900 |
| Heating | W | 650~780 | 800~1050 | 1150~1350 | 1700~1950 | |
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 |
| Heating | A | 3.00~3.65 | 3.70~4.90 | 6.30~7.50 | 8.00~8.90 | |
| Vacuum Tube | Diameter*Length*Pcs |
47mm*520mm*10 |
47mm*520mm*10 | 47mm*620mm*11 | 47mm*620mm*11 | |
| Flat plate solar collector | WXDXH | 800x500x80mm | 800x500x80mm | 900x500x80mm | 900x500x80mm | |
| Dimensions | ||||||
| Indoor Unit | Net | mm | 775*265*210 | 775×265×210 | 985×300×220 | 985×300×220 |
| Shipping | mm | 840*325*265 | 840×325×265 | 1080×380×300 | 1080×380×300 | |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850* 290* 580 | 865*310*710 |
| Shipping | mm | 910*370*610 | 910*370*610 | 995* 390* 680 | 1025*395*790 | |
| Water Tank | Shipping | mm | 910*400*330 | 910*400*330 | 980*400*370 | 980*400*370 |
| Vacuum Tube | Shipping | mm | ||||
| Flat plate solar collector | Shipping | mm | 900x550x90mm | 900x550x90mm | 950x550x90mm | 950x550x90mm |
| Weight | ||||||
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 13/15 | 13/15 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 75 | 75 | 55 | 55 |
| 40HQ | sets | 175 | 175 | 125 | 125 | |
Q: Can I order from you air conditioner alone but purchase the solar accessories at another place?
A: Yes, it is optional
Q: Do you have DC 48V 100% off grid inverter solar air conditioner?
A: Yes, we have. Please check with our sales.
Q: How many solar panels do I need to run your on-grid hybrid solar air conditioner?
A: Min. 2 panels.
Q: Can I use standard solar panel to connect with your on-grid hybrid solar air conditioner?
A: Yes, just the normal standard solar panel, you may purchase anywhere.
Q: Can I run your hybrid solar air conditioner without solar panel?
A: Yes.
Q: Is it convenient to install your hybrid solar air conditioner unit?

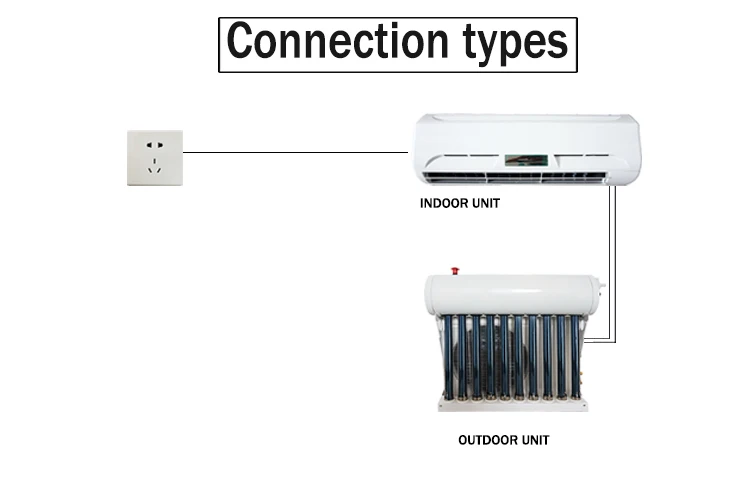

A: Yes, exactly like the normal air conditioner, standard MC4 solar and connectors and cabling can be used to connect the solar panel directly to the unit.
Q: Does it have to be connected to main power?
A: Yes, the system design requires a main power connection. It gets up to 80-90% of its power from solar during sun hours and gets the rest of its power from grid-supplied power.
