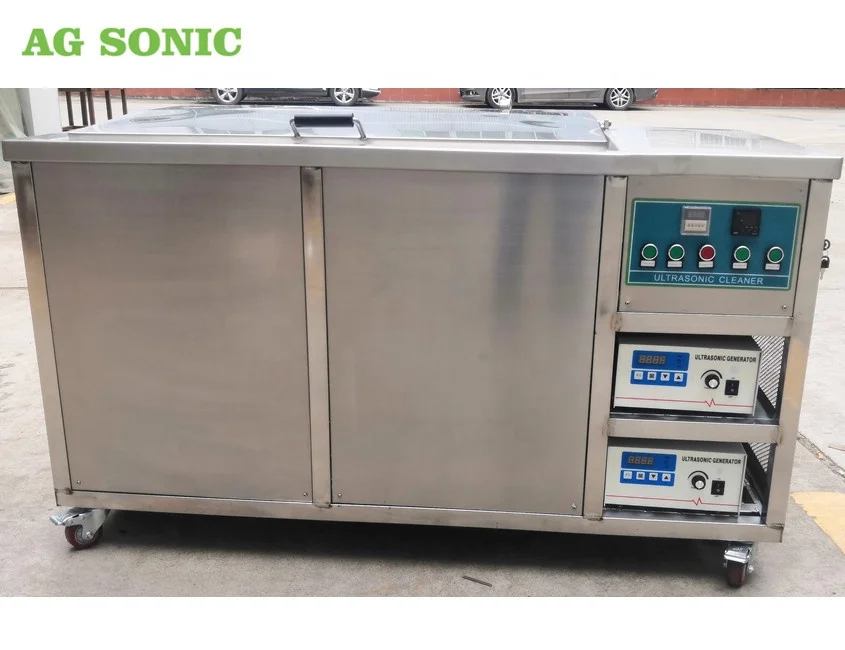

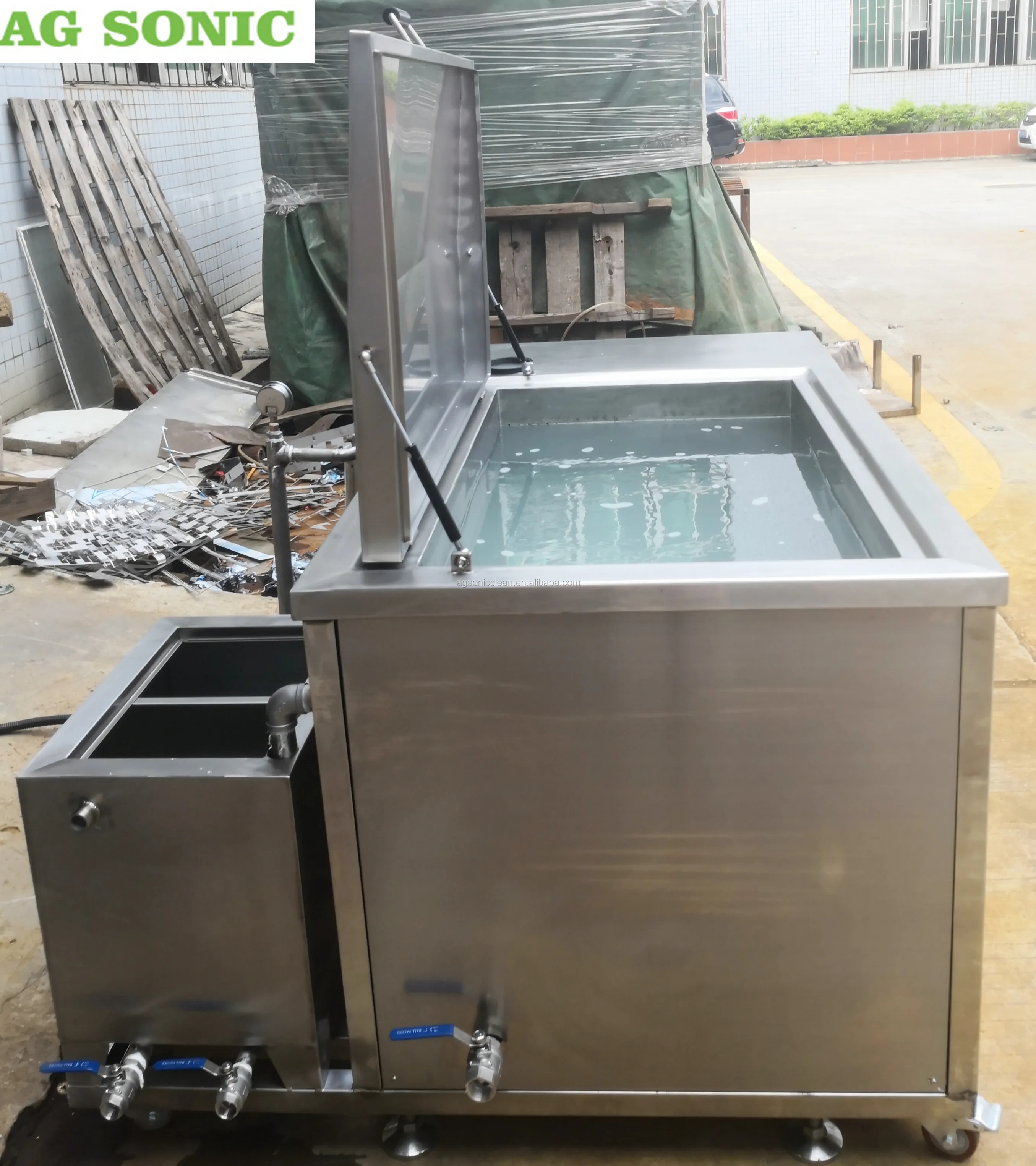

Ultrasonic Bath For Cleaning Engine 28khz With Hinged Lid And Drainage 360L Vertical Ultrasonic Cleaner

Ultrasonic Bath For Cleaning Engine 28khz With Hinged Lid And Drainage 360L Vertical Ultrasonic Cleaner

Auto Parts Cleaning machine

We are manufacturing and supplying of Automotive Ultrasonic Cleaners. We offer a wide range of ultrasonic cleaners. These are Single or Multistage Ultrasonic Cleaners, which are both manually operated & fully automated systems. Further, the machine is widely used and appreciated by our clients due to its professional dependability and user friendliness.

Ultrasonic Cleaner Auto Industry
Ultrasonic cleaning is a water based cleaning solution where ultrasonic transducers are used to provide cavitation agigation insude the tank which has waer and suitable chemical to clean oil,dirt,debree,grease and other contaminants from various types of auto components.
We expertise in all types of ancilary parts washing like brakepads, steering coloumns, crank shats, pistons, valves, gaskets, clutch pads, mirrors and many more.

 What ultraosnic can do ?
Ultrasonic cleaners remove dirt, oils, lubricants, carbon, rust,and other types of grime that build up on engines and mechanical parts. Grooves, internal passageways, seals, and other hard to reach areas are cleaned easily, eliminating hours of disassembling and reassembling complex parts. Carburetors, pistons, cylinder heads, aluminum parts, and brake calipers are a few examples of components that are cleaned thoroughly with no manual scrubbing in an ultrasonic cleaner

It’s efficient, clean, green and cost-effective.
Most importantly, it works.
A powerful cleaning solution is now as simple as soap, water and some mighty little bubbles.
Ultrasonic cleaning technology is fast, gentle and extremely powerful. It uses microscopic cavitation bubbles and specially
formulated eco-friendly solutions to search every crease and crevice and eliminate even stubborn or difficult-to-reach contaminants, including grease, dirt, hydrocarbons, metal
shavings, buffing/polishing compounds, carbon deposits, mold release and more.

Benefits of ultrasonics for Engine Block :
Cleans delicate parts without damage
Cleans cracks and crevices that would be difficult to reach with the hand
Does not require line-of-sight for effective cleaning
Doesn’t use harsh chemical solvents that are dangerous for workers and the environment
Safe for aluminum, magnesium and zinc
Biodegradable cleaner
Clean multiple pieces at once without having to brush by hand – saves time and money

AG ultrasonic cleaning machine effectively and thoroughly clean all types of engine block Cleaning

More suited for refurbishing in an ultrasonic filter cleaner are filters fabricated of metal or plastic mesh that capture and hold contaminants.  An ultrasonic parts washer can be much more effective and less damaging than using a brush or high-velocity water sprays that no matter how diligently applied are not able to access all filters surfaces and may in fact damage the filter.  Moreover an ultrasonic filter cleaner will cut filter cleaning time to minutes compared to the time required for manually cleaning filters.

Operating an Ultrasonic Filter Cleaner System

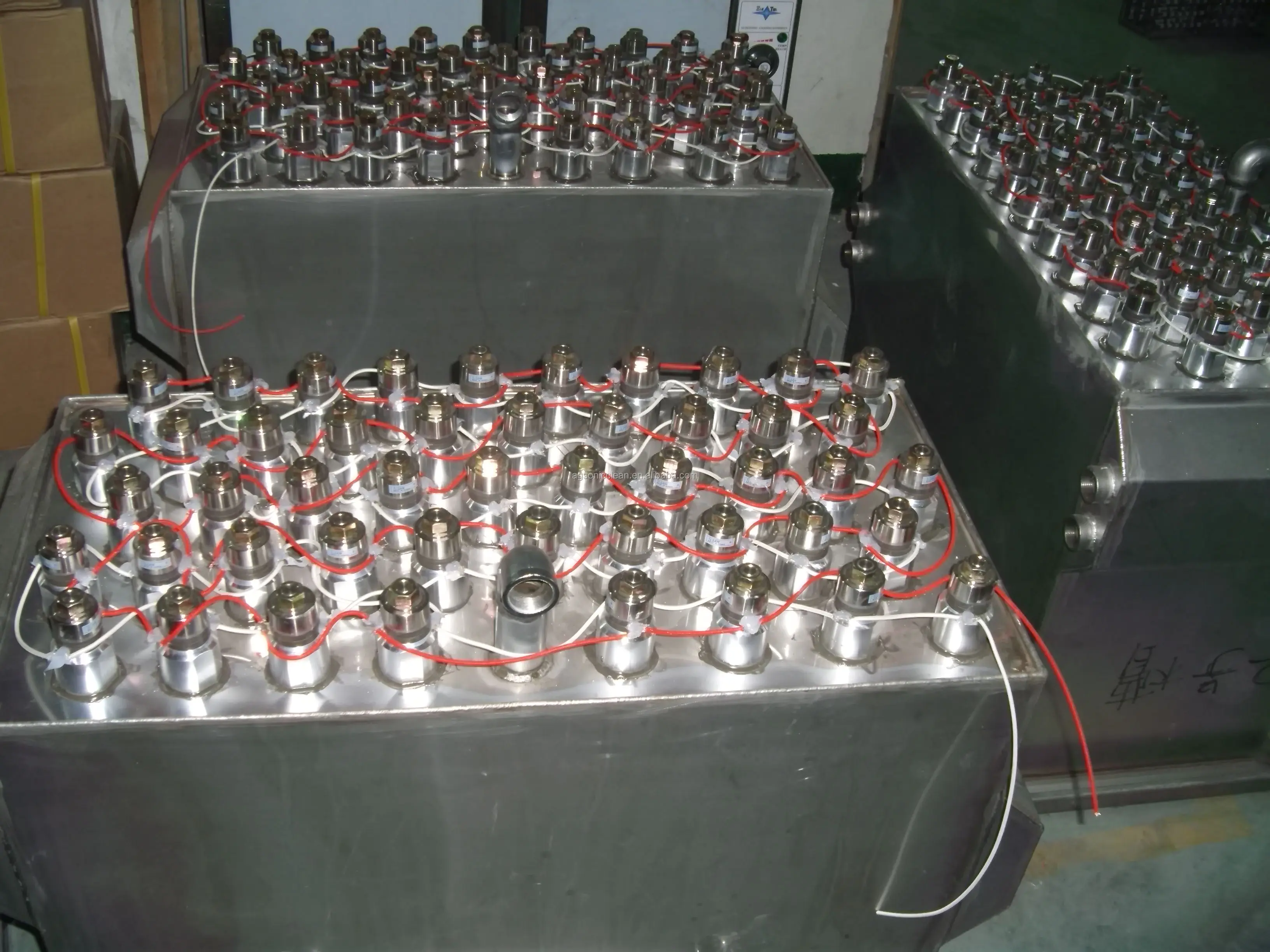

Ultrasonic cleaners are available in numerous sizes based on the capacity of the cleaning solution tank, and can range from tabletop models to industrial-sized floor models.  Regardless of size they are equipped with ultrasonic generators that excite tank-mounted transducers that create millions of microscopic bubbles in the cleaning solution.  These implode on contact with the filters being cleaned to blast away contaminants from any surface wetted by the ultrasonic cleaning solution.  Depending on models, ultrasonic filter cleaning equipment such as available have timers, temperature controllers, sweep and degas options. Rinse stations and drying stations are also available for assembly line filter cleaning.

ultrasonic tank models

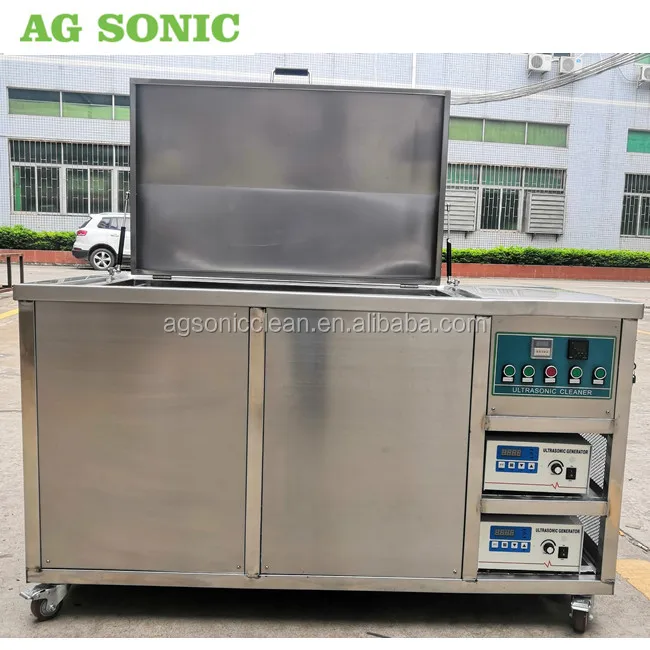

Model: T-72S details:

Features:

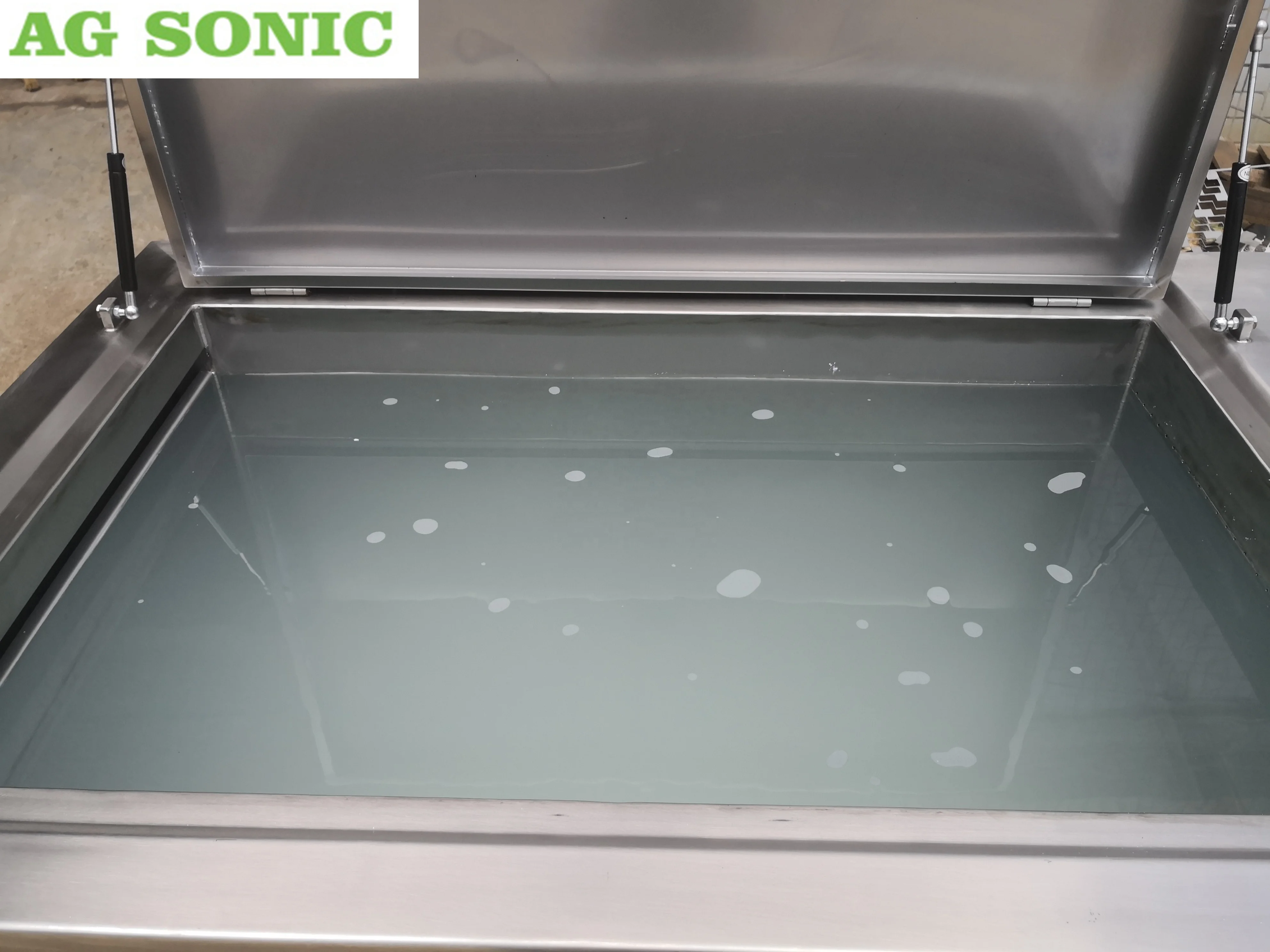

1. Tank materail is SUS304 with 2mm thickness, Human hand argon welded, Sturdy and durable resistance to high tempearture

2. 50W industrial transducers, outstanding cleaning effects

3. Built-in generator

4. Power adjustable, choose different power according to different cleaning objects

5. Digital timer: 1~99mins timer adjustable. continious working for long time.

6. With memory function, no need to reset time and temperature every time.

7. 20~80C adjustable, powerful heating panel, faster cleaning

8. Industry use power cord, more safer.

9. Can bear 100~200KG cleaning objects

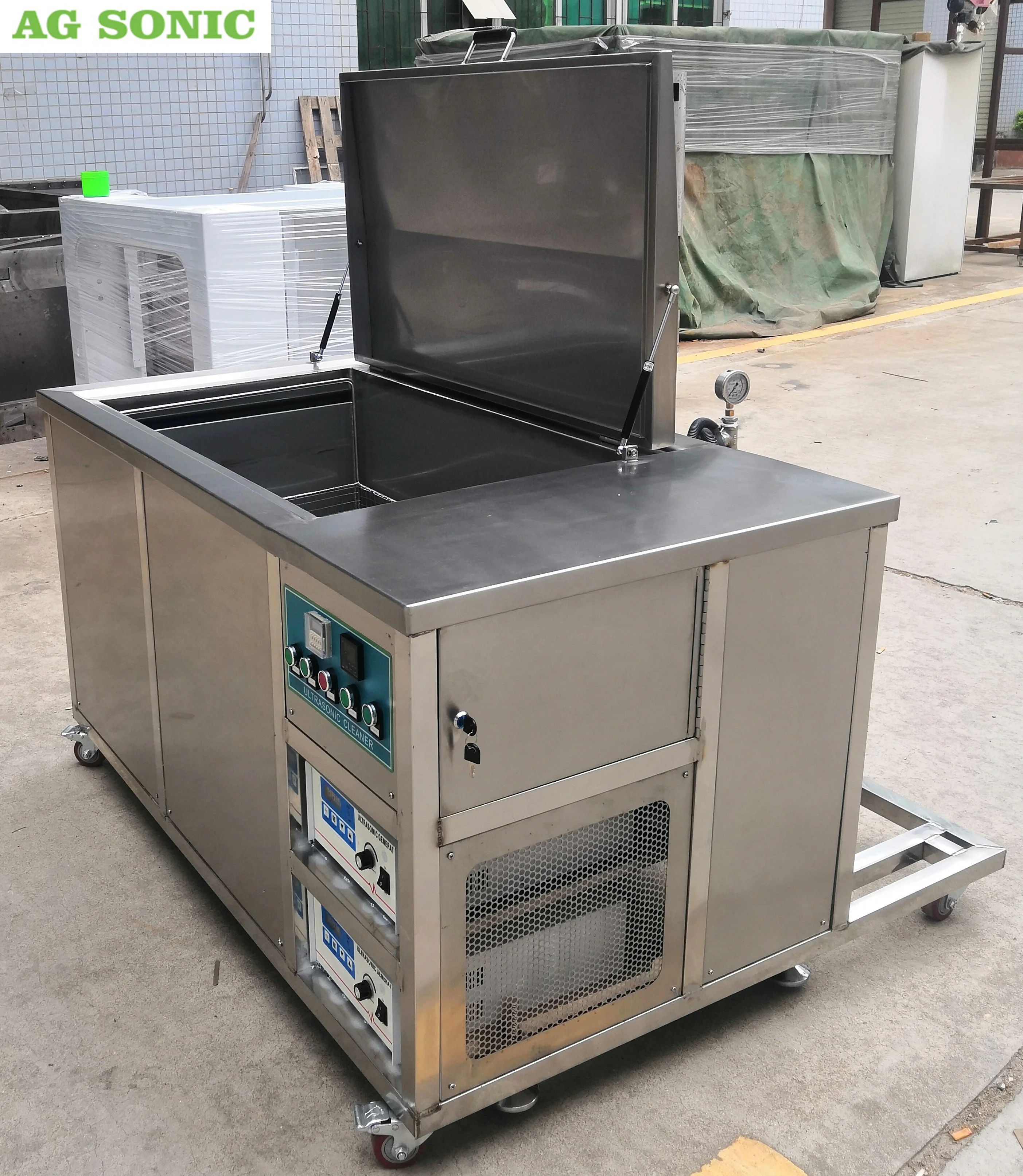

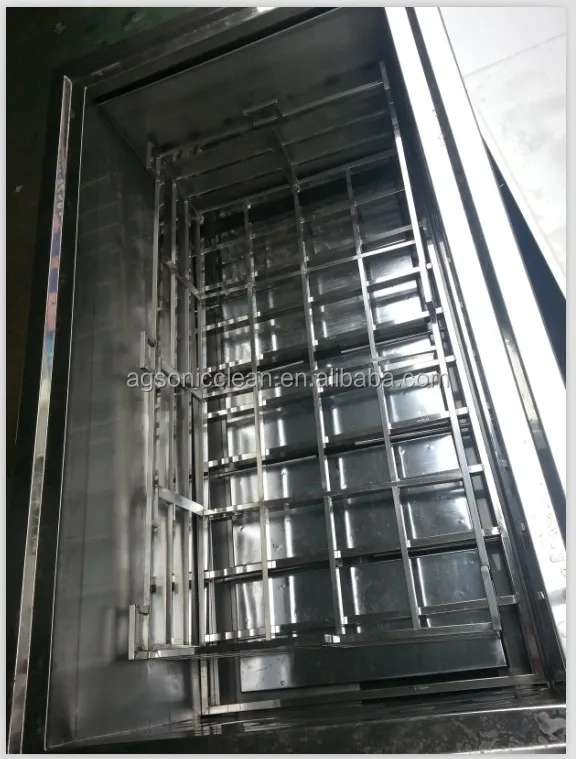

10. Accessories: Machine with stainless steel basket, drainage, lid, movable castors.

Why Use Cylinder Head Engine Block Cleaning ?
Agsonics is renowned for their professional cleaning service to the motor industry.

How does ultrasonic cleaner technology clean?

Cavitation bubbles are vacuum cavities as tiny as red blood cells, or about 8 thousandths of a millimeter across. They are so small that it would take 1,250 of them lined up in a row to reach 1 cm long.

Under pressure of continuous vibration, these bubbles stretch and compress at a fast rate. Once they reach a certain size, as determined by the frequency and strength of the sound waves produced, the bubbles lose structural integrity and collapse violently. When these implosions happen near a surface, the bubbles emit high-powered streams of plasma that travel at more than 500 miles per hour and collide with, agitate and remove even very tiny particles and substances from that surface.

Suitable for all types of engine parts
AG engine block ultrasonic cleaning machine effectively and thoroughly clean all types of engine parts
01: Automotive: thoroughly removes carbon deposits, grease, and other types of dirty and contaminants from carburetor, exhaust manifolds, cylinder blocks, 2-stroke and 4 stroke motorcycle engines, snow machines, ATV cylinders and heads, and more.
02: Marine: Suitable for inboard and outboard motors, the cleaning chemistry is both thorough and gentle on the aluminum parts reducing the risk of future corrosion
03: Aircraft: The high performance demands of aircraft engines establish the need for an intensive cleaning process that will restore the engine part to near original condition, our engine block ultrasonic cleaning machine easily, thoroughly, and safely clean both large and small parts, turbine blades, fuel nozzles, generator components, brakes and other parts that require periodic cleaning are all effectively and thoroughly cleaned using the ultrasonic cleaning process

Supply high quality product
Provide OEM&ODM service
One Year Warranty
24/7 response.
Technical support for all time.
Professional suggestion for your cleaning job.
Full inspection for every product we made.

1. AG SONIC technology limited, which engaged in ultrasonic cleaner field for more than 10 years. And the main products are ultrasonic cleaner with different capacity.

AGSONIC  has been manufacturing ultrasonic parts cleaners for years, providing manufacturers with the highest-quality systems available.  We are dedicated to manufacturing systems of many types and styles which include small table-top systems, large single-tank systems for injection molds are other large parts, strip and metal tape washers, aerospace parts washers, multi-stage machines which include cleaning, rinsing, and drying, automation systems, and custom equipment designed specifically for your needs.  If you are in need of an ultrasonic cleaner, you will find what you are looking for at AGSONIC .

When should you consider adding ultrasonics to a cleaning process?

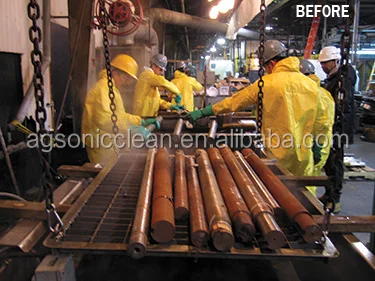

Usually, the answer is whenever parts are not getting clean enough using the current method. Ultrasonics become a viable purchase when cleaning issues are negatively impacting productivity, quality and/or the bottom line. Effective cleaning with ultrasonics has been proven in a wide range of industries ranging from microscopic medical devices to reconditioned locomotive shafts, from aerospace parts to parts prior to coating, and more.

Ultrasonics can be included in a new cleaning process or sometimes can be retrofitted into an existing process. In many cases, rejects due to residue on parts can be virtually eliminated with the addition of ultrasonics into clean and/or rinse stations in a properly-configured parts cleaning line.

Best Ultrasonic Cleaners for Auto Parts And Car Engine
Ultrasonic cleaner for engine parts are available in different size and versions that are suitable for the variety of needs – including the clean up of your car engine parts.
Here we provide our best reviews on top selling ultrasonic cleaners for car engine parts. Just check them out and get one as per your requirement.

For effective cleaning the ultrasonic cleaning machine must use the right of cleaning chemistry,operate at the right temperature and use the correct frequency, the part to be cleaned the contaminant to be removed and the degree of soil, determine this, our years of experience advising manufacturing and maintenance clients on the right process for their cleaning needs help us identify the exact product combo that you need, just send AG SONIC email or call us, and we’ll guide you to the right solution quickly

Ultrasonic technology uses absolutely no harmful chemicals.
No fumes. No strong odors. No dangerous or expensive chemical disposal. Reduced risk.
The technology is remarkable, but the process is easy. More efficient and effective than chemical processes, the machines are as simple to use as a dishwasher, with no hand labor or supervision necessary.

How do ultrasonic machines work?
Ultrasonic tanks generate high frequency sound waves through the use of transducers and electronic ultrasonic wave generators. Typical transducers are made from piezoelectric crystals which convert electrical energy into mechanical / sound wave energy because piezoelectric crystals change geometric size when electrical voltage is applied.

The sound waves create microscopic bubbles of solution during periods of positive pressure, which implode and release a burst of energy during periods of negative pressure. This process is called cavitation. It is cavitation that enhances the separation of soils from substrates, often making ultrasonic cleaning faster, gentler, and more effective than other methods. Imploding bubbles travel wherever the solution goes, allowing cleaning activity even within complex part geometries and micro-parts.

When cleaning with ultrasonics the frequency of the sound waves is matched to the application. Frequencies range from 20 kHz to 170 kHz and above. The most commonly recommended ultrasonic frequency is 40 kHz. It is considered the “universal frequency” because it is generally safe for use in most applications and will produce the most intense cavitation energies to remove the most common types of contaminants (oil, grease, metal chips) from the widest range of substrates.

Lower frequencies such as 20 or 25 kHz produce larger cavitation bubbles which are more aggressive when they implode. These lower frequencies are especially suitable for applications like removing contaminants such as buffing compound from stainless steel medical implants or removing the byproducts of injection molding from steel or stainless steel molds.
