High quality industrial grade 10L 20L 50L Vacuum Evaporation Equipment crude oil and ethanol distillation system

Product Overview

Description



 Product introduction

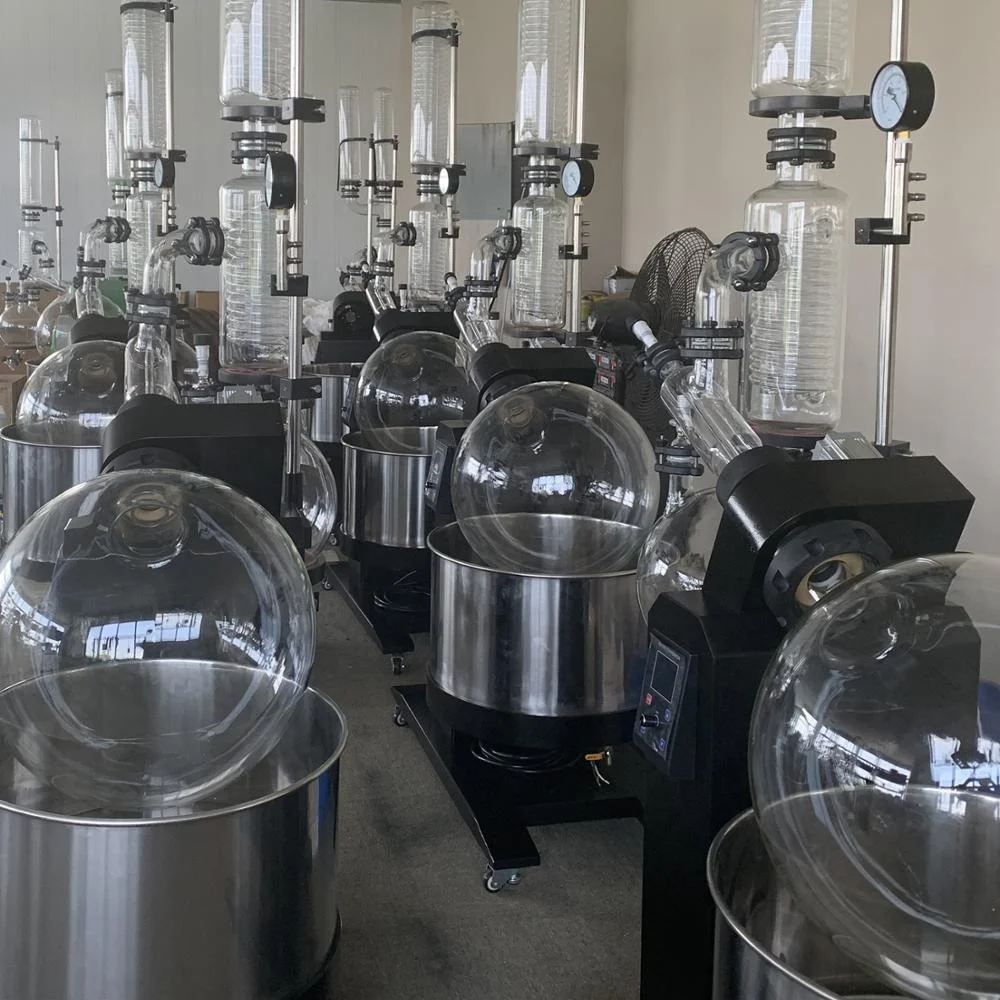

The Rotary Evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.

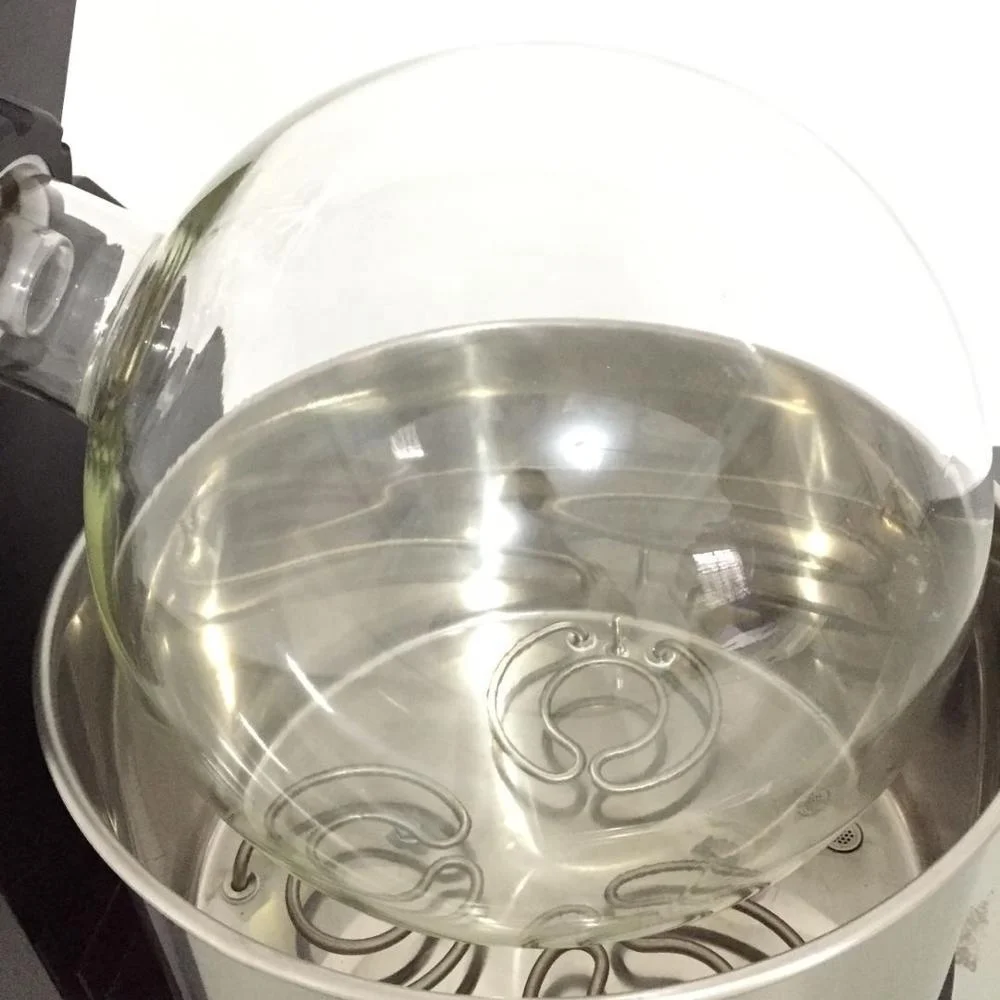

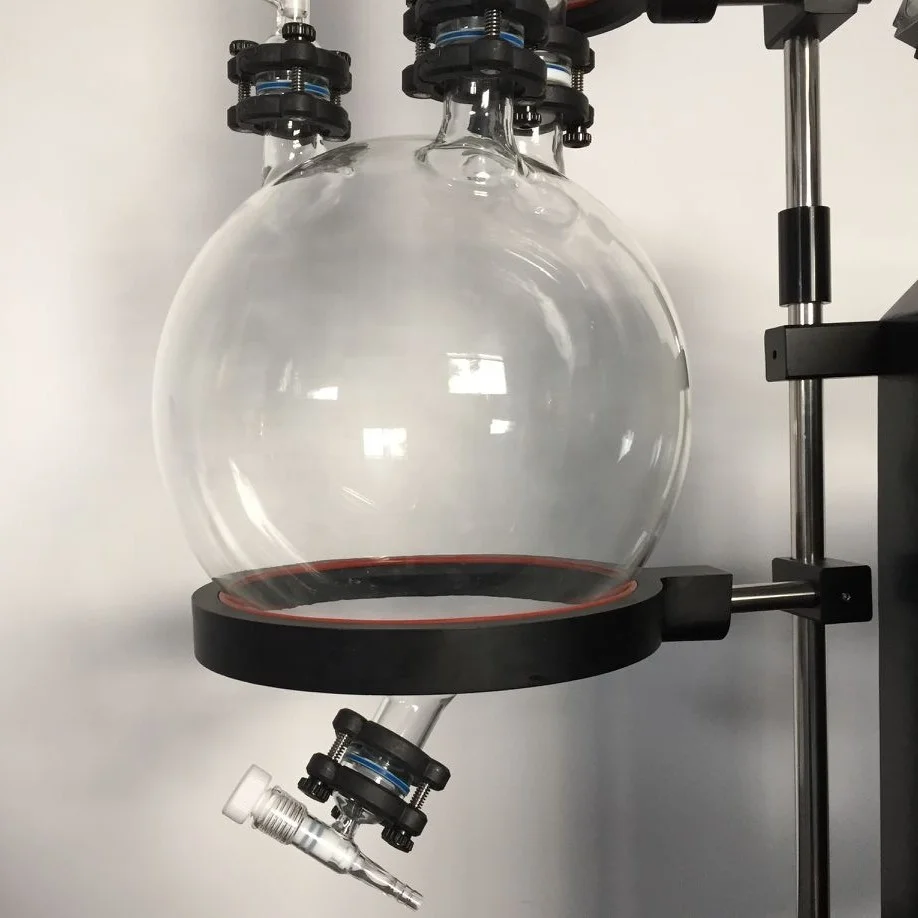

The rotary evaporator is working under vacuum, and all material contact part adopts the high temperature resistant borosilicate glass and Teflon material.constant temperature heating under vacuum condition makes the rotating bottle rotate at constant speed, and the material forms large area film on the wall of the bottle and evaporates efficiently. The solvent steam is cooled by a high efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency, especially for the concentration and purification of the biologic which are easily decomposed at high temperature.



Our factory set rotary evaporator essence of similar products at home and abroad, in successful practice, has formed 2L,3L,5L,10L,20L,30L,50L, series, efficient and practical, follow the economic principles of product design, all for the sake of users.



Product Details

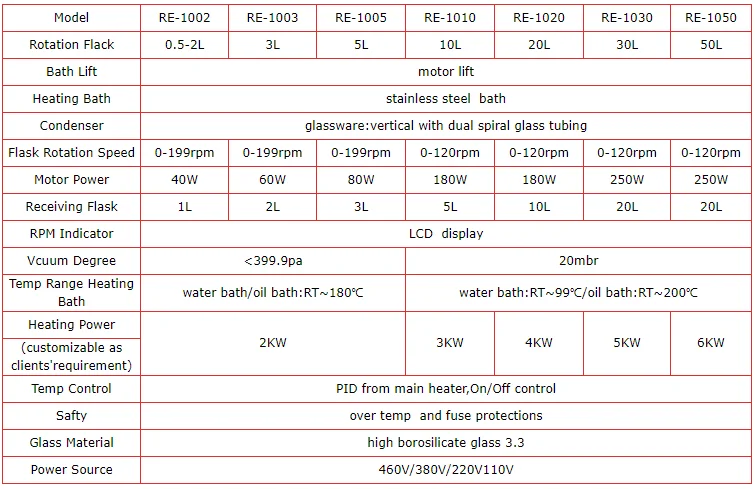

Main specifications





Product Features



1.Excellent air tightness, High vacuum performance.

2.PTFE and Viton double sealing.

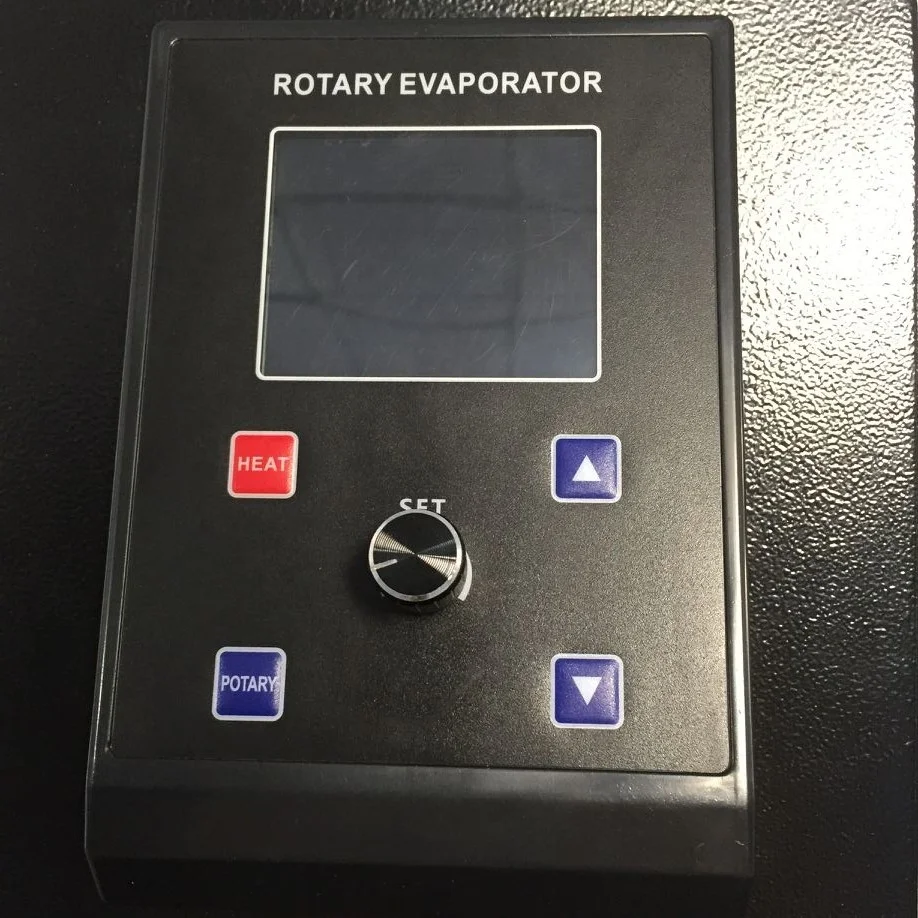

3.Hand lift to adjust the ascending or descending of Water/Oil bath.Digital display of temperature and rotation speed.

4.Easy assembling design to be assembled.

5.Double layer cooling coils for improving condensers performance.

6.High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts and SUS 304 stainless steel frame.

7.Cost-saving modular design and can be customized by clients'requirements.

8.We have 250ml,500ml,1l,2l,3l,5l,10l,20l,30l,50,100l model.

9.Electric lift or manual lift type is optional.

10.Explosion-proof system is optional.

11.Product design efficient, practical and economical.

12.All seal assembly we use the pure Teflon seal gasket to replace the traditional seal with
Teflon and rubber O-ring, thats Anti-corrosion, no pollution and long life.

13.Adopt foreign advanced frequency conversion, Tempa. control system, accurate to 0.1'C.

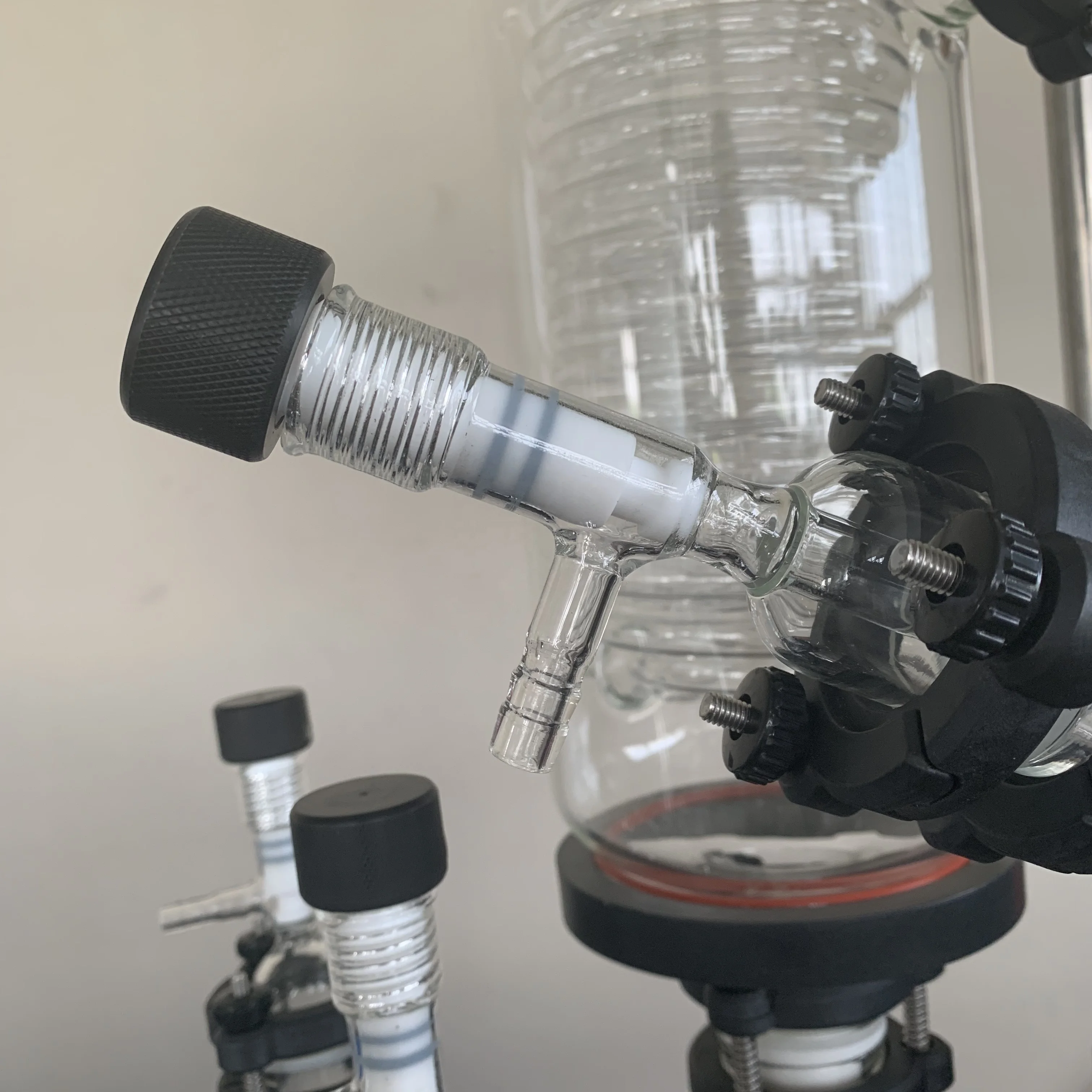

14.Unique vacuum switching valve, can be continuous collected without affecting the vacuum distillation condition. Improve the work efficiency
15.The PTEE discharge valve, corrosion resistance, no pollution.
16.Main and vice condenser integration design, Safe, high efficient, and beautiful.





Related Products

 If you also bought the matching equipment(chiller and vacuum pump) for rotary evaporator from our company, then hope this introduce can help you. If you have any questions, please contact the sales person directly. when you receive them,you can use this system at once,it is very convenient.



Supporting chiller

supporting vacuum pump

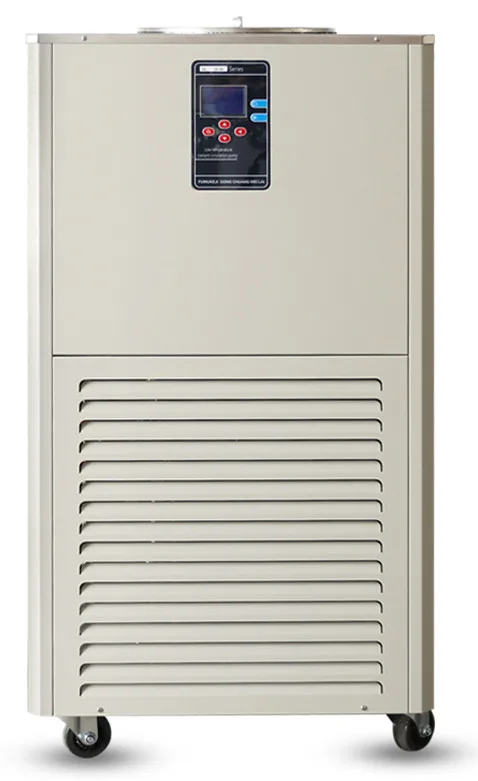

Supporting Chiller



I. Introduce:



The basic principle of a circulating chiller is that the temperature of a system or object is governed by the heat flow into it and the heat flow out of it.

Chiling circulators are used to do low temperature experiment such as chemical, biological and physical experiment in low temperature.

They are ideal equipment for cooling lab equipment like rotary evaporators, glass reactors, wiped film evaporators, etc.



Supporting Vacuum Pump



I .Introduce:



Water vacuum pump is the best choice to support the lab to complete the whole evaporation process efficiently. It provides vacuum condition for evaporation distillation, crystallization, drying, sublimation, filtration depressurization, degassing and other processes.

Water vacuum pumps are oil-free, chemical resistant and easy-to-maintain.Vacuum up to 20 mbar is generated by water flow via Venturi Effect.



Packing&Shipping



The glass parts will be wrapped with foam material and cyslosepiment, then put into the carton, the mainbody portion will be packed in wooden cases, all parts will be packed in on wooden case;

Customized packaging can be available.



The damage caused by the transportation problem shall be borne by the seller.



They are all in stock, we can ship them within 3 days after we received the payment, it will need 4 to 6 days from Shanghai to your place by DHL express door to door service. It is very fast and convenient.

We can ship them by International Express such as DHL, UPS, TNT, EMS and so on, You can choose to use your own forwarder.





Our Company

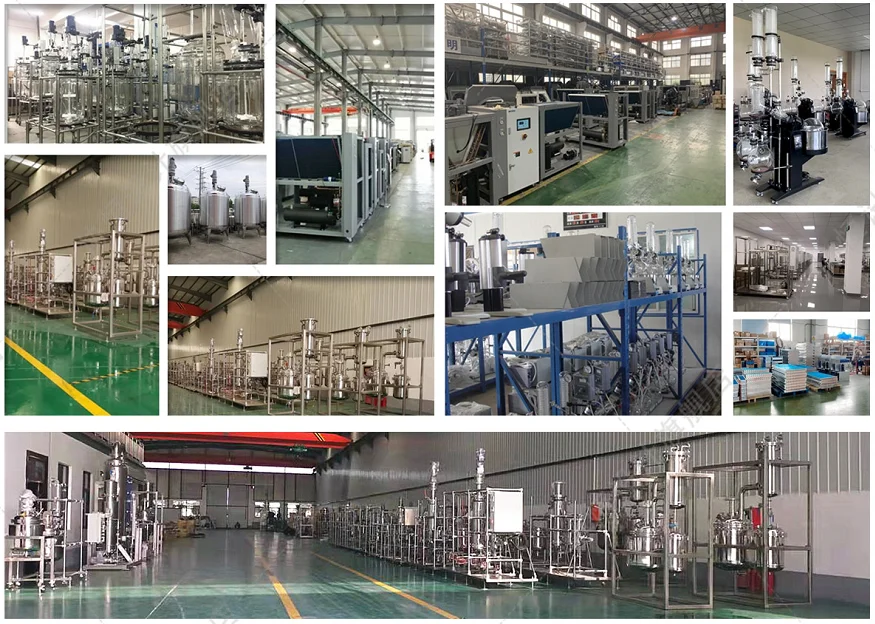

Shanghai Topace scientific instruments co.,ltd locates in Shanghai, specialized in product and export lab equipments, such as vacuum filter, rotary evaporator, falling film evaporator, jackteted glass reactor, short path distillation system, wiped film evaporator, vacuum oven, chillers, vacuum pumps, and stainless steel extraction tank and so on. With more than 30 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industrygrade glass reactors (up to 200L) and evaporators (up to 100L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures. Our equipment has been exported to theNorth America, Europe, Australia, South Africa, Southeast and East Asia, and other regions. You are warm welcomed to visit our factory!







Why Choose Us



 1.Professional

We are a professional manufacturer which is specialized in designing,producing and saling. Meanwhile,we obtained many pantents,all of our products is being innovated all the time.

2.Superior Quality and Moderate Price
With advanced technology and high-end equipment, all of our products are made with the highest quality. To guarantee zero defect rate, we do quality control before shipping to our customers.According to our strong manufacture and supply chain structure,we can provide our customers with competitive pricing.

3.OEM and ODM

We have strong developing team to support OEM and ODM service. The products can be made according to every customer’ requirement.

4.Efficient and Safe Transportation

We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.After we received the payment, we can ship them within 3 days , it will need 4 to 6 days from Shanghai to your place by DHL express.

Strict packing process to ensure the safty and completeness of the goods.

5.Great Customer Service
Over 30 years of expertise, our customers can expect a high level of satisfaction. We provide professional Pre-sale,sale,after sale Service for every customer.



FAQ



Q1: Can you provide OEM or ODM service?

A1: Yes, we have strong developing team to support OEM and ODM service. We can provide all kinds of customized services according to your request.

Q2: What's your MOQ?

A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q3: What is your terms of delivery?

A3: FOB/ CIF /Door to Door/By air as you like.

Q4: The period, scope and condition of the warranty?

A4: 1.1We offer I years warranty on the date of shipping from China. During the warranty time, beeause of manufacturingkquality problem, we offer replacement, maintenance service.

      1.2The damage caused by the transportation problem shall be borne by the seller.

Q5: How te solve the problem of your equipment?

A5: Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you haw to solve it. If there is a broken, we will send you a new part and it is free in the warrant period.

Q6: How to shipping the replacement parts?

A6: We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express
