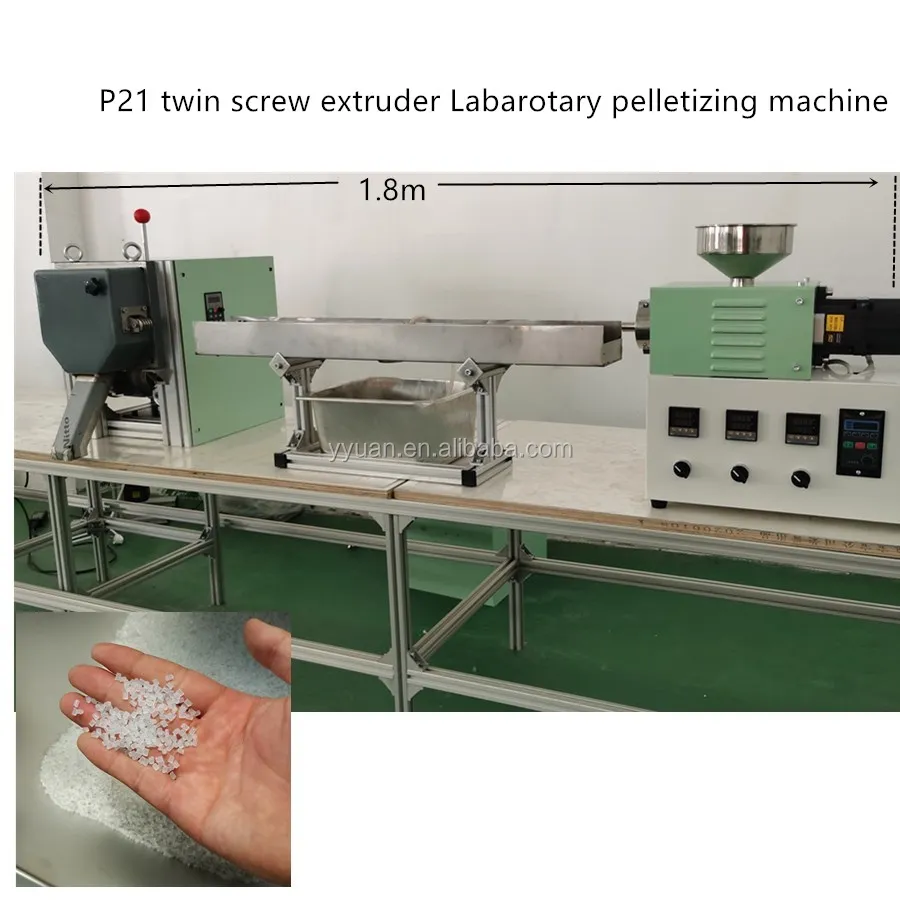

Double screw extruder lab extruder small plastic extruder two screw

Product Overview

Description

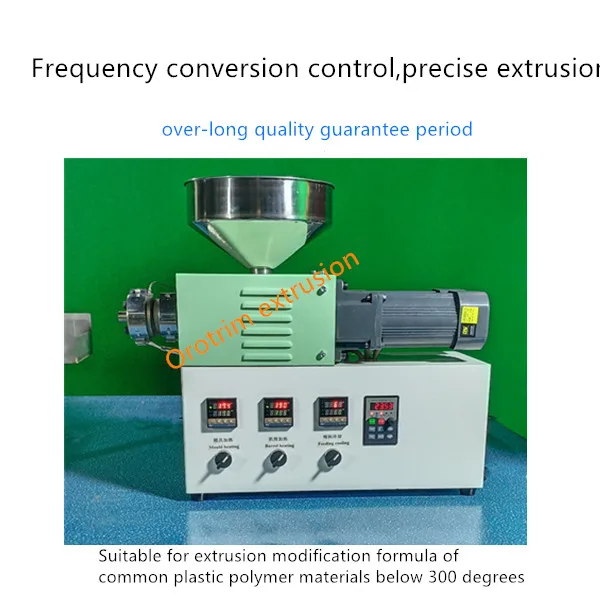

P21 parallel twin screw extruder parameters

1. Yield: 0.1-2kg/h (capacity depends on the fluidity of each material)

2. Weight: 30KG

3. Production line speed: 1-20 m/min (actual production speed depends on customer line rules);

4. Center height of production line: 300mm;

5. Direction of production line: squeeze to the left

6. Installation area: length × width = 0.6*0.2m;

7. Power supply :220V household voltage.

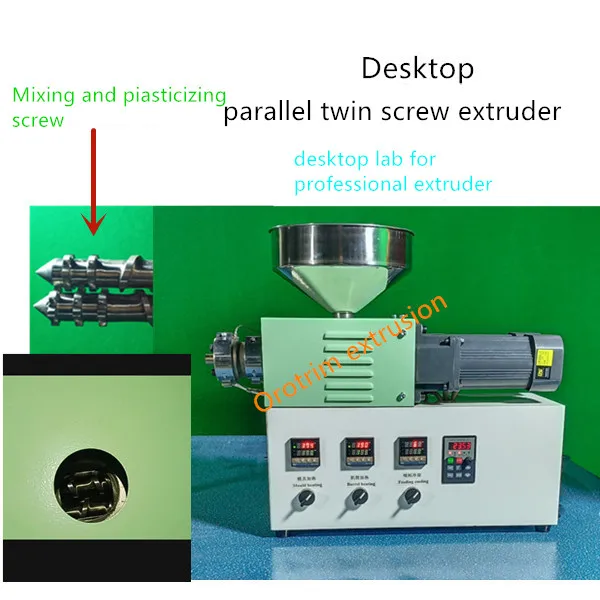

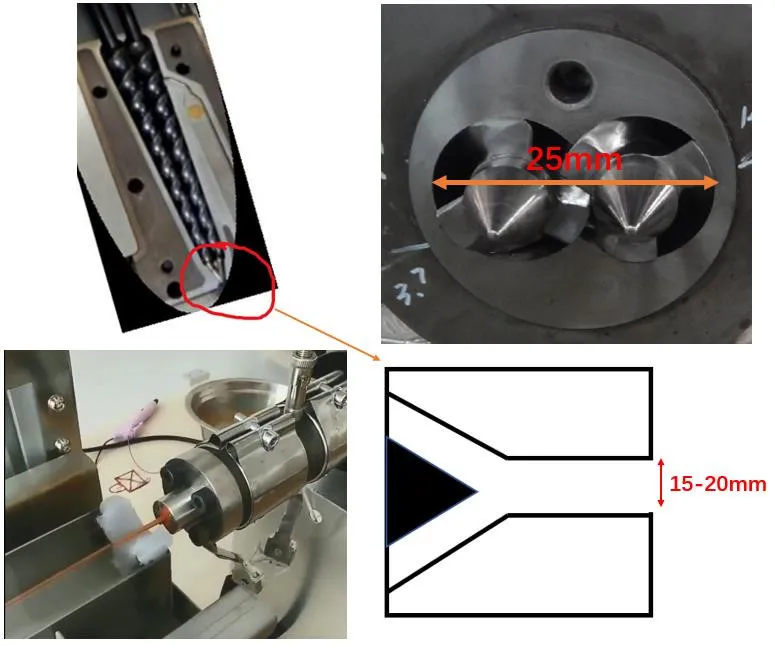

8. Screw diameter: 21MM*2 horizontal double, motor power: 180W with high torque horizontal double reduction box,

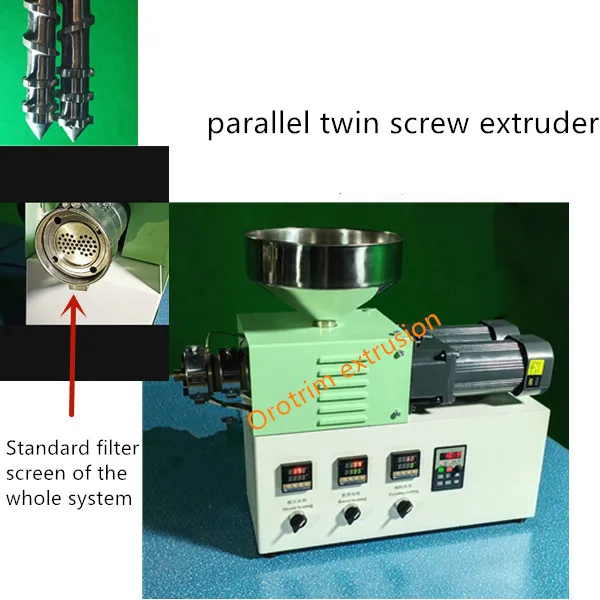

Screw barrel with filter

9, processing temperature range, room temperature -300 degrees, can be seted.
