factory price wood stick rod sanding machine/wood handle machine/polishing threading machine for wood handle

Product Overview

Description

Hfactory price wood stick rod sanding machine/wood handle machine/polishing threading machine for wood handleine

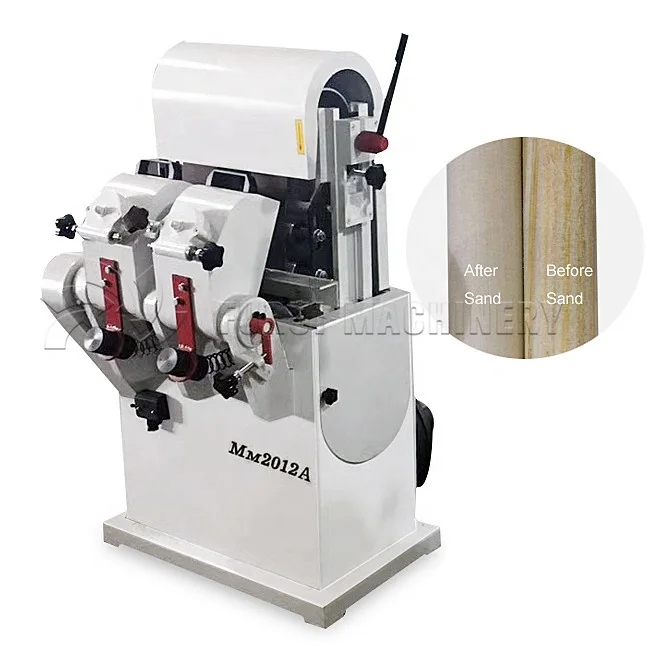

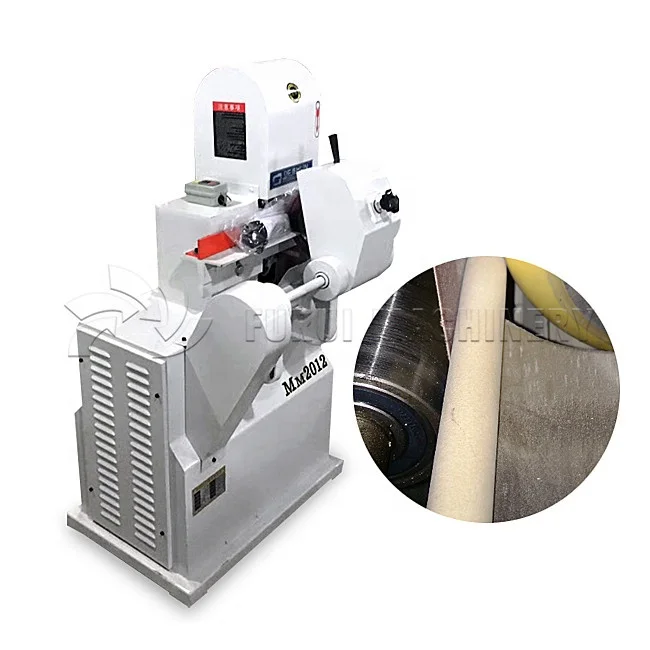

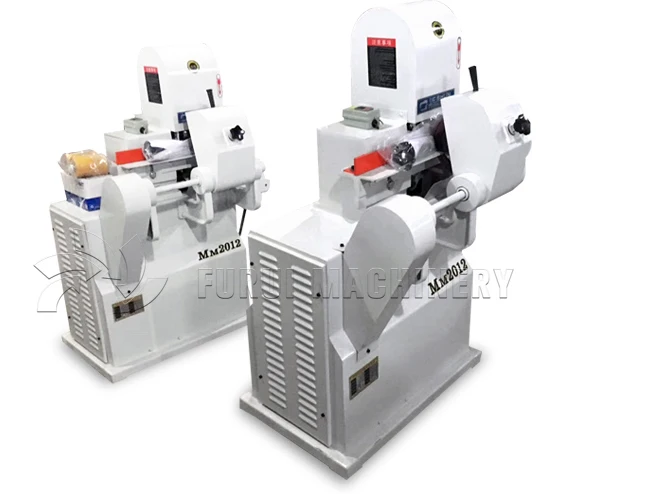

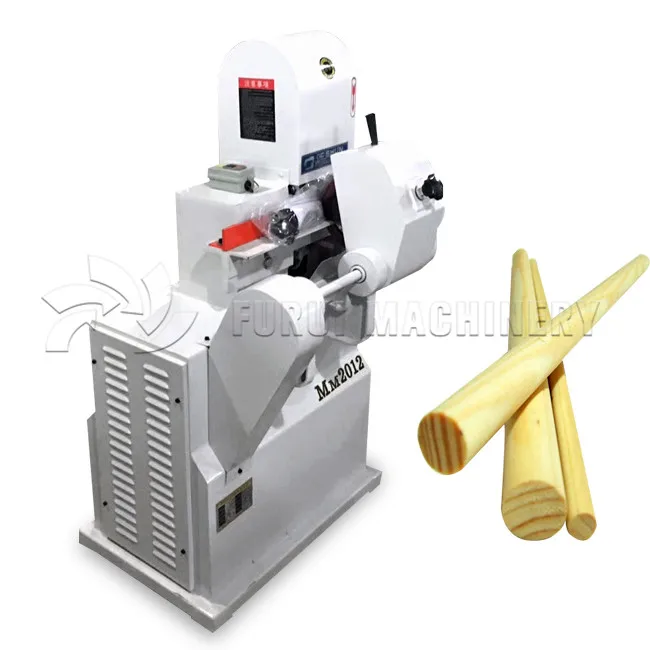

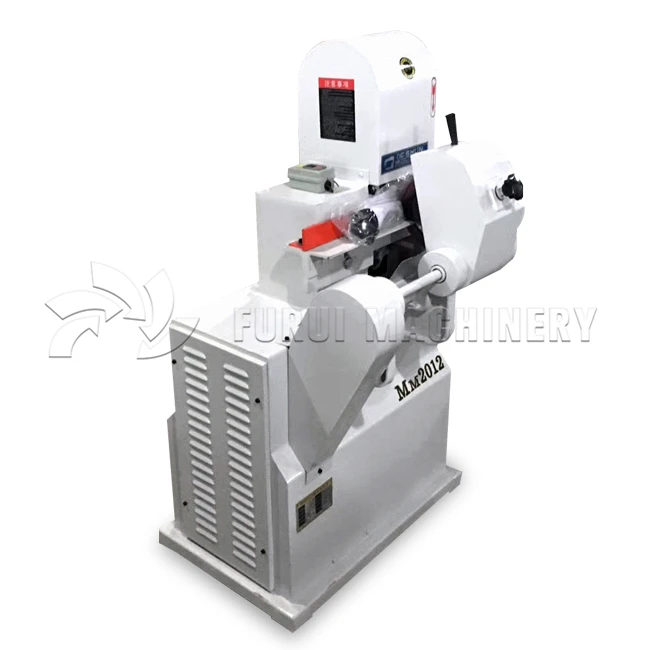

A round bar sanding machine, the main component includes a seat, a fuselage and a transmission anda feeding device. The transmission and feeding device mainly comprises a motor, a speed reducer, afeeding tray, a sand belt and a rubber wheel. The sanding belt is arranged on a rotating driving wheeland a passive wheel. The rubber wheel is arranged on an operating disk facing the sand belt. The tapeand rubber wheel move in the opposite direction so that the round rod to be processed enters from thefeed end and rotates automatically. During the rotation process, the sand light and polishing areperformed, and the angle of the rubber wheel is adjusted by adjusting the bolt, according to the sizeof the round rod. And the requirements of machining accuracy, The utility model has the advantagesof high production efficiency, safe operation, good effect of sand light and polishing for the purposeof adjusting the speed of feed.

Technical parameter of wood stick rod sanding machine

Driving wheel velocity	1420r/min	Feeding speed	70r/min
Abrasive band line speed	890mm/min	Feeding speed	5-10m/min
Abrasive band specification	1880*120mm	Cutting diameter	10-60mm
Motor power	3kw	Fan motor power	0.44kw
Machine weight		360kg
Specification of the machine tool		800*900*1350mm

Features of Wood Round Stick Making Machine

1: High productivity ,the highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time;

2: Materials widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited;

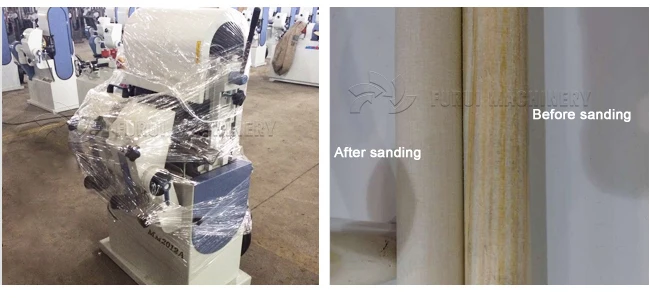

3: Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine.

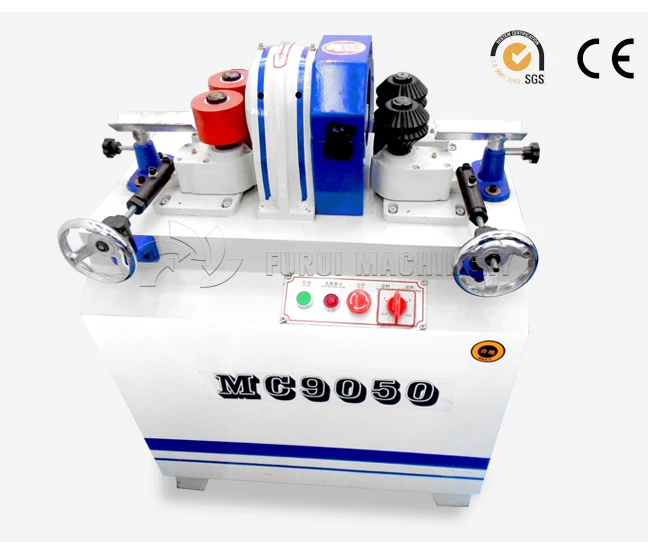

 Two blade professional factory wood round rod milling machine/round wood rod machine

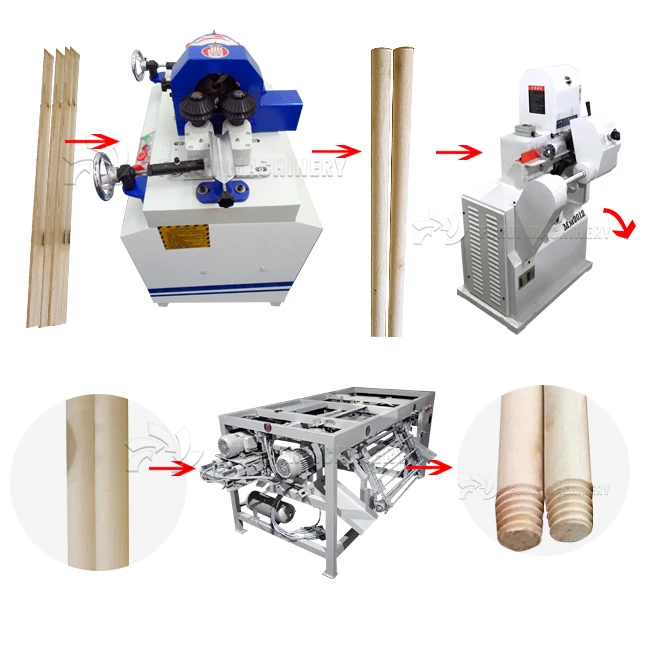

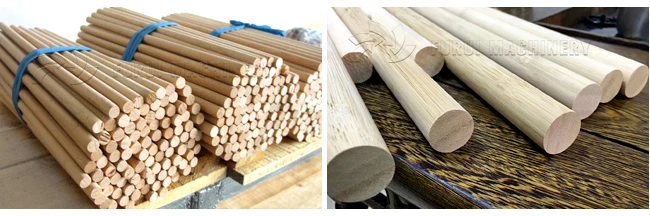

This wood round stick machine is belong to wood round stick Processing equipment, Mainly make longstrips bamboo or wood material and round wood into round sticks and smooth square sticks. The machinecan be customized according to your wood handle diameter

Technical parameter of Round stick making machine for tool handle

Model	MC9050	MC9050A	MC9050B
Motor power	3KW	3KW	3KW
Min. processing diameter	15mm	15mm	15mm
Max. processing diameter	50mm	50mm	50mm
Blade number	2	2	2
Shortest processing length	450mm	450mm	450mm
Longest processing length	Less than 1mm	Less than 1.5mm	No limited
Dimension(mm)	850*650*800	850*650*800	850*650*800
Can be customized according to your wood handle diameter

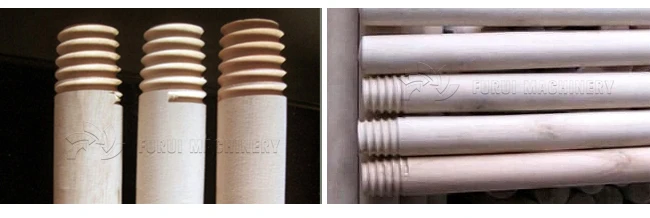

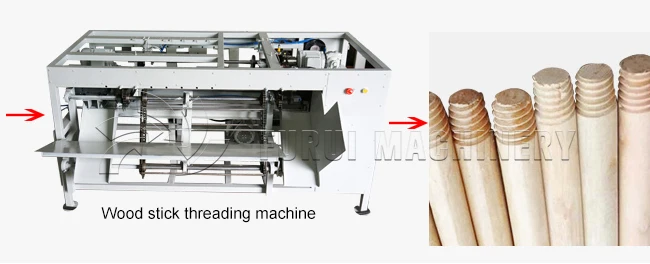

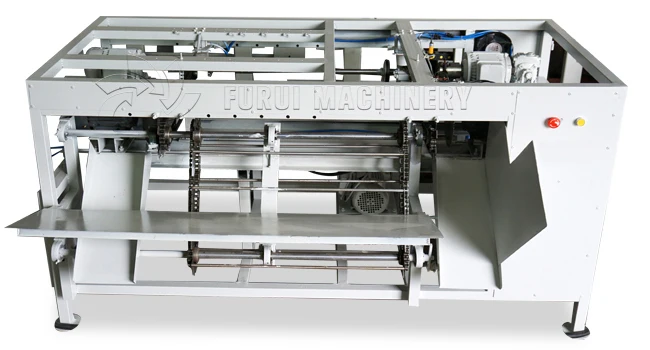

Technical parameter of wood stick threading machine

Model	GG2250
Max Diameter of Thread Pitch	28mm
Min Diameter of Thread Pitch	20mm
Processing Length	150-1300mm
Max Thread Pitch	6mm
Min Screw Pitch	3mm
Feeding Motor Power	0.37KW
Tooth Discharged Motor Power	0.75KW
Rounding and Shraping Motor Power	0.55KW*2
Milling alter power	0.75kw
Working Speed	30pcs/min
Dimension	2200*1200*1100mm
Weight	1000kg
