Роторная автоматическая Бендер (Роторная диетборд делая)

Product Overview

Description

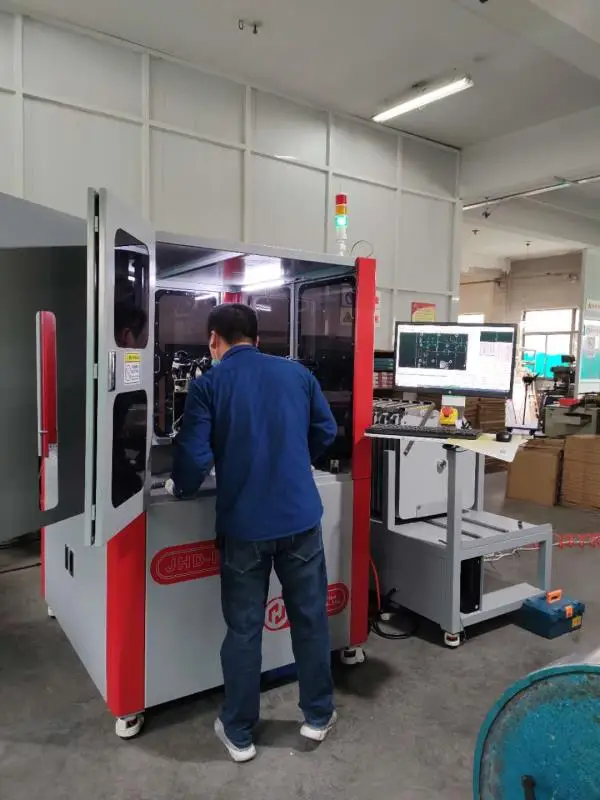

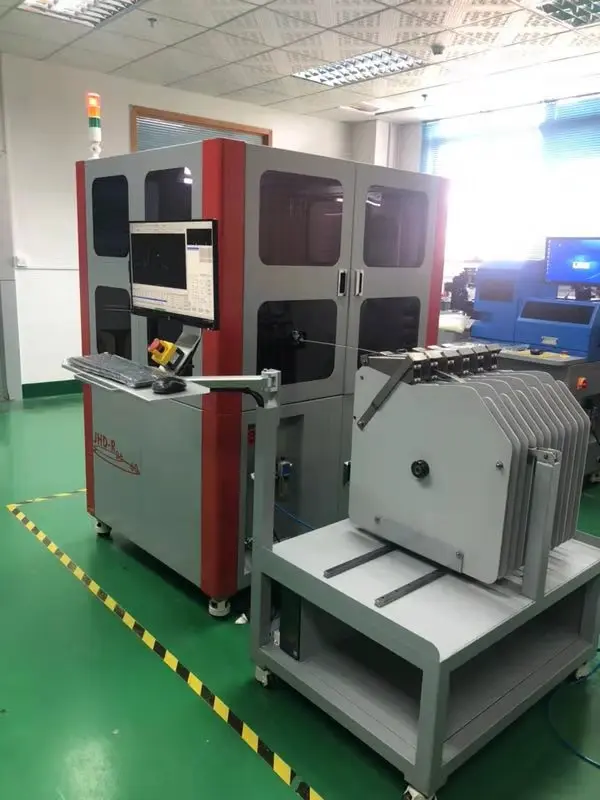

Automatic Rotary rule bending machine
Basic parameter:

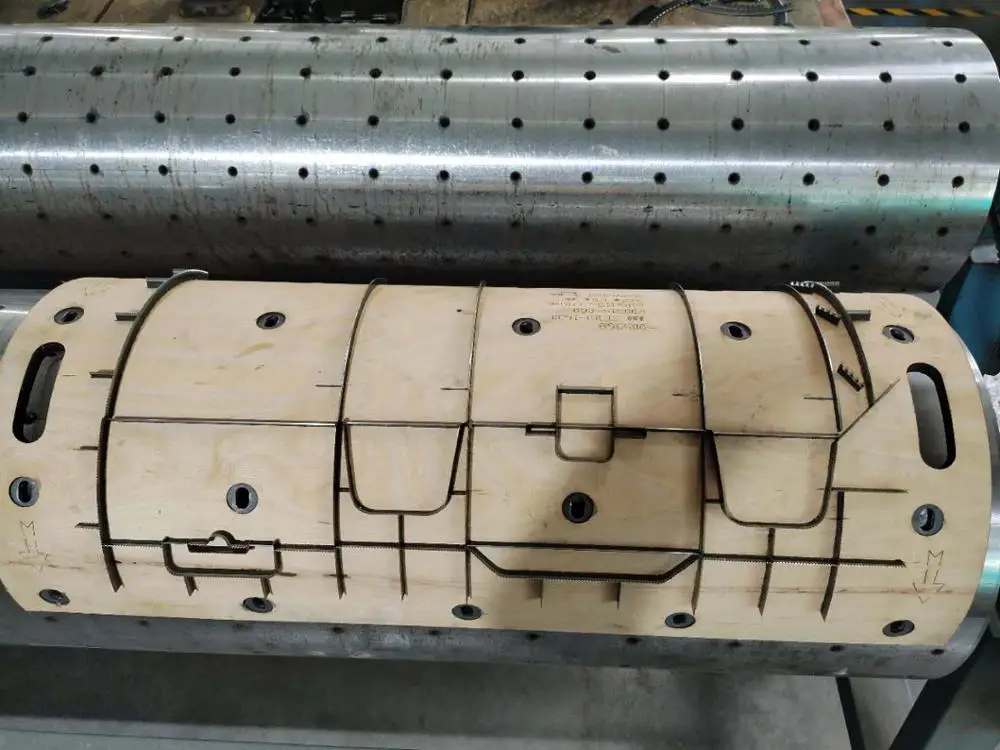

Round die cutter bending radius: 260-600mm
Round straight tool height: 23.8-26.4mm
Round straight tool thickness: 0.71-1.42mm
Bridge height automatic adjustment (height 8-18mm software control adjustment)
Rotary rule SNN to make notch on the back
Tooth function (specification according to demand)
Six sets of cutterheads
File format: dxf\\dwg\\CF2
Genuine operating system: window10
Basic parameters
Minimum right angle bending size 5mm
Minimum arc 180 degree bending radius 5mm
Power supply configuration single phase 220V / 3KW
1330mm (length) × 1130mm (width) × 1860mm (height)
Air pressure 6 bar
Machine weight 600 KG
