14 head multihead weigher packaging machine snack food automatic packing weigher
- Category: >>>
- Supplier: Zhongshan Combiweigh Automatic Machinery Co. Ltd.
Share on (62208156477):
Product Overview
Description
Products Description

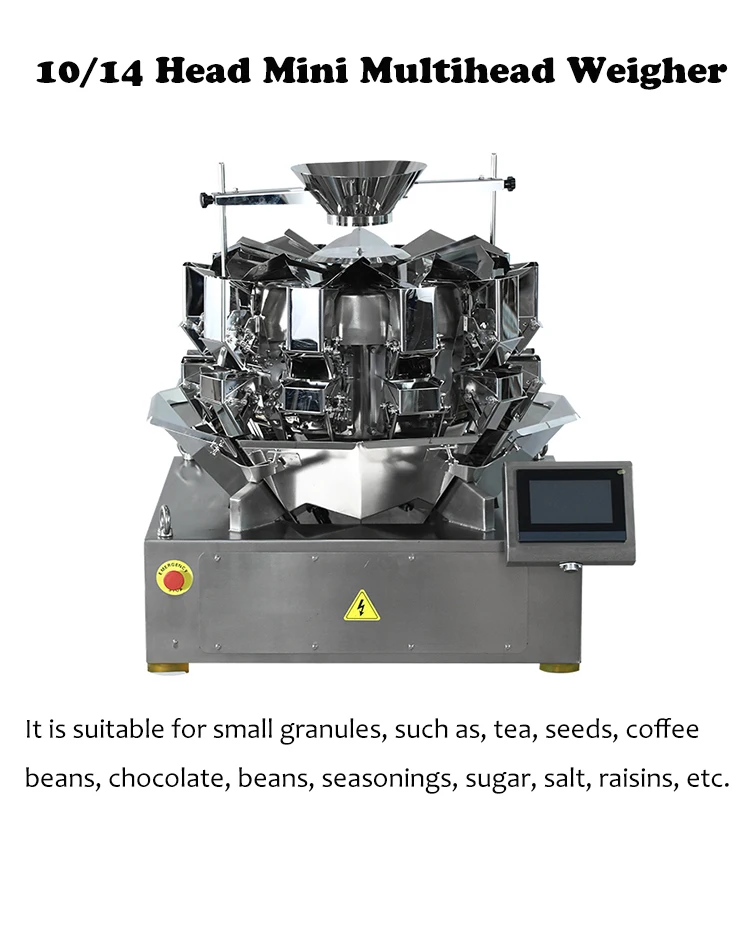

Product name | 10 head mini multihead weigher | 14 head mini multihead weigher | |
Model | CBW-1A10(05) | CBW-1A14(05) | |
Max. Cap. (g) | 5-100g | 5~200g | |
Weighing Accuracy (g) | 0.1-1.0g | 0.1~1.0g | |
Max. Weighing Speed | 60WPM | 120WPM | |
Hopper Volume | 0.5 L | ||
Control Panel | 7" Touch Screen | ||
Driving System | Step Motor | ||
Options | Dimple Plate/Timing Hopper/Printer | ||
Power supply | 220V / 800W / 50(60Hz) / 8A | 220V / 1100W / 50/60HZ /10A | |
Packing dimension (mm) | L1200xW980xH980mm | L1200xW980xH980mm | |
Gross weight (kg) | 180KG | 250KG | |
Main features

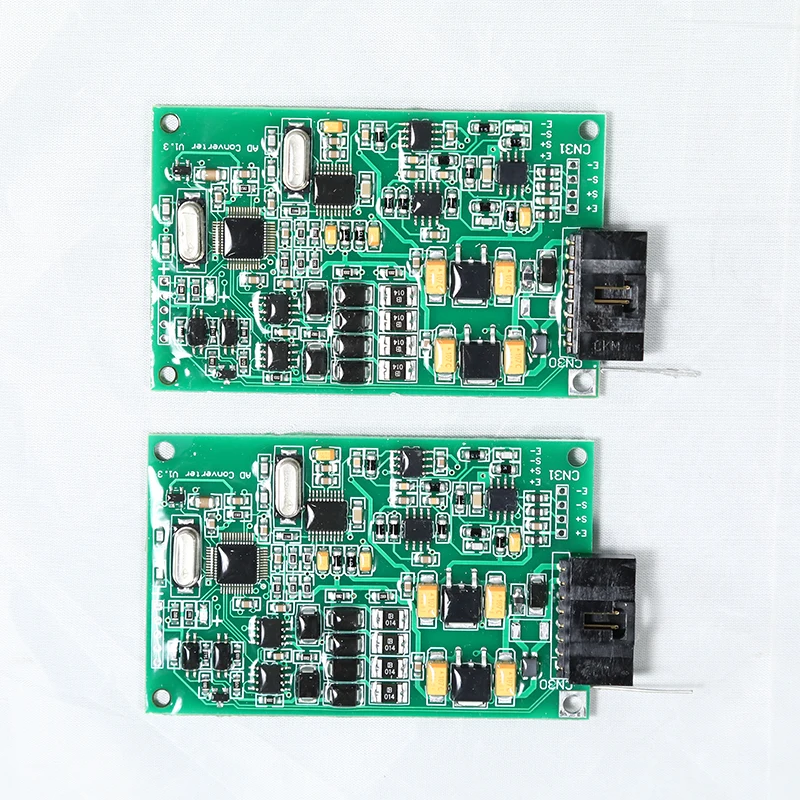

Modular AD cards are no need number by manual; it can be changed with each other directly, even between different weighers.

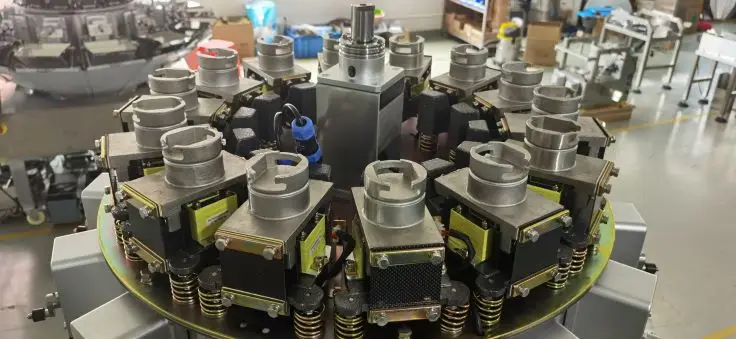

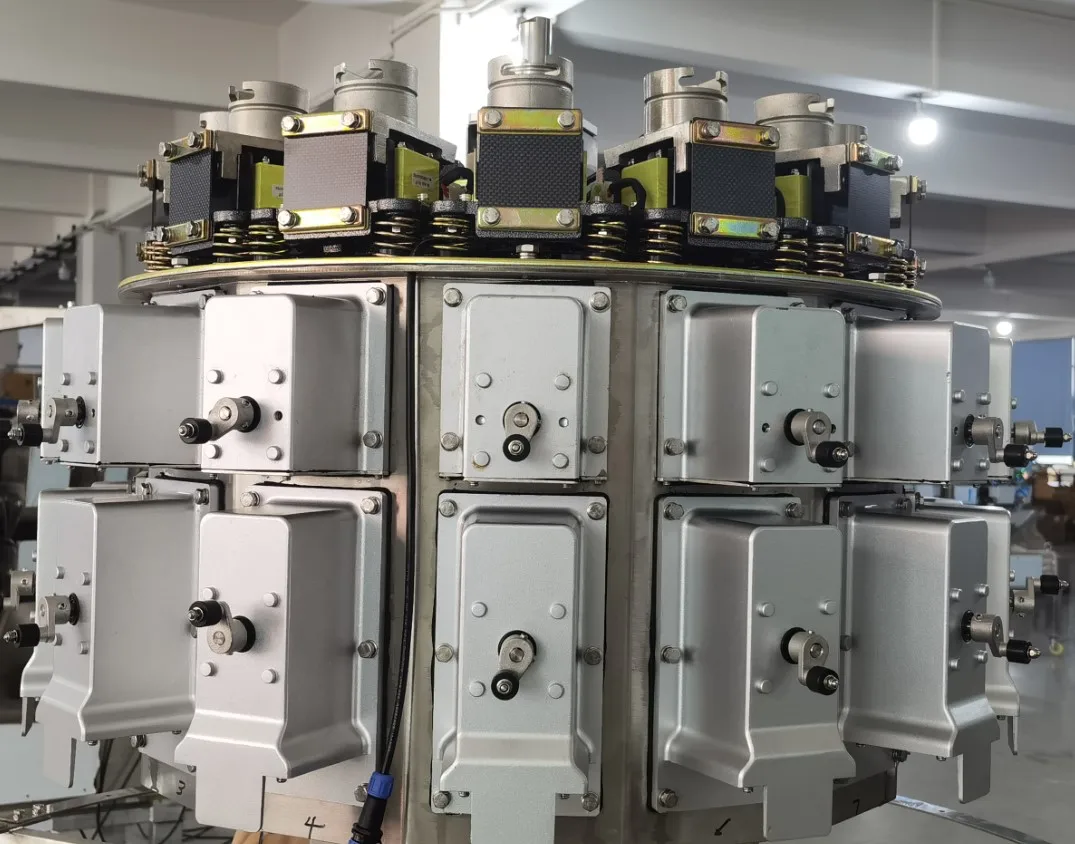

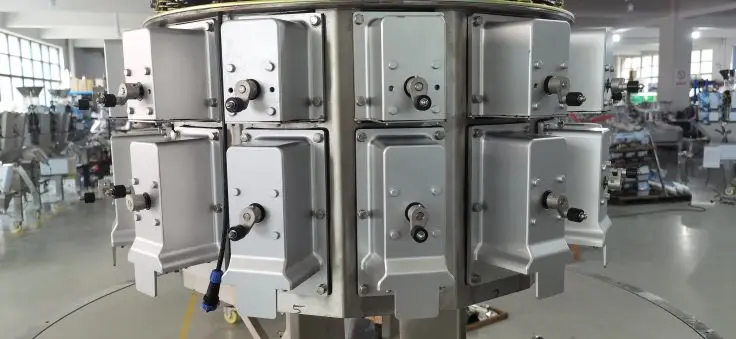

Drive Boards
Independent drive board for each weight unit. If one weigh unit is failure, you can stop the problem one and the weighers still can work normally.
The drive board box’s function is shield and anti-interference, which can protect the electrical components well.

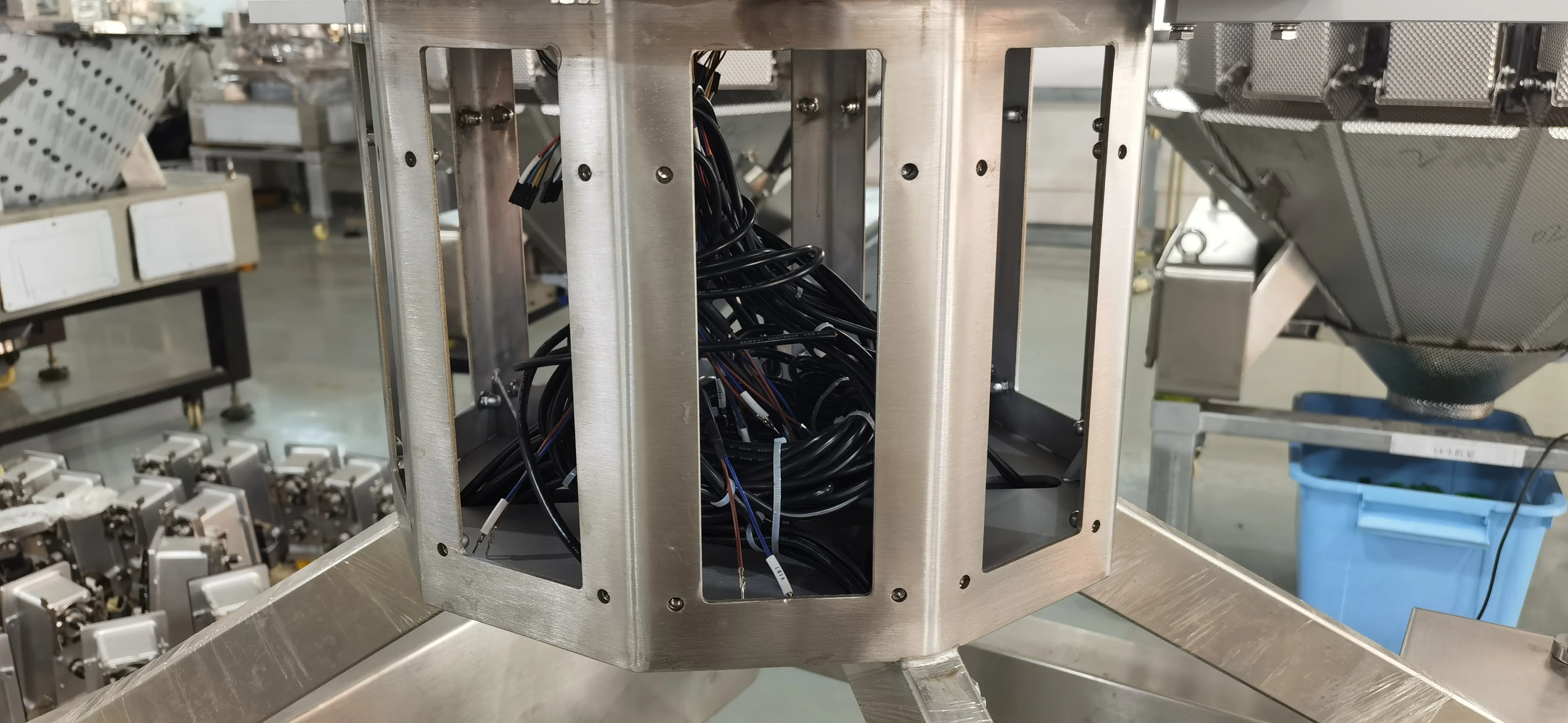

Center Base
There are no any boards inside the
center base. We install these boards in machine frame, easy for maintain.
Touch Screen
Friendly HMI, it is similar with telephone operation icons, make operation more easily and simple.
All holes are blind holes, which enhance
the waterproof function.
the waterproof function.
The place of the bottom can not collect the dust easily.
Product Application
Chili
Chicken breast
Dried almonds
Cashew
Packing type
The product can be packed in the pillow bags, gusset bags, zipper bags, vacuum bags, jars, trays, etc. And Euro hole or round hole can be made by our packaging machine.
About Us

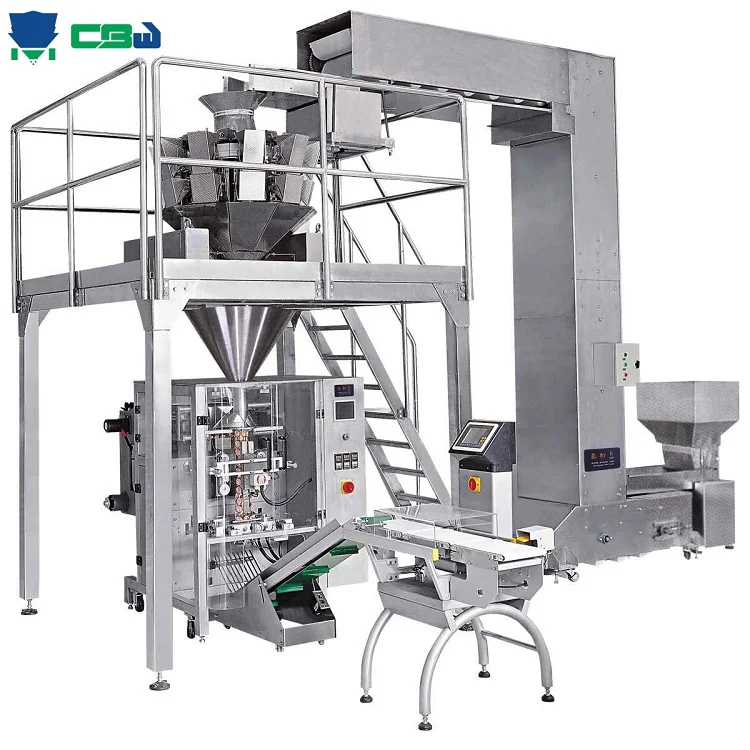

CBW>> is dedicated in modular multihead weighing solution and supplies the related packaging machines for complete packing line, including modular multihead weigher, modular linear weigher, material conveyor, check weigher, metal detector and so on. It can automatically complete all the process from feeding, weighing, packaging, date printing, weight checking and metal detecting.
Exhibition
Customization Process
FAQ
Q: ls Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
