CBD jelly candy gummy making machine

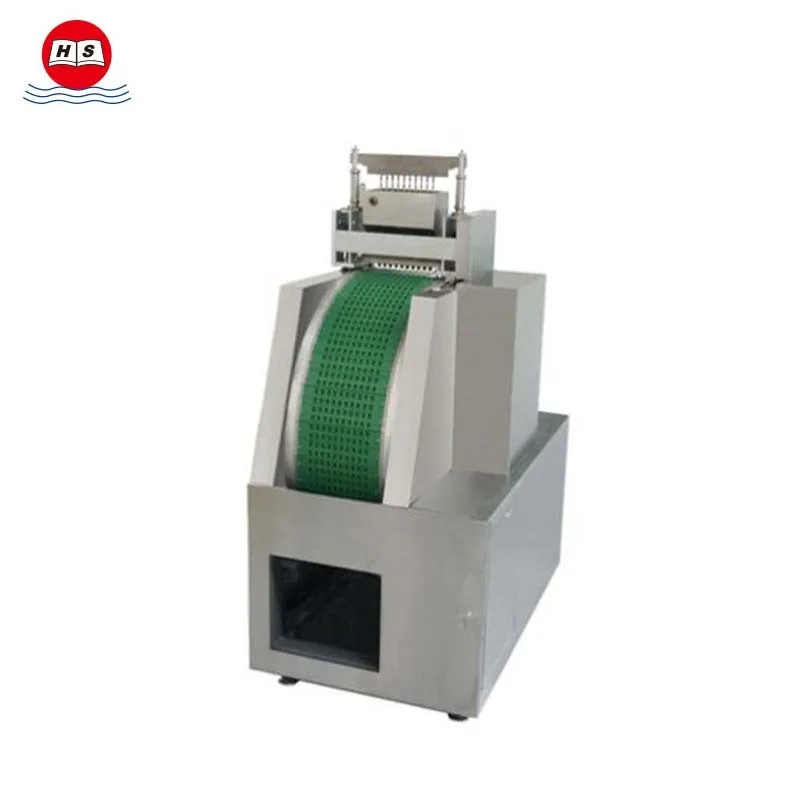

HST-72 Servo Driven Gummy Making Machine

HST-72 Gummy Making Machine is the independent-developed new type gummy production equipment which is using our company professional and technical advantages,combining with years of gummy production experience and continuous technical improvement and experimental verification of equipment during the production practice.

Main Features:

Proprietary design,more stable equipment operation.

Compact structure, less land occupation,machine length only 2.6m

Unique Cooling Technology,fast gummy shape fixing and short mould unloading time.

New Type of Driving Mechanism ensuring the high precision,smoothness and low noise.

New Type of Mould Unloading Drive Mechanism, prolong the service life of the mould.

New Type of Material Supply Mechanism ensuring the sugar solution in stable quality and precise injection quantity.

Unique finish product loading Mechanism ensuring the moulded gummy does not fall to the ground.

Designed and manufactured fully compliance with GMP requirements.

PLC control and PID temperature control technology to ensure stable production.



Technical parameters:

Plunger Number	28pcs
Max.Cavity No. Of Mould	28
Weight per Gummy	1~5g
Max Capacity	300kg/hour
Power	AC380V 5kW
Dimensions(L*W*H)	2600x1400x2100mm
