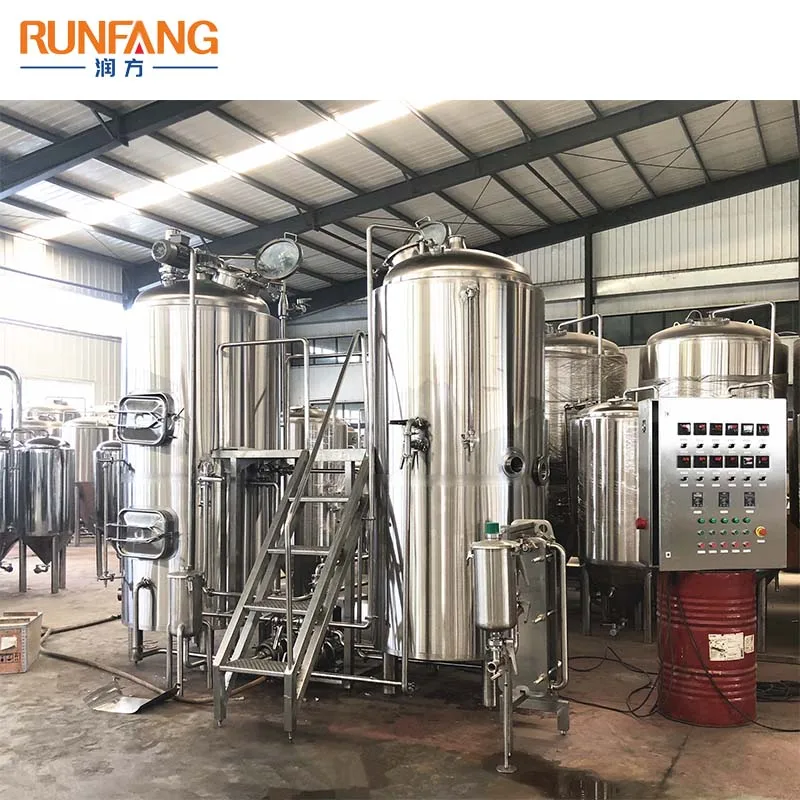

Brewery Beer Manufacturing Tank 5bbl Craft Brewhouse Turnkey Brew

Brewery Beer Manufacturing Tank 5bbl Craft Brewhouse Turnkey Brew

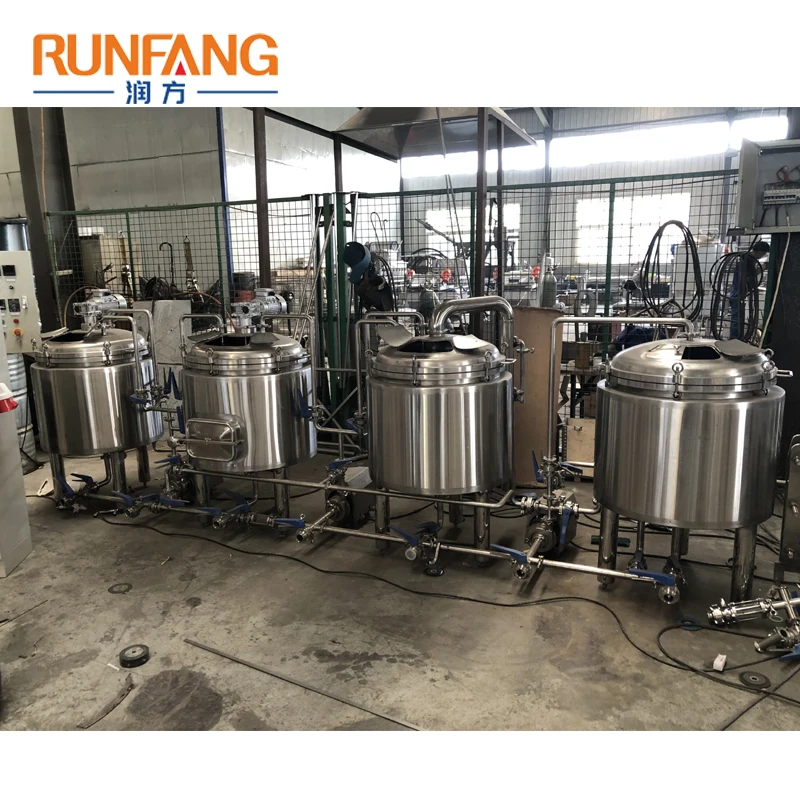

STAINLESS STEEL beer brewery equipment equips 2 vessels for option. There are many combination modes for customer to choose.

Mash/Lauter Tun/Hot Liquor Tank Combination Vessel + Brew Kettle/Whirlpool
Mash/Lauter Tun + Brew Kettle/Whirlpool

Customer can tailor their own brewhouse, just tell your individual needs!

Production Advantage for beer brewing equipment

(1) High quality materials
The raw materials is SUS304 and SUS316, which require materials quality certificate.
We'll test the materials quality using chemical agent when we receive the materials.
(2) Excellent appearance
The polishing standard of welding seam is 240 um, 60mm width. All of connection required turn up workmanship and all of welding seam required polishing, which is more smooth tank surface. We're very serious about the excellent appearance of tanks.
(3)The standard of tanks
We use plasma torch to cut the materials on the soft carpet, avoid to damaging the surface of stainless steel, and then we adopt double argon protection welding
Volume: Working volume and 20%-30%additional space.
Inner Shell: SUS304 materials, thickness 3mm, acid washing and passivation treatment, furthermore,polishing and mirror treatment are workable with different cost.
All of the inner surface connection using turnup workmanship and polishing round.
The normal pressure is 0.2Mpa, maximum test pressure is 0.4Mpa.
Cladding: SUS304, 2mmthickness, welding seam polishing, 60mm width.
All of the welding connection polishing treatment, more smooth
(4)The special design
Four adjustable legs. In special area, stand bolt and gasket can be designed to avoid earthquake.
All of connection is Ф38.1(except mash tun outlet), Jacket using thread connection,pipe using clamp, easy to unpick and washing. Fliter plate using Milling type grid,strong and smooth. No noise from mixer equipment, the motor variable frequency.

a. 2, 3 and 4 vessel Brew House Systems
b. Available production capacity from 3 – 60bbl Systems
c. 304 Stainless Steel Construction
d. 304 Stainless Steel, "High Grip" brewing platform and Stairs
e. Glass Manways
f. Grist Hydrator
g. Heat Exchanger
h. American Made Baldor SS washdown pumps
i. Auto PLC Control, iPad/iPhone diagnostic capable
j. Automatic and Semi-automatic controls

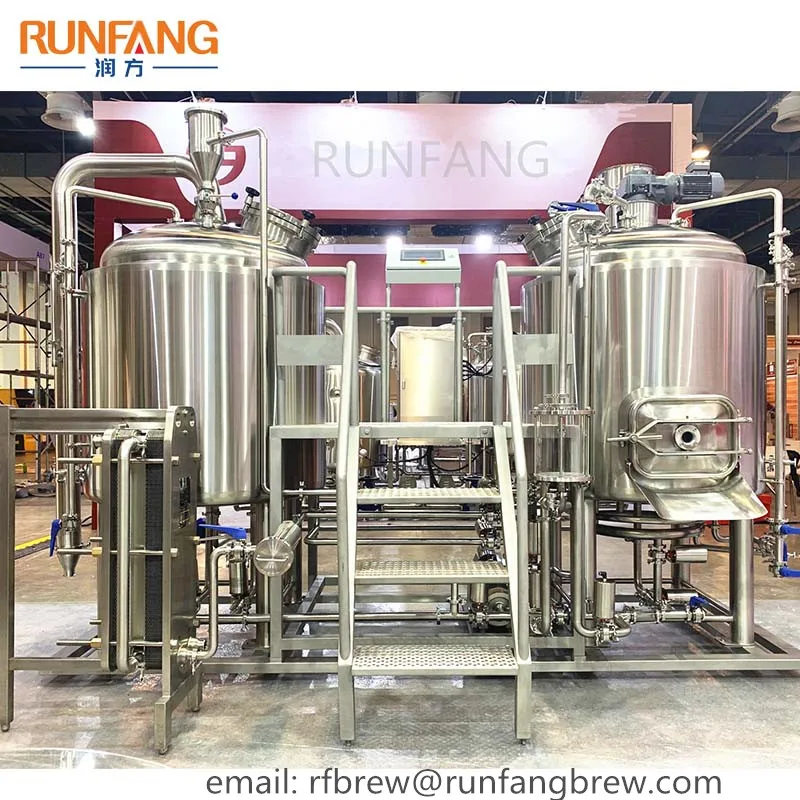

Brewhouse System

Name: Mash System

Brand: RUNFANG

Original: China

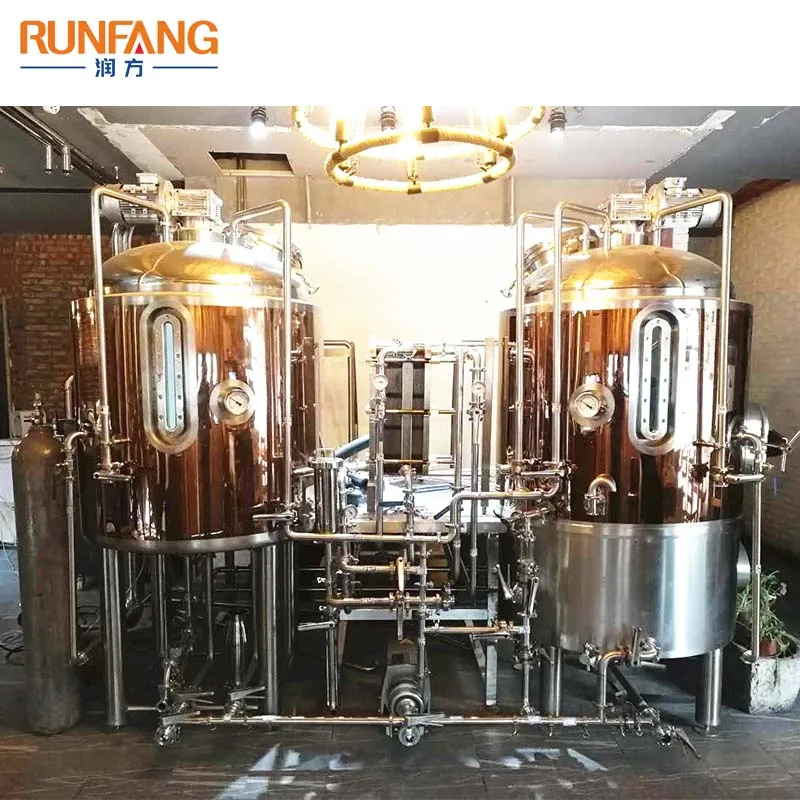

Stainless steel material, all argon welding process, decorated red copper for customer to choose.

PLC controlling system, brand motor, liftable raker, milling sieve plate.

Customized, Logo service.

Main Features

Name: Quality parts
Brand: RUNFANG
Original: China
Every brewhouse is built with 304 Stainless Steel and uses Siemens motors, so they are as durable and hard-working as you are.

Machine Parts

Name: Import parts
Brand: Famous brand
Original: Germany, USA, South Korea, Japan

Customer can choose their trustworthy parts to improve the performance of brewing process.

All the motor adopt ABB or Siemens brand, which is durable and high quality.

Main Features

Name: First class welding technology
Brand: RUNFANG
Original: Chian
Our artisan are skillful craftsmen. All the welding are perfect to meet brewery requirement.

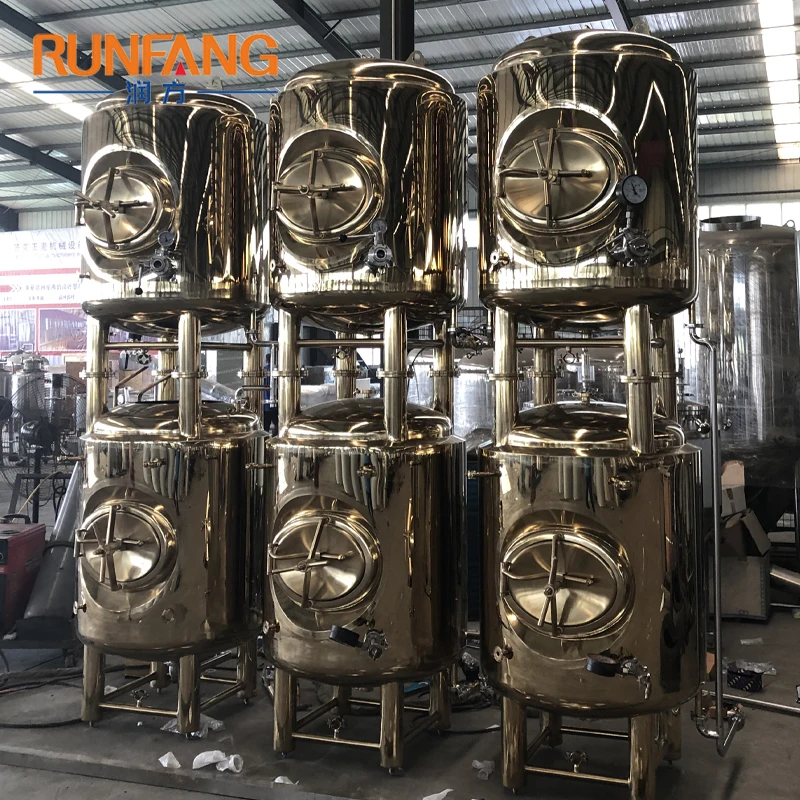

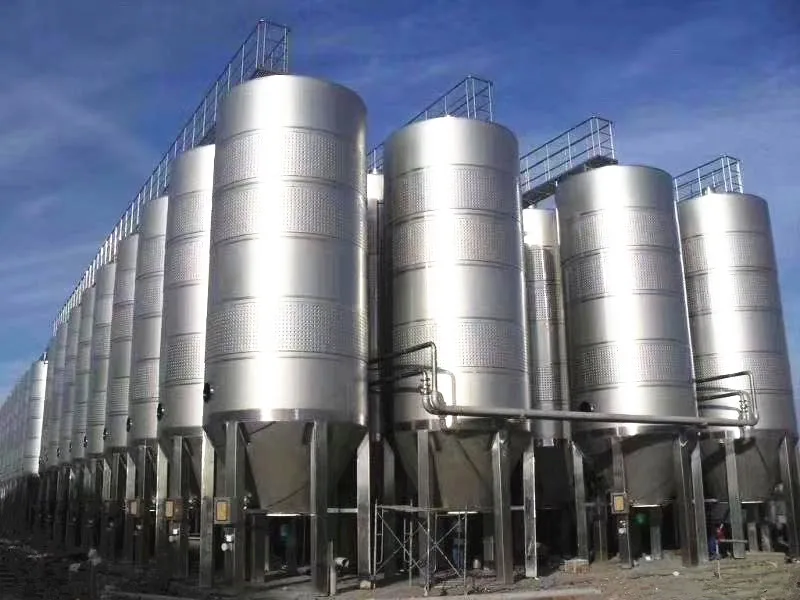

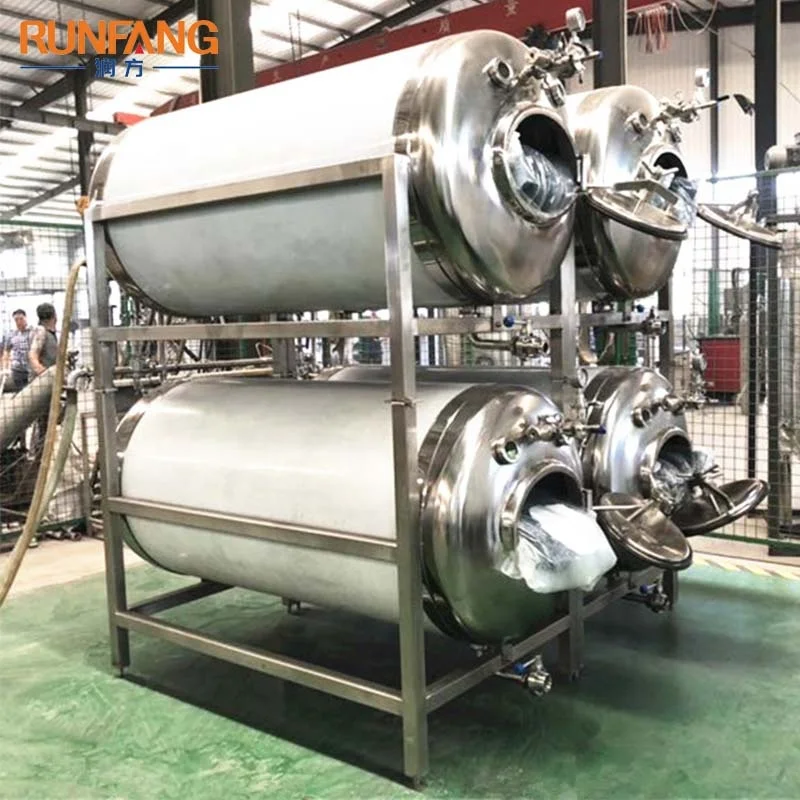

Stainless Steel Conical Fermenters/ Beer Aging Fermenters/ Brite Beer Tank/ Beer Unitank/ Beer Service Tank

CHARACTERISTICS
1-For all kinds of beer's fermentation(ale and lager)
2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, 10000L....
3-Thickness of stainless board and PU insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU
4-Technical support can be provided by our engineer, if you need, they can come to your country to help you install the equipment and brew beer.
5-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler

If you don't know which brewery equipment is you need,please see belows questions,just tell me the answers according to the prompt:

1.The production capacity one day that you want to ?
2.The heating system:electric heating/steam heating/direct fire heating.which one heating is you prefer.
3.The material:stainless steel 304./red copper which material is you need ?
4.The brewery set up in hotel/pub or small brewery or for home brewery ?
5.The other request of the brewery:fermenters quantities,the capacity.
6.How many batches one day can be production ?
7.For the bottle filling machine,beer filter,keg washing and filling machine if you need we also can supply it.

Runfang Company Profile.

As the most senior manufacturer of brewery equipment in north China,Runfang Mechanical Equipment Co., Ltd is established in 2000,located in Jinan City --the capital of Shandong province.The area of factory is 12,000 square meters,and among which,the building area of production base is 6,000 square meters in where specially manufacture and develop the beer equipment and relevant products.Runfang Mechanical Equipment Co.,Ltd is a comprehensive company with many years' successful experience and good performance; it takes the manufacture and sale of beer ,wine,beverage equipment as well as teaching experimental equipment .
Runfang has several professional designers and manufacturing workers ,who has more than 20 years experience in industry and they are the Chinese professional persons touching German technical at the earliest time,have cooperated with several colleges and universities for a long time .The self-brewing beer equipment of our company adopts the classical design concept and techniques of Germany .With great workmanship,excellent performance and easy operation,it is the best equipment to brew nice beer .We have various products in all sizes so as to meet the different requirements of customers greatly.Mainly include large-middle type brewhouse ,fermenting equipment ,yeast propagation equipment,filter system,CIP cleaning system,micro brewery equipment,scientific research & education equipment ,meanwhile we can supply the equipment of making wine,beverage and yogurt.
Runfang products have been exported to many countries and regions such as Russia,Australia,Taiwan,Peru,South Korea,etc.After the development of more than 17 years,Zhengmai has forged an excellent team with her wisdom and efforts.The great products and perfect services have won the trust of our customers.
