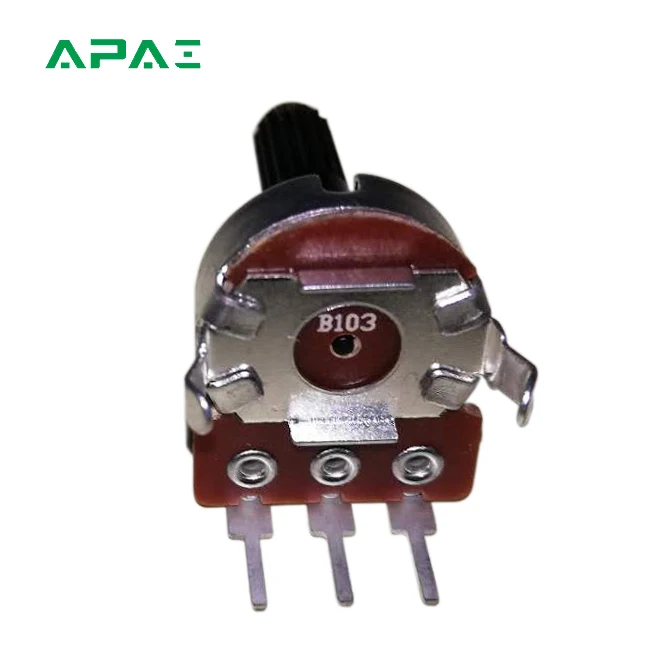

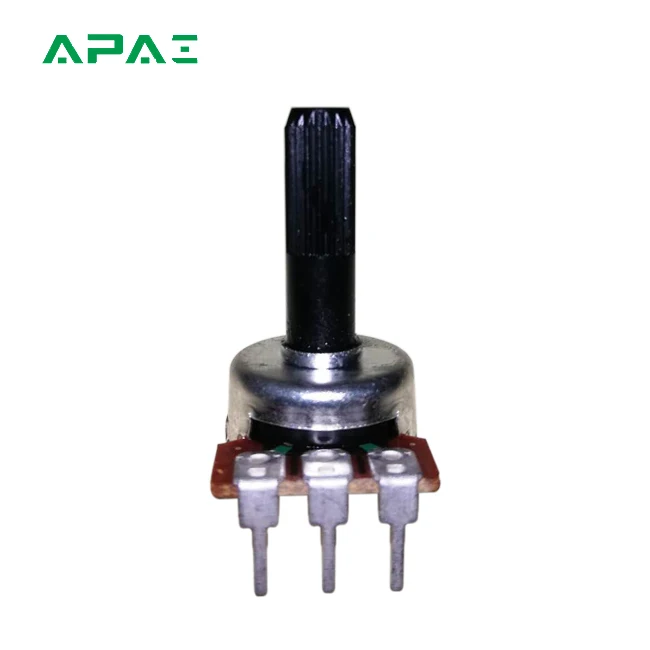

APAI RK1615N 16 мм одиночный изолированный линейный потенциометр роторный потенциометр
- Category: Potentiometers old >>>
- Supplier: Foshan Apai Electronics Co. Ltd.
Share on (62208547635):
Product Overview
Description
NEW
| Operating temperature | -10 ℃ ~ +70 |
| Manual soldering | 300 ℃ Max 3sec |
| Total resistance | 1K~1M |
| Resistance tolerance | ±20% |
| Resistance taper | A B C |
| Sliding noise | Less than 100 mV |
| Residual resistance | ≤ 20 ohm (R>10K) ≤ 10 ohm (R≤10K) |
| Insulation resistance | More than 100 MΩ at DC 250 V |
| Rated power(W) | Linear (B) taper : 0.1 W Other taper : 0.05 W |
| Max. Operating voltage | Linear (B) taper : AC 100 V Other taper : AC 50 V |
| Withstand voltage | 1 Minute at AC 250 V |
| Gang error | - 40 dB~0 dB≤3 dB |
| Total rotational angle | 300 °±5 ° |
| Rotational torque | 30~250 gf.cm |
| C.C torqu e | 30~300gf.cm |
| Rotational stopper strength | 6 Kgf.cm Max. |
| Shaft push-pull strength | 8 Kgf.cm Max. |
| Rotational life | 15,000 Cycles |
