mobile waterjet cutting machine
- Category: Water Jet Cutters >>>
- Supplier: Shenyang Head Science & Technology Corporation
Share on (62208640895):
Product Overview
Description
Portable water cutting machine features:
1. Safety: cold cutting, no heat effect in the cutting process
2. Compatibility: Only one set of high-pressure water generating equipment can be equipped with a variety of walking tooling, which can cut the pipe, plate and tank.
3. Portability: No need for the cutting platform and control system of the standard water cutting machine, no volume, easy to move and assemble.

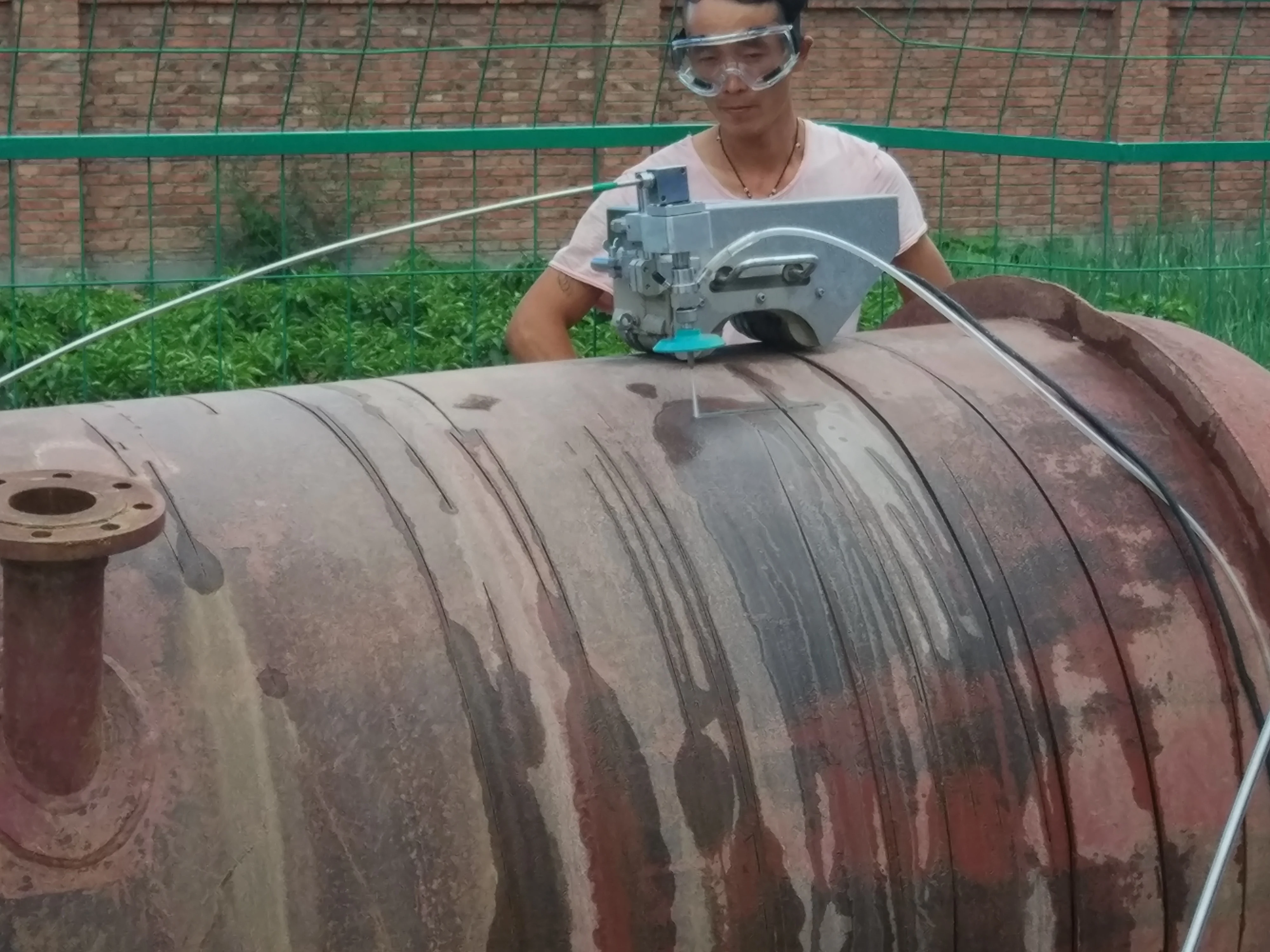

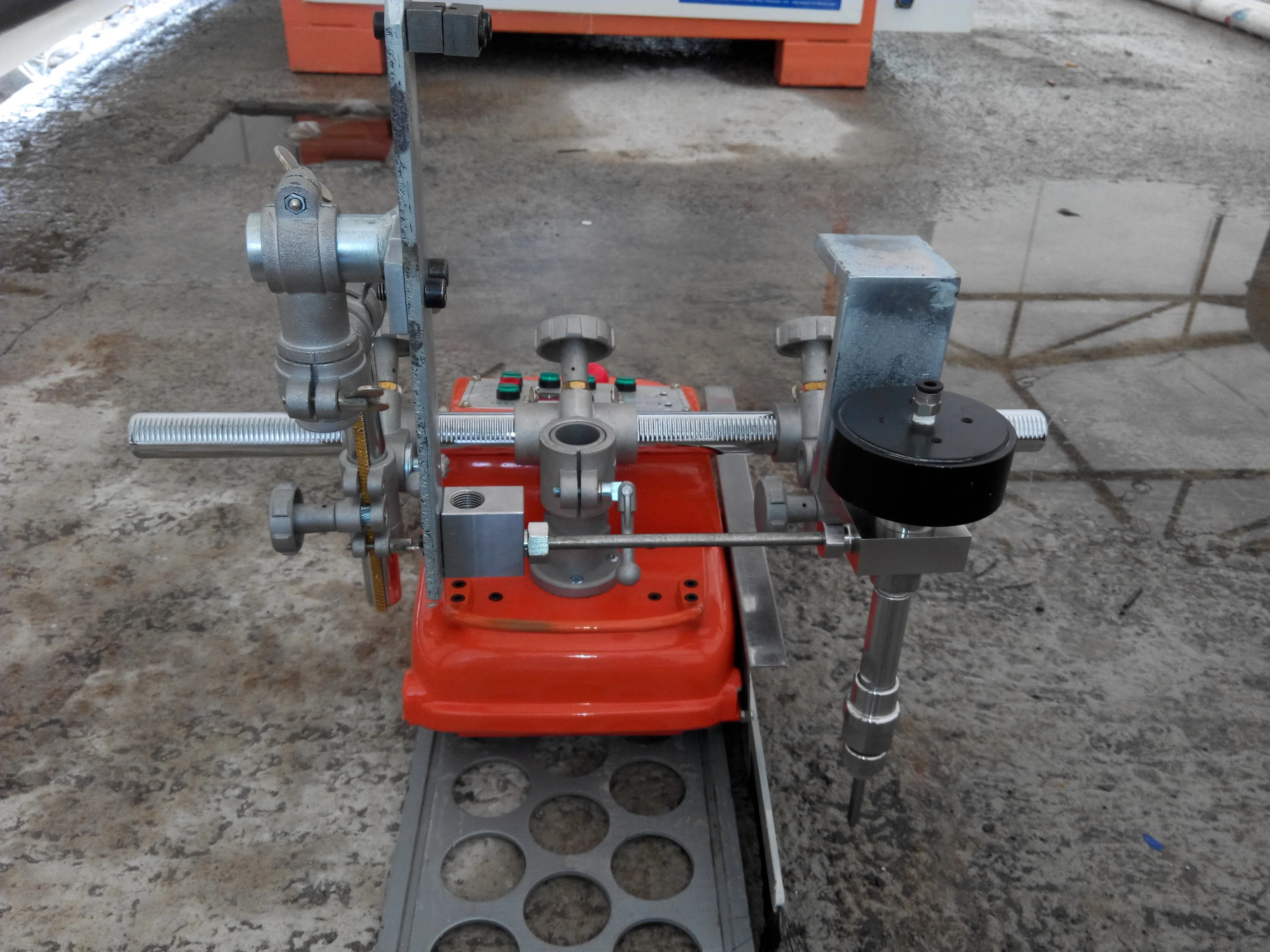

Pneumatic Magnetic car
It adopts permanent magnet adsorption method, which can be adsorbed on plates, round pipes and large tanks to realize linear cutting in various spatial positions in longitudinal and lateral directions. It has automatic compensation function of grid voltage.
(The guide rail can be equipped according to the actual cutting requirements)

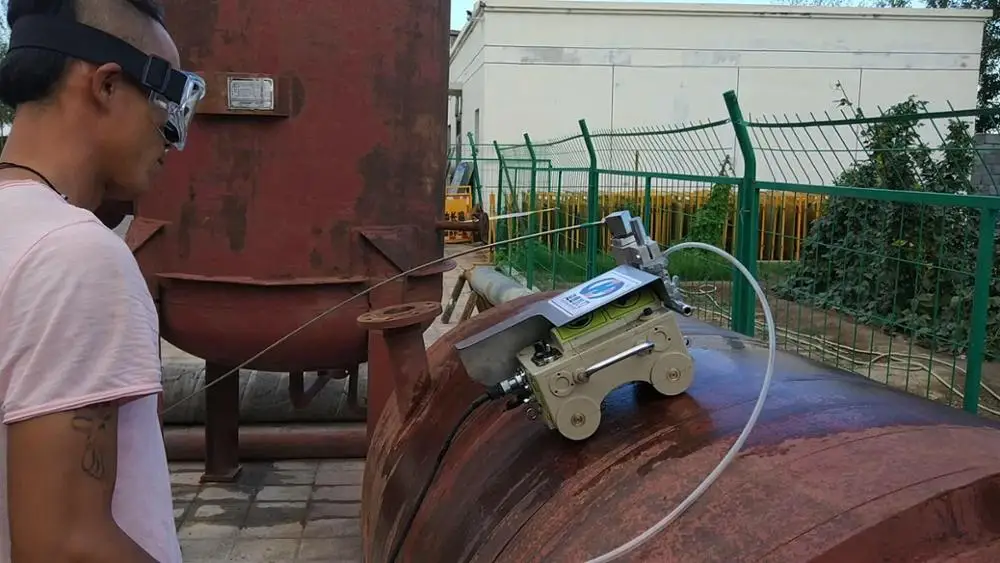

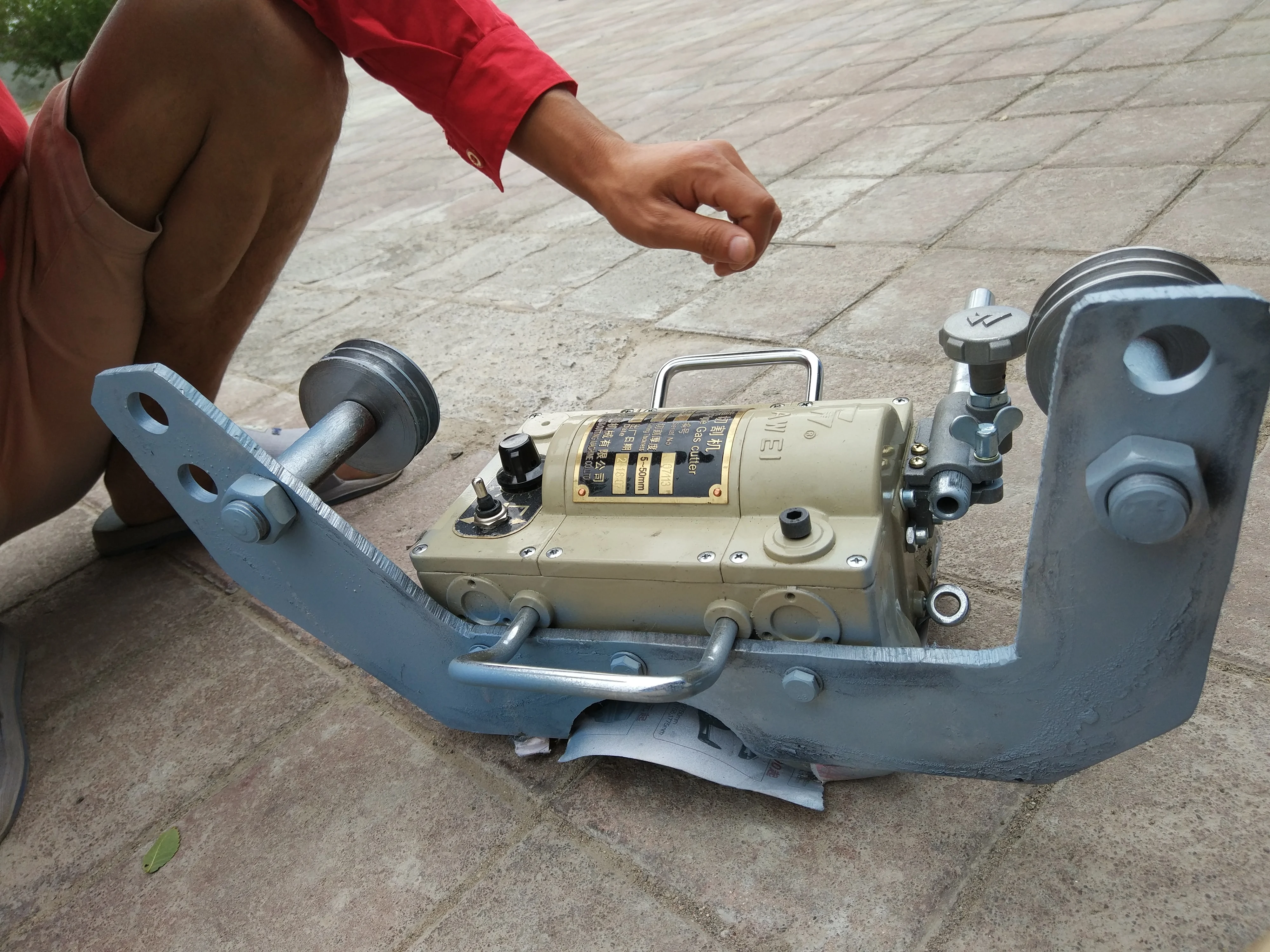

Pneumatic chain-type pipe cutting car

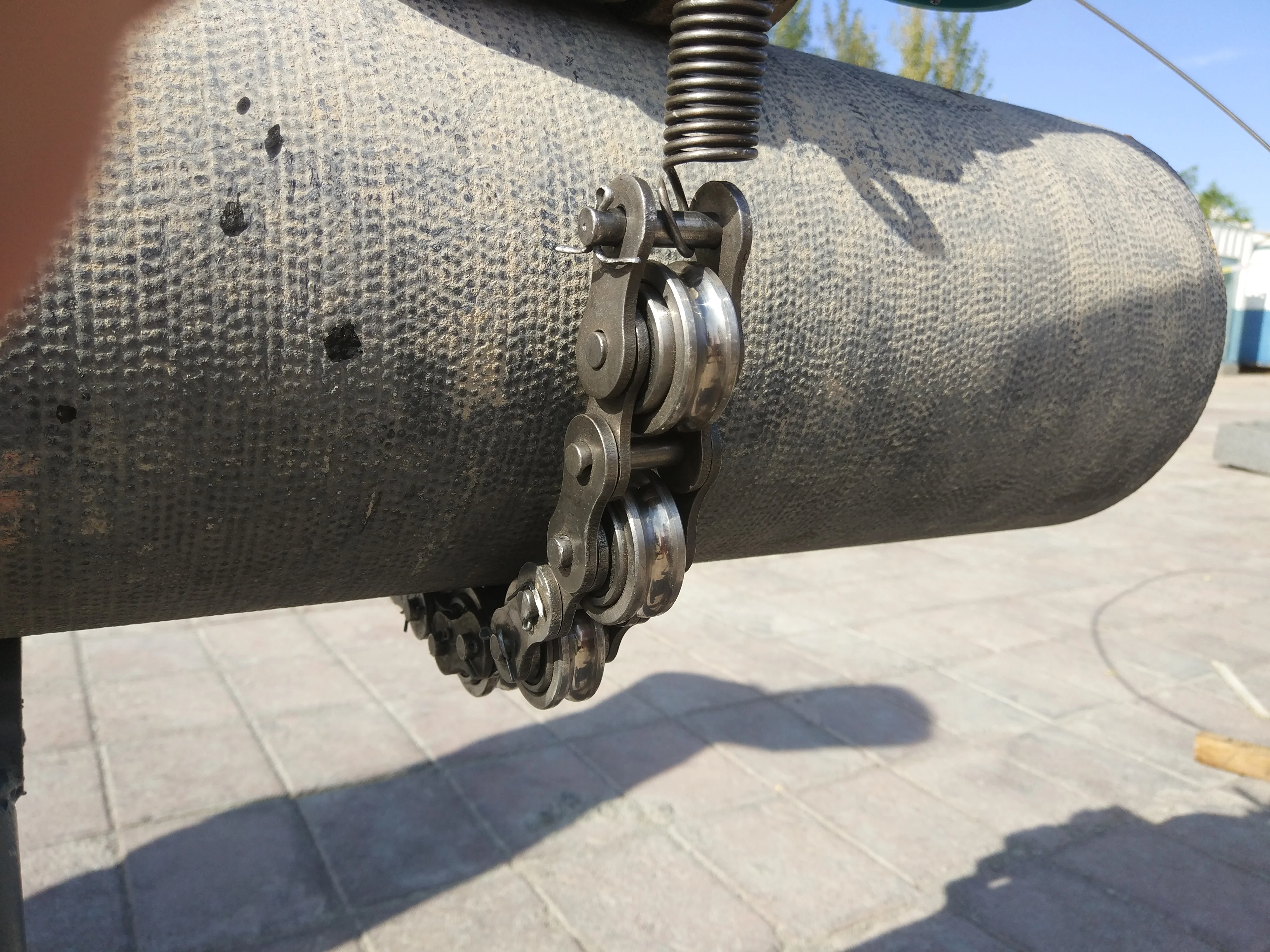

And a composite track using a chain running gear, to ensure that the cutting path starting and ending points coincide chain by using novel design slipknot, replace the traditional chain joints, be adjusted according to the diameter of pipe, connecting a few seconds to complete the chain,
A flexible track, a rail adapted to a variety of diameters, pneumatic motor mode to drive mode, to ensure the safety of the cut in explosive environments.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE | ||||||
Max. pressure | 420MPA | |||||
Max. flow rate | 3.7L / min | |||||
Electrical source voltage | 3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP | |||||
Max. diameter of nozzle / orifice | 1.02mm / 0.33mm | |||||
Max. delivery capacity of oil pump | 106L / min | |||||
>>>Try to Read This -------Our Service
1. Maintenance free of charge for 12 months .
2. We will provide the consumable parts at an agency price.
3. 24 hours online service, free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
>>>Try to Read This -------FAQ
Q1: Does This Machine Pass CE Certificate?
A2: Yes, this machine passed European CE certificate and meet Safety Standard.
Q2: How much of cutting thickness?
A2: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm. With our double-pressures system, it can cut 0-160mm steel sheet, 0-200mm stones. It is good for customers cut thicker materials.
Why Choose Waterjet
The advantages of waterjet are the reason promoting the development of waterjet. Although there are a lot of advantages, they almost can come down to "versatility". By using a waterjet, we can efficiently and cost-effectively create a wide range of parts by using widely different materials.
Keep safety
Although anything can be cut through, waterjet is still very safe. It is because we don't need to put any body parts under the waterjet cutting head while it is on, obviously. If there is a leak in a high-pressure water system will tend pressure rapidly drop to safe level. Water itself is safe and non-explosive and the garnet abrasive is also inert and non-toxic. So using waterjet to cut material is very safety.
Environmentally friendly
As long as we are not machining a material that is hazardous, the spent abrasive and waste material become suitable for land fill. The garnet abrasive is inert and can be disposed of with our other trash.If we are machining lots of lead or other hazardous materials, we will still need to dispose of our waste appropriately, and recycle the water. Keep in mind, however, that very little metal is actually removed in the cutting process. This keeps the environmental impact relatively low, even if we do machine the occasional hazardous material.In most areas, excess water is simply drained to the sewer. In some areas, water treatment may be necessary prior to draining to sewer. In a few areas, a "closed loop" system that recycles the water may be required.
