280mm marine plate 5083 aluminum sheet
- Category: >>>
- Supplier: Shanghai Hanwei Aluminium Industry Co. LTD
Share on (62208660068):
Product Overview
Description
PURCHASE NOTES
Please make sure the size and quantity.
Calculate the weight=length*width*thickness(mm)*2.8/1000000*quantity.
for example, one piece 10*250*300mm, weight= 10*250*300*2.8/1000000*1=2.1(kg).Only approximately because of cutting losses and tolerances.1-3mm tolerance is reserved for the length and width of the cut.
Product attribute
| Grade | 5083 |
| Temper | O/ H111H112 |
| Standard | EN485-2008,GB/T3880-2018 |
| Thickness/ Size | O/H111 1-730mm / 1250*2500mm(mostly),1470*3000,1500*3000,2500*5000 H112 8-65mm / 1250*2500mm (mostly), 1500*3000, |
| Surface | the front side covers protect film(thickness<100mm) |
| other | 1,Thickness > 6mm,can be cut to small size. 2,These are ready stocks above,If there is no specification you want, please contact us. |
Product parameter
With a high content of Magnesium ,it has the highest hardness in non - heat - treated alloys. Good seawater resistance, low temperature, suitable for welding structure with high corrosion resistance.
Used in offshore installations, ship equipment, container ships, automobile and aircraft plate welding parts, tooling, machining, large equipment components,etc,.
| Al: balance | ||||||
| Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti |
| 0.4 | 0.4 | 0.1 | 0.4-1 | 4.0-4.9 | 0.25 | 0.05-0.25 | 0.15 |
| O | H111 | H112 |
| Tensile Strength(MPa) | 100-125 | ≥ 270 | ≥275 |
| Yield Strength(MPa) | 215-255 | ≥115 | ≥125 |
| Elongation(%) | 15-18 | ≥10 | ≥10 |
Different thickness,the above values will be different, just for reference.
Product Description

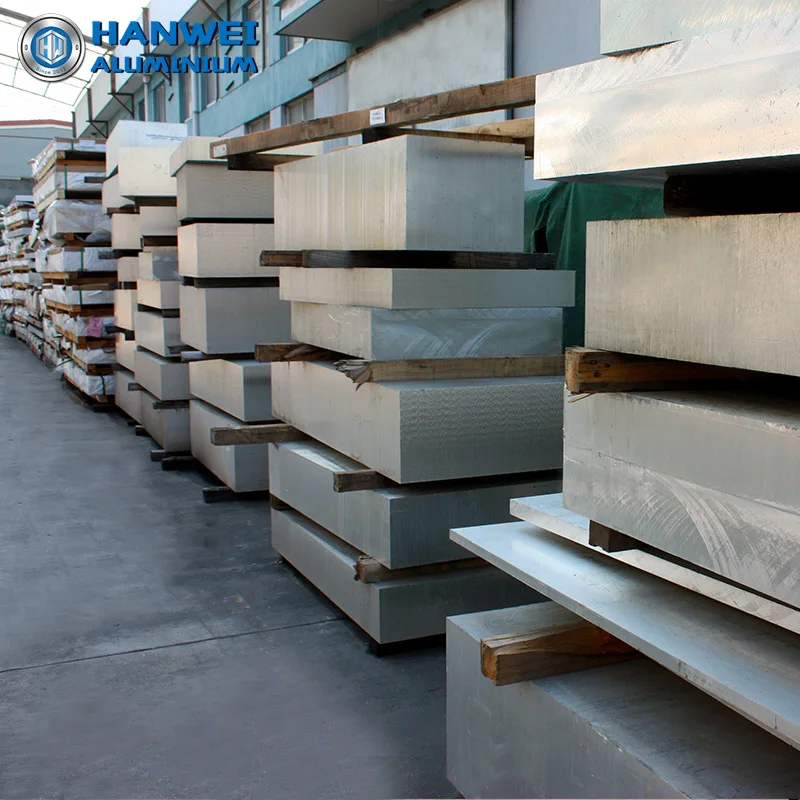

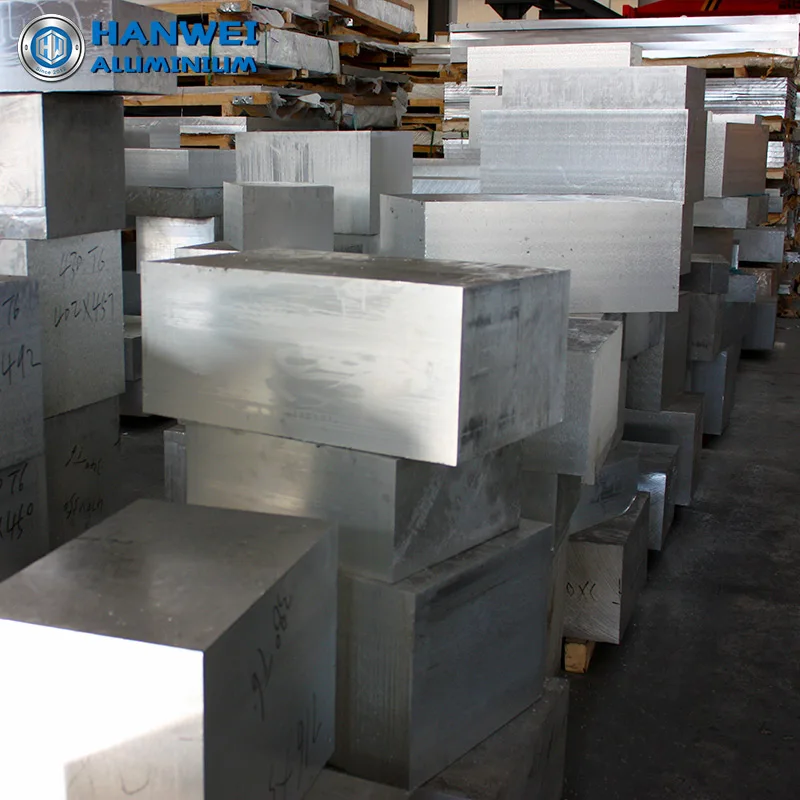

| 01 Warehouse photos |
- Using high-quality aluminium can make your product quality better and more stable, and enhance market competitiveness.
- Delivering high quality and reasonable materials to customers everywhere.
- We always hold ready stock in 8000+MT(Ready to Ship)

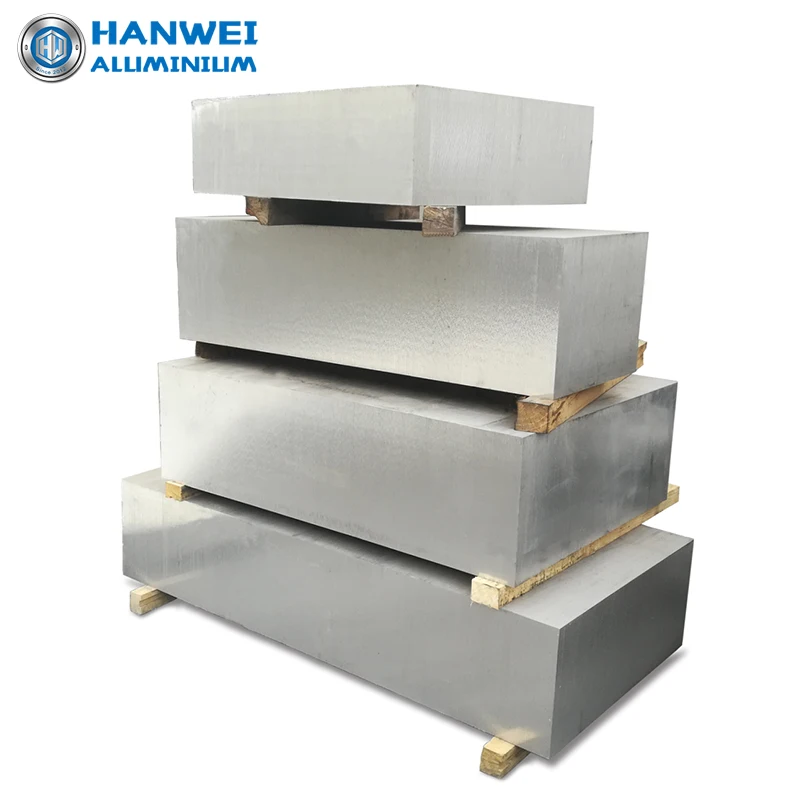

| 02 Prduct details |
- The interior has been scanned and tested by various advanced instruments
- Smooth surface, high flatness
- Thickness tolerance about ±1%
- Thickness<100mm,there is a protective film covering the surface (random color).

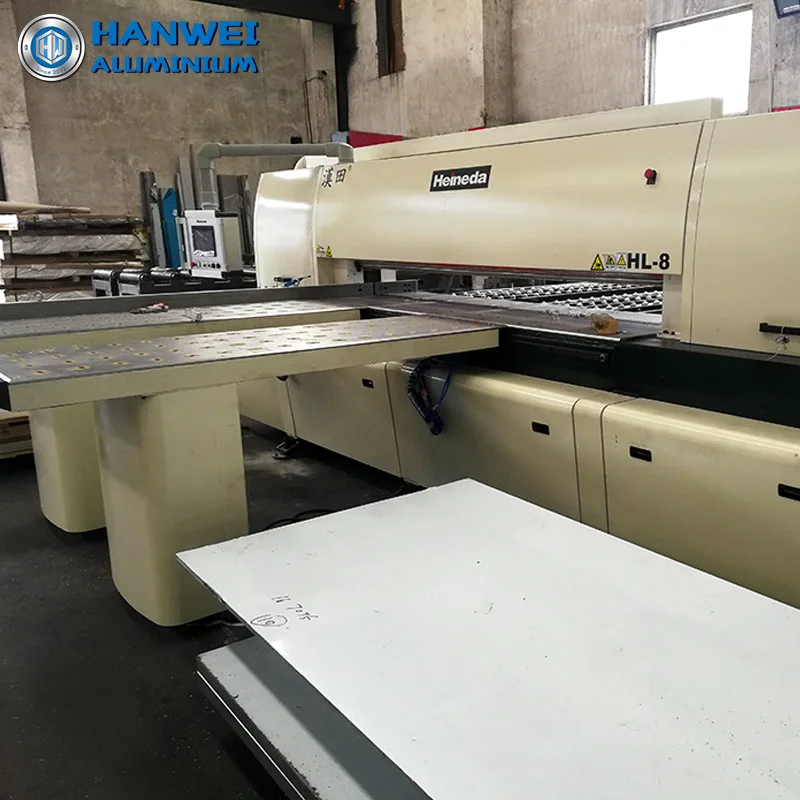

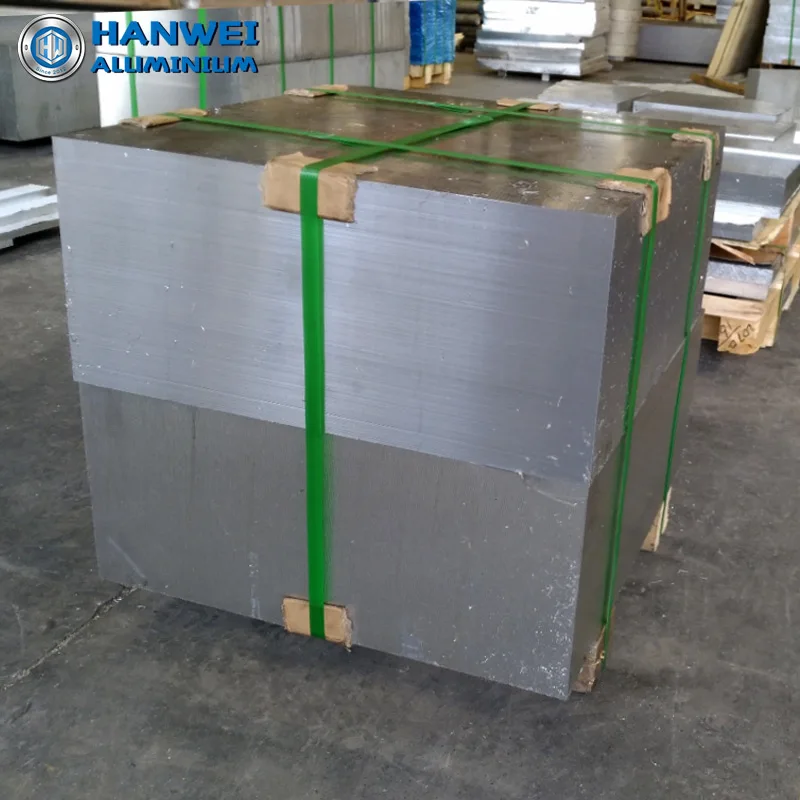

| 03 Cutting and packing |
- We have more than ten cutting equipments.
- Thickness<8mm, we sale whole plate only,whole plate can be cut to small size.
- Thickness not less than 8mm, we sale any small piece.
- Use ERP system management, all materials can be traced.
| 04 Typical application | for 5083 |
 | ||
| Marine and transport | Jig/test tool | Cutting tool |
 | ||
| Industrial use | Mould | Medical equipment |
Our Services
Aluminum plates and bars can be sawn to small sizes to save processing time. |
Keeping adequate inventory helps you save time, especially on plate and bar. |
We accept small orders as well as FCL orders. One sample can also be mailed. |
We always hold ready stock in 8000+MT. mostly,our products is Ready To Ship. We can service for small quantity and the fast delivery.
Company Information
Located in Shanghai, we are one of the largest aluminum plates and bars spot bases in east China, with a high quality spot stock of over 8000 tons.Our company has many years of aluminum special experience and an experienced team, equipped with a full range of testing means and advanced cutting equipment.We can not only supply large spot orders, but also accept small orders. We can also cut aluminum to meet your needs and deliver very quickly.Our mission is to deliver high quality and reasonable materials to customers all around the word.
| Advanced equipment | Excellent quality | Reliable material | Professional test |
| Rich ready stock | Professional mechanic | Plenty of specifications | Quickly cut |
| Fast delivery | Oversea customers | Efficient E-business Sales | Dynamic and united team |
FAQ
Q1: Can you cut the materials into small sizes
A: yes,we can do it to meet you need.
Q2: What's your minimum order quantity (MOQ)
A: We accept small orders,a small amount of samples is ok.
Q3: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the sample fee after you make an order.
Q4: Can you provide Certificates for aluminum materials ?
Q: Yes,we can.
Q4: Where is your company located?
A:Our companyis located in Shanghai which is the biggest port in China,and we would pleased if you could feel free to come here.
Q5: What’s the delivery time for orders?
A:Normally it takes 2-7 working days, or mutual agreement.
Contact us
| CITY | Shanghai,China | TEL | 86-021 64596205 |
| PHONE | 86-13311839191 | FAX | 86-21 39651802 |
| WEB | www.hanweilvye.com | alexlizhi | |
| ADDRESS | Building 4, No.618 Shengfu Road, Jiuting Town, Songjiang District, Shanghai, China | ||
