2020 New Aluminum Full Spectrum 3500k COB Cxb 3590 Indoor Plant Tube Light 72W Led Grow Light
- Category: >>>
- Supplier: Zhongshan Guzhen Boyu Lighting Electronics Factory
Share on (62208675094):
Product Overview
Description
PRODUCT DESCRIPTION

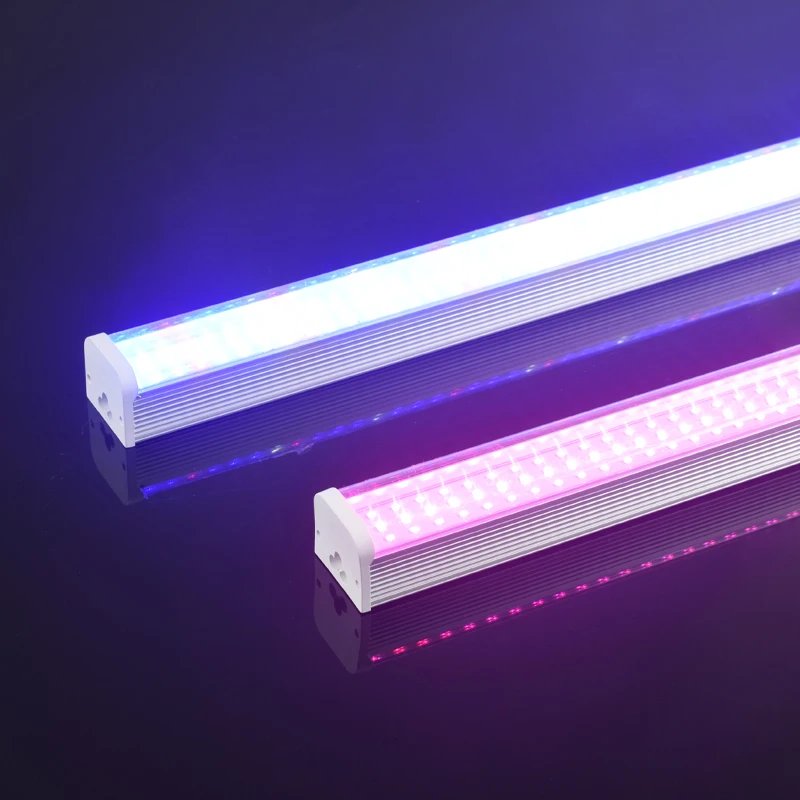

Why choose T12 integrated grow?
1. Common lamp tube specifications, easy to use, affordable
2. Full spectral band customization, suitable for all plant growth.
3. A variety of model design, single row chip, double row chip, V light Angle
4. Removable module, easy maintenance, long service life.
5. Easy to install and quick to use, can be installed by bracket, buckle, tie belt and so on.

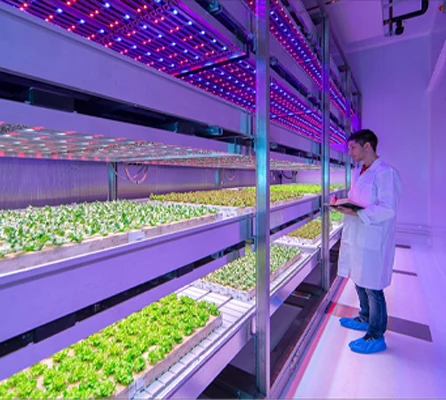

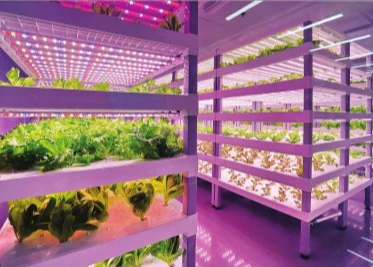

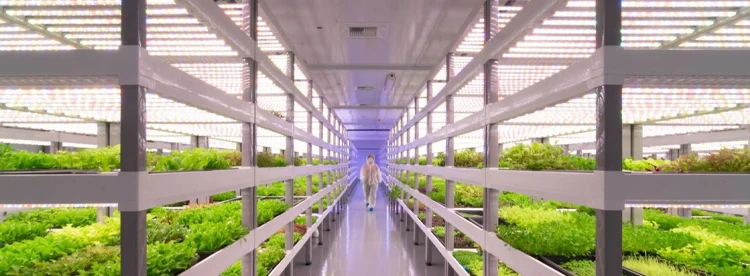

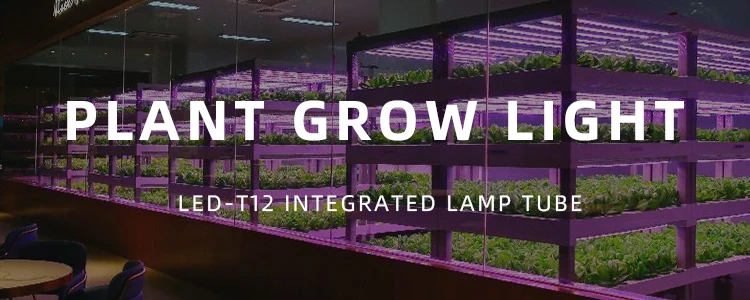

6. Applicable to a wide range of scenarios, such as: family potted planting, flower shop flower cultivation, greenhouse hydroponic planting, greenhouse plant factory planting, etc.

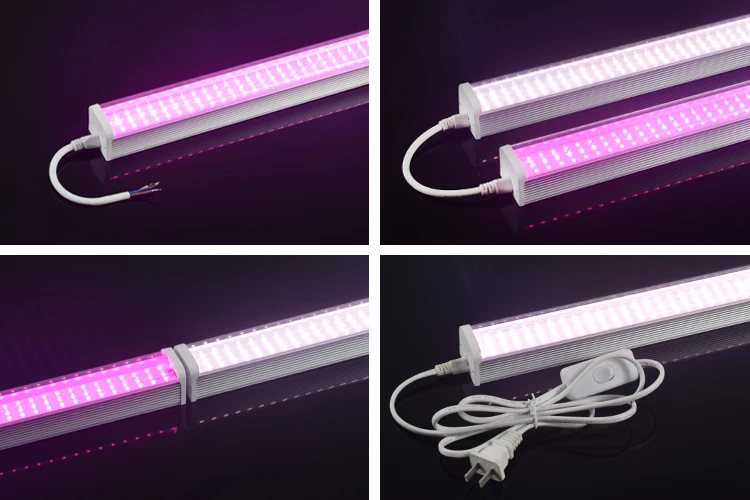

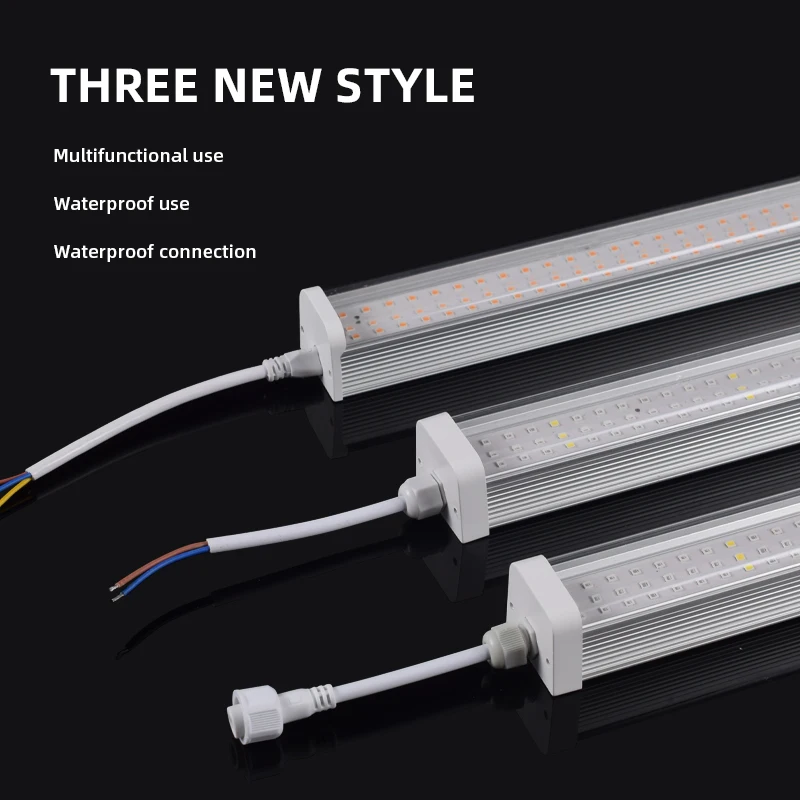

Multi-function plug, can connect the power cord, plug, butt, series use
Waterproof power cord plug, IP54 grade, moisture-proof, dustproof
Waterproof in series plug, power supply is waterproof when used in series

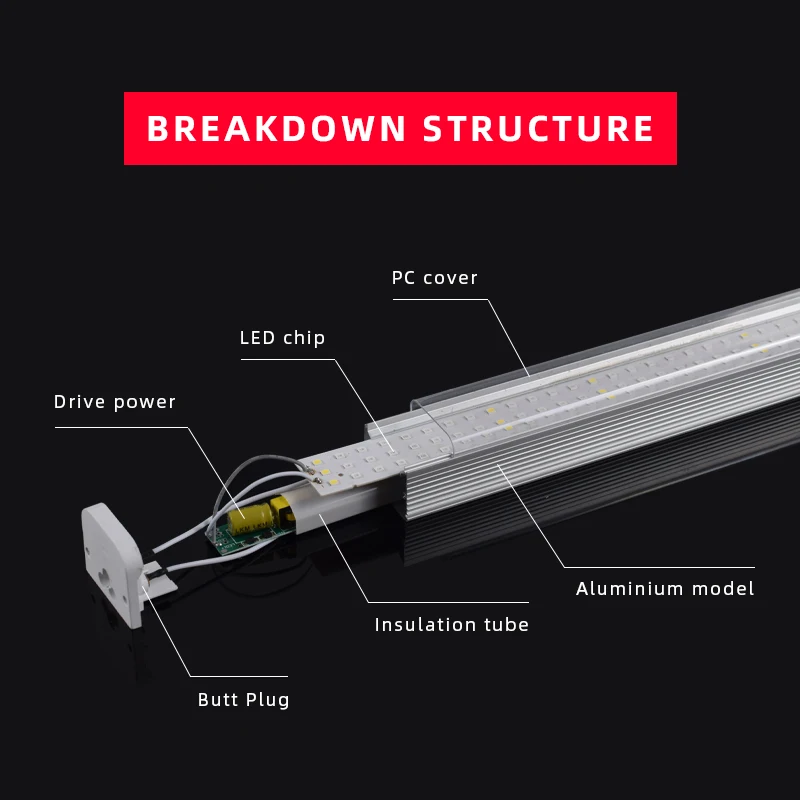

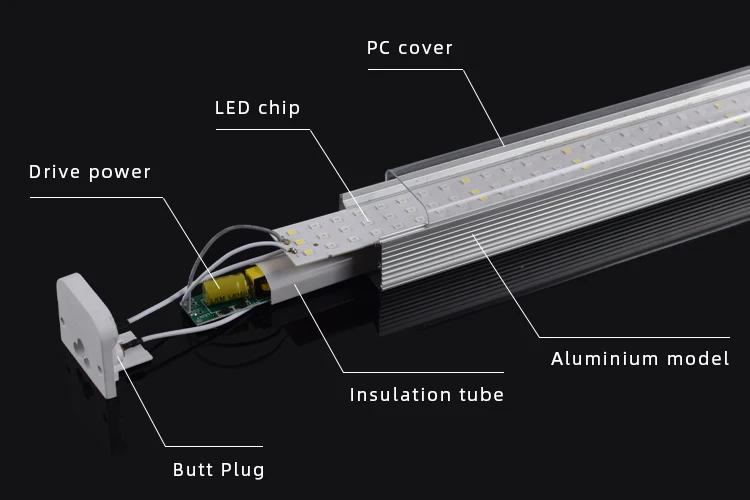

High P wide voltage constant current drive provides stable current for the lamp tube with over current/overload/over voltage
protection function for safer use
protection function for safer use
International brand EPISTAR plant complementary light LED SMD 2835 Plant supplemental light chip,
low energy consumption/long life/high light efficiency

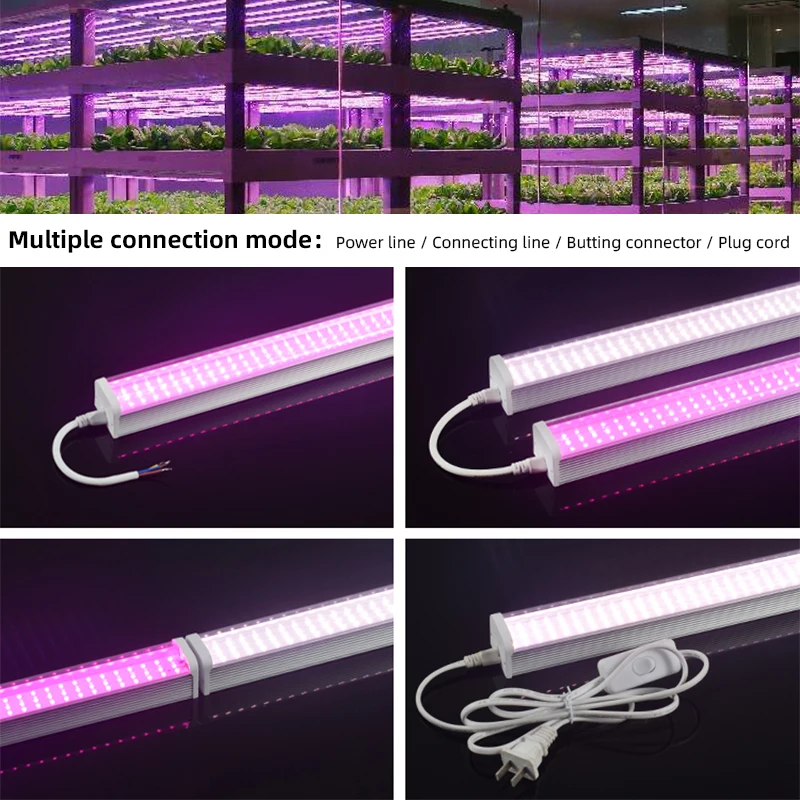

Three-wire interface power plug, which is divided into (zero line/live line/ ground line) to prevent lamp leakage. It can be used in various ways, such as docking/parallel connection/etc
Aviation grade aluminum 6063 model seiko production model, not easy to bend deformation, good heat dissipation effect, prolong the
service life of lamps and lanterns
service life of lamps and lanterns
PC (polyester carbonate) flame retardant shell, light transmittance up to 99%, and wear resistance, folding resistance, long-term use does not yellowing.
Thickened aluminum substrate is a unique copper clad metal substrate, which has good thermal conductivity, electrical insulation and heat dissipation.
APPLICATION FIELD
Suitable for many kinds of plants to fill the light
Fruits and vegetables: tomatoes, cucumbers, peppers, eggplant, broccoli, spinach, strawberries, grapes, dragon fruit,
Potted plants: succulent plants, cactus, peony, azalea, rose, rich bamboo, aloe, daffodil, chrysanthemum and so on.
Medicinal Plant: Ginseng, Dendrobium, Ganoderma lucidum, Astragalus membranaceus, Liquorice, Gastrodia elata,
There are also many kinds of plant applications, according to the plant to absorb different light spot, customized spectrum for light supplement
Medicinal Plant: Ginseng, Dendrobium, Ganoderma lucidum, Astragalus membranaceus, Liquorice, Gastrodia elata,
There are also many kinds of plant applications, according to the plant to absorb different light spot, customized spectrum for light supplement
Theoretical background of plant illumination
280 ~ 315nm: it has little influence on morphology and physiological process
315 ~ 400nm: less chlorophyll absorption, photoperiod effect, prevent stem elongation
400-520nm (blue) : the absorption ratio of chlorophyll to carotenoid is the largest, which has the greatest influence on photosynthesis
520 ~ 610nm (green) : the absorption rate of pigment is not high
610 ~ 720nm (red) : the chlorophyll absorption rate is low, which has a significant effect on photosynthesis and photoperiod effect
720 ~ 1000nm: low absorption rate, stimulate cell elongation, affect flowering and seed germination

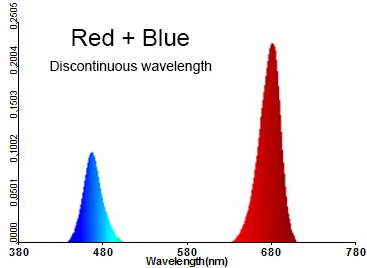

* Spectral design Scheme 1
A common light combination for plant growth 660nm (plant red) +450nm (plant blue). Mix of 660mm red light and 450mm blue spectrum match proportions according to different plantsIn general, the ratio of red light is relatively higher.

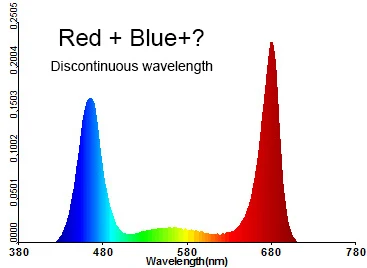

* Spectral design Scheme 2

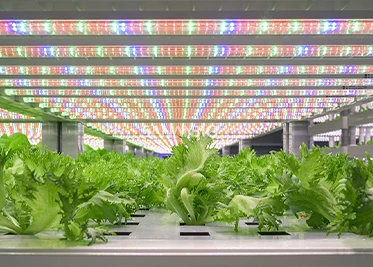

In addition to the 660nm/450mm red and blue based spectrum matching, With other wavelengths. It is suitable for the growth of plants with high illumination intensity and high economic added value, generally suitable for plant factories

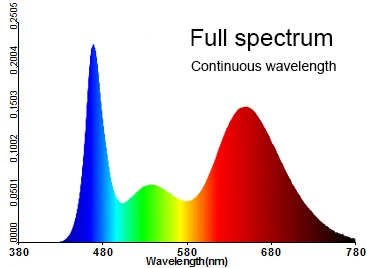

* Spectral design Scheme 3
According to the spectral requirements of different plants, a single LED lamp bead has been developed and designed with a continuous multi-spectrum of 420-800nm based on the red and blue spectrum.Customize solutions for different plant needs and locations

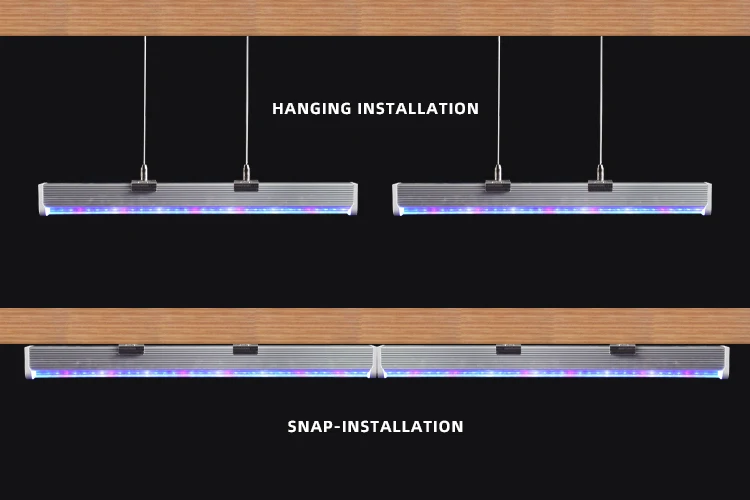

INSTALL AND USE
PRODUCT PARAMENTERS
Product Name | T12 Grow light |
Material | Aluminum+PC+Chip+drive |
Power | 9w/18w/36w/45w/54w/72w |
Voltage | AC 100~277V 50-60Hz |
Light source | Plant lighting LED chip |
Spectrum | Full spectrum customize |
IP Rating | IP 44 / IP54 |
Warranty | 3 Year |

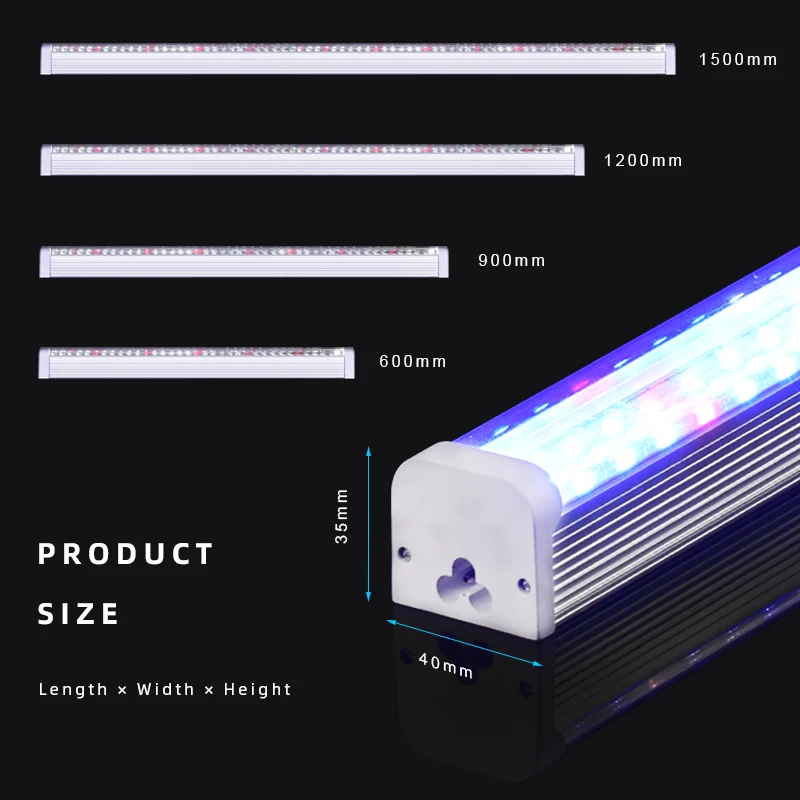

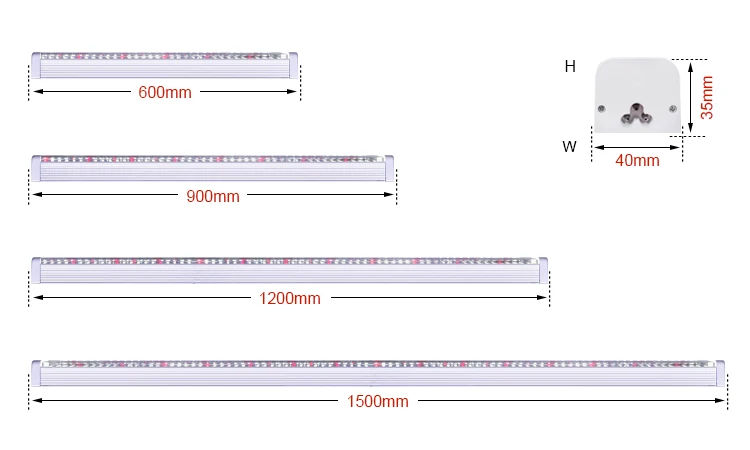

Model No | Power | Chip Qty | Lumen | Product Size | Carton Size |
ZW-T12-06 | 18~24w | 144 Pcs | 120Lm/w | 600*40*35mm | 755*202*220mm |
ZW-T12-09 | 24~34w | 216 Pcs | 120Lm/w | 900*40*35mm | 1055*202*220mm |
ZW-T12-12 | 36~48w | 288 Pcs | 120Lm/w | 1200*40*35mm | 1355*210*220mm |
ZW-T12-15 | 48~68w | 360 Pcs | 120Lm/w | 1500*40*35mm | 1655*202*220mm |
COMPANY PROFILE
Zhongshan Boyu
Lighting Electric Appliance Factory
-------------------------
Lighting Electric Appliance Factory
-------------------------
It is located in the ancient town of zhongshan city, the lighting capital of China.We were founded in 2011, is a modern enterprise.The company set research and development, production, sales, service as one.
We specialize in the production of LED plant growth lights, fluorescent lights, street lights and floodlights.We are a professional LED lamp manufacturer
The factory covers an area of 5000 square meters with excellent management team and more than 30 people R & D department There are more than 100 emplovees.We insist on creating a people-oriented.strong corporate culture atmosphere and environment.At the same time, our sales team creates more than 100 million sales value every ear. 80% of which comes from exports. Our products are all over the world and have passed CE, RoHS and TUV certifications
We control quality from detail to bring convenience and satisfaction to our customers.At the same time, we insist on innovative technoloav. We win the trust and praise of our customers with professional, high quality and meticulous service, and strive to become the leader of the industry.Welcome to visit our company.We look forward to further cooperation with you to create a brilliant future.
FAQ
Q1.Can you give me a sample order for LED lights?
A1.Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2.What about lead time?
A2.Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3.How do you deliver the goods? How long will it take to get there?
A3.We usually ship by DHL, UPS, FedEx or TNT.It will take 3-5 weeks to get there.You can choose to ship it by sea or air
Q4.How to order LED lights?
A4.Firstly let us know your requirements or applicationSecondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5.How do you handle the failure?
A5.Firstly. Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly. during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
