LCD Display Digital Temperature Controller Floor Heating Thermostat


Programming
Choice of 7 day, 5/2 day programmable or non-programmable (installer selectable);
6 time and 6 temperature settings per day;
pre-programmed or personalized schedule;
Energy savings up to 33%;

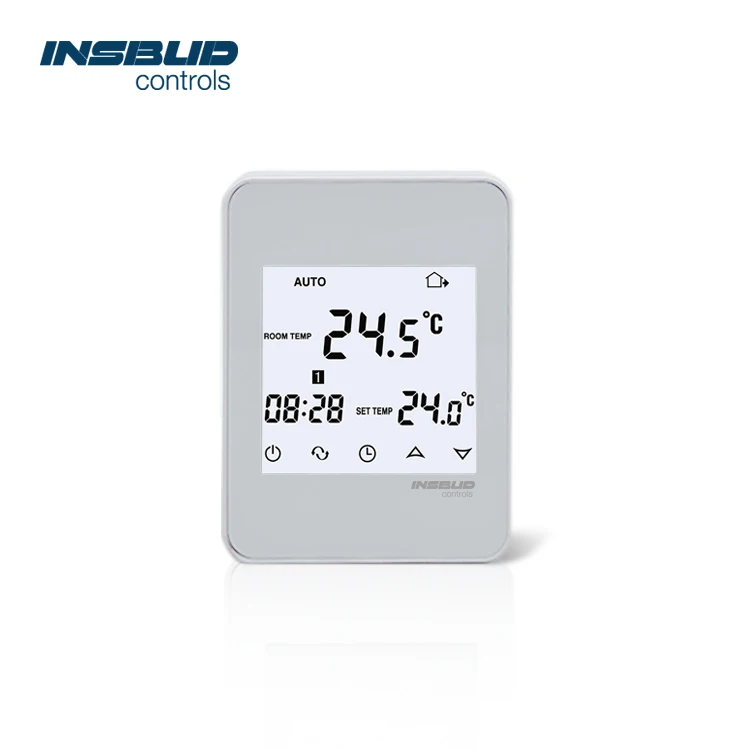

Display
Large, white backlit touchscreen display;

Larger, easy-to-read character size;
Simple touch keys for easy operation;

Comfort & Convenience
Intuitive menu-driven set-up, programming and operation;
Setpoint temperature limited range capable;
Child lock prevents tampering;
Room temperature display can be recalibrated up to +/- 5°C;
Can switch upto 16 amps (230v);
Temperature display resolution: 0.5 C;
Temporary temperature override;
C / F temperature format selection by buttons;
Air / floor temperature calibration separately;
Available in multiple color options;

A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the floor temperature
Each thermostat is equipped with built-in sensor and a 3 meter floor sensor. The floor sensor can be extended.

Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing)
* Backlight life: 5,000 hours

Useful settings
Vacation mode(frost protection mode)
24hr/12hr clock format selection
Switching differential setting
