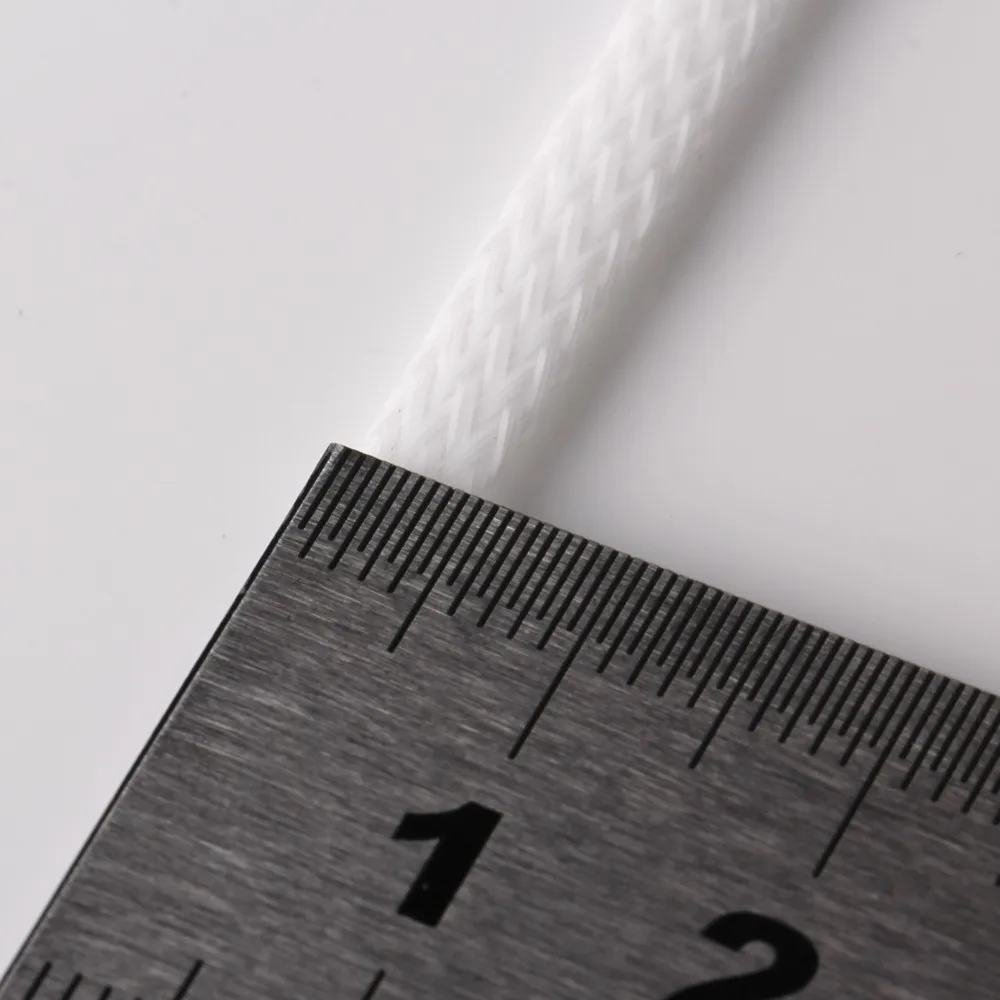

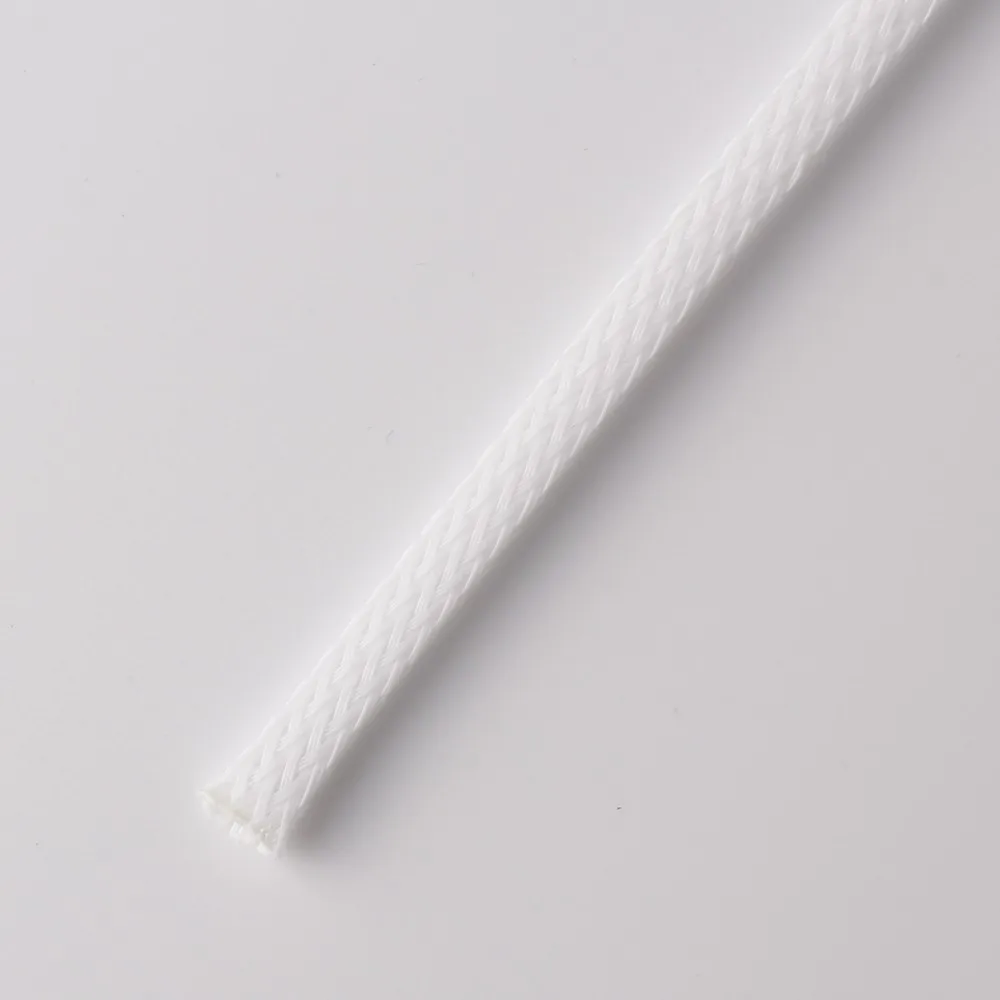

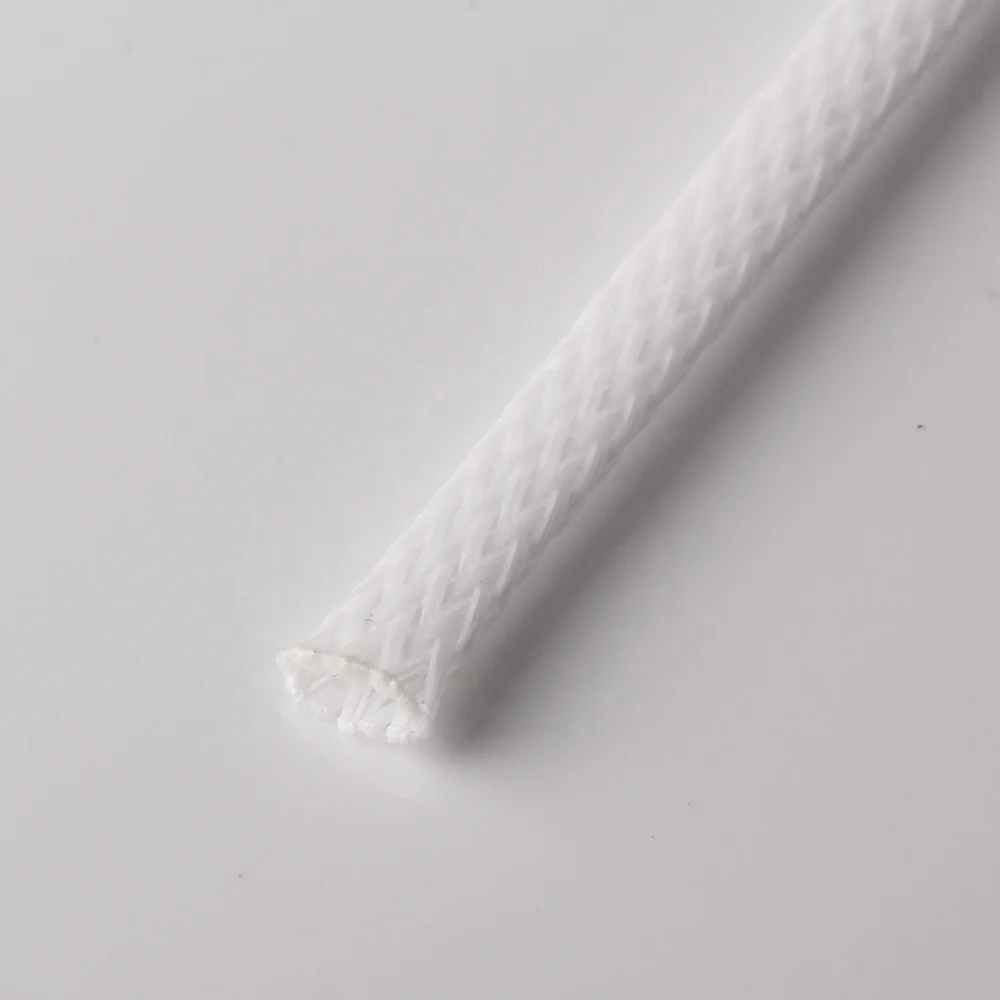

4MM White Braided Sleeve for Wires Protection
4MM White Braided Sleeve for Wires Protection
4MM White Braided Sleeve for Wires Protection
4MM White Braided Sleeve for Wires Protection
4MM White Braided Sleeve for Wires Protection
4MM White Braided Sleeve for Wires Protection

4MM White Braided Sleeve for Wires Protection

Share on (62208778286):


Price:$0.10 - $0.13

Quantity:


Product Overview

Description


Product Description

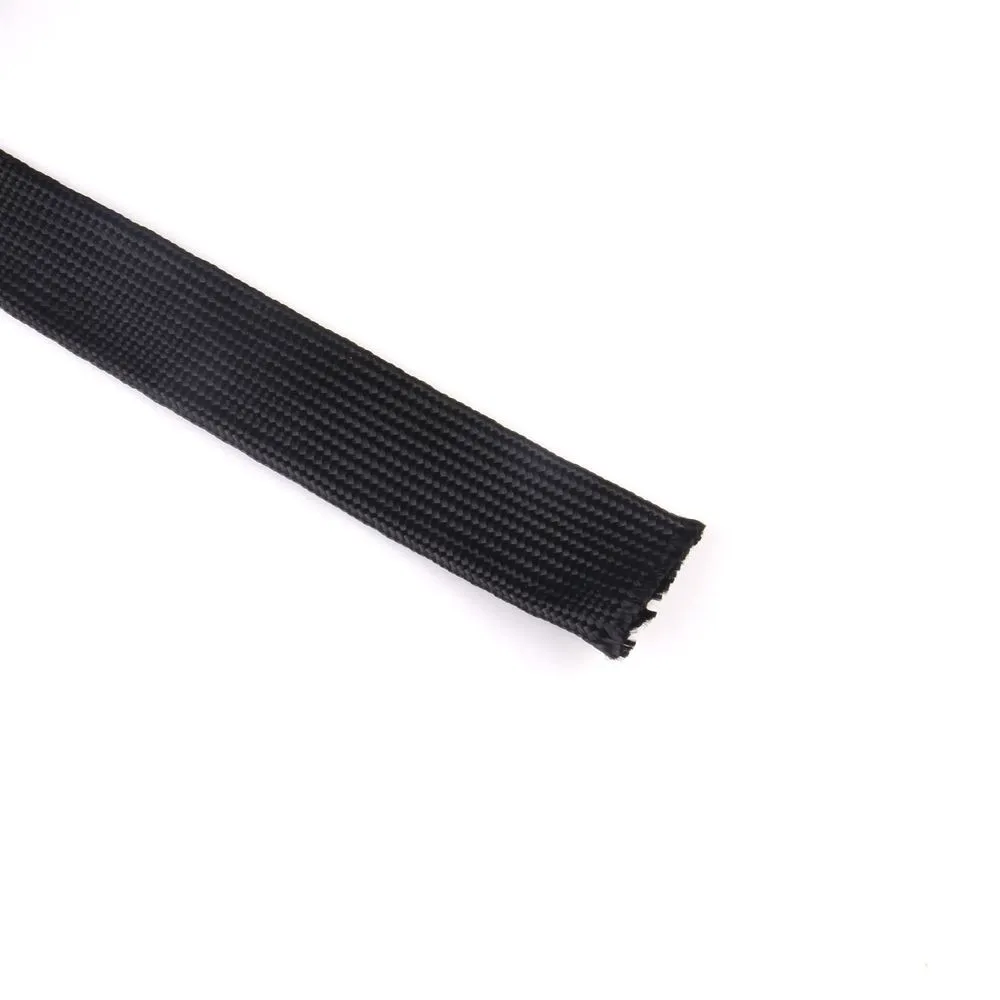

4mm PET Braided Sleeve Black


◆Made of PET monfilament,excellent flexible and abasion resistant.
◆Excellent flexibility, easy to be bent, durable, expandable.
◆It is not only able to protect your cable, but also make cable and wire more elegant.
◆PET Expandable Braided Sleeve is widely used in the field of protecting computer cable,audio or video cable,automabile wiring harness,wire etc.


\t

Part No
\t
Size(ID)
\t
Expanded Range
\t
Inch
\t
mm
\t
Min.(I)
\t
MAX.(O)
\t
LS-PET-003
\t
1/8"
\t
3mm
\t
2.4mm
\t
6.4mm
\t
LS-PET-006
\t
1/4"
\t
6mm
\t
3.2mm
\t
11.1mm
\t
LS-PET-010
\t
3/8"
\t
10mm
\t
6.4mm
\t
12.7mm
\t
LS-PET-012
\t
1/2"
\t
12mm
\t
7.6mm
\t
19mm
\t
LS-PET-016
\t
5/8"
\t
16mm
\t
9.5mm
\t
25.4mm
\t
LS-PET-019
\t
3/4"
\t
19mm
\t
12.7mm
\t
31.8mm
\t
LS-PET-025
\t
1"
\t
25mm
\t
15.9mm
\t
38.1mm
\t
LS-PET-032
\t
1-1/4"
\t
32mm
\t
19.1mm
\t
44.5mm
\t
LS-PET-038
\t
1-1/2"
\t
38mm
\t
25.4mm
\t
63.5mm
\t
LS-PET-045
\t
1-3/4"
\t
45mm
\t
31.8mm
\t
69.9mm
\t
LS-PET-051
\t
2"
\t
51mm
\t
38.1mm
\t
88.9mm
\t
LS-PET-064
\t
2-1/2"
\t
64mm
\t
44.5mm
\t
114.3mm
\t
LS-PET-076
\t
3"
\t
76mm
\t
63.5mm
\t
120.7mm
Product Features

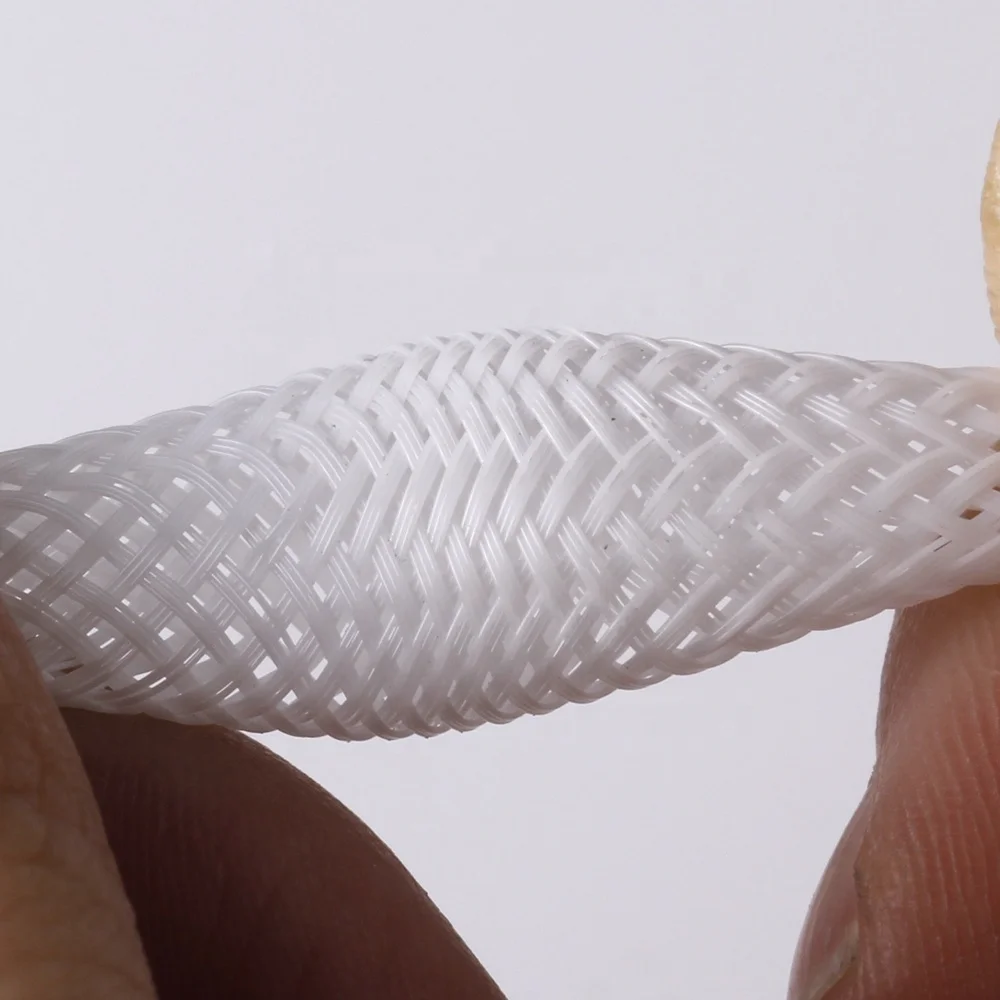

Good Flexibility & expansion


◆Diameter expands up to 150%. Our wire sleeve is made from PET.

◆Certificated by UL,ROHS, SGS,HALOGEN FREE.

◆Our factory has passed the factory aduit by ISO/TS16949:2009 certification of automobile field.


Easy to use


◆Economical and easy to install.
◆Recommended: Cut Braided Sleeving with a HOT KNIFE to prevent fraying, if a Hot Knife is not available, make sure to sear the edges with another heat source (example: use the flame from a lighter)


Protect cables

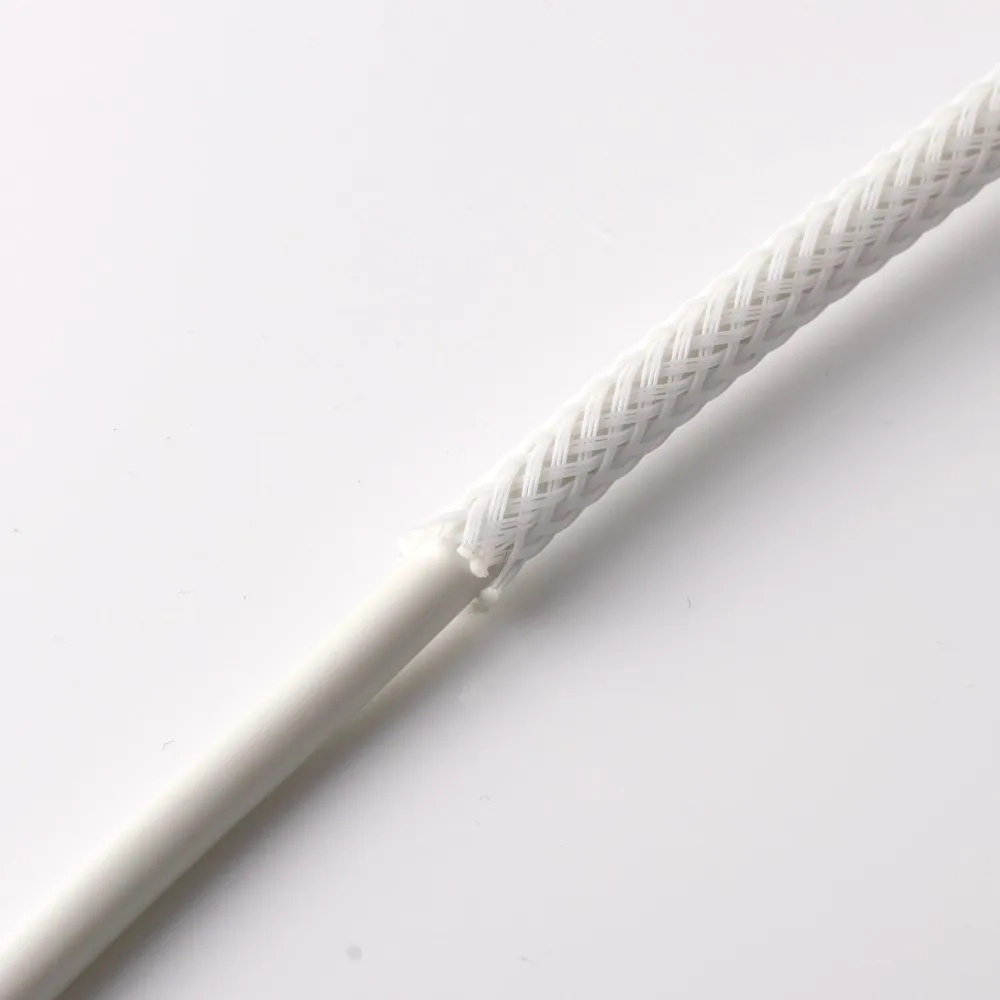

◆Our cable sleeving protects and prolongs the life of wires.

◆.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs.

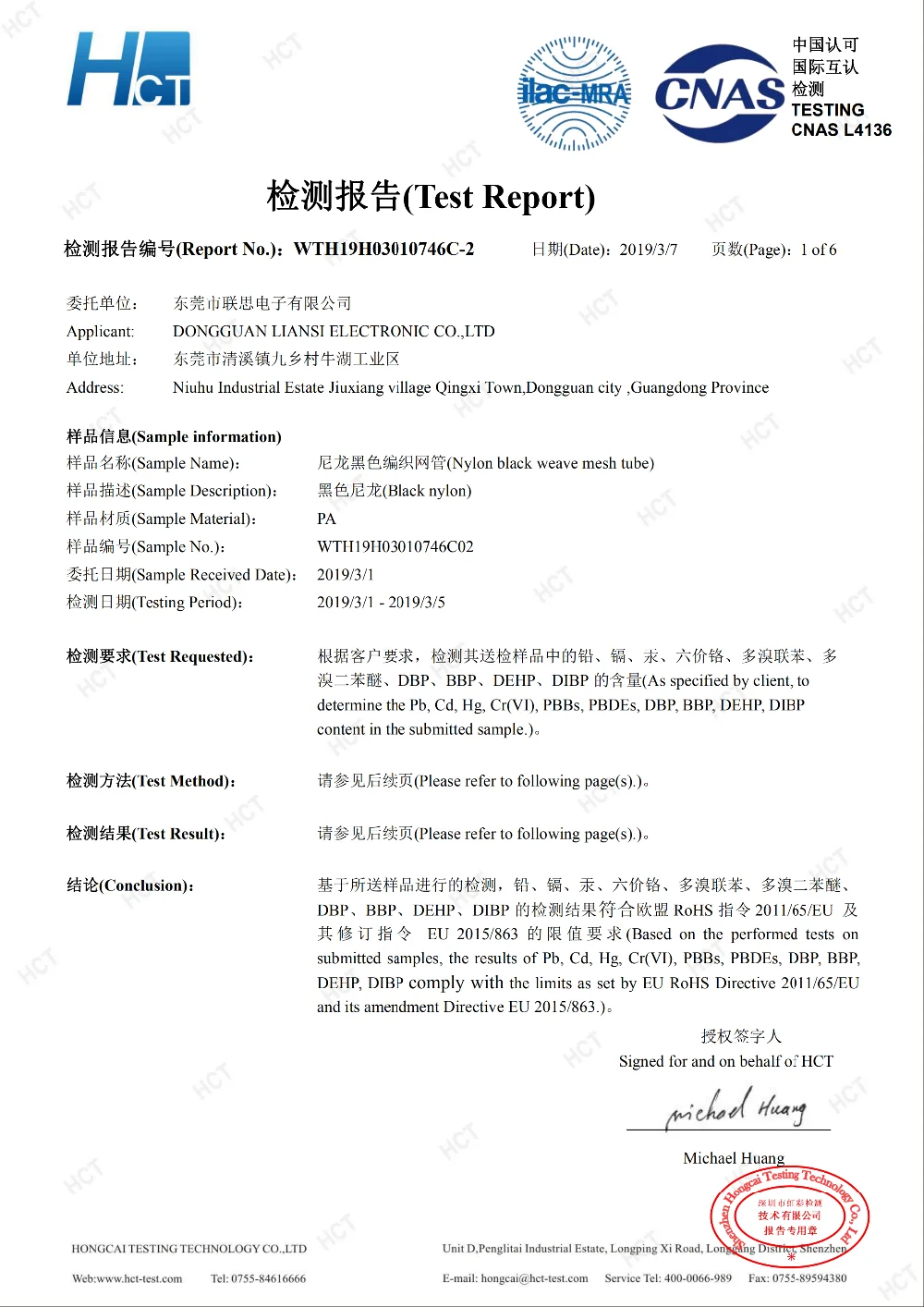

Certifications
Applications

Used in RCA Hifi Audio hdmi cables

Protect RAC Hi-Fi Audio hdmi speaker cables from wear and prolong the life of cables

Used in automotive engine


Suitable for automotive engines because it's high temperature resistance

Organize wiring Harness


Used to organize wiring Harnesses in electronics, automotive and industry.

Company Profile

Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant UL, ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.

From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.

Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days

Reception

WorkShop

Office

Exhibition
Related Products

19MM/3/4'' Self closing automotive split braided wire loom for wire

3mm 4mm Colorful PET Braided Expandable Cable Sleeve for wire cable

Expandable Braided Sleeving PPS Monofilament Yarn Cable Sleeve Black

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
