2019 4000W 273 40H V2 E-CAR brushless electric motor 4000w
Product Description
It's QS electric In-Wheel Car Hub Motor for Conversion Kits, which can be used in convert gasoline to electric car.
Especially suit for light weight car (around 400-800kg), if driven by 2pcsX4000W Hub Motor V3 (2wd), it could be 72V 80km/h, 2*210N.m peak torque. if driven by 2pcsX8000W Hub Motor V3 (4wd), it could be 72V 90km/h, 4*210N.m peak torque.
Feature
1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in wheels, and easy to be hybrid car.
3). Easily to make 4-wheel drive, which could spot turn.
4). Support regenerative braking
5). High efficiency: 85~92%
Motor Specification
Motor Type: BLDC Hub Motor with Permanent Magnet
Motor design: Single axle out without

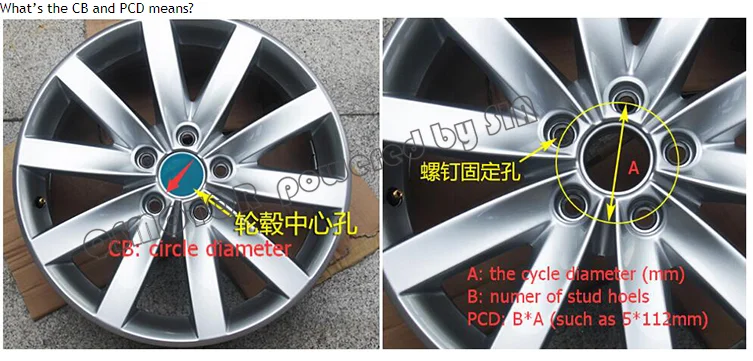

PCD for rim installation: 4 x100mm, 5x114.3mm etc.(can be customized)
CB: >60mm (can be customized)
Magnet Height: 40mm
No. of Pole Pairs: 28 pair
Rated Power: 4000W
Peak Power: 8000W
Rated Voltage: 72V( 60V-144V Can be optional)
Speed: 80km/h (40-80km/h can be customized)
Max No-load RPM: 890RPM
Max Torque: 254N.m
Max Efficiency:89%
Continious current:62A
Max current:90A (Peak 120A in short time)
Brake type: Disc brake
Winding Core material: Aluminium
Cross Section of Phase wire: 16 mm2
Hall sensor phasing angle: 120 degree
Temperature Sensor: Optional
Max. Working Temperature: 70 degree, Peak 120 degree
Waterproof Grade: IP54
Color: Black
N.W./ G..W. : 23kgs /24kg
Package Size: 44*43*34CM

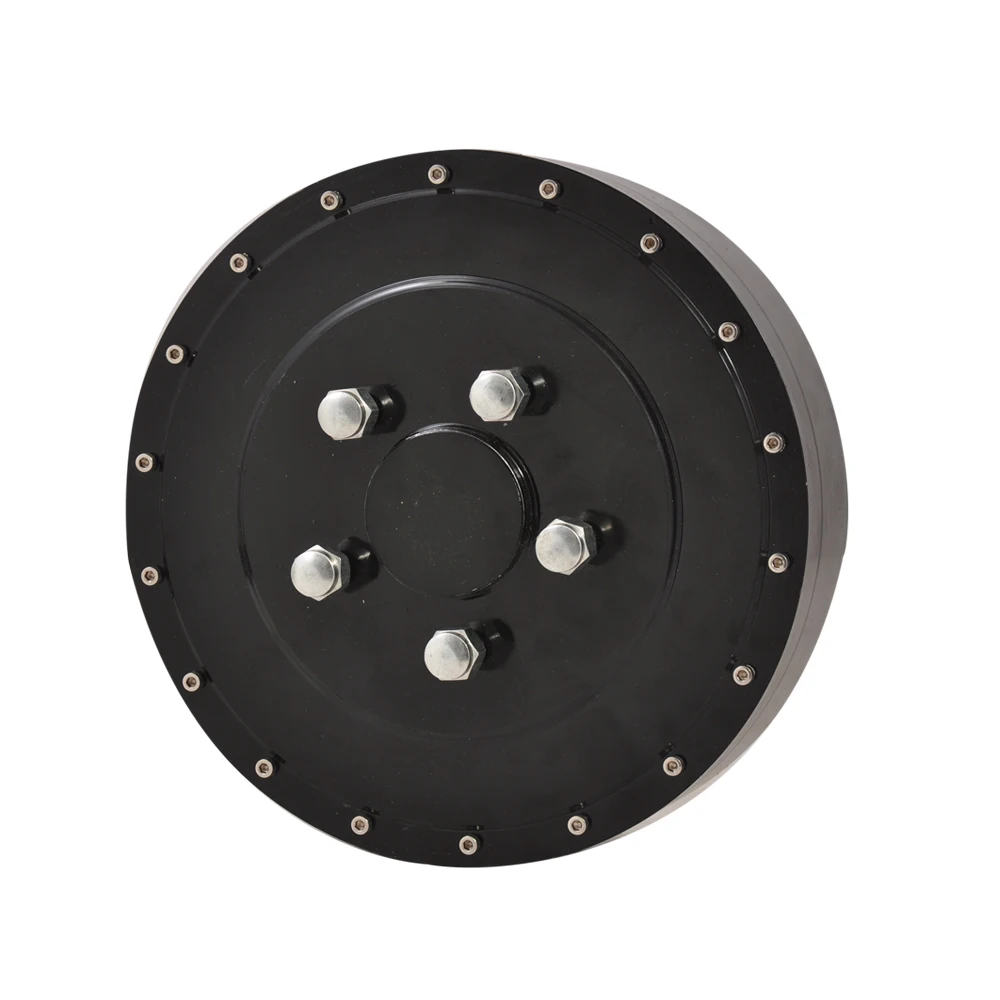

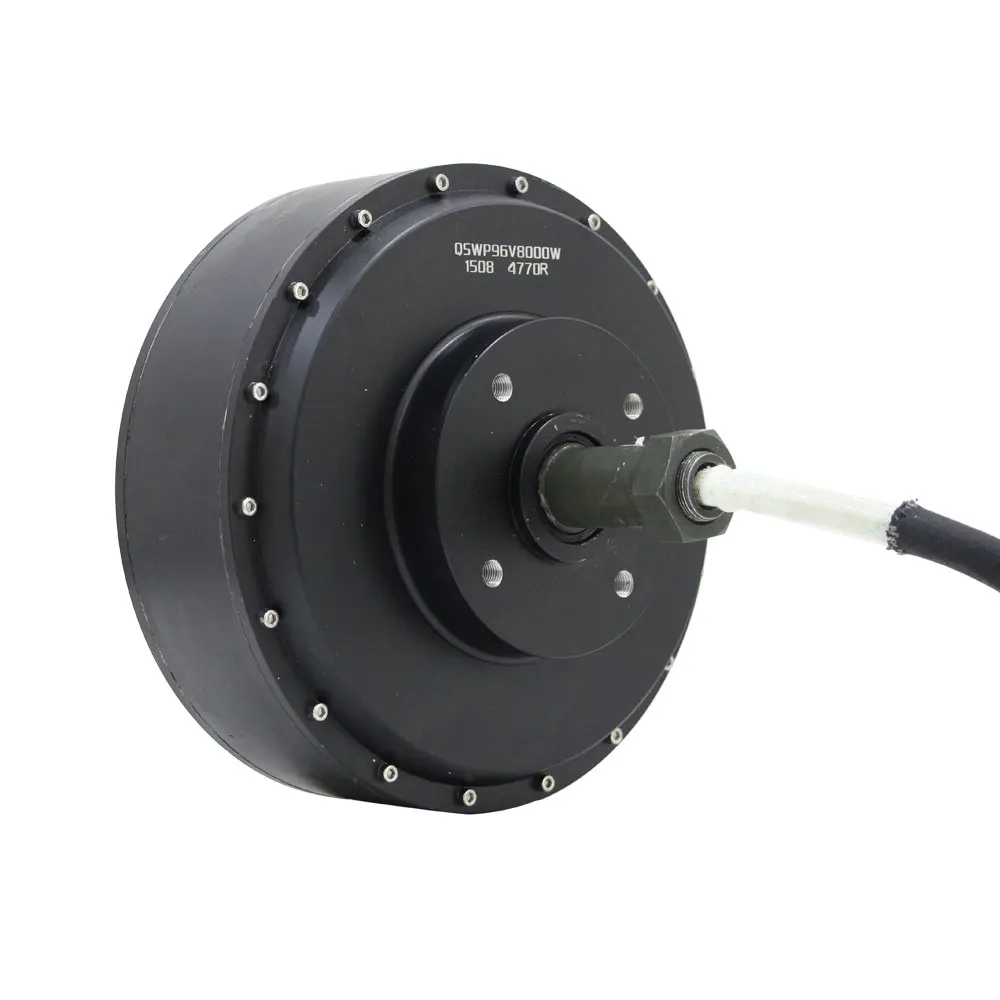

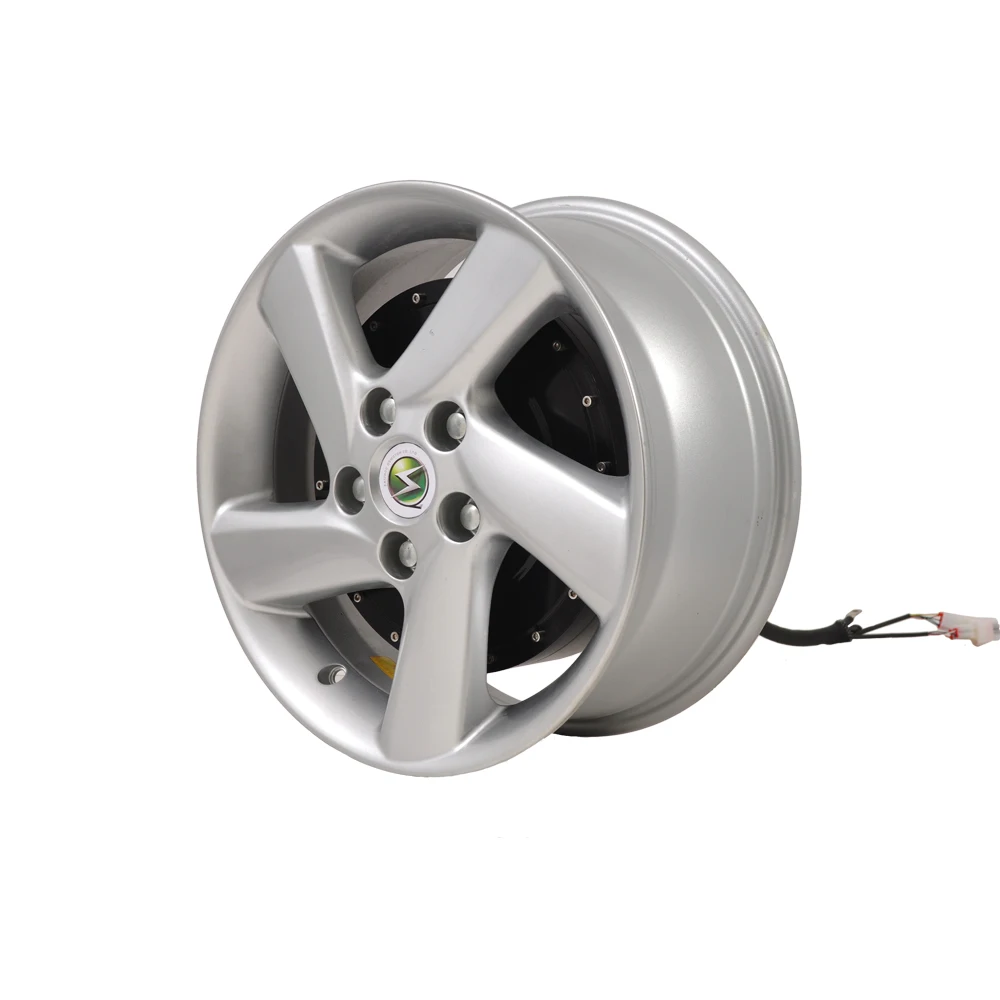

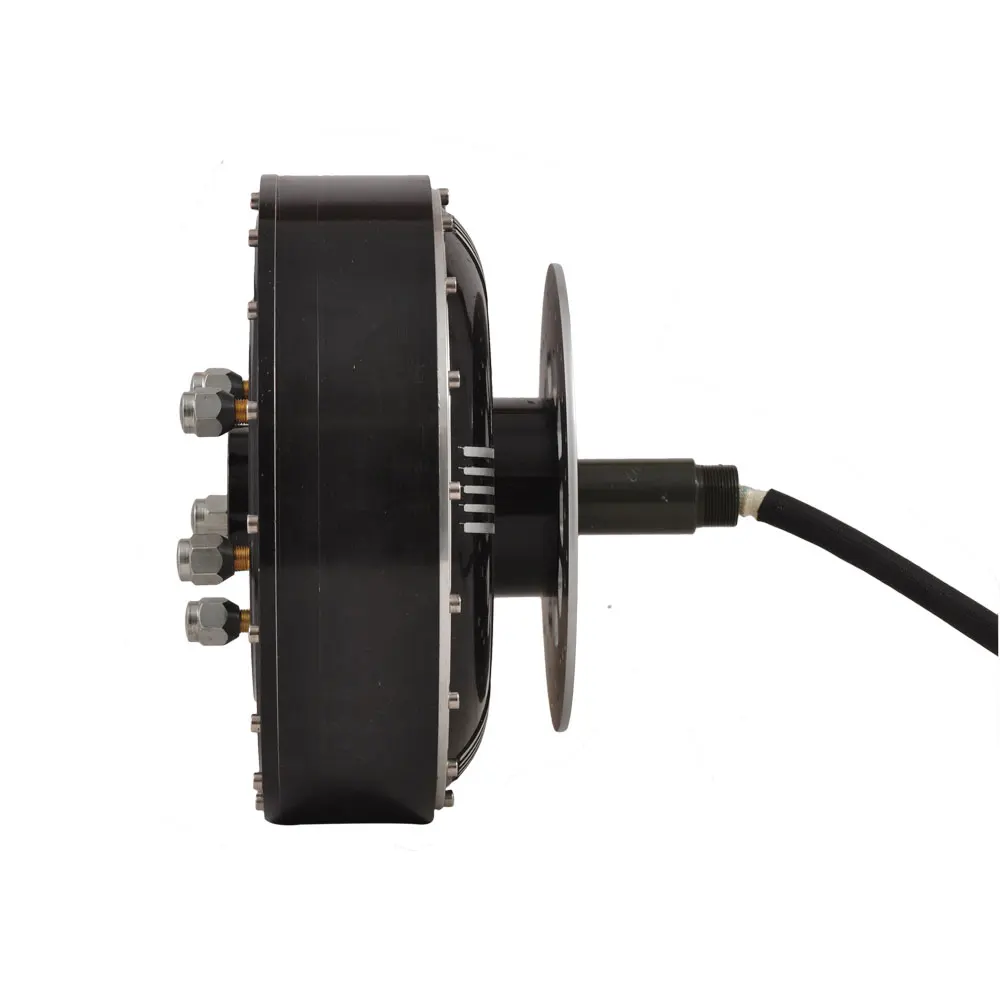

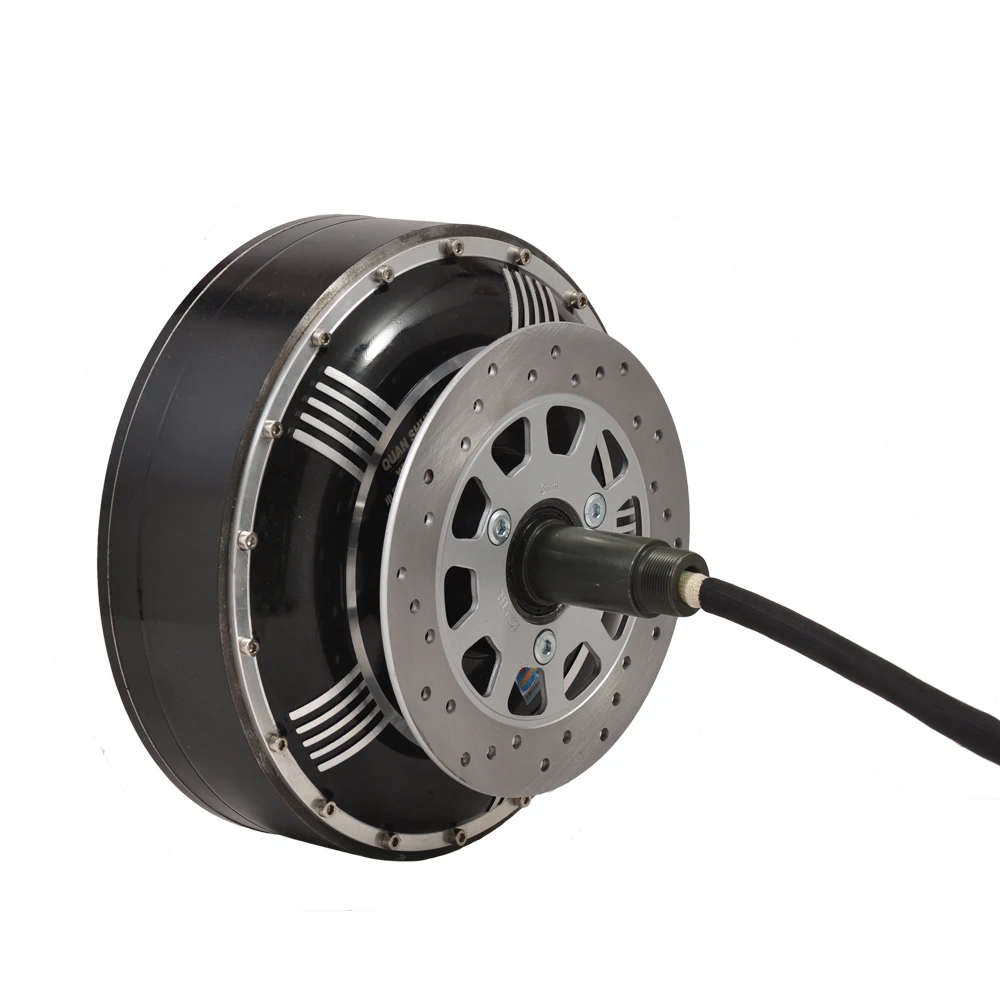

Pictures Show
Drawing
PCD 5X112mm, CB 60mm as default
Price list for 273 E-car Hub Motor
Application
How to Recommend you suitable motors?
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
