Product Overview
Description
LX-FL120

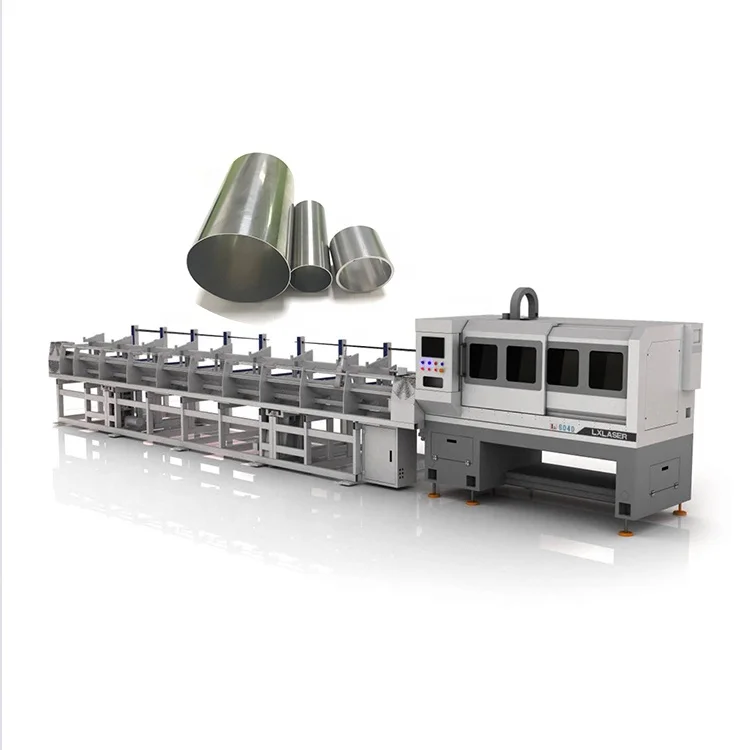

Factory price Industrial cnc automatic feeding metal 5 axis 3d fiber laser tube pipe cutting machine manufacturers for ms

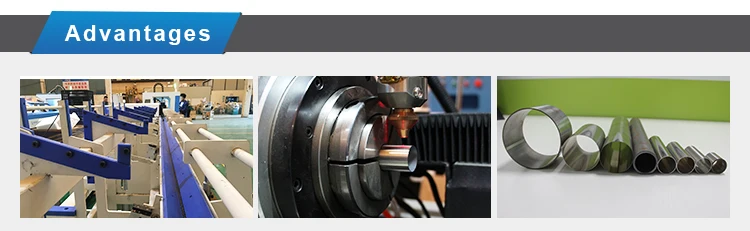

1.Automatic feeding, saving material and labor cost and improving efficiency
1.Automatic feeding, saving material and labor cost and improving efficiency
2.Automatic sensing and cutting the pipe heads and remains
Photo-sensing pipe heads and cutting remains kick-out. Save labor handling procedure.
3.Photo-sensing pipe heads and cutting remains kick-out. Save labor handling procedure.
By its smart design in feeding pipe, it greatly minimizes cutting remains' length and thus saves steel material loss(≤40mm).

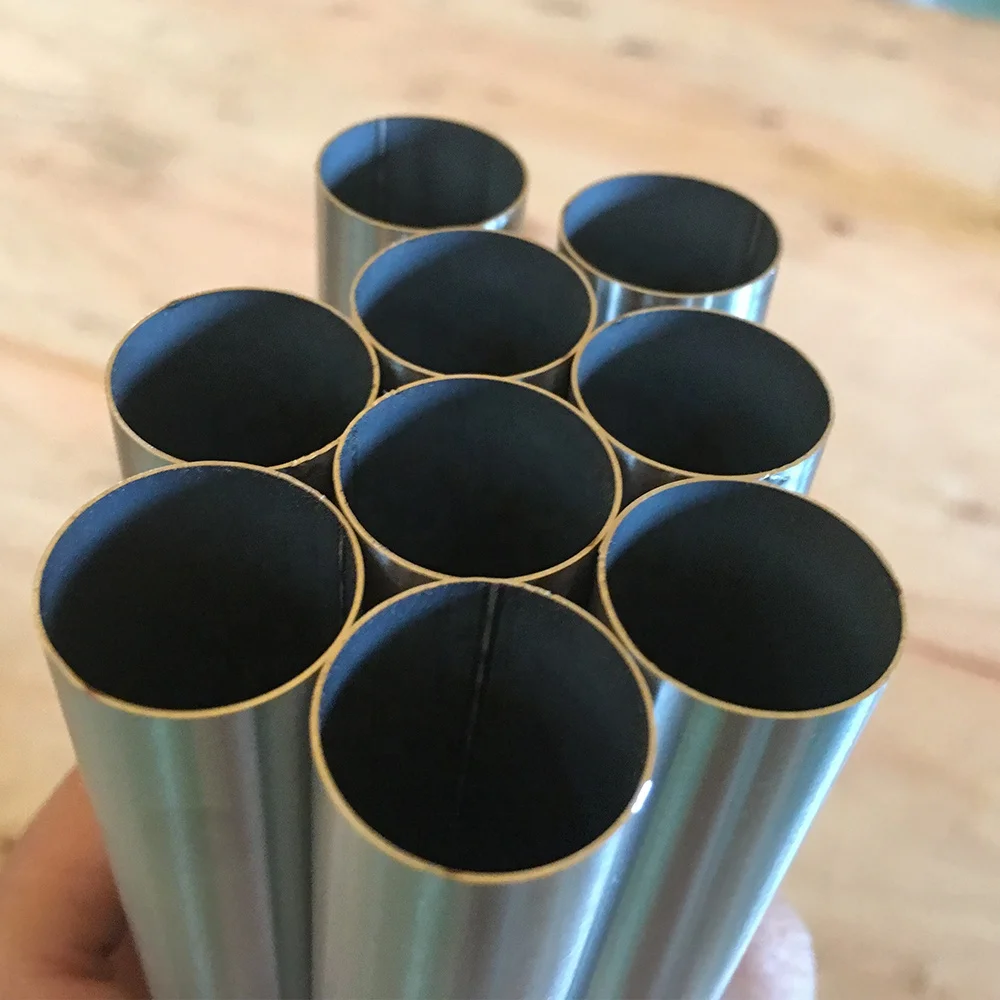

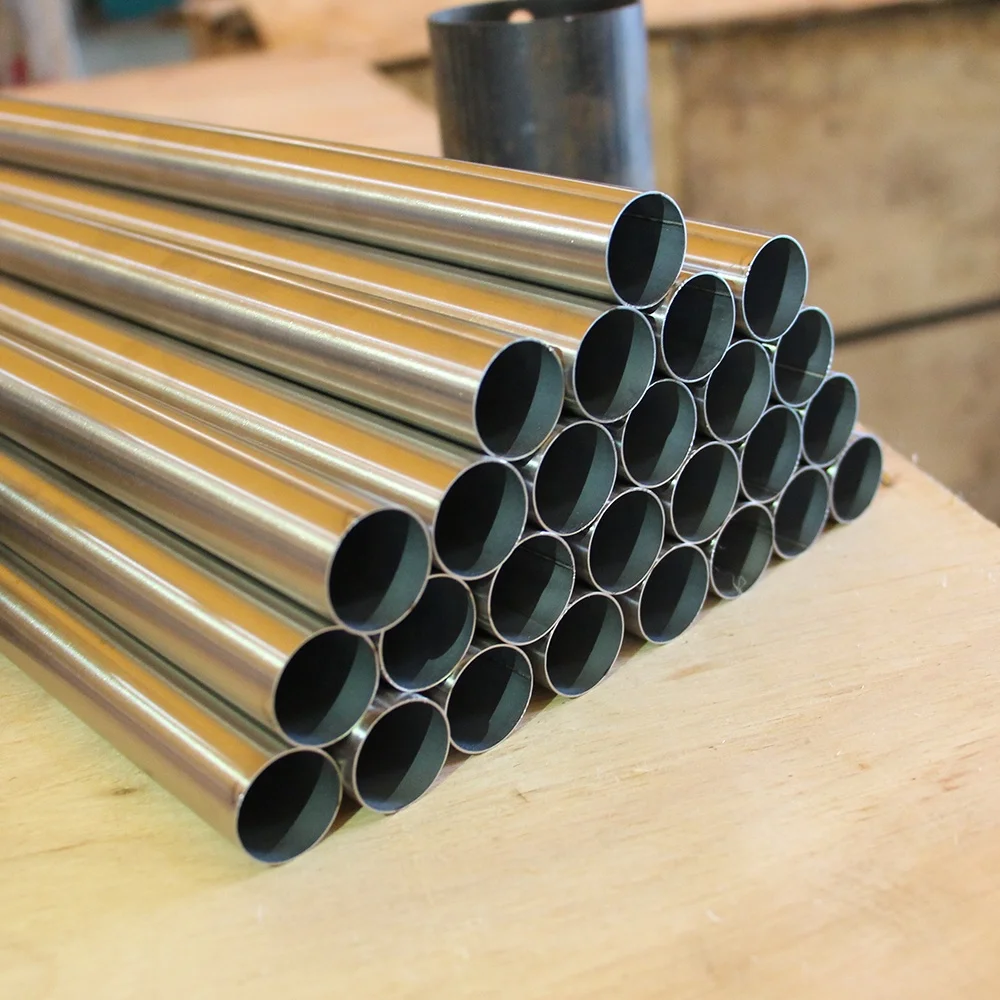

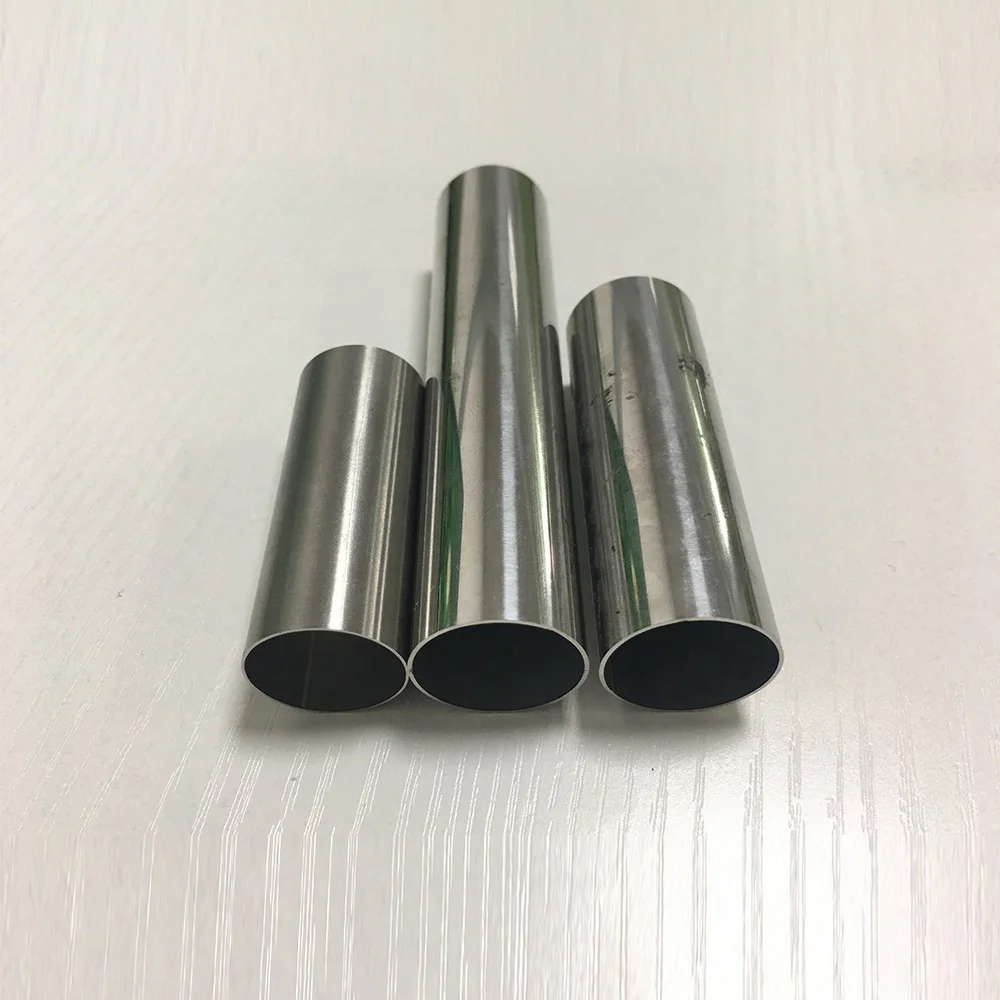

4.Smooth and burr-free cutting
No burr, no trace, do not required for de-burr process.
Title goes here.

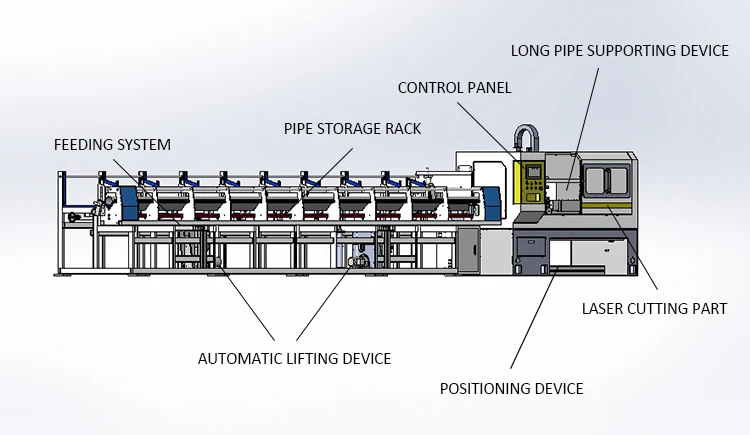

1.Automatic loading 2. Automatic feeding 3. Short cutting remains(≤40mm)
4. Suitable for pipe φ16-120mm 5. Cutting accuracy ± 0.1mm
6. Automatic kick-out pipe heads and cutting remains
Item | parameter |
Pipe size range | Round tube Φ 16-Φ 120mm |
Pipe thickness | Depends on the power |
Cutting speed | Cutting speed: Max 0.8s/cut(Depending on material thickness) |
"y" axis single feeding length | 1200mm |
"z" axis adjustment range | 65mm |
"w" axis adjustment range | 360° |
Machine repeat positioning accuracy | ±0.05mm/1000mm |
Machine positioning accuracy | ±0.1mm |
Machine idle speed | 120m/min |
Maximum acceleration | 1.0G |
Electricity demand | 380V 50Hz(customizable) |
Cutting accuracy | ±0.1mm |
Machine size | 9340*1560*1615MM |
Click here for more details
Click here for more details
LX-QG6018A
1. Multifunctional cutting
Freely design and enable immediately cutting of complex graphics and words , help you to trigger more new tube design inspiration and quickly complete new product development, thus to minimize development costs.
2. Good accessibility
The humanized structure design makes the machine accessible, making manual feeding easy.
3. Automatic clamping
Tubes of various diameters can be produced across the entire clamping range without the need for retooling
4. Fully automatic feeding function (optional)
Minimize labor cost and maximize efficiency.
5. Protective collecting rack (optional)
Automatically collect long-sized workpieces & protect its appearance, saving labor cost and optimizing efficiency.
6. Easy operation

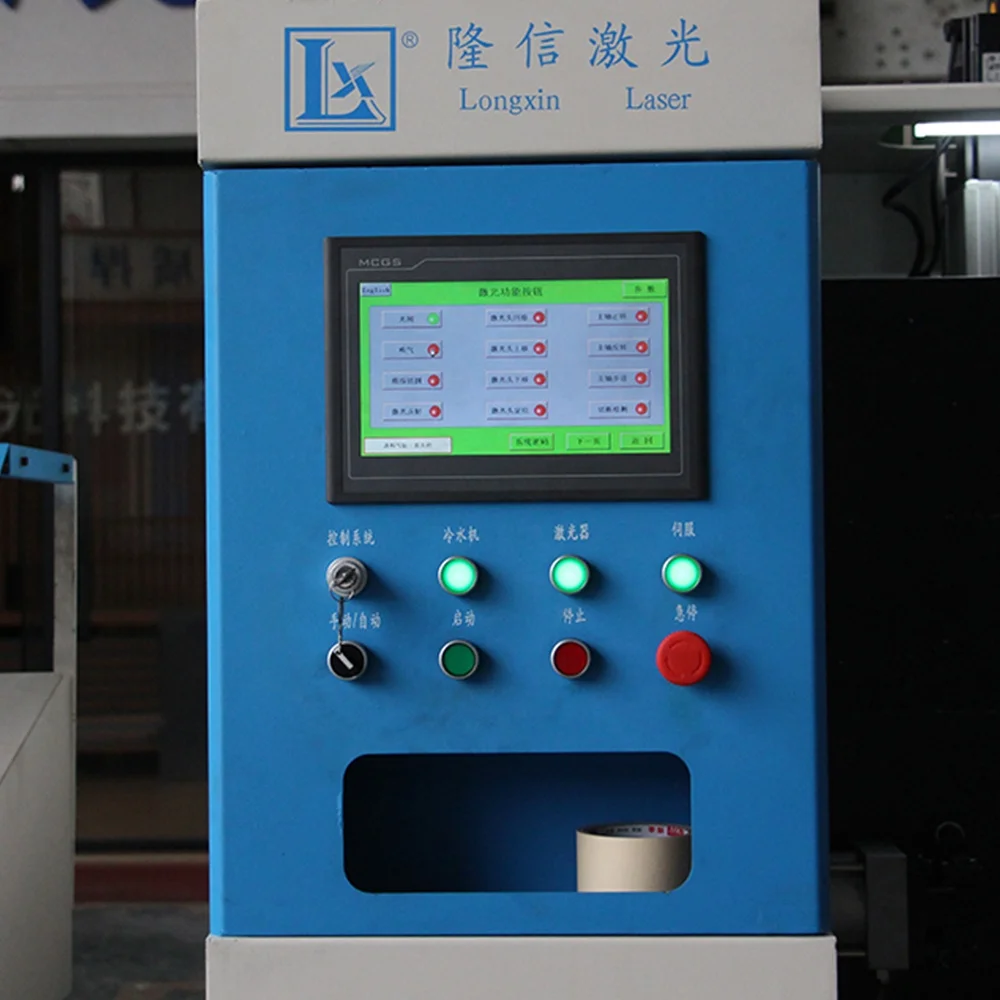

The man-machine interface is easy to operate with remote control.
7. Reduce processing steps
Allows you to save complex multi-step machining (sawing-punching-grooving-grinding) while economize intermediate logistics and storage costs. A single workpiece price is more competitive than traditional machining.
Longxin Laser Technology's 4 axis laser tube cutting machine can produce intricate and precise features on tubes of all shapes and sizes
Laser tube cutting is a cost-effective process that produces intricate parts with small tolerances in medium to high volume production runs. It is also a fast and low-cost process for prototypes or one-off parts due to the quality of the cut and the lack of finishing operations needed. The additional benefits that 4 axis laser tube cutting, includes:
- Reduces subsequent manufacturing steps
- Produces superior edge quality
- Minimizes development costs
- Consistent, high quality production
- Laser Tube Cutting Capabilities
- Computerized tube cutting, rapid tube cutting, chipless tube cutting
- Tubes of various diameters can be produced across the entire clamping range without the need for retooling
- easy to operate with remote control
Techinical parameters
Model | LX6018 |
Power | 500-6000w(Optional) |
Max.outside diameter of round tubes(mm) | 20-210(Customized to 250) |
Max . raw material length (mm) | ≤6200 |
Max. finished part length (mm) | 1200 |
Pipe remain length (mm) | 180 |
Accuracy | ±0.1mm |
Machine weight | 8T |
Machine dimension (mm) | 12000*2450*2400 |

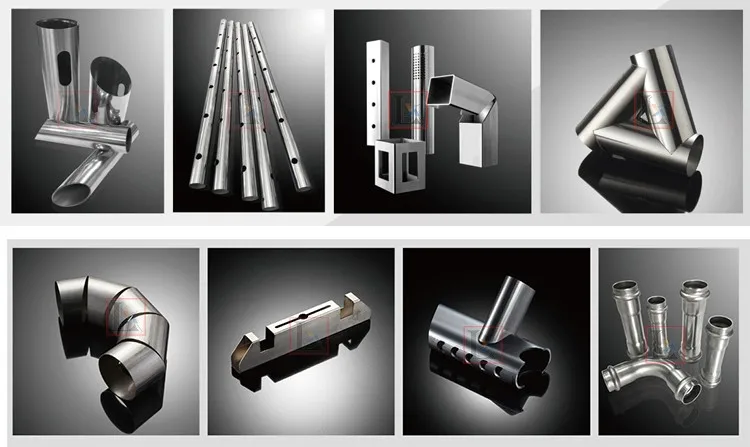

Multi-funtional cutting | Mitre cut ,rectangular ,slot,square, circular ,cold mouth ,special profiles |

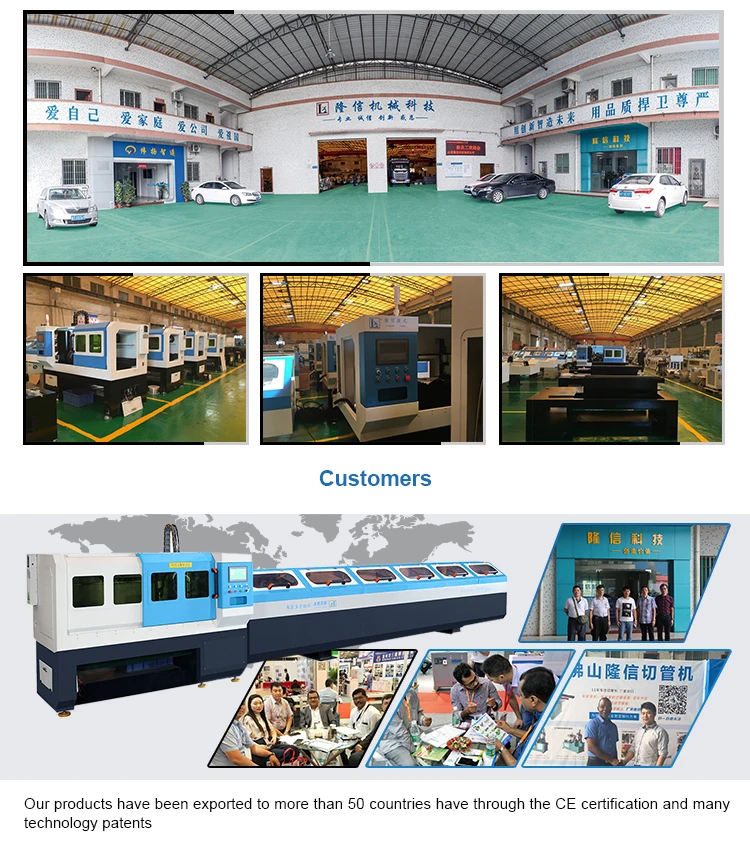

Foshan Longxin Laser Technology Co.,Ltd. was founded in 2003. We are specialized in pipe processing machines designing and manufacture.
We have our own R&D department and we focus on technology and product innovation .we not only produce machines, but also provide pipe processing solutions including customized design and modification. We also have a professional after-sales team to provide the machine installation, debugging and comprehensive technical support.
We have CE certification and many technology patents. Our machines have been exported to more than 50 countries.
