Wholesale versatile ultrasonic print head cleaning / printhead cleaner machine

R icoh G4/G5..

Usually it can be clean in a few minute and back to work again like usual before it was. To make period of cleaning process to print head is very important, because this can protract the life of print head much longer, and decrease the waste for print head clog, save printing cost.

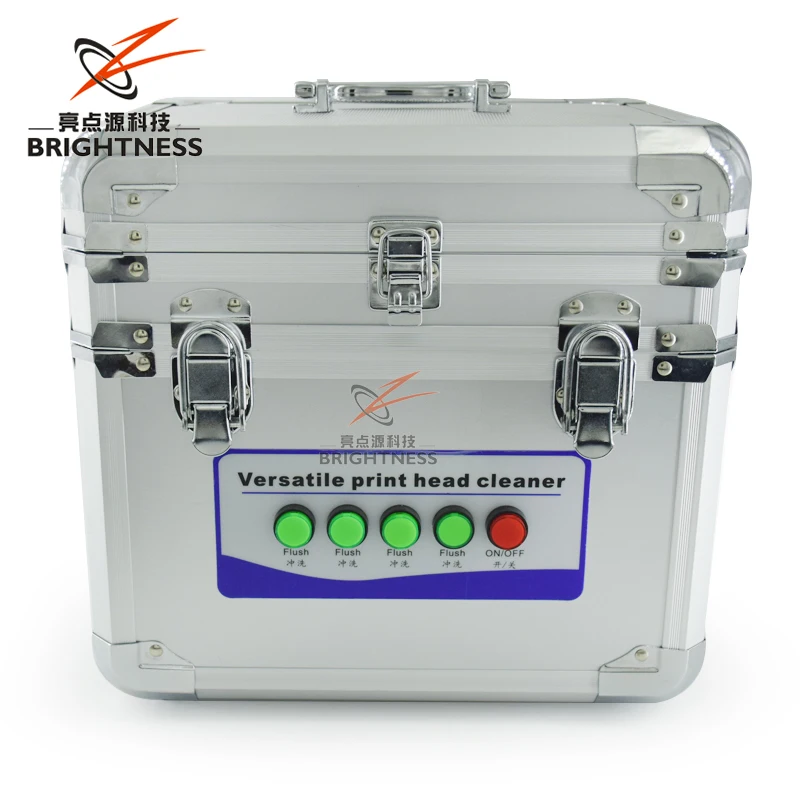

Print head cleaning machine
Brand	Brightness
Model Number	LD-C001
Applicable Head	Xaar/ Seiko/R icoh/ Konica/ Spectra Polaris...
Power Consumption	50W
Ultrasonic Power	45W/40KHZ
Flow	500ML/MIN
Feature	100% Compatible

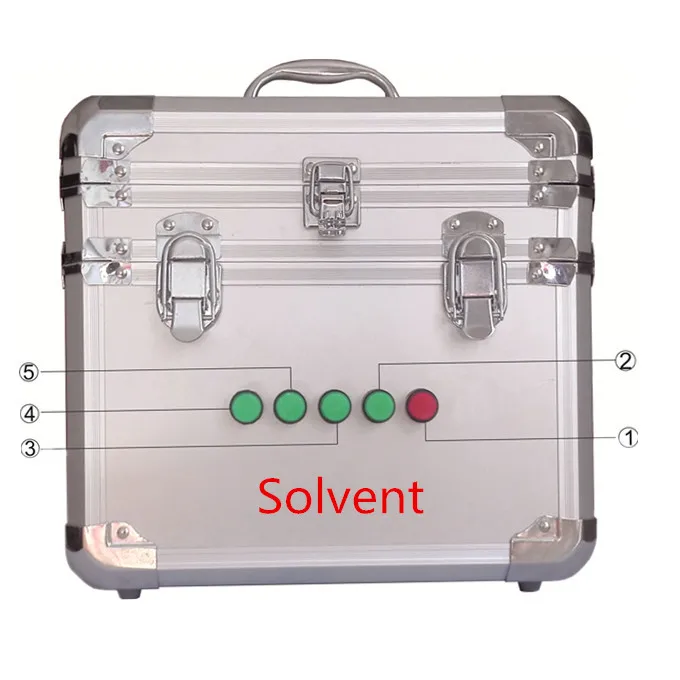

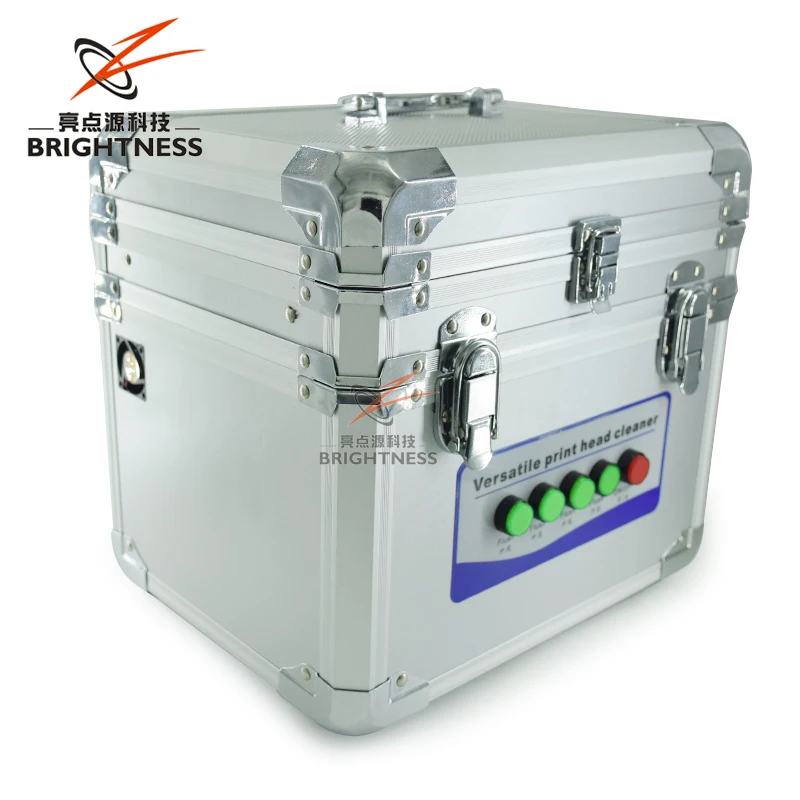

1:Ultrasonic Switch

2-3-4-5:Flush Switch

Before use the printhead cleaner machine

After use the printhead cleaner machine

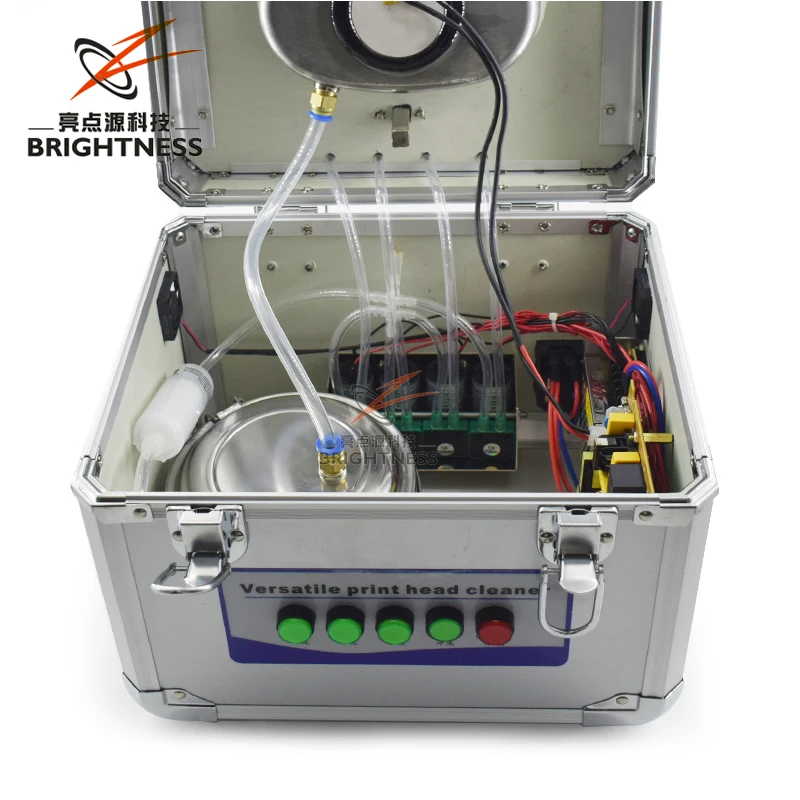

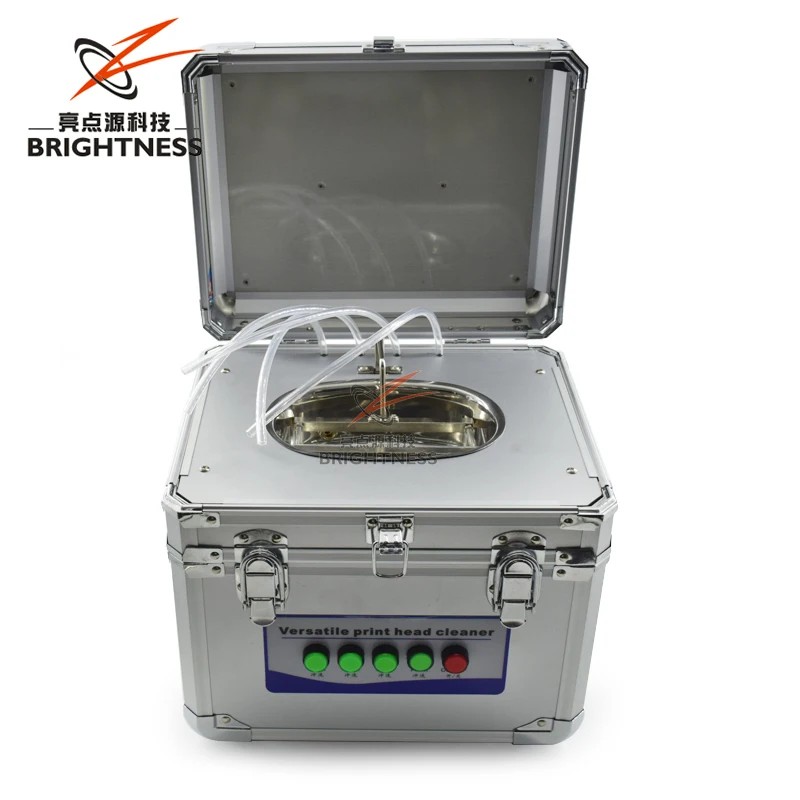

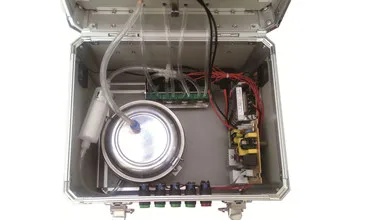

Detailed Images

1.Open the bottom lid of the machine and the lid of cleaning fluid tank.2.Pour cleaning fluid into the cleaning fluid tank.. The
minimum should be over the fluid outlet port of the tank
3.Cover the cleaning fluid tank lid and the bottom lid of the machine

4.Open the top lid and put on nozzle holder

5.Connect the inlet of print head to the flushing pipe
6.Insert the print head into nozzle holder

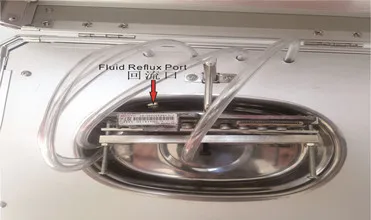

7.Pour cleaning fluid into the cleaning tank ,to close to the water outlet port

8.Press the red bottom to start the ultrasonic cleaning. keep about 30 seconds.

9.Press the the green button which the nozzle and pipe connected, let the cleaning fluid circulating rinse nozzle.

10. After closing the ultrasonic cleaning, check the cleaning effect.

11.Repeated cleaning several times until the cleaning fluid which jet from the nozzle is neat and clean.

Packing & Delivery

Packaging
Size	34 (L) * 36 (W) * 28 (D)CM
Weight	5KG
Packaging Details	The normal package is carton box.

Packaging
Packaging Details	Using pearl cotton inside to protect machine

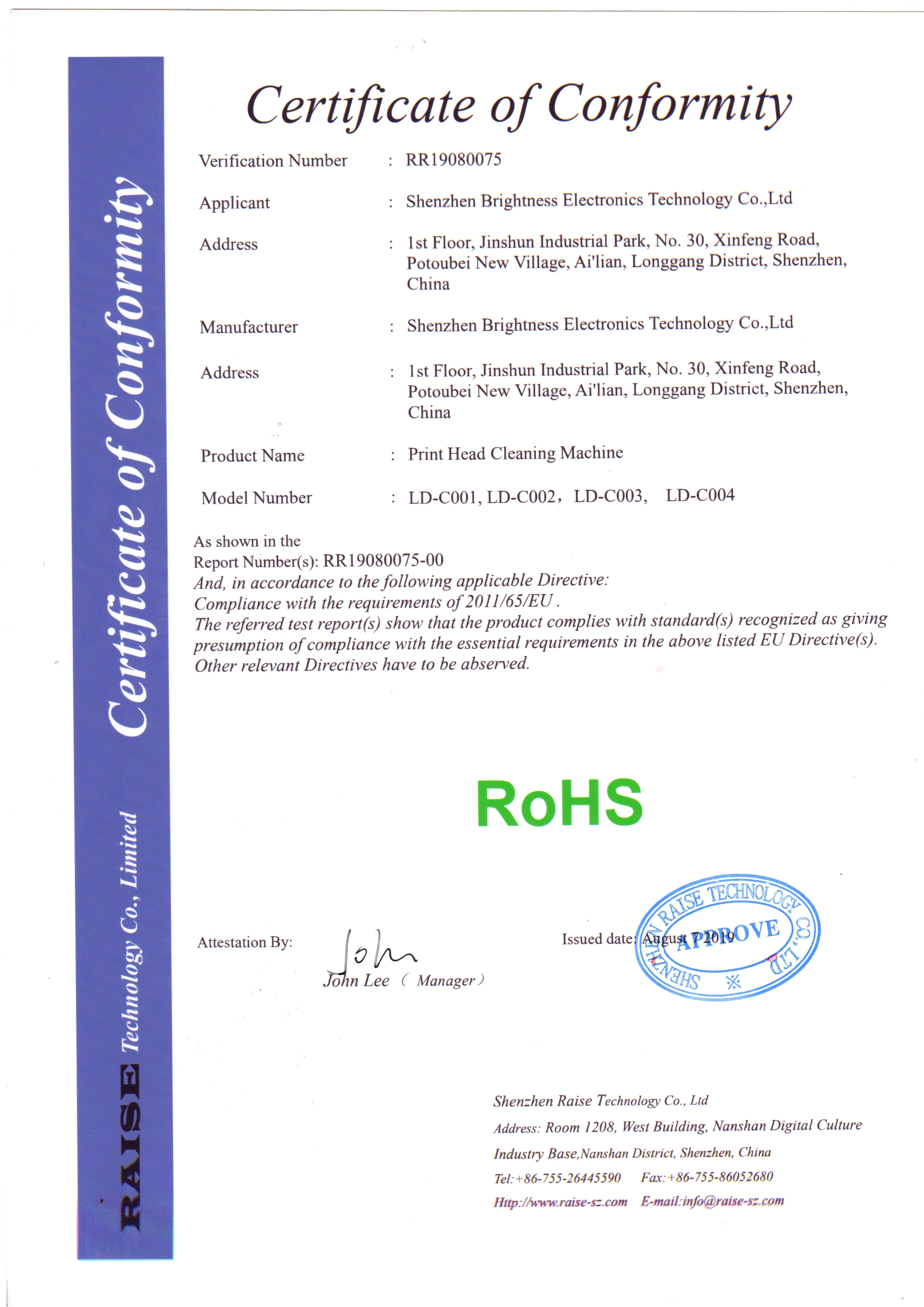

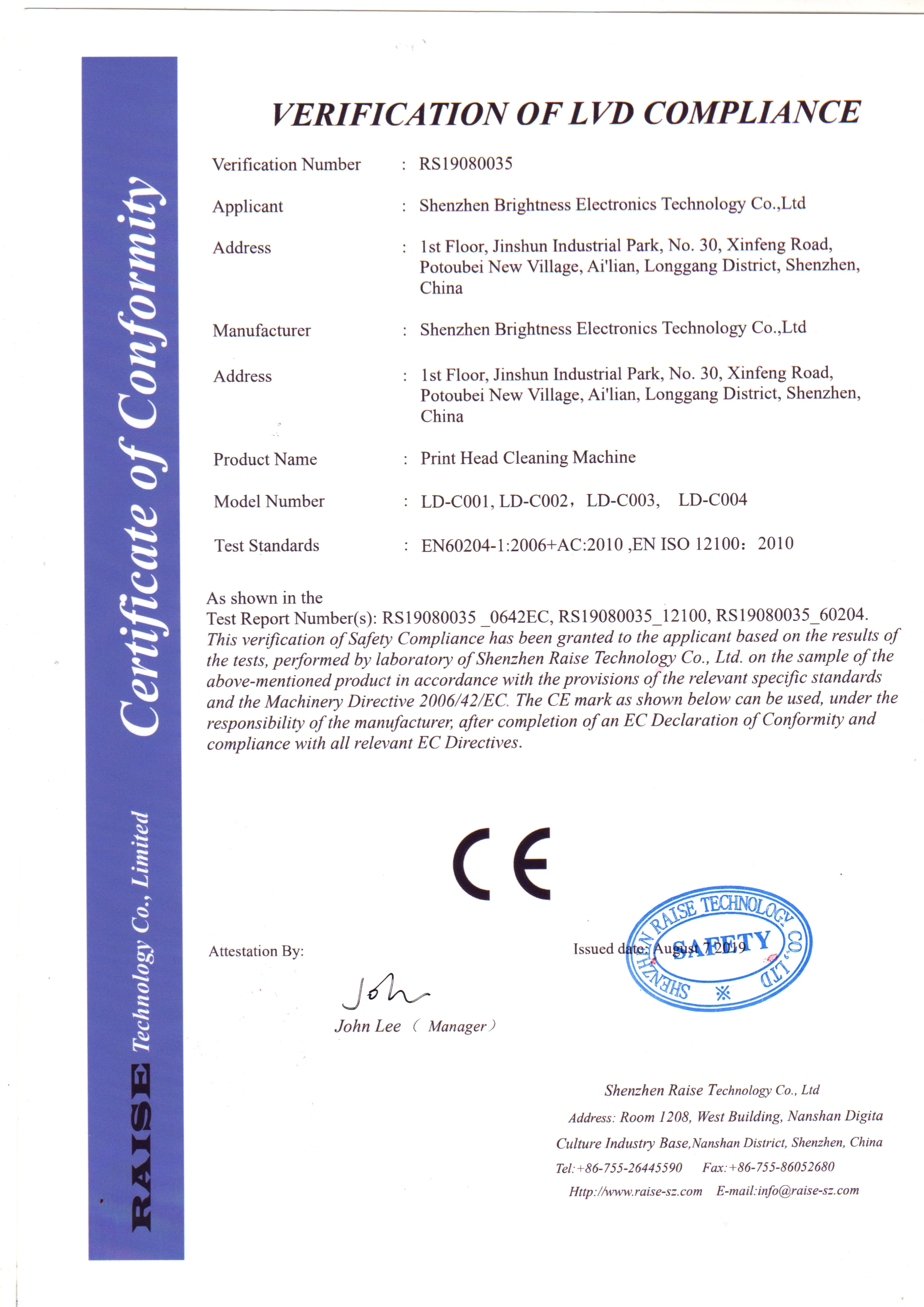

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
