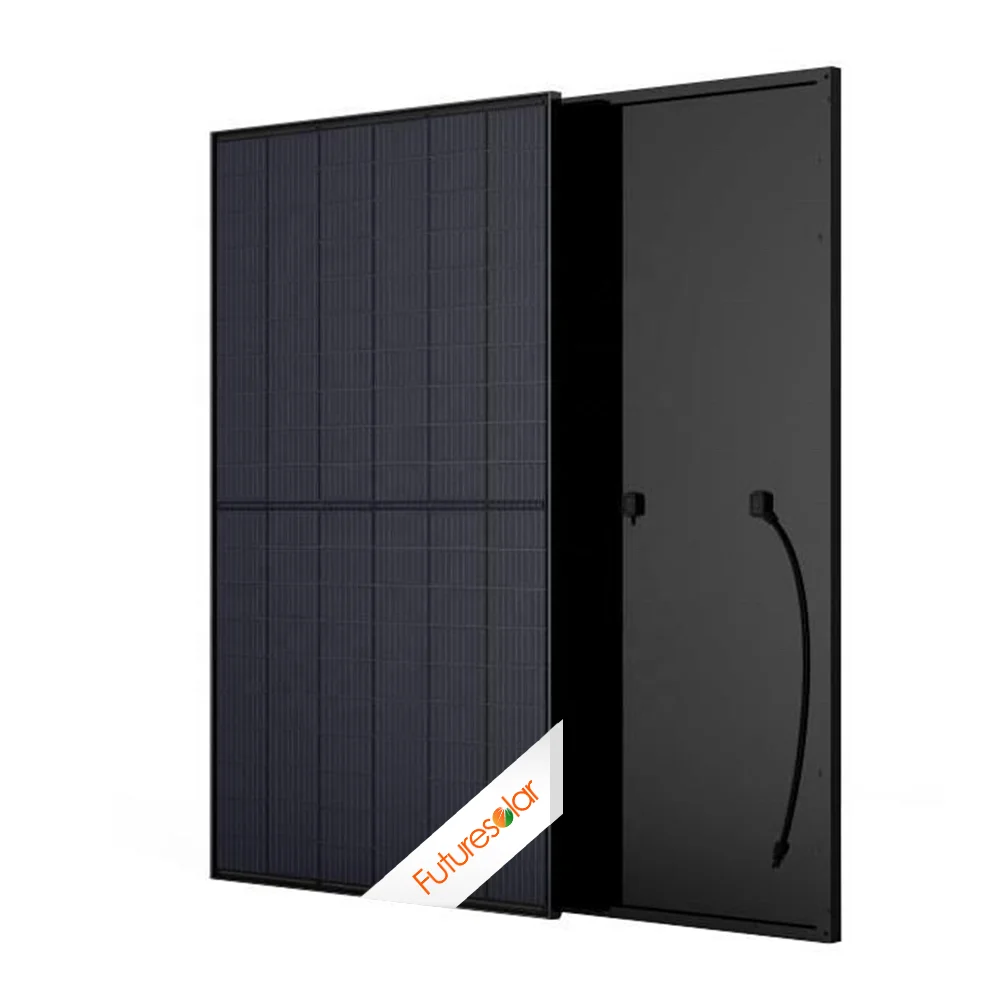

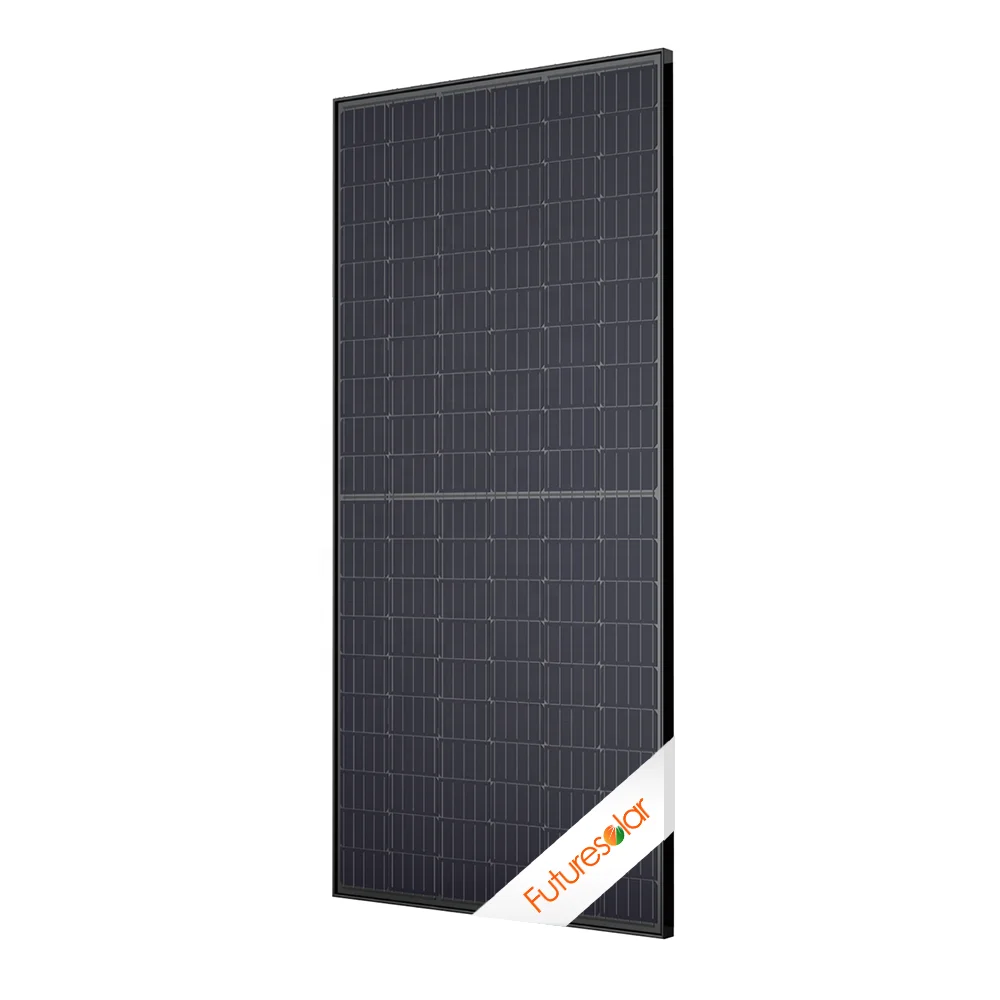

Полуэлементный обычный PV модуль futuзола 550 Вт, качество 1 с сертификатами TUV/CE, Лучшая цена
- Category: >>>
- Supplier: XUZHOU FUTURESOLAR CO. LTD
Share on (62209528848):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Moduel | FSM535M-72HPH | FSM540M-72HPH | FSM545M-72HPH | FSM550M-72HPH | |||
Rated Maximum Power at STC | 535 | 540 | 545 | 550 | |||
Open Circuit Voltage(Voc/V) | 49.46 | 49.60 | 49.76 | 49.92 | |||
Maximum Power Voltage(Vmp/V) | 41.48 | 41.64 | 41.80 | 41.96 | |||
Short Circuit Current(Isc/A) | 13.79 | 13.86 | 13.93 | 14.00 | |||
Maximum Power Current(Imp/A) | 12.90 | 12.96 | 13.04 | 13.11 | |||
Module Efficiency(%) | 20.7 | 20.9 | 21.1 | 21.33 | |||
Power Tolerance | 0~+3% | ||||||
Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 | ||||||
\t\t\t\t\t\t\t\t\tDetailed &Production \t\t\t\t\t\t\t
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
\t\t\t\t\t\t\t\t\tProjects \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPayment \t\t\t\t\t\t\t
Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L (Not Suitable for Solar System Orders) | ||||||
CIF | |||||||
DDP | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight (Not Suitable for Solar System Orders) | ||||||
West Union | Amount lower than 5000usd | ||||||
Delivery Time | 7~10days after receiving payment for one container | ||||||
