Price:$35.49 - $42.57

Quantity:


Product Overview

Description






Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Cable Length: 0.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55


Pipe connector: internal thread


Package Include:
1x ball valve
1x Actuator Motor


1x Instruction manual





Application
1.HVAC system
2.Water treatment system
3.Heating syste
4.Industrial equipments
5.Chemical process
6.Agricultural irrigation
7.Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8.Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.





 Specifications





























































Name3-way motorized control ball valve
ModelWRA-6320+W8BV220
Voltage 220VAV+/-15%
Control type On/Off
Vale materialBrass Hpn59-1
Power SupplyAC 230V
Vale size3/4" BSP DN20
Running time16S/50Hz/12S/60Hz
Average lifespan50000 times
Quality warranty18 months
CertificatesCE ROHS
Shipment wayBy Express,By Air or By Sea,as customer request
CustomizedCan be customized (LOGO,label,color,packaging and so on),according to your technical requirement
Characteristics(why you choose winner WRA-63)

1. For central air conditioning installation - not easy to slag, small water resistance, large flow


A) drive torque, metal gears, drive is not easy to damage; WRA-63 uses reversible synchronous motor (reversible synchronous motor);
B) using Japanese original top-level components;
C) The diameter of the copper wire of the motor winding is larger than the diameter of the copper wire of other brands by more than 1.35 times; the winding of the motor is not easy to open and short;
D) The tensile strength and dielectric strength of the winding are more than 1.3 times higher than other brands; the motor winding is not easy to open and short;
E) The motor magnet is made of special rare earth magnet. The positive and negative torque error is small.


2. The measured number of switches exceeds 50,000 times, stable performance, German Matthias (trade company) test feedback.
3. Agricultural irrigation - automatic control, easy maintenance.
4. Air handling units ------ It is not easy to block slag, and the water resistance is small.


5. Ground source heat pump GSHP ------ There is a lot of moisture in the environment. It requires large flow and stable operation. The degree of protection should be high.
6. Industrial refrigeration equipment -------- large flow, stable work, easy maintenance


7. Solar energy ------- high flow, high protection level

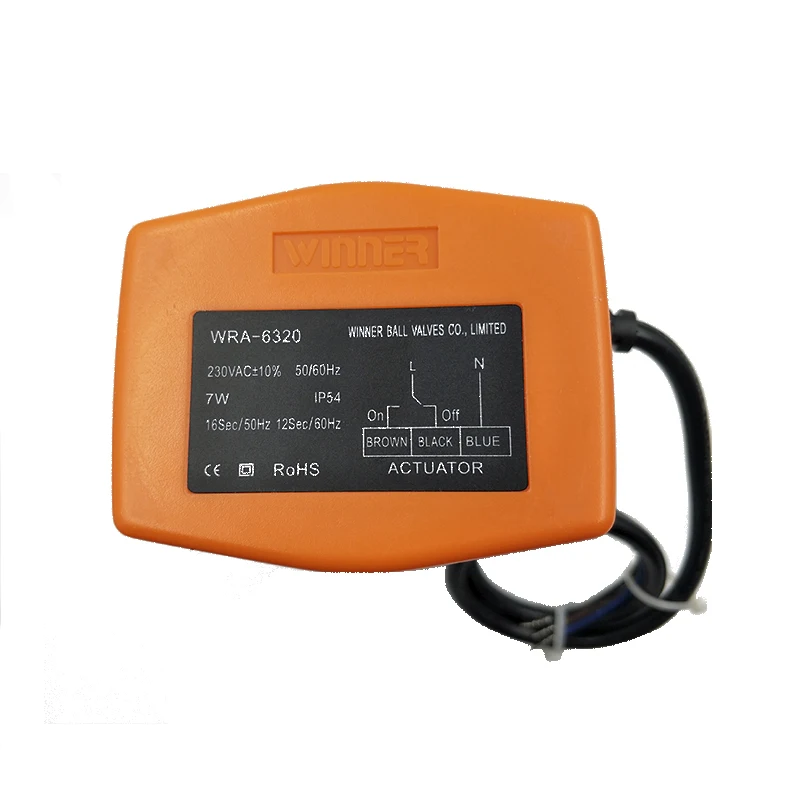

Actuator:
















































Model No.Working VoltageActuator typeOutput torqueConsumptionOn/off timeValve body
WRA-6320

220VAC±15%


50/60Hz


3-point or on/off3.5N.m7W

50Hz:16S


60Hz:12S



W8BV215


W8BV220


W8BV225


W8BV315


W8BV320


W8BV325


WRA-6320AOn/Off
WRA-6310

110VAC±15%


50/60Hz


3-point or on/off
WRA-6310AOn/Off
WRA-6302

24VAC±15%


50/60Hz


3-point or on/off
WRA-6302AOn/Off










Valve Spindle: brass



































































Model No. ContralInner Dia.InchKvs(m3/h)Pmax(KPa)Pmax(KPa)
W8BV2152-way12mm1/2''6.1510001400
W8BV22015mm3/4''10.5010001400
W8BV22520mm1''16.1010001400
W8BV3153-way10mm1/2''3.9510001400
W8BV32015mm3/4''6.8010001400
W8BV32518mm1''15.8010001400

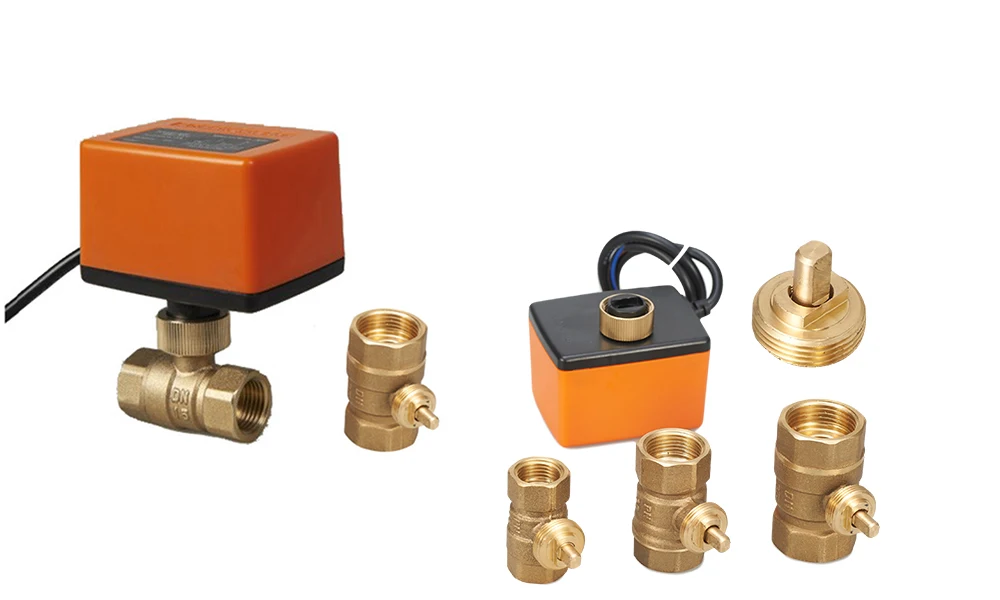

Main Product
Model image display

WRA-53 series


(Mini Motorized Ball Valve)


 AC 220V ON/OFF, 3-Point

WRA-63 series


(AC Motorized Ball Valve)


 AC 220V/110V/24V  ON/OFF, 3-Point

WRA3-..AC series


(Motorized Ball Valve)


  AC 220V/110V/24V  ON/OFF, 3-Point

WRA3-..DC series


(Fast Running AC Control)


DC 24V/12V/3V  ON/OFF, Proportional

WRA-42..DC series


(DC Motorized Ball Valve)


 DC 24V/12V/3V  ON/OFF, 3-Point

WVA4-..series


(Control Ball Valve)


AC/DC 220V/24V  ON/OFF, Proportional




FAQ


 Q: What power supply is used with this unit?
A: AC 220 V +/-15%.

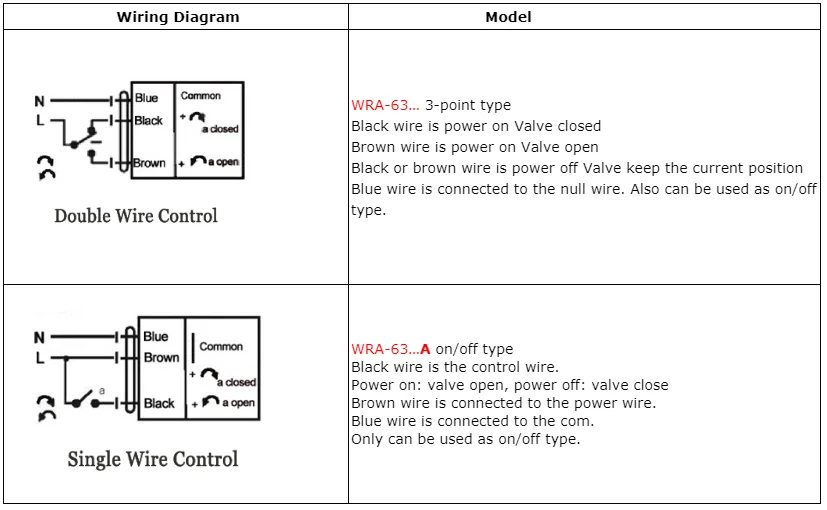

Q: If I understand correctly, power to the brown wire opens the valve, power to the black closes it. Without power it will stay as it was left. Correct?
A: Yes, you are right.Hope it will be helpful for you.Contact us if you need any help.
Q: Will 1 inch threaded male pipe or bulkhead fit this ?Planning on using on a campervan waste tank..
A: No,this valve size is DN20,About 3/4 inch,if you need 1'',you can choose DN25.
