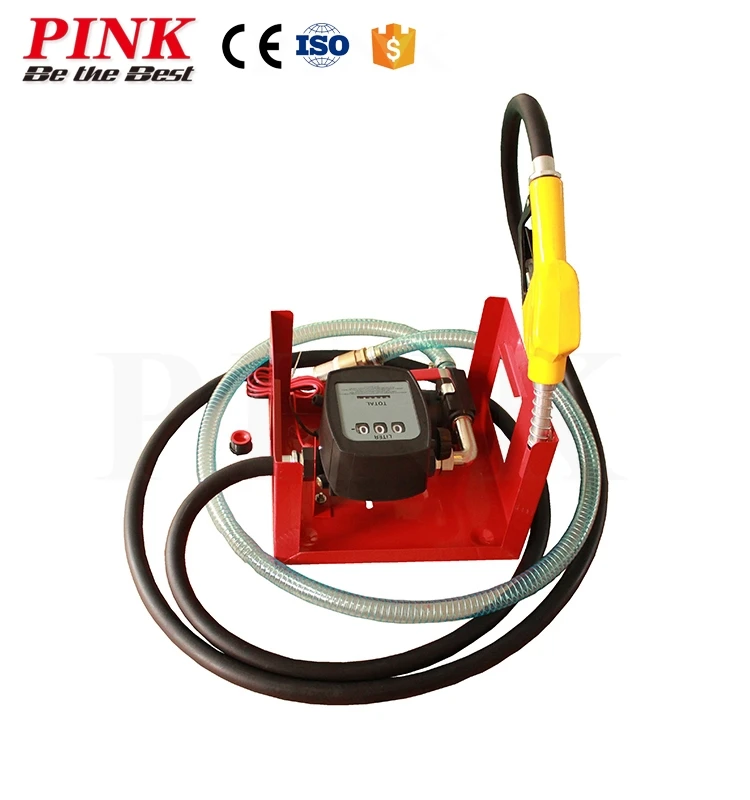

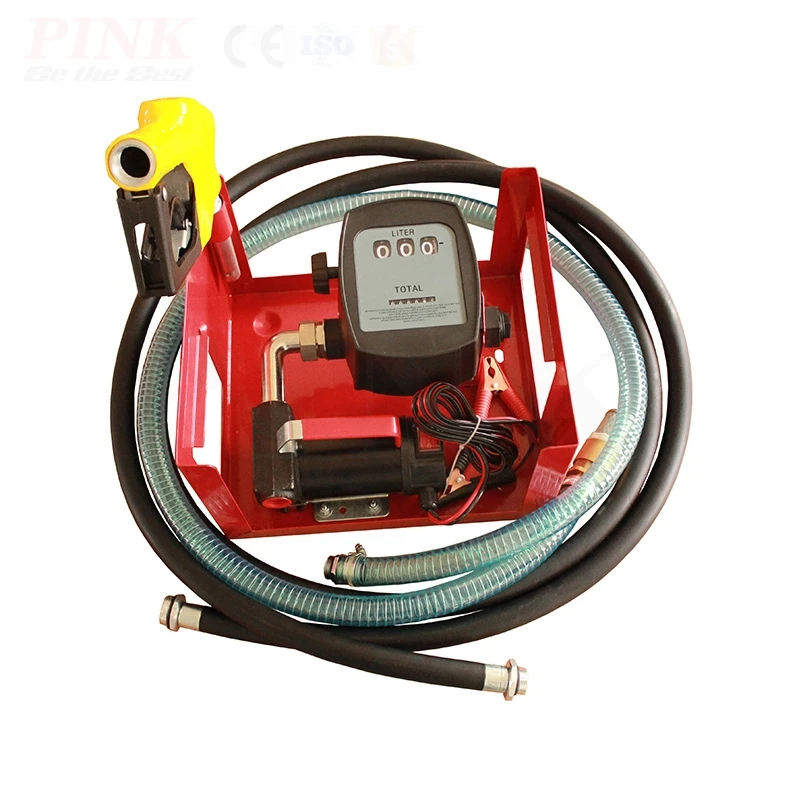

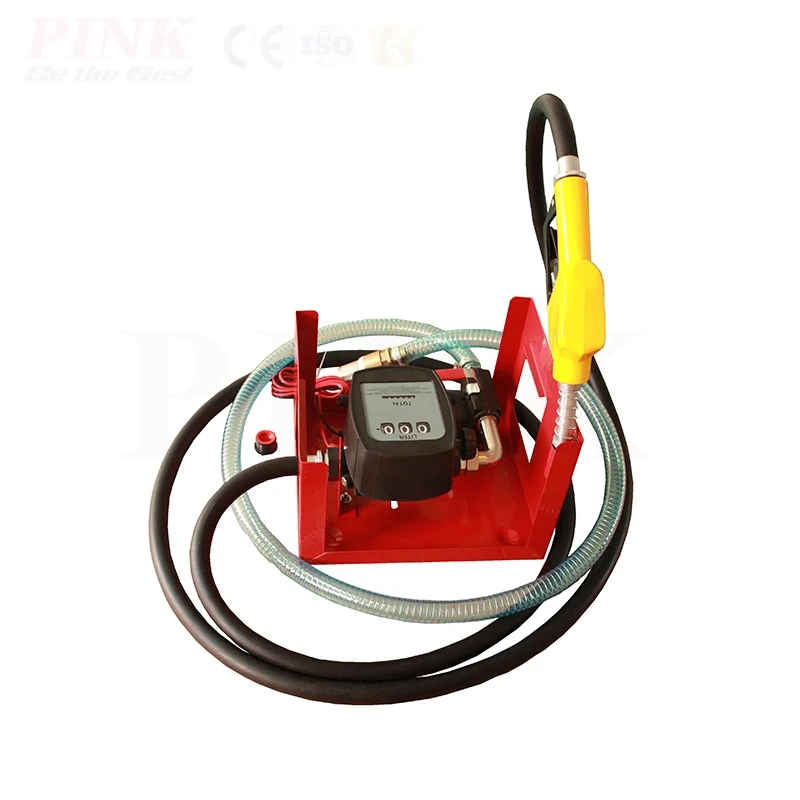

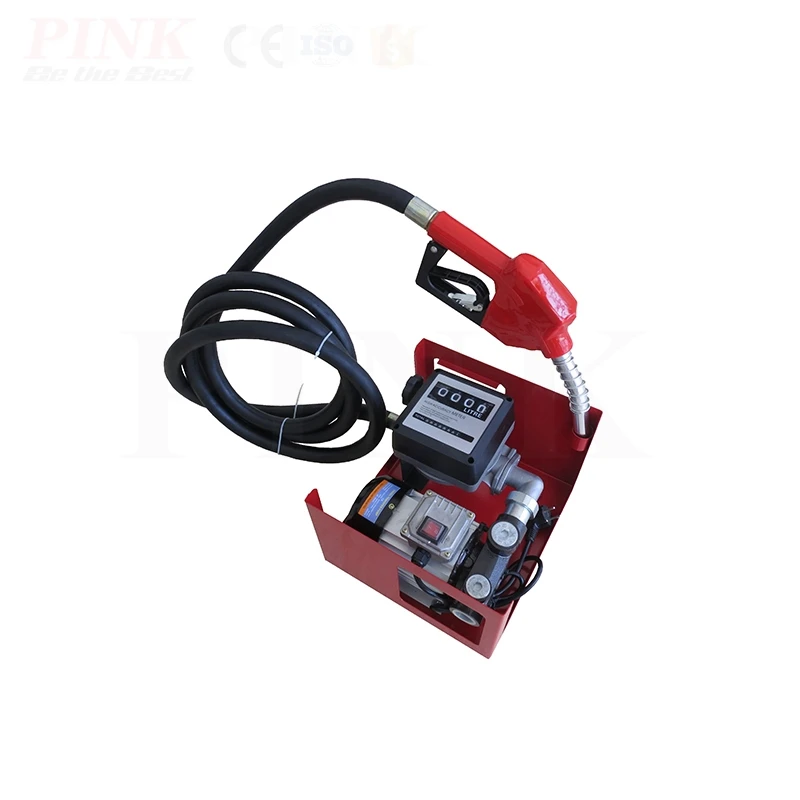

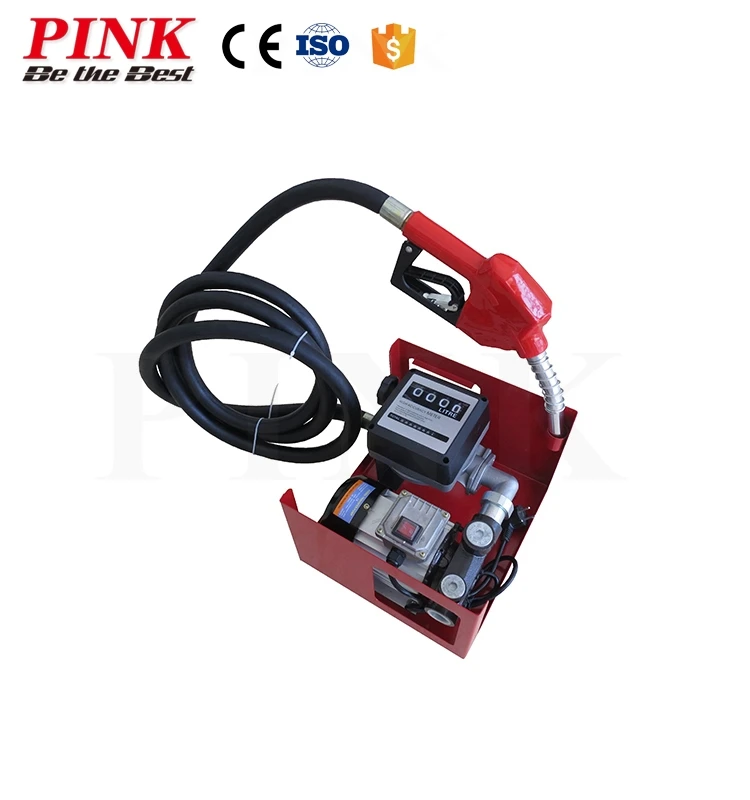

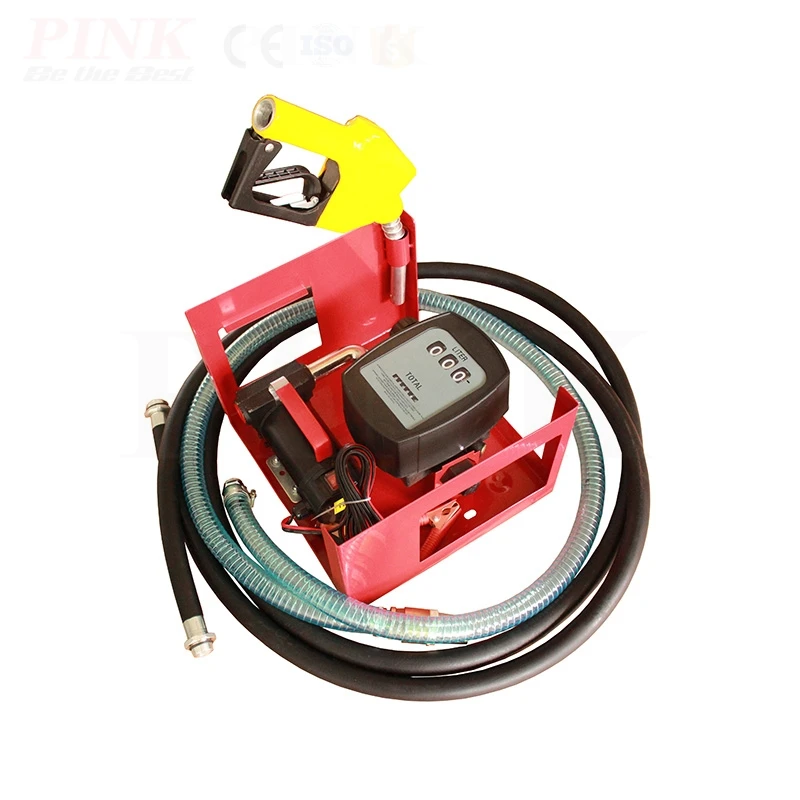

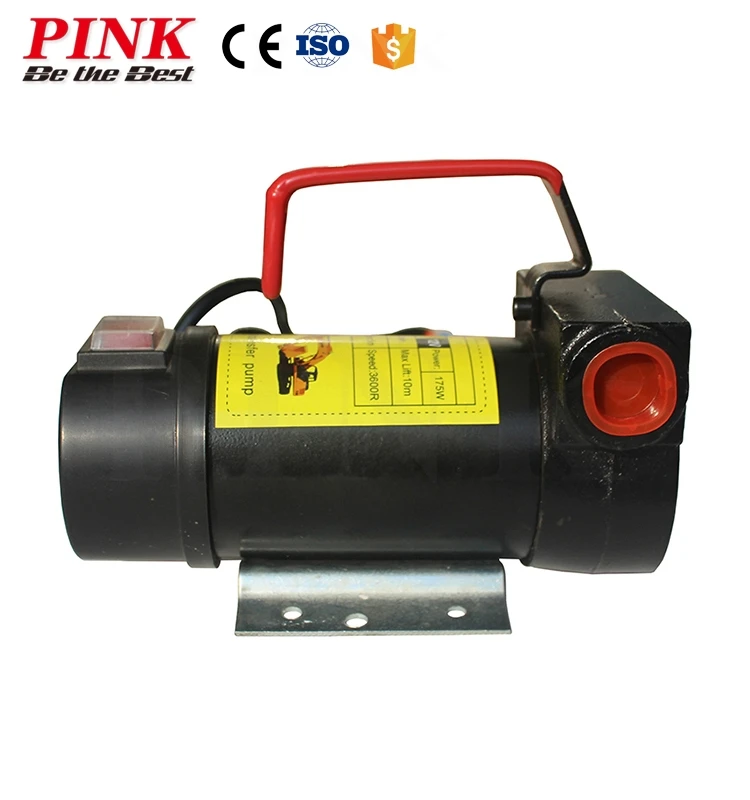

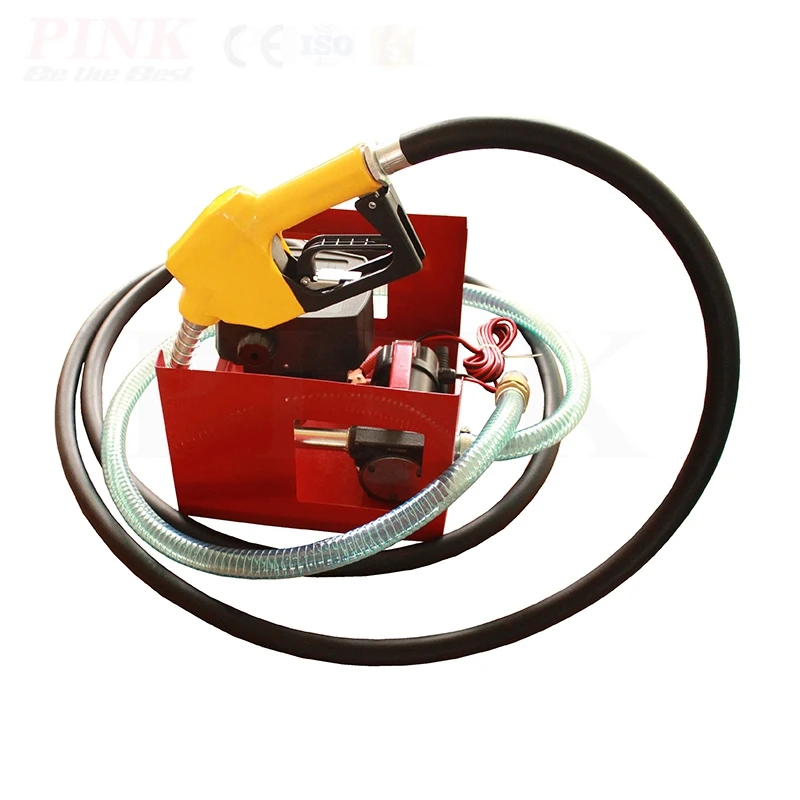

Diesel Fuel Transfer Oil Pump
- Category: >>>
- Supplier: Jiaxing Pink Electronic Technology Co. Ltd.
Share on (62209641978):
Product Overview
Description
Product Description
Diesel Transfer Pump Product Features:
1.Flow rate:30,45,20-60L/Min
2.Working Power:120,150,175,550,600,750W
3.Discharge:60L/min
4.Suction Distance:3,5m
5.Lift Distance:7,10m
6.Application:Diesel, Kerosene
7.Certificate:CE
Diesel Transfer Pump Details & Function:
1.Our Diesel Transfer Pump is used for pumping and delivering oil. This pump has the characteristics of light weight, easy oil pumping, simple installation and high durability and so on.
2.Improved Technology, high quality & reliability, popular design, durability and usability.
3.Our oil pump is made of cast iron, it passed the strict aseismatic anti-scar performance tests, you could use it to transfer diesel oil and oil with similar specs.
4.Our Diesel Transfer Pump is applicable to be in farms, construction sites, oil warehouse, field-working vehicles, industries and home use.
| Model | Product Name | Specification | Packing Size(cm) | G.W/N.W (kg) | PCS/CTN | 20´GP(pcs) |
| NEDLP-01 (CE) | Diesel Pump | Voltage:12v/24v Power:175w Flow:45l/Min Suction:5m; Lift:10m Application:Diesel, Kerosene | 59*52*21 | 24/23 | 6 | 2418 |
| NEDLP-02 (CE) | Diesel Pump | Voltage:12V/24V Power:155W/180W Flow:50l/Min Suction:5m; Lift:10m | 23*16*18 | 4/3.5 | 1 | 3925 |
| NEDLP-03 (CE) | Diesel Pump | Voltage:12v/24v Power:175w Flow:45l/Min Suction:3m; Lift:7m Application:Diesel, Kerosene | 59*52*21 | 24/23 | 6 | 2418 |
| NEDLP-04 (CE) | Diesel Pump | Max flow rate: 60L/min Working flow: 48-56L/min; RPM: 2800 Voltage: 12v, 24v; Power: 200w Ampere:19-20A; Max Pressure:3bar Suction Length: 5m Explosion-Proof: IP54 | 42*31.5*41 | 21/20 | 4 | 1916 |
| NEDLP-05 (CE) | Diesel Pump | Voltage:12v/24v Power:150w Flow:30l/Min Suction:2m; Lift:3m Application:Diesel, Kerosene | 59*52*21 | 24/23 | 6 | 2418 |
| NEDLP-06 (CE) | Diesel Pump | Voltage:12v/24v Power:120w Flow:30l/Min Suction:2m; Lift:3m Application:Diesel, Kerosene | 65*39.5*17.5 | 20/19 | 8 | 4624 |
| NEDLP-07 (CE) | Diesel Pump | Voltage:12v/24v Power:175w Flow:45l/Min Suction:3m; Lift:7m Application:Diesel, Kerosene | 75*37.5*19.5 | 15/14 | 2 | 948 |
| NEDLP-08 (CE) | Diesel Pump | Voltage:12v/24v Power:175w Flow:45l/Min Suction:3m; Lift:7m Application:Diesel, Kerosene | 75*37.5*19.5 | 15/14 | 2 | 948 |
| NEDLP-09 (CE) | Diesel Pump | Voltage:Ac 220v-240v Power:550w Flowing:60l/Min Suction:5m; Lift:10m Application:Diesel, Kerosene | 76*38.5*22.5 | 27/26 | 2 | 788 |
| NEDLP-10 (CE) | Diesel Pump | Voltage:12v/24v Power:175w Flow:45l/Min Suction:3m; Lift:7m Application:Diesel, Kerosene | 42.5*33.5*32 | 14/13 | 1 | 577 |
| NEDLP-11 (CE) | Diesel Pump | Voltage:220V Power:550W Flow:20L-60L/Min Application:Diesel, Kerosene | 41*36*33 | 16/14.5 | 1 | 533 |
| NEDLP-12 (CE) | Diesel Pump | Normal Pistol Voltage:220V Working Power:550W Max Power:600W Discharge:60L/min Suction Distance:5m Lift Distance:10m | 42.5*33.5*32 | 18/17 | 1 | 577 |
| NEDLP-13 (CE) | Diesel Pump | Automatic Pistol Voltage:220V; Material:Cast iron Motor coil material: Full copper; Working Power:550W; Max Power:600W Load current:2.5Amps; Inlet dia.:25mm Outlet diameter: 25m; Flowing: 60L/min Head:10m; Suction:5m; Cable:2m; Self-Priming:Yes; Impeller: Cast iron | 42.5*33.5*32 | 18/17 | 1 | 570 |
| NEDLP-14 (CE) | Diesel Pump | Voltage:12V/24V Flow Rate:0-40L/min Power:150W; Max Pressure:3 bar; Delivery Hose: 4m; Suction Hose:1.5m Suction Length: 4m; with automatic nozzle, brass fliter, FM-120-2 flow meter | 42*38*35 | 15/14 | 1 | 465 |
| NEDLP-15 (CE) | Diesel Pump | Voltage:220V Power:600W Flow:40L/Min Inlet/Outlet:1 inch Max Pressure: 3 bar Application:Diesel, Kerosene | 46*28*45 | 13.5/12 | 1 | 448 |
| NEDLP-16 (CE) | Diesel Pump | Voltage:220V Power:600W Flow:40L/Min Inlet/Outlet:1 inch Max Pressure: 3 bar Application:Diesel, Kerosene | 46*28*45 | 13.5/12 | 1 | 448 |

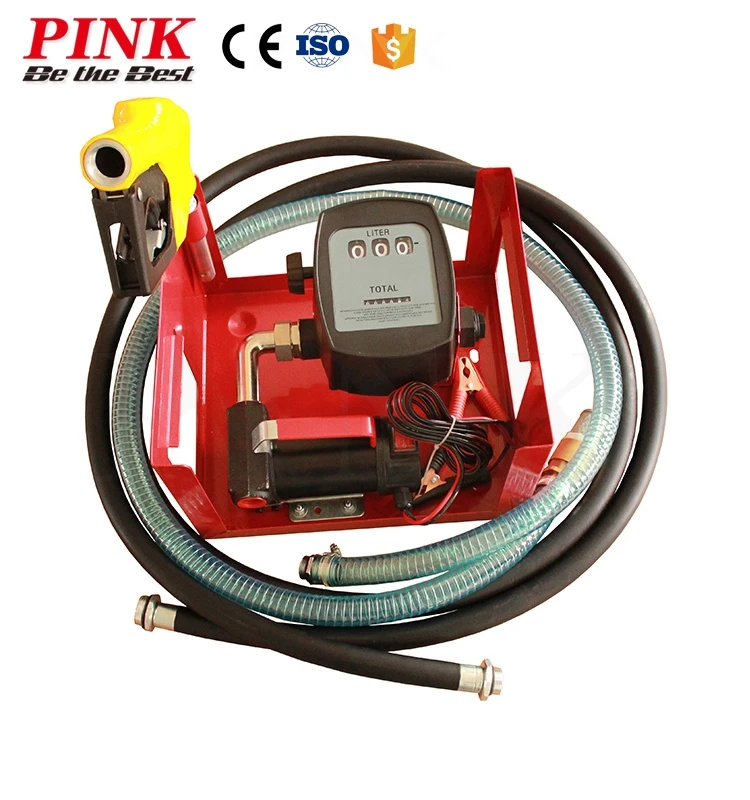

| NEDLP-17 (CE) | Diesel Pump | Voltage 24v, 12v Flow rate:0-40L/min; Power:150w Max pressure: 3 bar 4m Delivery hose and 1.5m suction hose Suction Length: 4m Shelf pump with manual nozzle, PE fliter, aluminium connectors, with red meter | 46*29*43 | 16/15 | 1 | 453 |
| NEDLP-18 (CE) | Diesel Pump | Voltage 220v Flow rate:0-40L/min; Power:150w Max pressure: 3 bar 4m Delivery hose and 1.5m suction hose Suction Length: 4m Shelf pump with manual nozzle, PE fliter, aluminium connectors, with red meter | 46*29*43 | 16/15 | 1 | 453 |
| NEDLP-19 (CE) | Ex-proof Pump | Voltage 12V; Power 185 W Flow Rate 30-75 L/min Inlet / Outlet 1 inch BSP Tank fitting 2 inch BSP Duty Cycle 30 mins Hose Length 4 meters Includes 1" manual nozzle Rain, Water proof | 37*33*29 | 10/9.5 | 1 | 734 |
| NEDLP-20 (CE) | Diesel Pump | Refueling mechanical diesel dispenser C/w 12V 220v pump, 2m suction hose 4m delivery hose, closed metal case On/Off switch with nozzle holder Meter accuracy: ±1% 4 large digits subtotal resettable 8 digits total readout | 44*41*42 | 24/23 | 1 | 343 |
Company Information
Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.
We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.
Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.
Packaging & Shipping
FAQ
If you are interested in our Diesel Transfer Pump, please don't hesitate to contact us.
