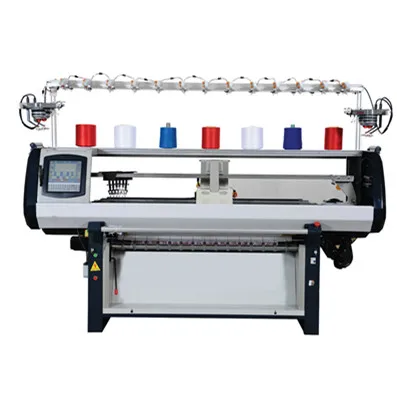

2019 Automatic Shima Seiki Computerized sweater Flat Knitting Machine

Share on:

Price in USD:Details


Product Overview


Product Description

     Single sysetem with single carriage series are used digital technology to achieve the patterns of transfer, tuck, pointel, jacquard, apparent shape, hidden shape, and other regular pattern knitting functions. It is suitable for woven sweaters, scarves, hats and clothing accessories for silk, spun silk, synthetic yarn, wool, acrylic fibers, blending, yarn and other raw materials. This model adopts Hengqiang/Raynen integrated software, equipped with small carriage and fast rotation technology, which greatly shortens the weaving time. the efficiency of single-sided machiane is 15% higher than that of previous single machine.

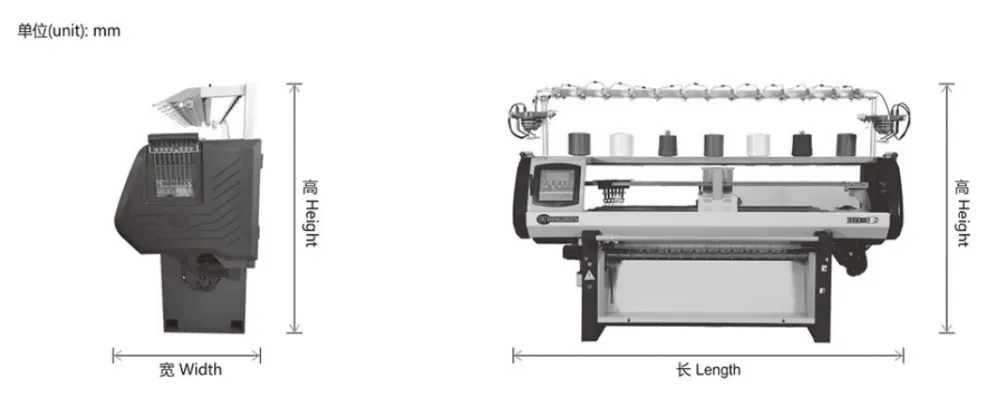

Knitting size:
Net weight(kg):
Knitting speed:
max knitting speed 1.4m/s, 32speed sections controlled by servo motor

Product Details

Touch Screen

        Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of lines of complex patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn and understand.

Feed yarn device

      Positive Yarn feeder could reduce resistance while the yarn is moving, is especially suitable for fabric with low elasticity and brittleness such as cashmere yarn, rabbit hair yarn, to make the fabric even and improve knitting efficiency.

Yarn carrier

      The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position of the yarn nozzle.

Infrared probe alarm device

      The probe alarm device breaks through the characteristics of the flat knitting machine in which the probe only swings from side to side to realize its detection function. The device can make the detection function complete safe and effective, avoid the normal operation of the damaged knitting fabric, and improve the knitting quality and work efficiency.

Automatic oil supply system

      Adopt automatic oil supply system, break through the function characteristic of manual oil the device is controlled by the system to automatically oil, reduce fuel consumption, thus saving trouble lock stop manual oil brush, improve the working efficiency of the machine. At the same time, it also avoids various mechanical faults caused by lack of lubricating oil, reduce loss and improves economic efficiency.

Yarn storage device

     Yarn storage device between yarn spool and weaving system having Full-automatic and high-efficient shortens the trip of yarn prestorage function can detect broken yarn effectively, give an alarm in time and ensure the quality of fabrics farthest.

Knitting Sample Show

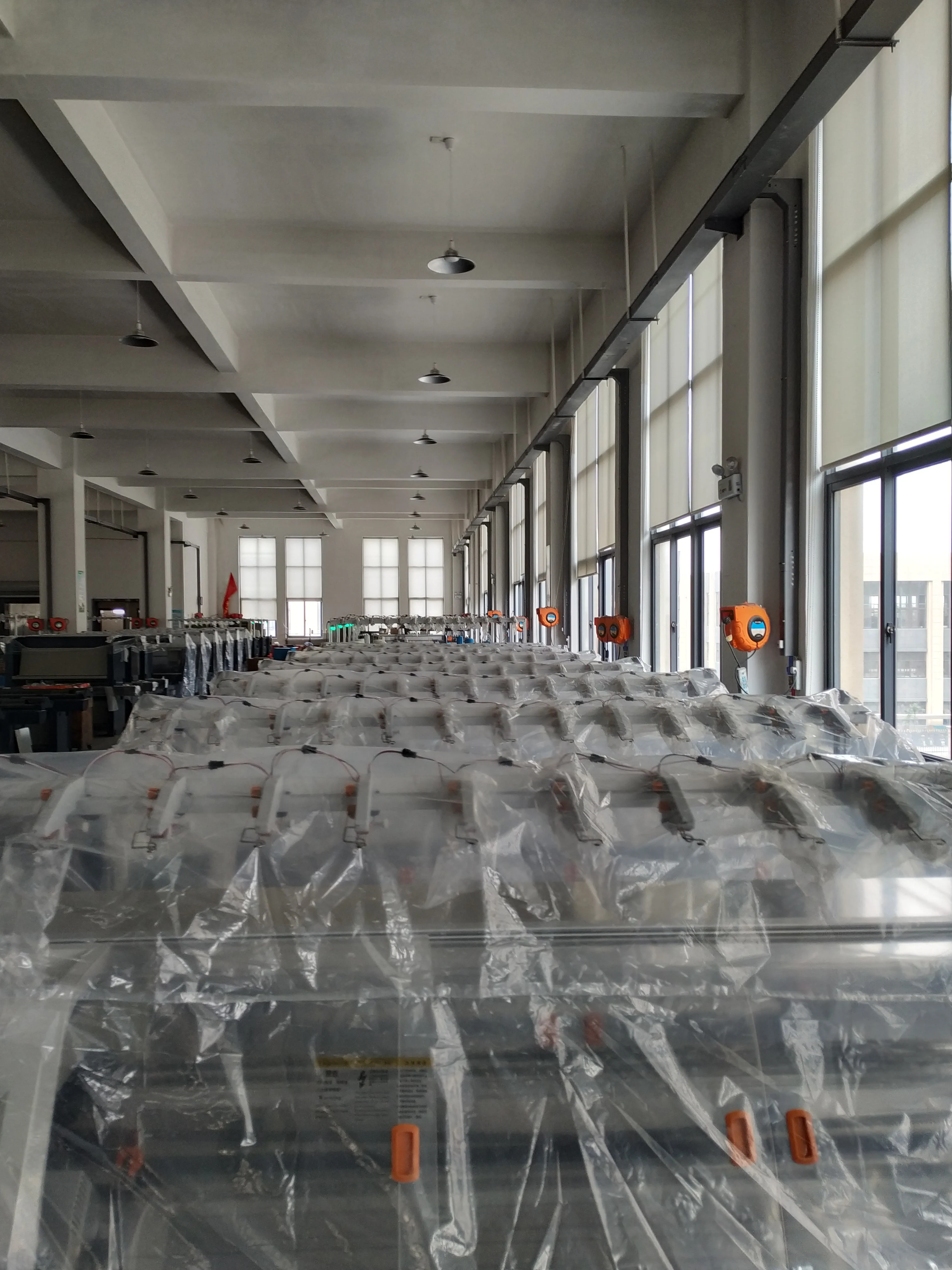

Packing and deliver

Payment method

Contact us and we choose the  most reasonable one !
