Name: CNC PCBN CBN cutting tools Solid CBN insert RNMN RNGN
SKU: 62209838756
Price: $11.80 - $12.50 USD
Availability: InStock

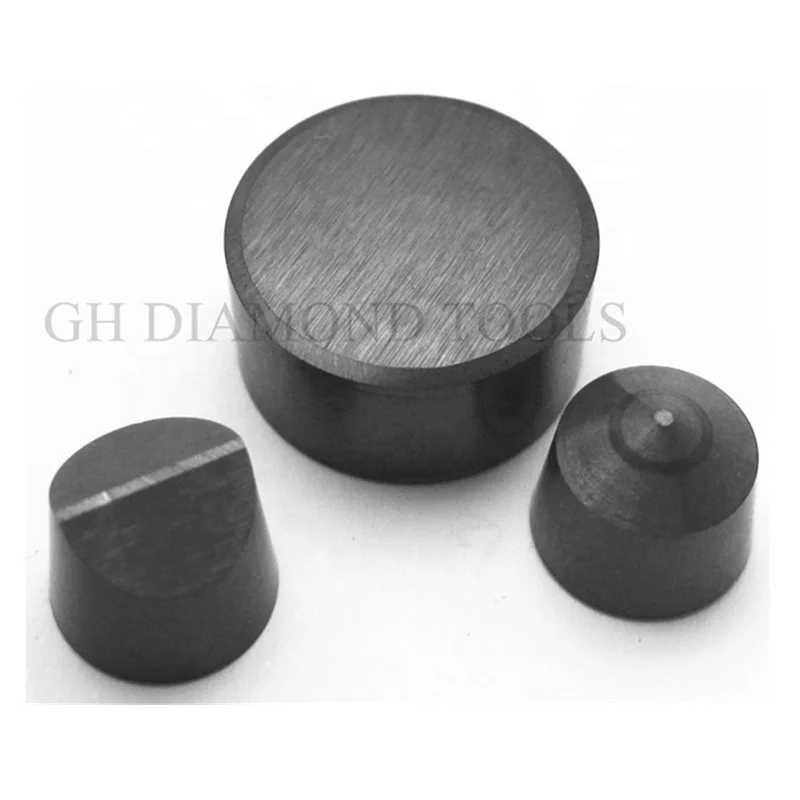

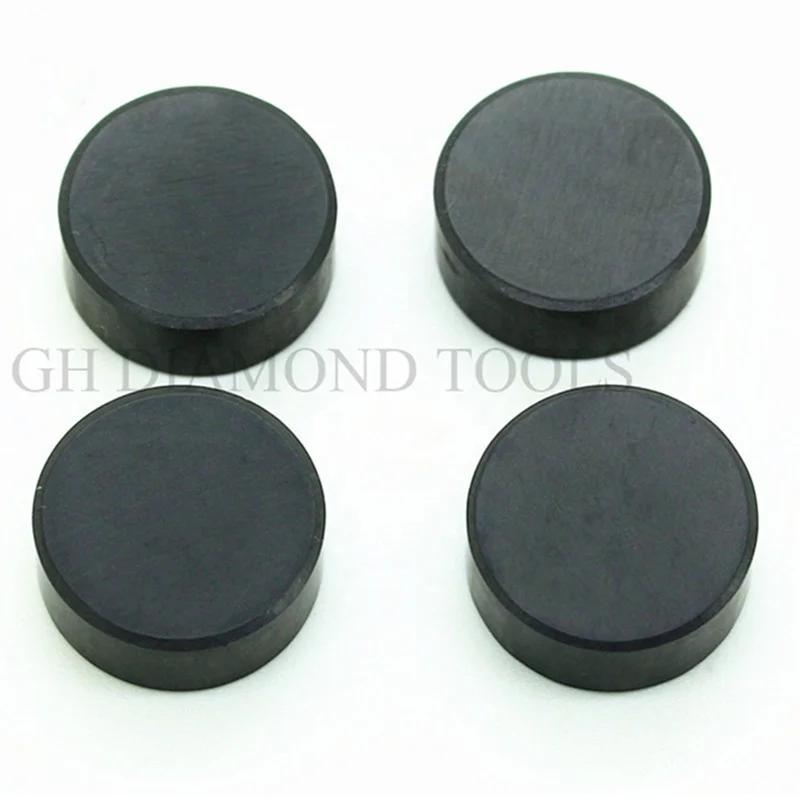

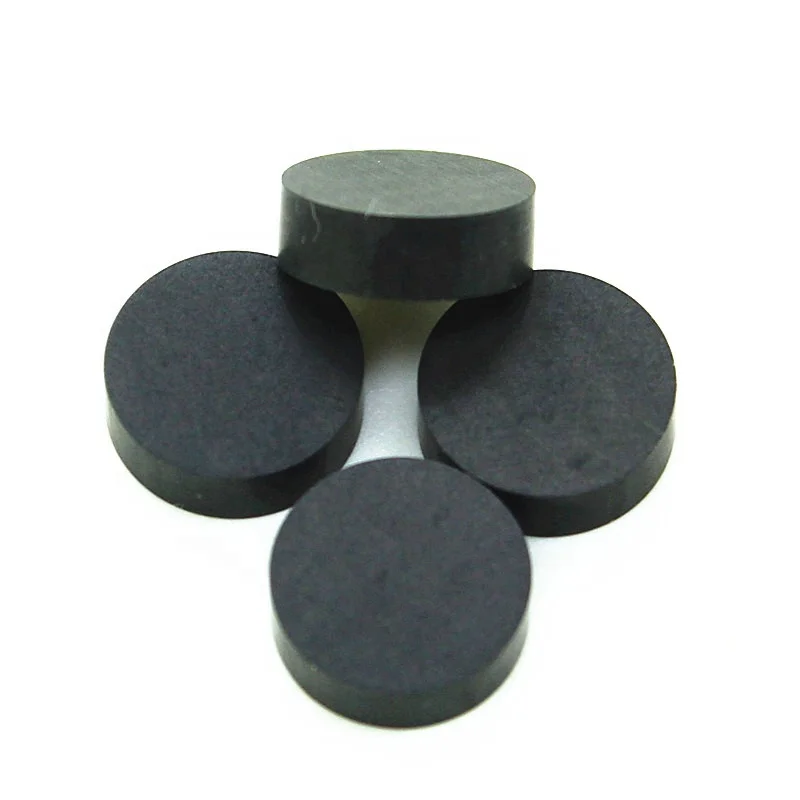

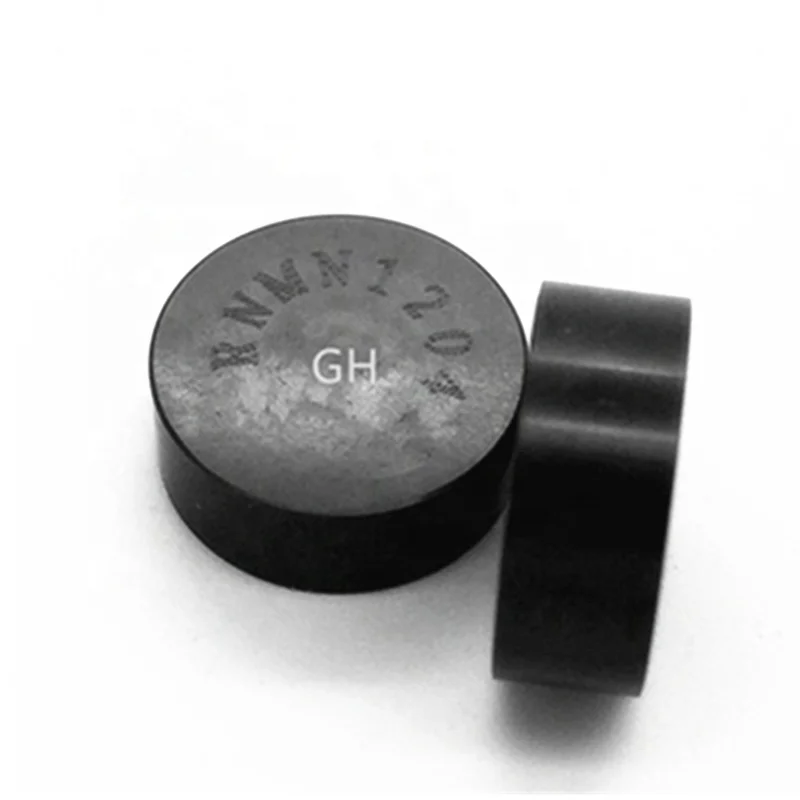

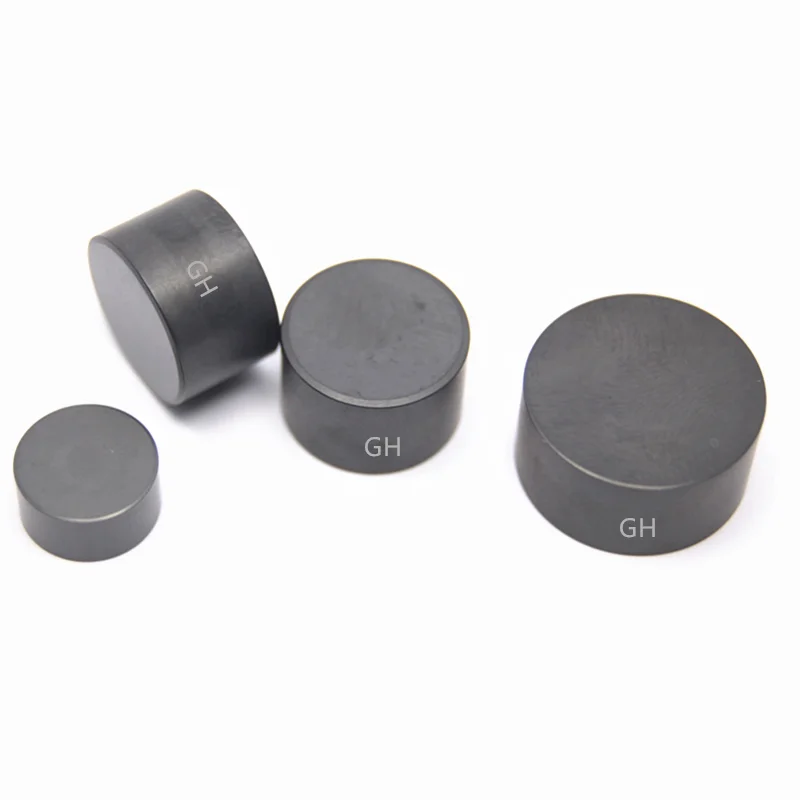

CNC PCBN CBN cutting tools Solid CBN insert RNMN RNGN

CNC PCBN CBN cutting tools Solid CBN insert RNMN RNGN for Roller Roll

Product Description

PCBN

Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase.

Application:

PCBN/CBN cutting tools are suitable for the high-speed and super high-speed precision machining of hardened steel of HRC>45, wear-resistant cast iron, heat-resistant alloys of HRC>35, pearlite grey cast iron, nodular cast iron, Fe-based P/M sintered materials and hardened cast iron.

Product Display

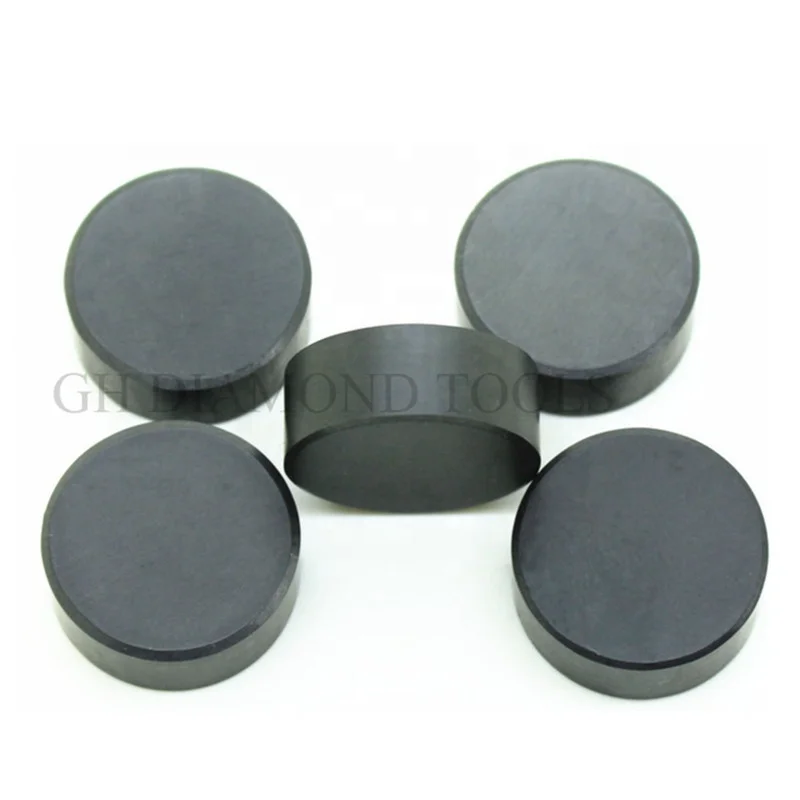

DIAMOND INSERT rnmn 20 (2)_.jpg DIAMOND INSERT RNMN.jpg

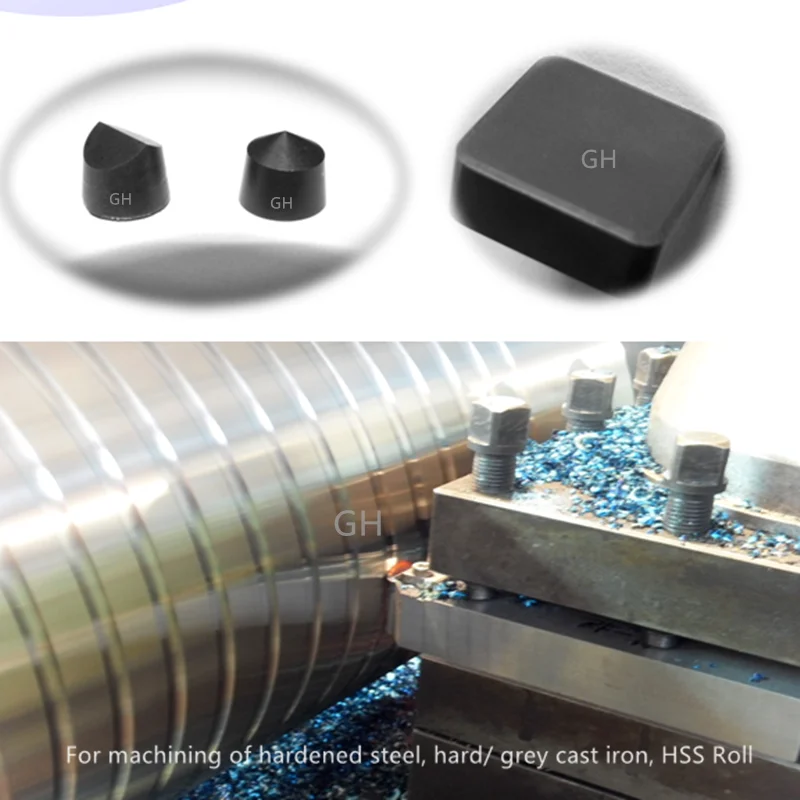

Solid CBN RCMX SNMN 104155

PCBN Recommended Cutting Condition
PCBN Recommended Cutting Condition
Work piece	Cutting method	Cutting speed	Feed	Depth of cut
		(m/min)	Turning (mm/rev)	(mm)
			Milling (mm/tooth)
Gray cast iron	Turning	400~1000	0.15~0.40	0.12~2.00
(180~230HB)	Milling	400~1000	0.15~0.30	0.20~2.00
Chilled cast iron	Turning	75~150	0.15~0.30	0.12~2.00
(400HB)	Milling	120~240	0.15~0.30	0.20~2.00
Hardened steel	Rough turning	60~140	0.15~0.40	0.70~2.50
(>HRC 45)	Finish turning	100~140	0.10~0.20	0.12~0.75
	Milling	120~240	0.10~0.25	0.12~1.00
Supper alloy	Turning	100~240	0.05~0.30	0.10~2.50
(HRC35)	Milling	100~240	0.10~0.40	0.10~1.00
Sintered metal	Turning	90~180	0.05~0.20	0.10~1.00
Sintered metal	Milling	100~240	0.05~0.20	0.10~1.00
DCI roll, HSS roll	Turning	45~60	0.60~0.80	2.00~4.00

Packaging & Shipping

BOX

Company Information

GH Diamond Tools Co., LTD specializes PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools.

Main Products: PCD insert,PCBN Inserts,PCBN &PCD Turning and Milling Tools.PCD woodworking cutter ,Diamond Wire Drawing Die Blanks. Diamond Glass Scribing Wheel And axle.

We could maketools in accordance with your drawing or specifications.

We serve from start to finish

Thank you very much for viewing this page, and wish you a nice day!
